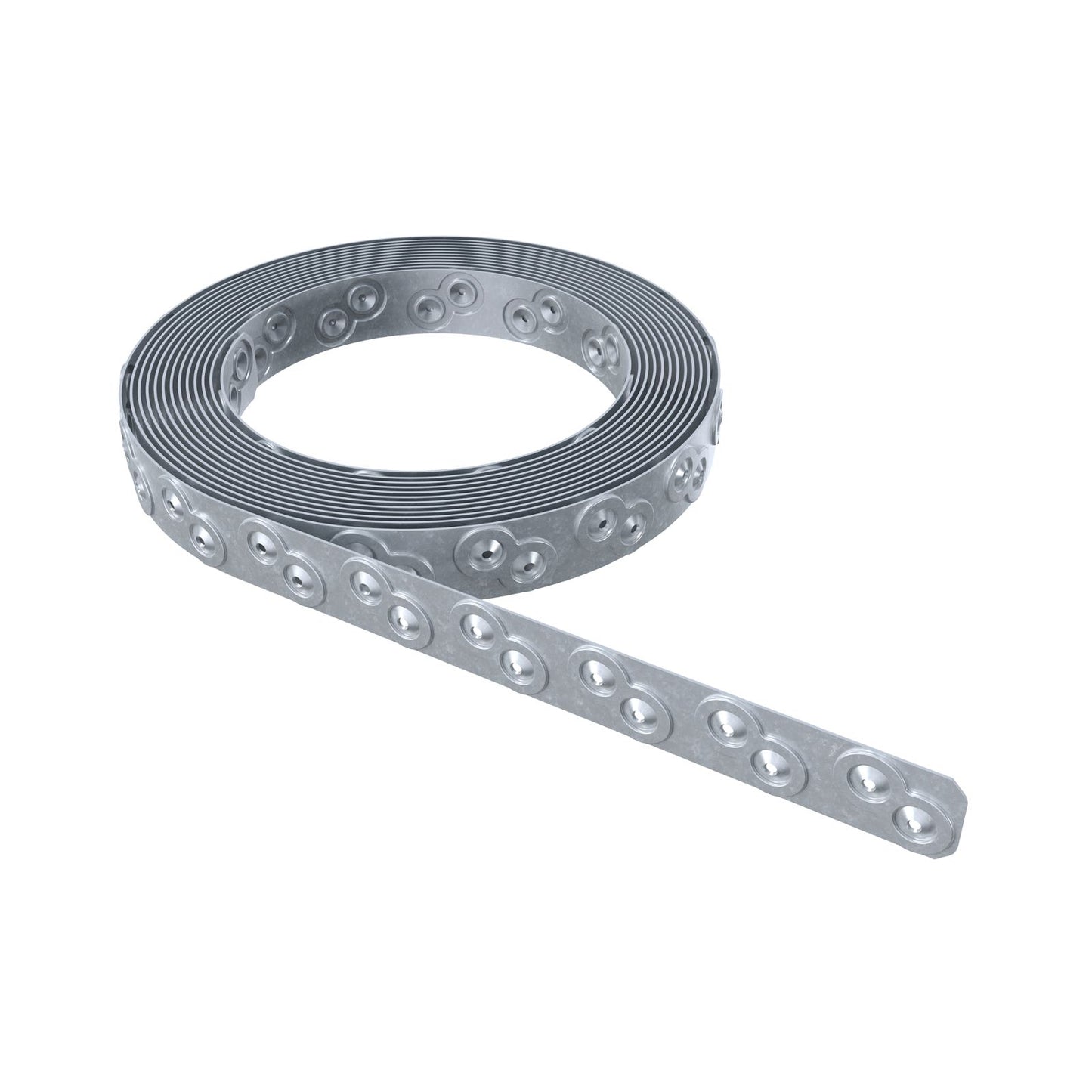

Simpson CSHP20 20 Gauge 75 Ft. Coiled Strap - G90 Galvanized

SKU: CSHP20
$67.40
The new Simpson CSHP20 20 gauge high performance coiled straps feature raised embossments that are designed for easier installation with standard pneumatic framing nailers. This new design requires fewer nails and shorter straps which lowers overall installed cost.
Installation:
  • Use all specified fasteners

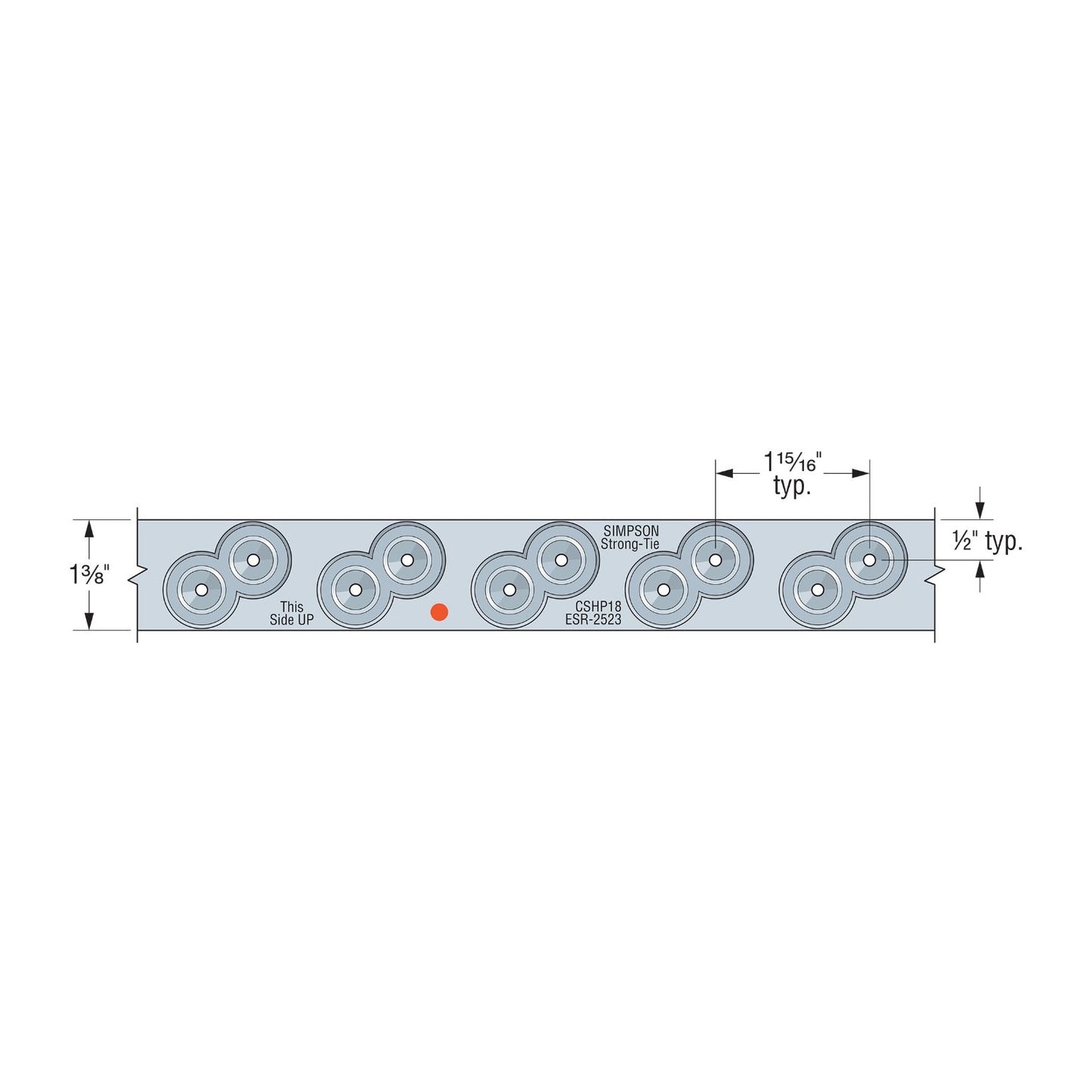

  • The colored dot must be installed facing out.
  • Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
  • Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
  • The table shows the maximum allowable loads and the nails required to obtain them. Fewer nails may be used; reduce the allowable load as shown in the table notes.

  • This product is compatible with many power framing nailers and nails.
  • Use only nails with concentric, full-round heads that comply with ASTM F1667.
  • Do not use 28° wire-weld nails, or any nails with offset, clipped, or D heads.

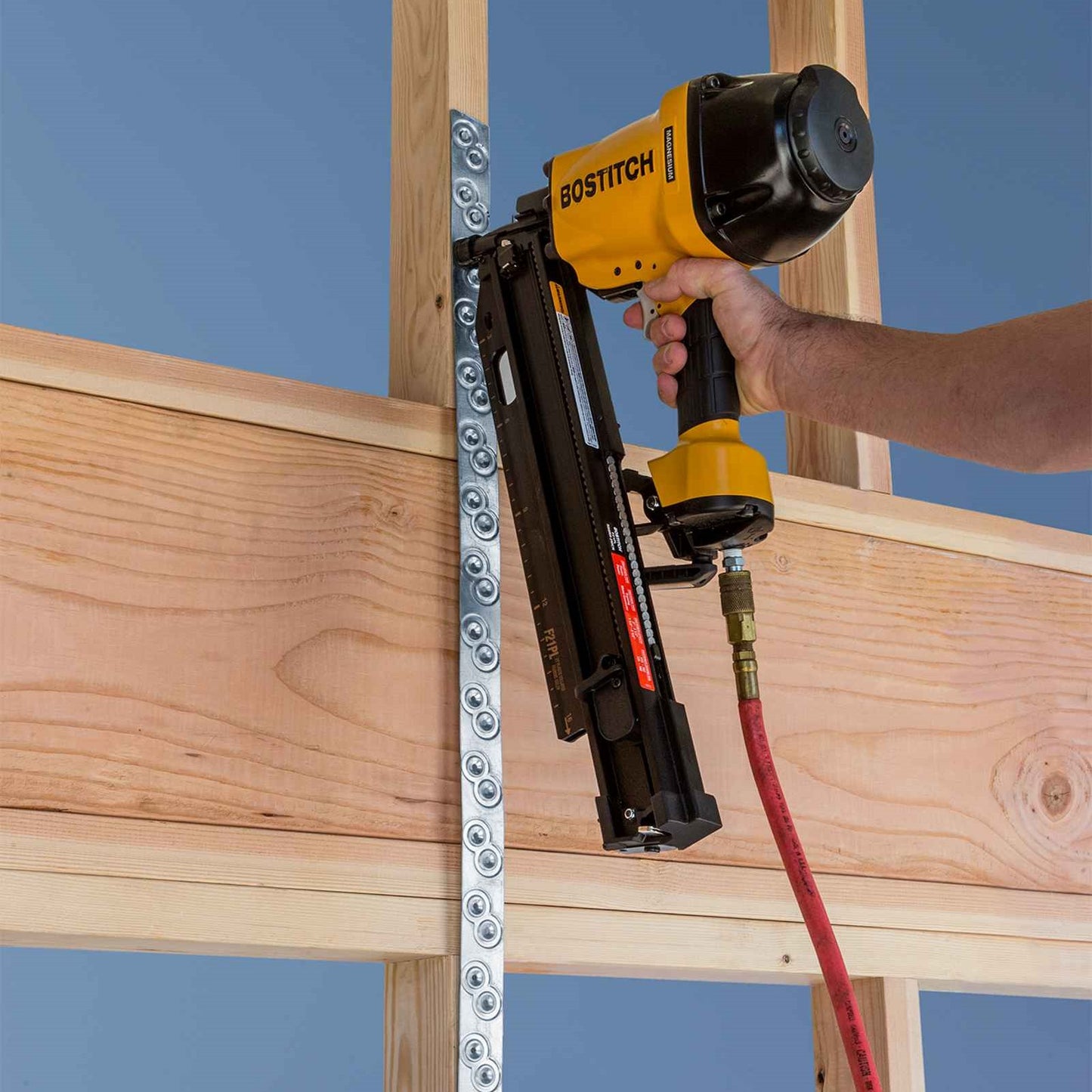

  • Place the tool's nosepiece in the CSHP fastener feature. The outer ring of the power framing nailer nosepiece should fit within the outer ring of the fastener feature. Install a few nails to ensure nail install acceptance. The nail should be seated into the center of the CSHP fastener feature. Adjust air pressure or drive depth to achieve the correct nail placement. Operate framing nailers in single-drive, sequential-actuation mode only. Do not overdrive nails.

  • This product is not compatible with all pneumatic framing nailers and nails. Do not use any tool that has been altered or modified. Before using the CSHP with any power framing nailer, you must determine whether the nailer is compatible with the CSHP product. If the nail is unable to be installed in accordance with the information above, or if the nail is not centered in the fastener feature, do not use that power framing nailer with the CSHP product. Wear eye and hand protection. Follow the manufacturer’s safety precautions when using any power nailer.

California Residents: WARNING

The new Simpson CSHP20 20 gauge high performance coiled straps feature raised embossments that are designed for easier installation with standard pneu...

Read More

The new Simpson CSHP20 20 gauge high performance coiled straps feature raised embossments that are designed for easier installation with standard pneumatic framing nailers. This new design requires fewer nails and shorter straps which lowers overall installed cost.
Installation:
  • Use all specified fasteners
  • The colored dot must be installed facing out.
  • Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
  • Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
  • The table shows the maximum allowable loads and the nails required to obtain them. Fewer nails may be used; reduce the allowable load as shown in the table notes.

  • This product is compatible with many power framing nailers and nails.
  • Use only nails with concentric, full-round heads that comply with ASTM F1667.
  • Do not use 28° wire-weld nails, or any nails with offset, clipped, or D heads.
  • Place the tool's nosepiece in the CSHP fastener feature. The outer ring of the power framing nailer nosepiece should fit within the outer ring of the fastener feature. Install a few nails to ensure nail install acceptance. The nail should be seated into the center of the CSHP fastener feature. Adjust air pressure or drive depth to achieve the correct nail placement. Operate framing nailers in single-drive, sequential-actuation mode only. Do not overdrive nails.

  • This product is not compatible with all pneumatic framing nailers and nails. Do not use any tool that has been altered or modified. Before using the CSHP with any power framing nailer, you must determine whether the nailer is compatible with the CSHP product. If the nail is unable to be installed in accordance with the information above, or if the nail is not centered in the fastener feature, do not use that power framing nailer with the CSHP product. Wear eye and hand protection. Follow the manufacturer’s safety precautions when using any power nailer.

California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

length spec:
75'

manufacturer name:
Simpson Strong-Tie

fasteners required:
SEE PRODUCT GUIDE DOCUMENT

for treated lumber:
no

material:
Carbon Steel

thickness:
20 Gauge

width spec:
1-3/8"
