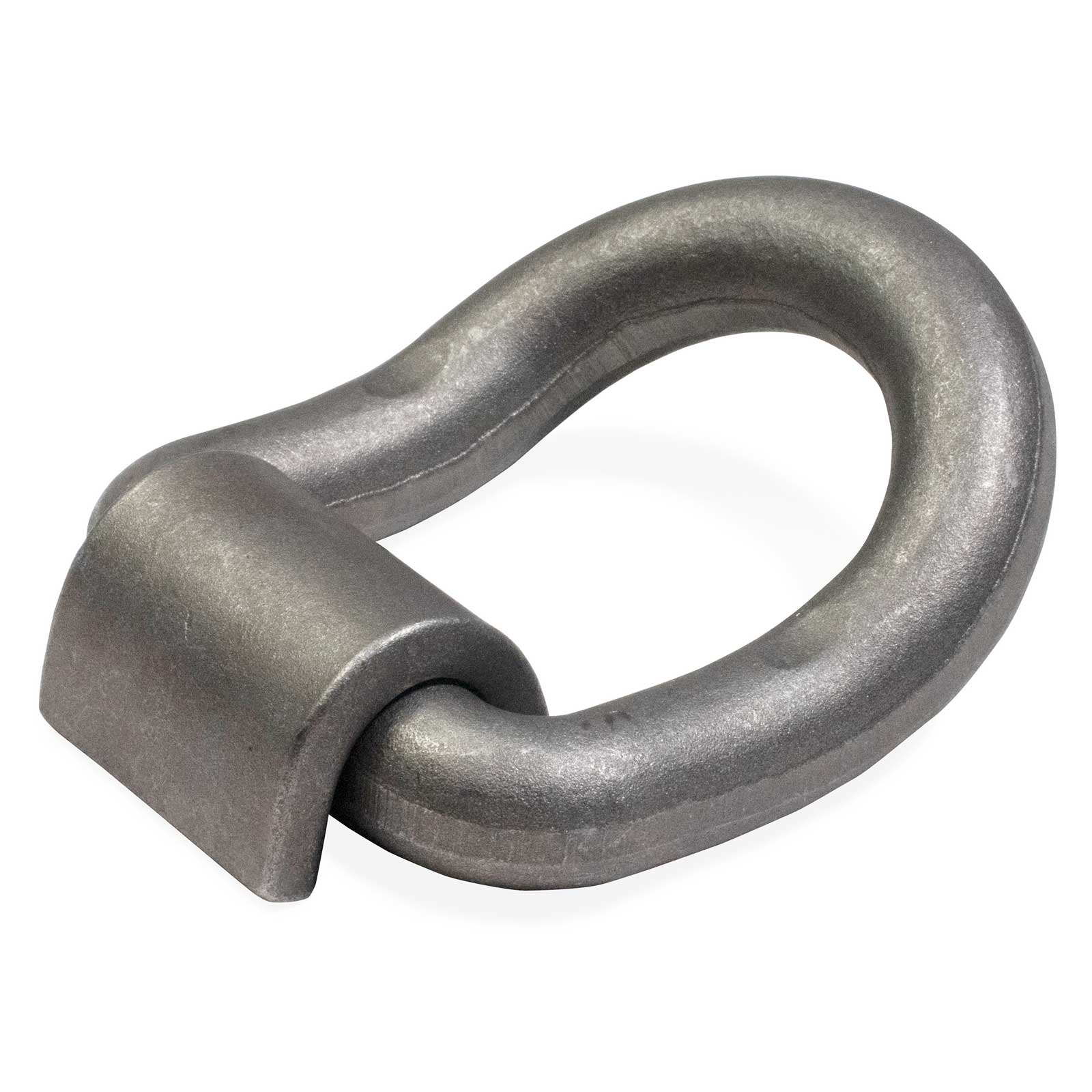

1" 45° Bent Weldable D-Ring with Mounting Clip – 47,600 lb Break Strength

The 1" 45° bent weld-on D-ring with mounting clip is designed for high-strength cargo securement on trailers and flatbeds where clearance and load angle are critical. With a 47,600 lb break strength and bent design, this D-ring lifts higher than standard models, reducing stress on your anchor point and improving tie-down geometry—especially when mounted behind a side rail.

Key Features of This Bent Weld-On D-Ring

• 47,600 lb Break Strength – Engineered for extreme-duty tie-down applications

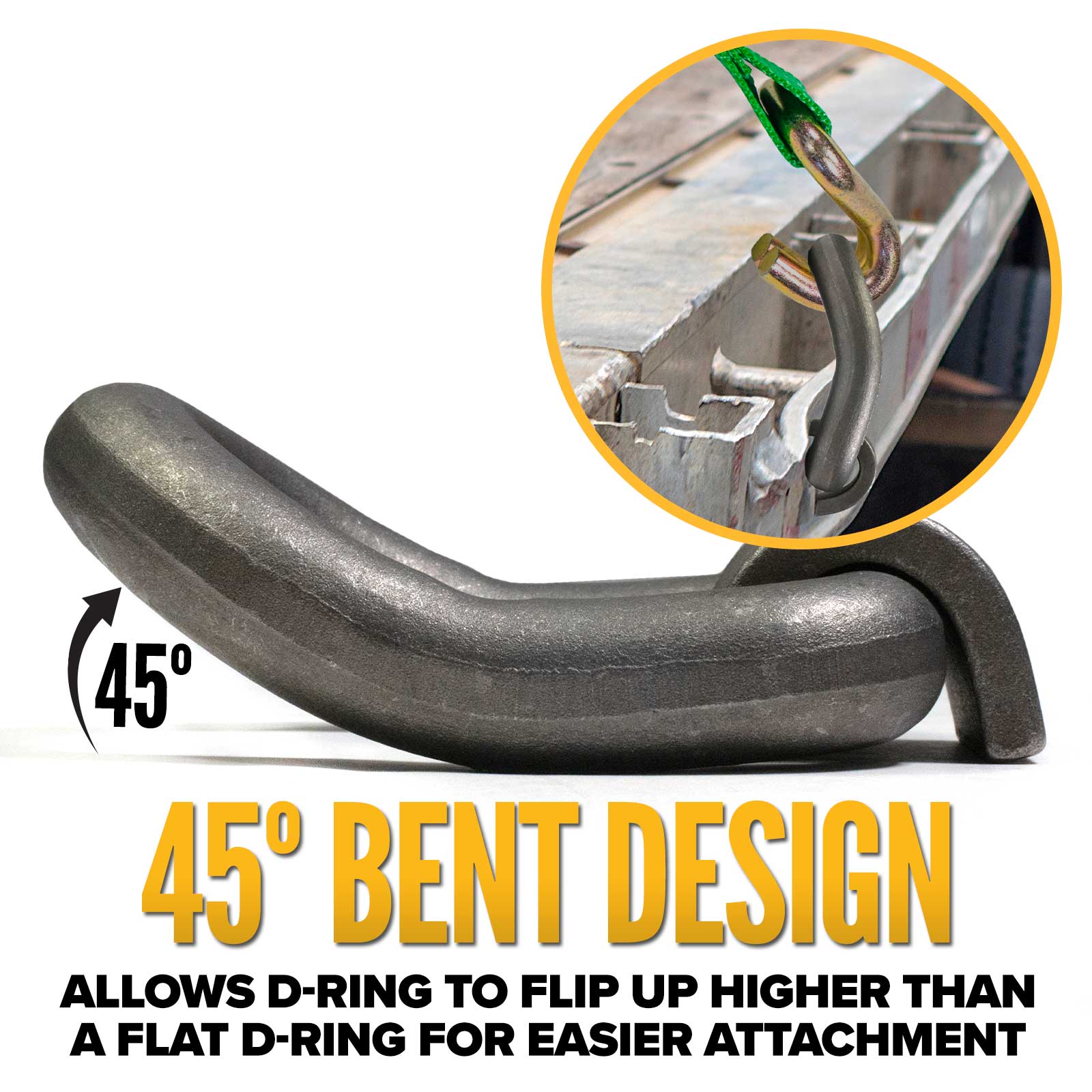

• 45° Bent Design – Lifts higher than flat D-rings for better attachment angle and reduced stress at the weld point

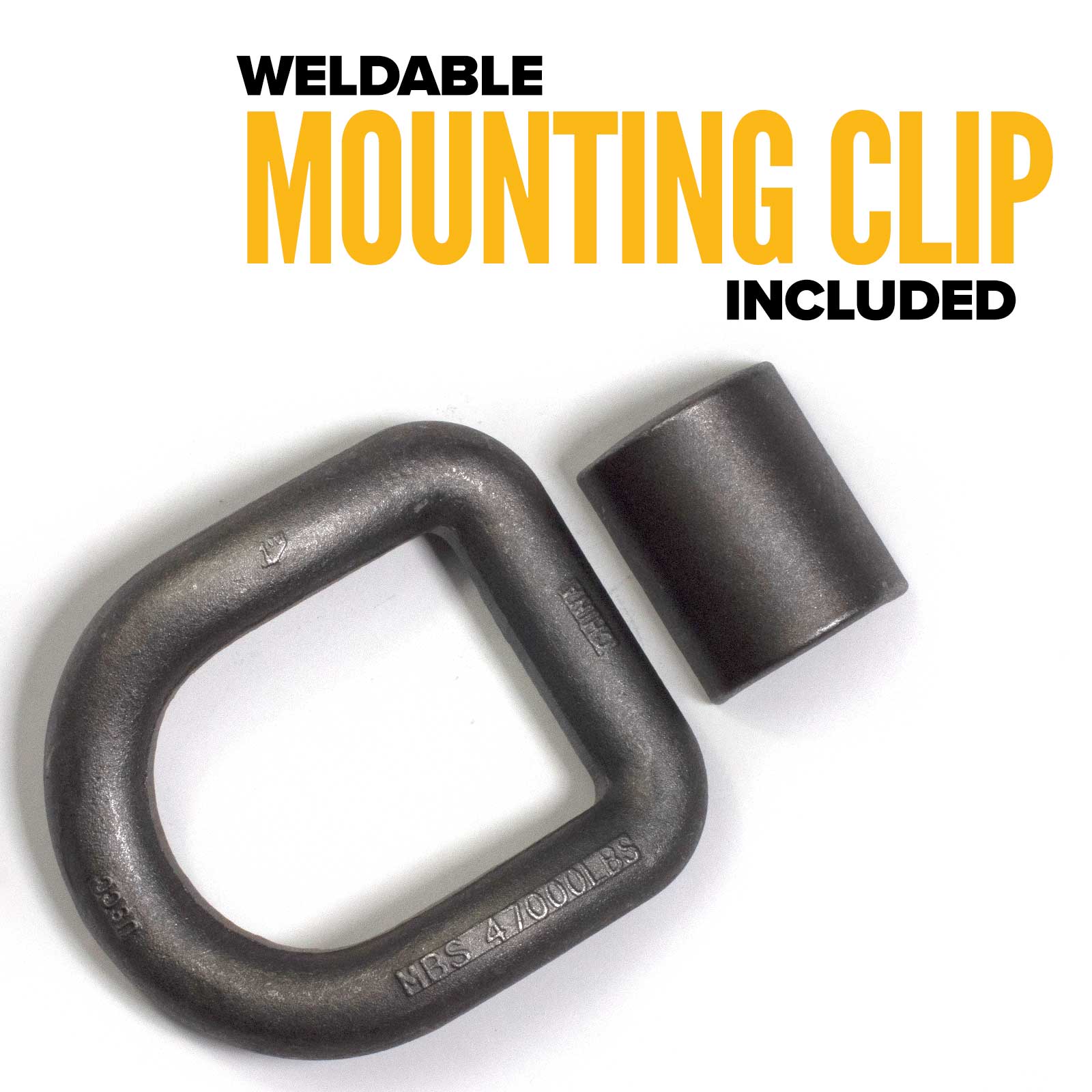

• Mounting Clip Included – Provides correct spacing and alignment for installation

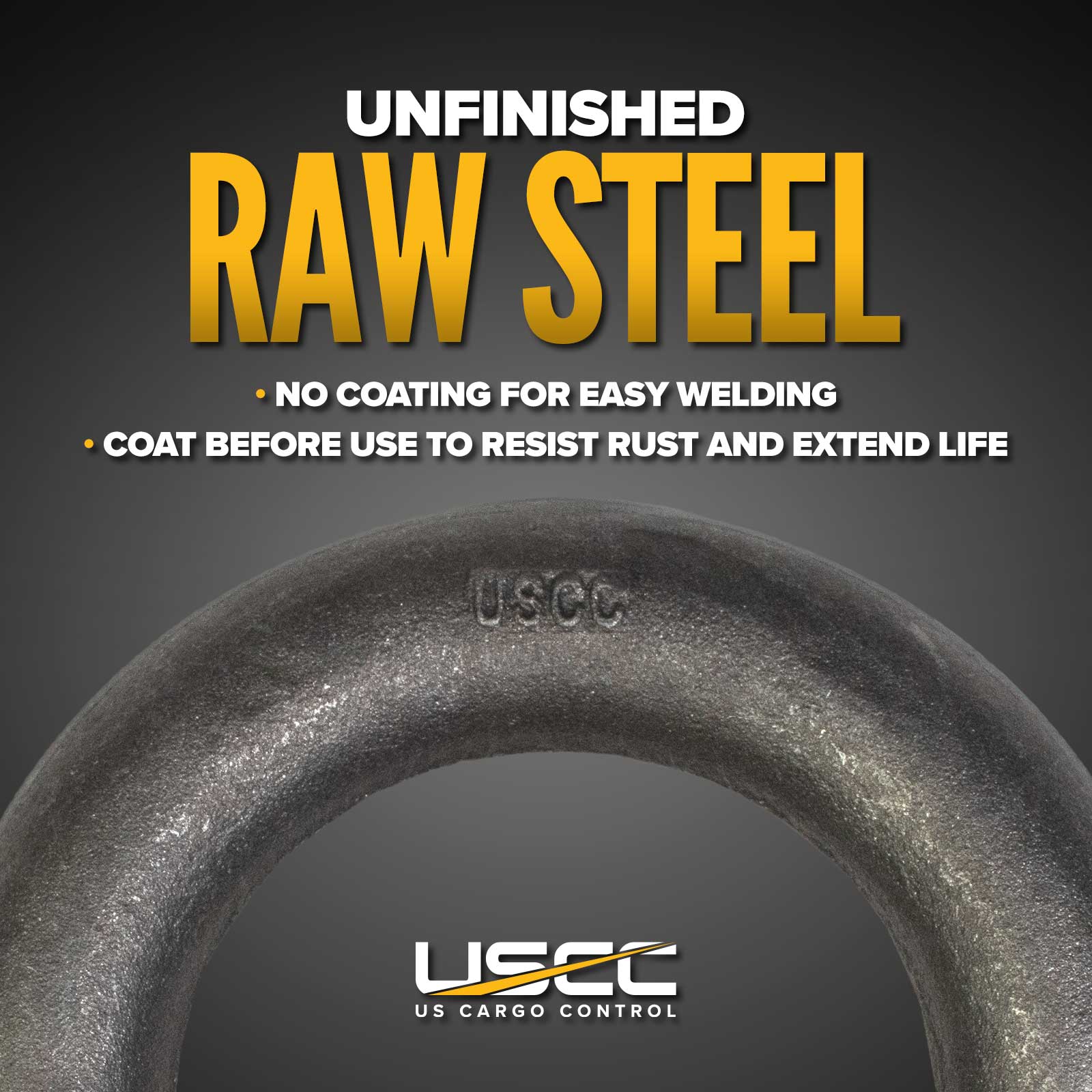

• Raw Steel Finish – Supplied uncoated for welding; should be painted, powder coated, or plated to prevent corrosion
• Embossed Break Strength – Clearly marked when installed by a qualified welder for inspection readiness
• Versatile Usage – Common in equipment trailers, heavy-haul rigs, and securement systems using transport chain

Why Choose a 45° Bent D-Ring?

Bent D-rings are ideal for trailer frames with rails that limit vertical movement. The angled design allows the ring to flip up higher, offering easier tie-down access and minimizing side pull stress on the weld or anchor point. This improves both usability and long-term durability in heavy-use environments.

Choosing and Installing Your D-Ring

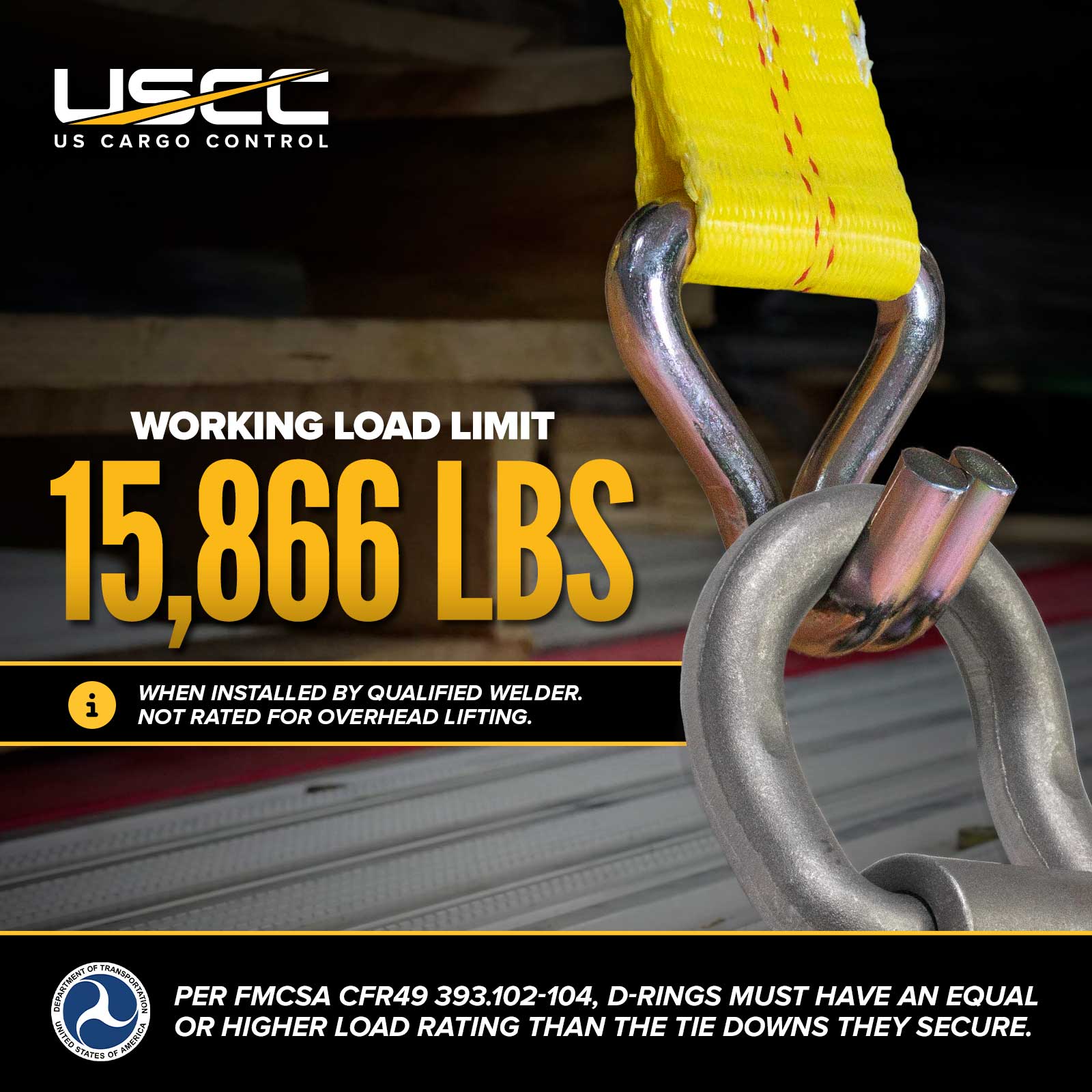

Always match your D-ring to your tie-down system's strength rating. According to FMCSA CFR49 Sections 393.102–104, anchor points must be equal to or stronger than the tie-downs they support. Ensure your tie-down hardware is compatible with the ring’s size and shape before installation.

Installation Instructions

To achieve full capacity, this D-ring must be welded by a qualified welder. Apply a rust-inhibiting finish after installation to protect the steel and extend product life.

Note: Not rated for overhead lifting.

⚠️Warning: Tie Down Hardware

Read and follow all provided instructions, guidelines, and maintenance recommendations before use.

Never exceed the maximum load capacity.

Inspect before each use for signs of deformation, corrosion, and wear, such as cuts or fraying on tie down straps or ropes. If damaged, discard and replace.

When installing, make sure that the tie down hardware is securely attached to a stable surface using appropriate hardware. For complex installations or applications requiring structural integrity, work with a qualified professional to ensure safety.

Only use tie down hardware that is appropriately-rated for the weight and size of your load.

Be careful when handling tie down hardware to prevent strains or injuries. For heavy or awkward loads, seek assistance.

Protect tie downs from potential hazards, such as sharp edges or abrasive surfaces that may damage tie down straps or ropes.

Store in a dry, clean, and dark location with regulated temperatures to extend product longevity.

Keep children and pets away from tie down hardware while being installed / in use.
