SKU: XEQ34B1016M

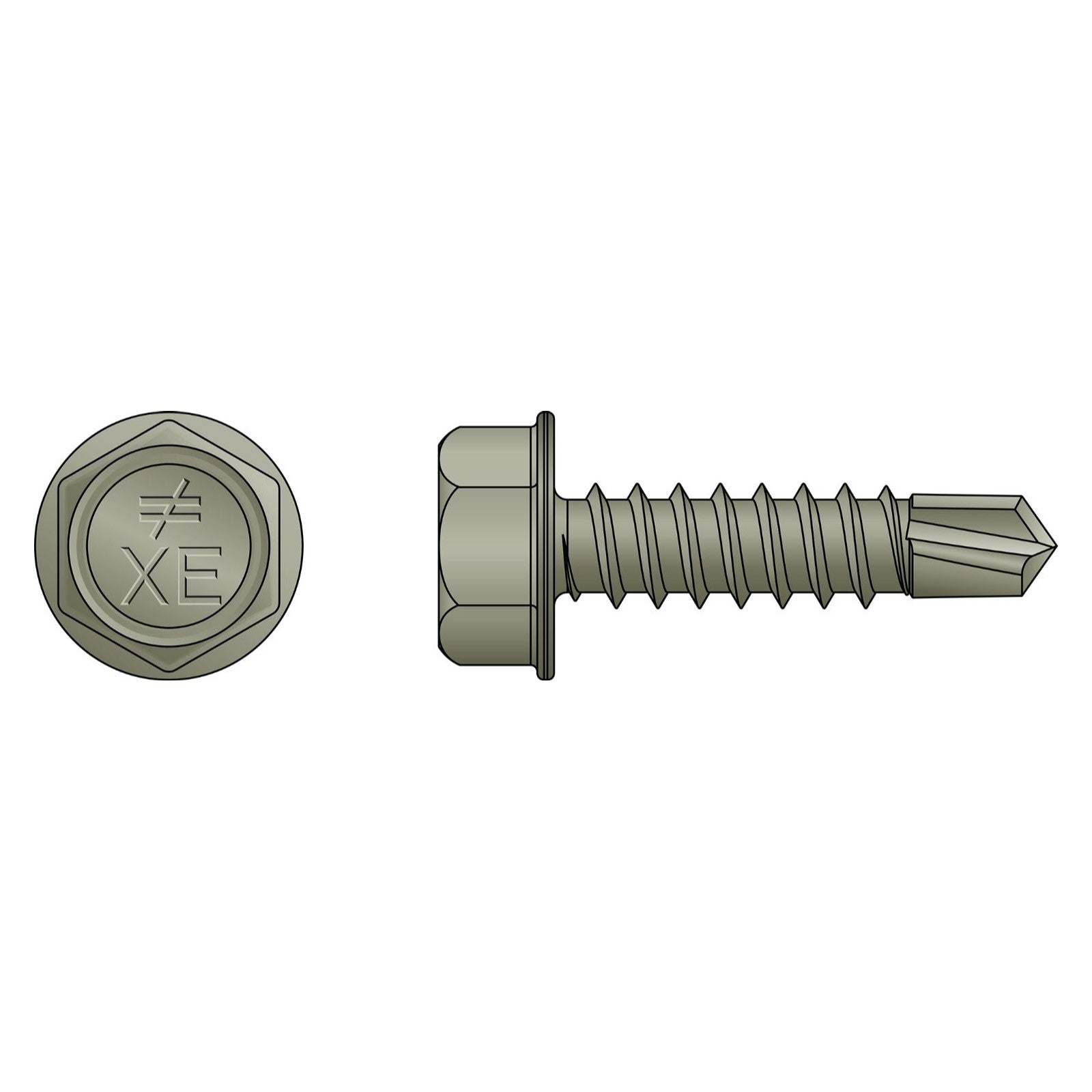

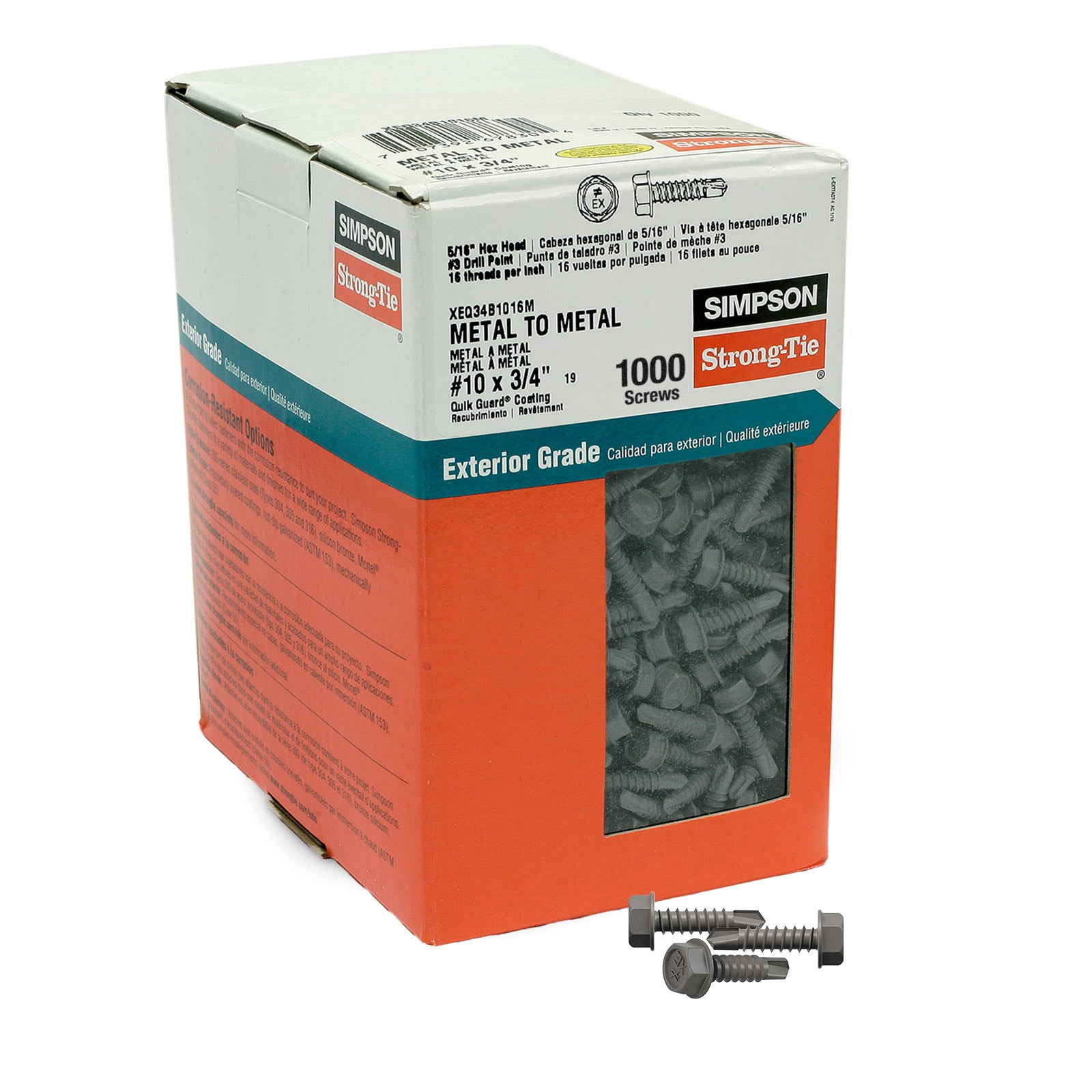

#10 x 3/4" XE Exterior Structural Metal Screw - Quik Guard Coating - Pkg 1,000

Name: #10 x 3/4" XE Exterior Structural Metal Screw - Quik Guard Coating - Pkg 1,000
Brand: Simpson Strong-Tie
SKU: XEQ34B1016M
Price: 189.99 USD
Availability: InStock

Quantities

100 1,000

$189⁹⁹

Ships in 1-2 business days.

Description

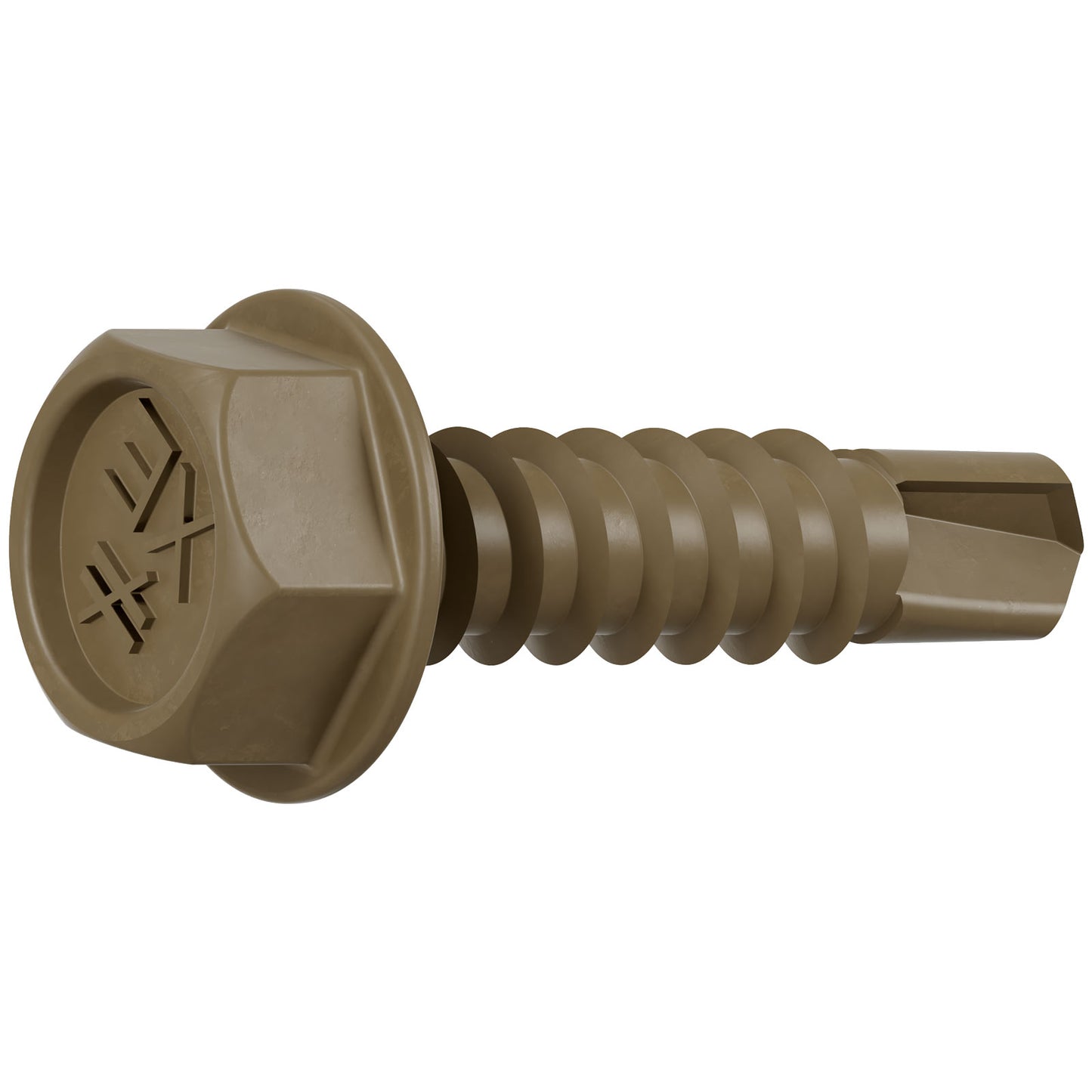

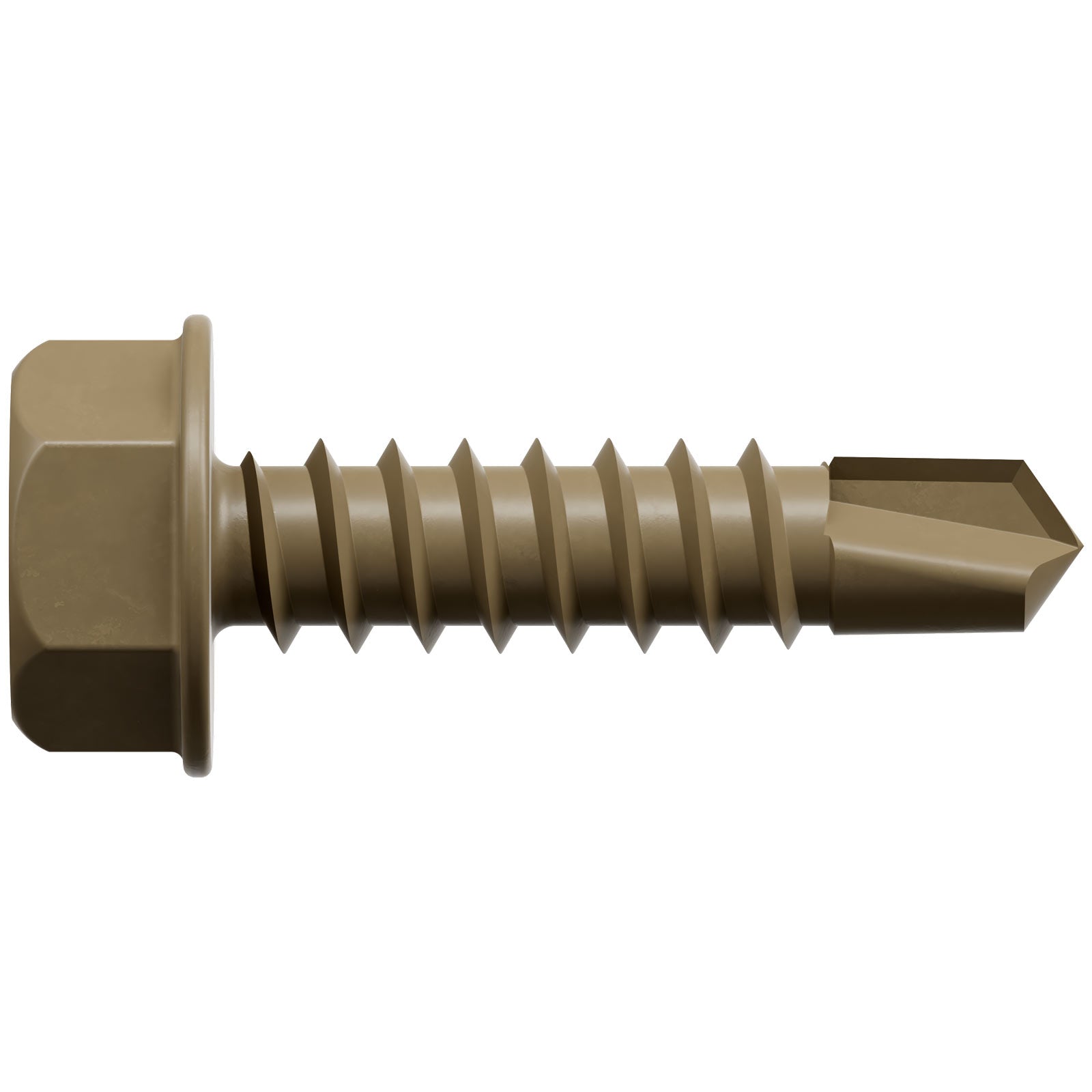

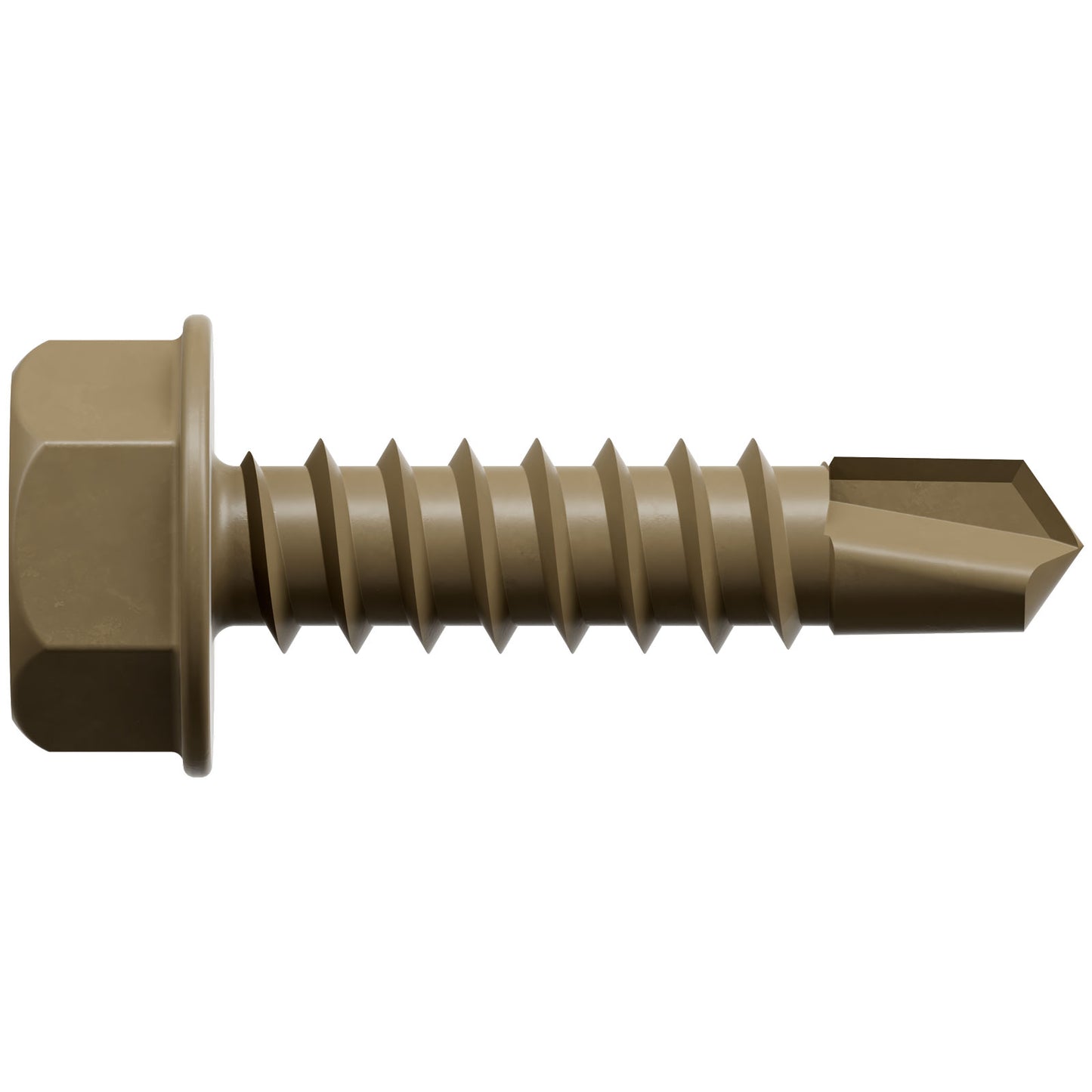

The Simpson Strong-Tie Exterior Structural Metal Screw, is 16 threads per inch and includes a 5/16" hex head (replacement driver bit — BITHEXR516-134). It is Quik Guard® coated for corrosion protection and has dual hardened heat treatment that improves efficiency. This feature maximizes resilience and reduces the potential for hydrogen embrittlement. To avoid the possibility of corrosion, use only in dry interiors or noncorrosive climates. It Meets ASTM C1513 drill-time performance and is the only fastener load rated for Simpson Strong-Tie® L70Z and LS70Z connectors for use with Trex® Elevations™ steel deck framing applications.

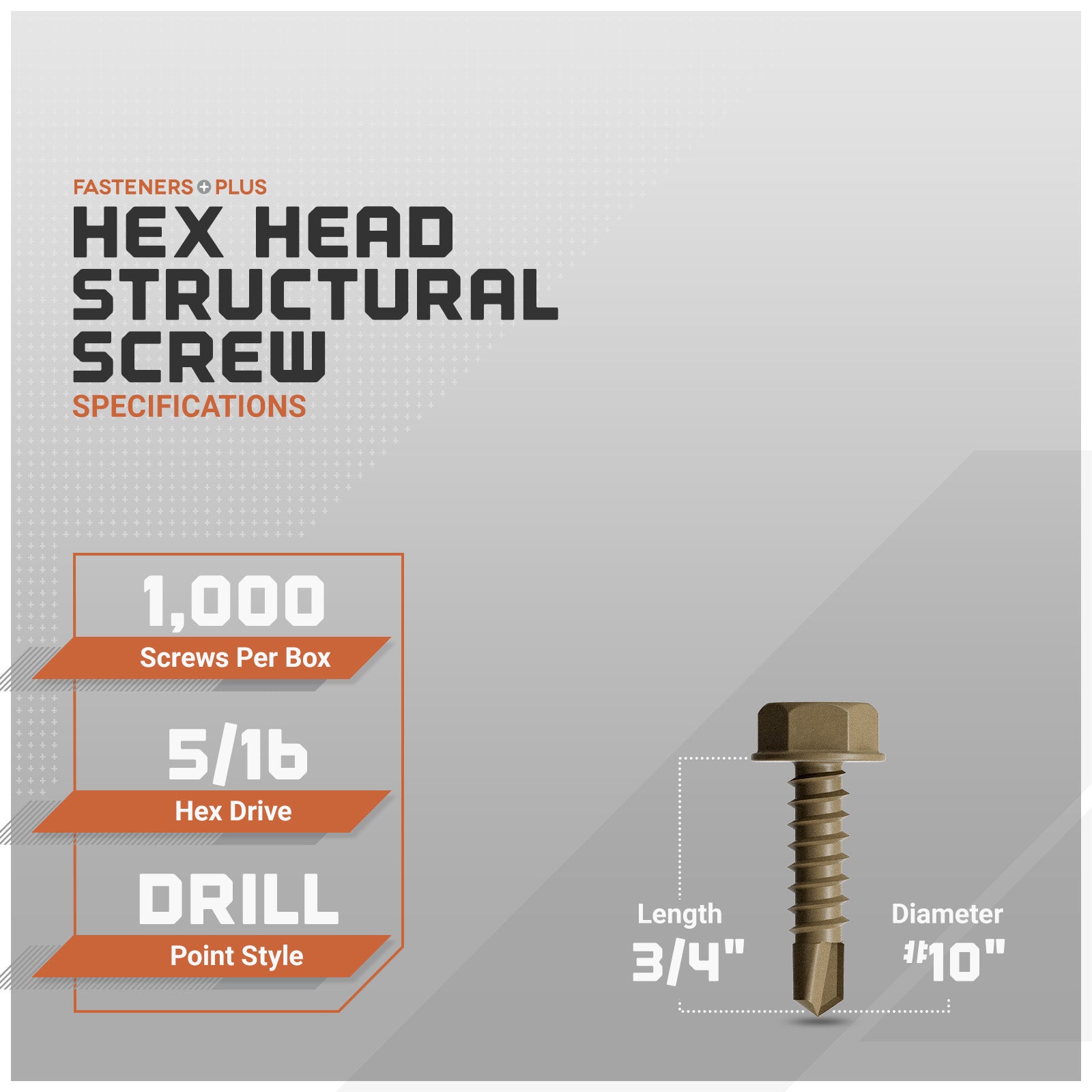

Specifications

Diameter: #10

Length: 3/4"

Head Diameter: 0.400

Thread Type: Machine Threads

Threads Per Inch: 16

Drive Type: 5/16" Hex

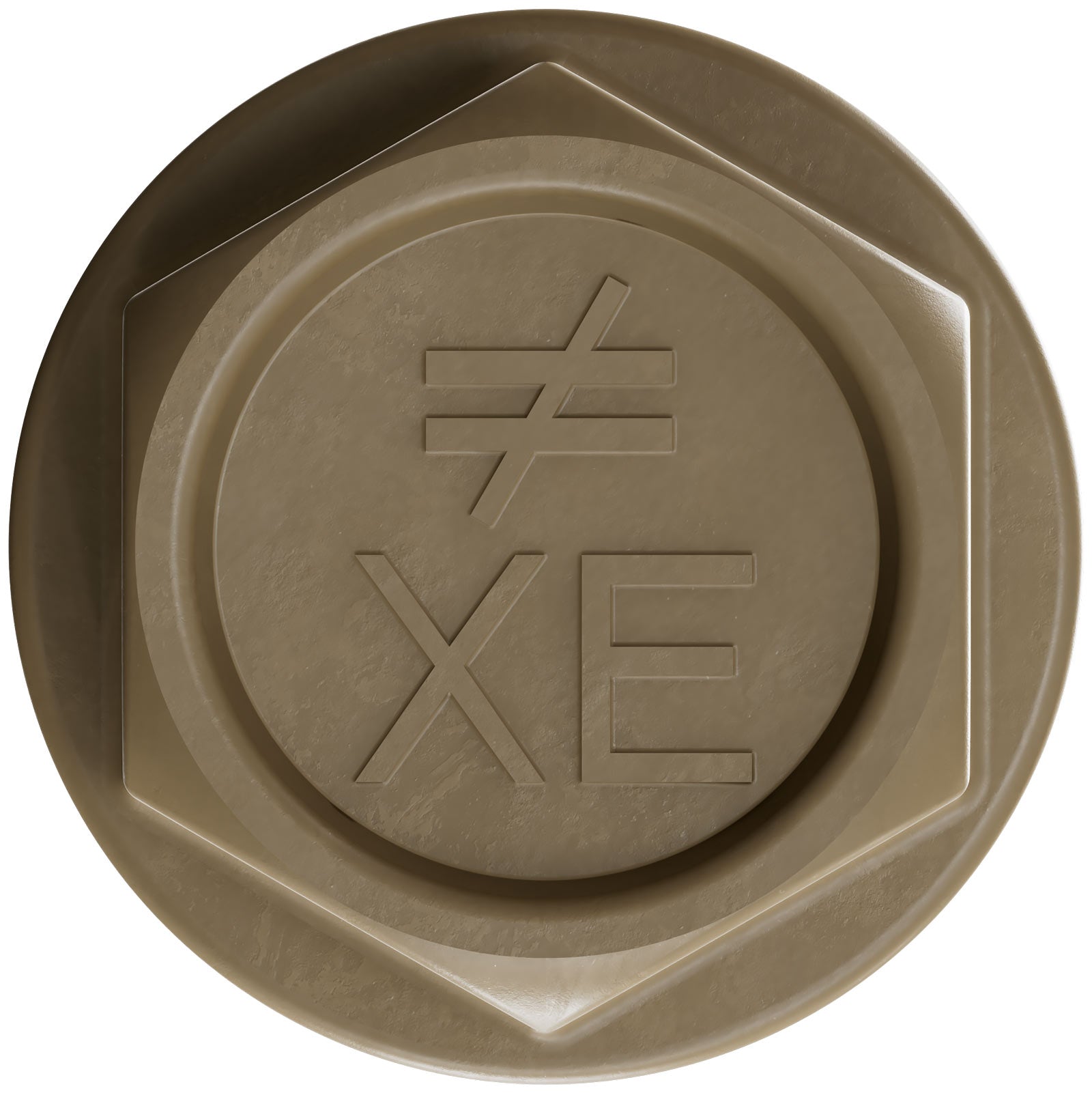

Head Type: Hex Washer

Point Type: Drill Point

Finish: Quik Guard Coating

Manufacturer Name: Simpson Strong-Tie

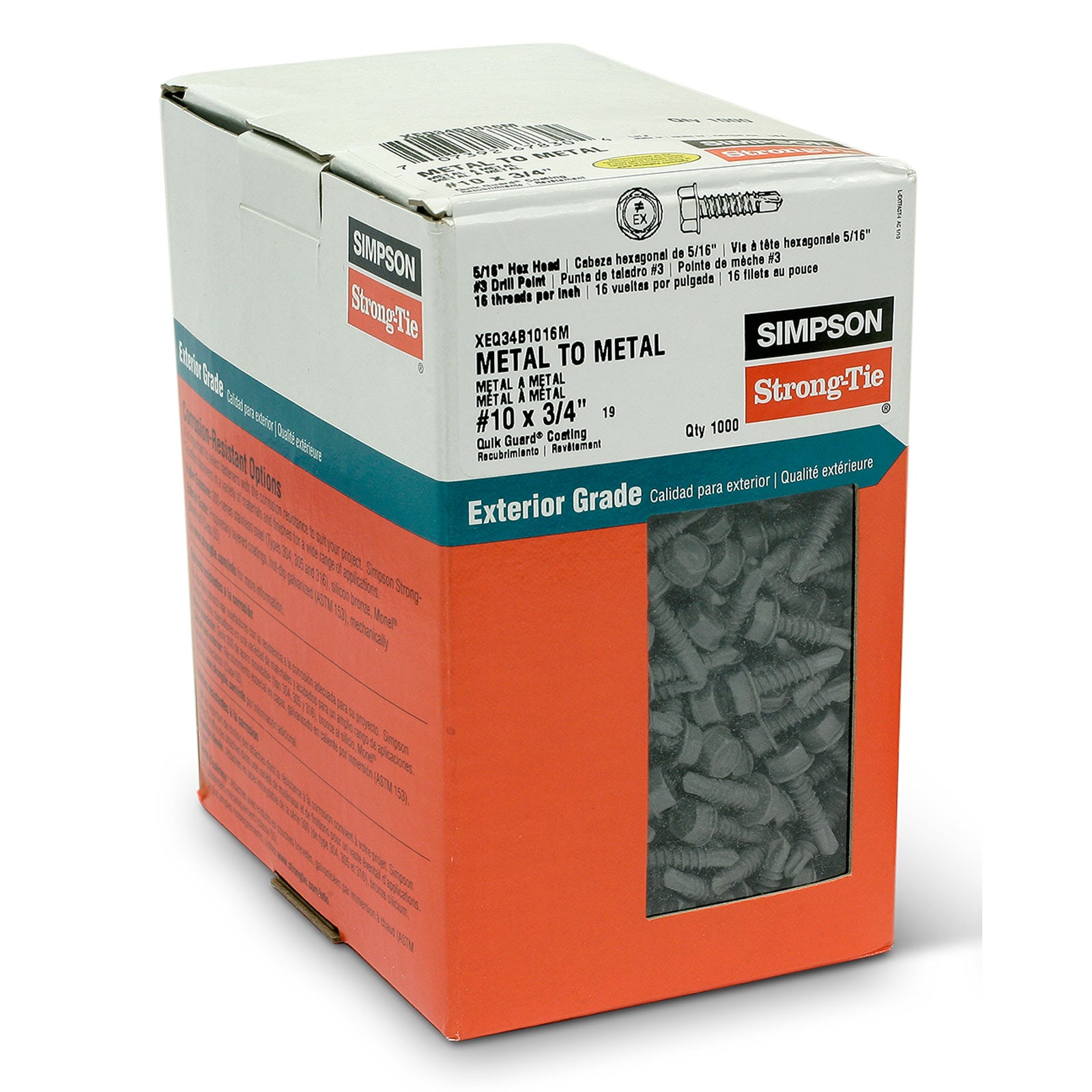

Quantity: 1,000

View Spec Sheet

Simpson Strong-Tie Limited Warranty
