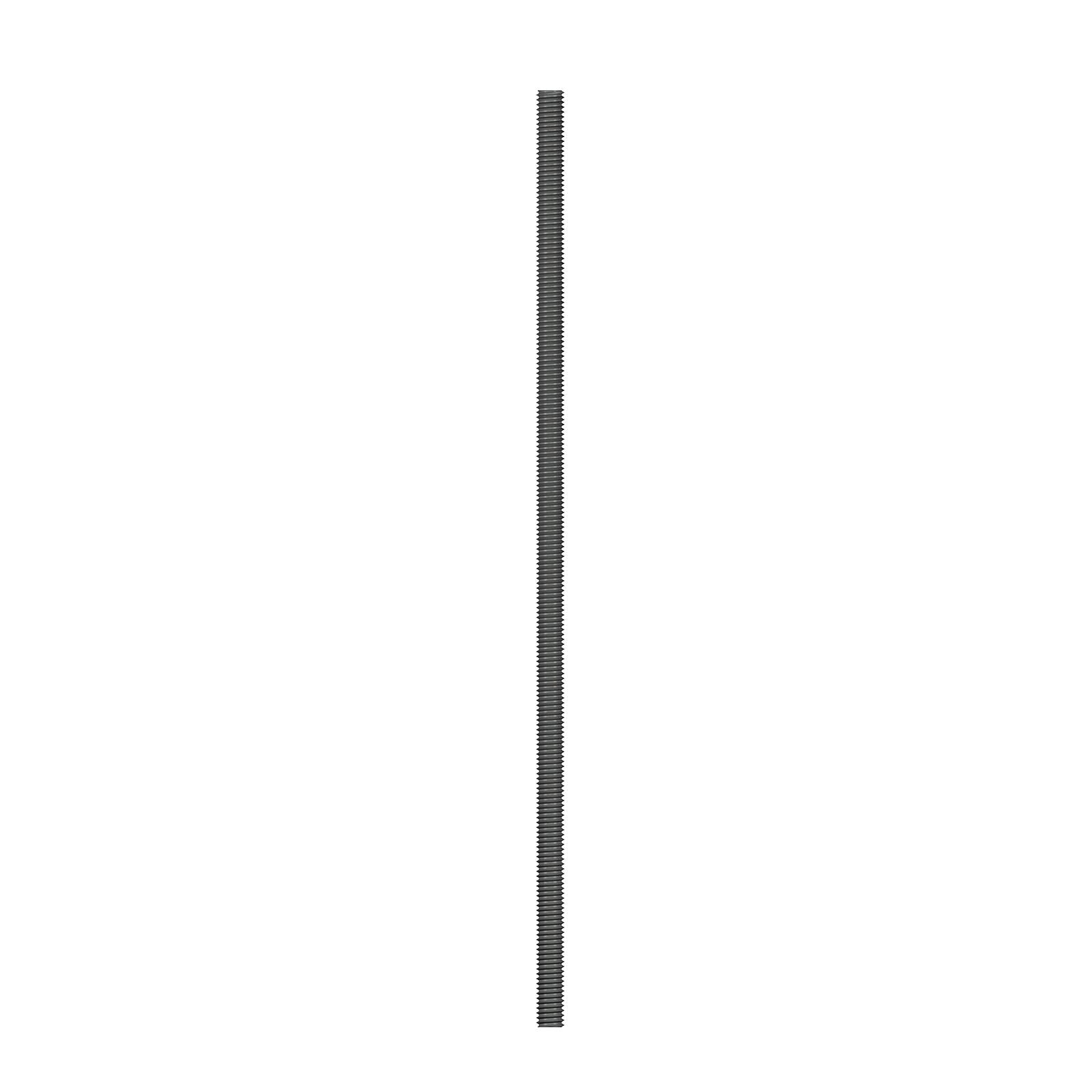

ATR1-1/8X18 Simpson Strong Tie 1-1/8" x 18" All-Thread Rod
ATR1-1/8X18 Simpson Strong Tie 1-1/8" x 18" All-Thread Rod
Regular price
$31.84
Sale price
$31.84
Regular price
Unit price
per
0% off
Description:
Description:

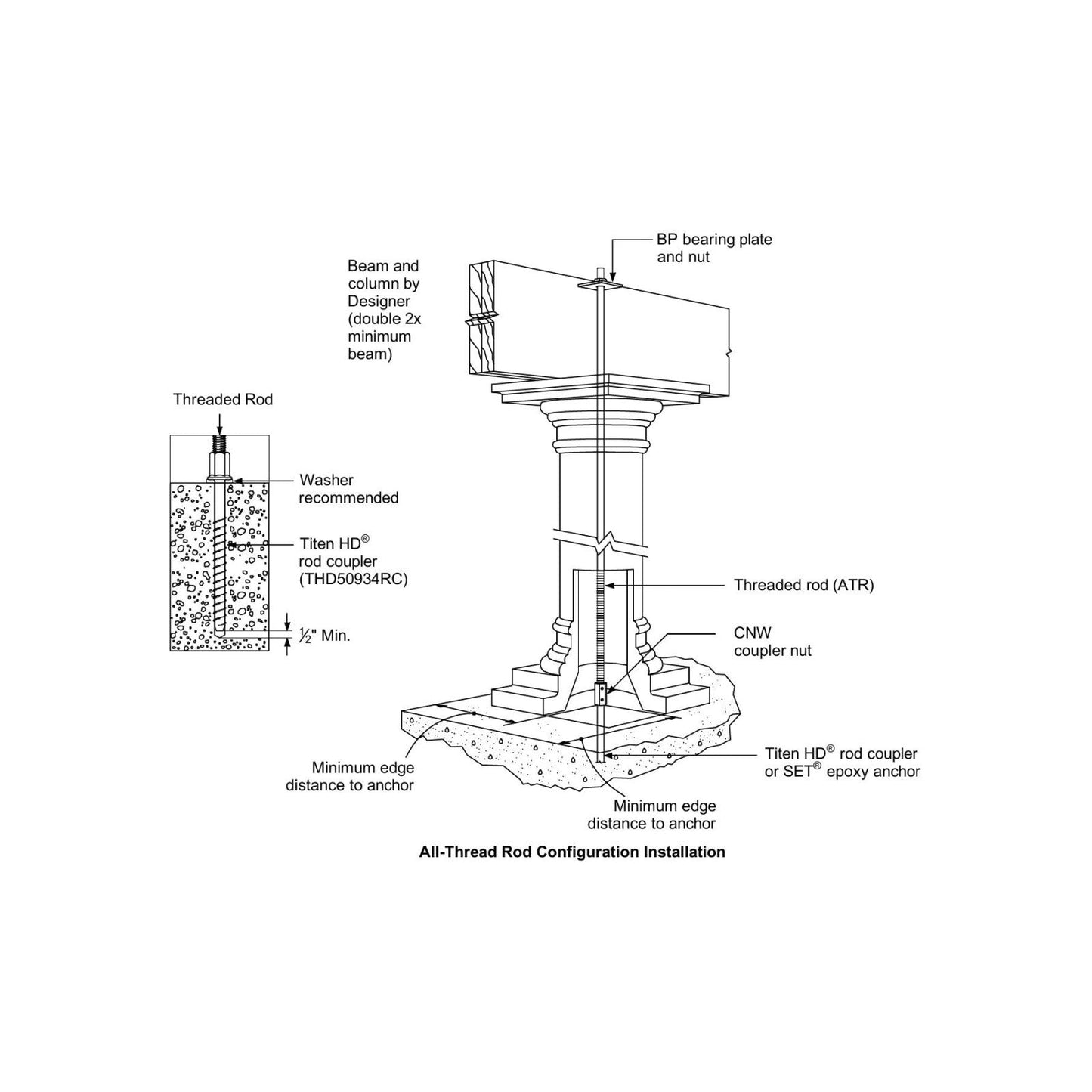

The Simpson ATR1-1/8X18 All-Thread Rod serves as the primary tension transfer component in both the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS). This fully threaded rod is part of the Strong Rod series of products.
When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the rod.
Specifications:
Specifications:
Material: Uncoated Black Steel
Thread type: Coarse
Quantity: 1
Diameter: 1-1/8"
Length: 1.5'
Manufacturer name: Simpson Strong-Tie
Additional information: Standard – ATSM F1554 Grade 36, A36 or A307 Key Features - easy access at wall tops and bottoms for streamlined installation, convenient custom length cutting, and availability in lengths up to 12 feet and diameters up to 2 inches, meeting UNC Class 2A or 1A thread specifications.
Product Guide: View Spec Sheet
Thread type: Coarse
Quantity: 1
Diameter: 1-1/8"
Length: 1.5'
Manufacturer name: Simpson Strong-Tie
Additional information: Standard – ATSM F1554 Grade 36, A36 or A307 Key Features - easy access at wall tops and bottoms for streamlined installation, convenient custom length cutting, and availability in lengths up to 12 feet and diameters up to 2 inches, meeting UNC Class 2A or 1A thread specifications.
Product Guide: View Spec Sheet
