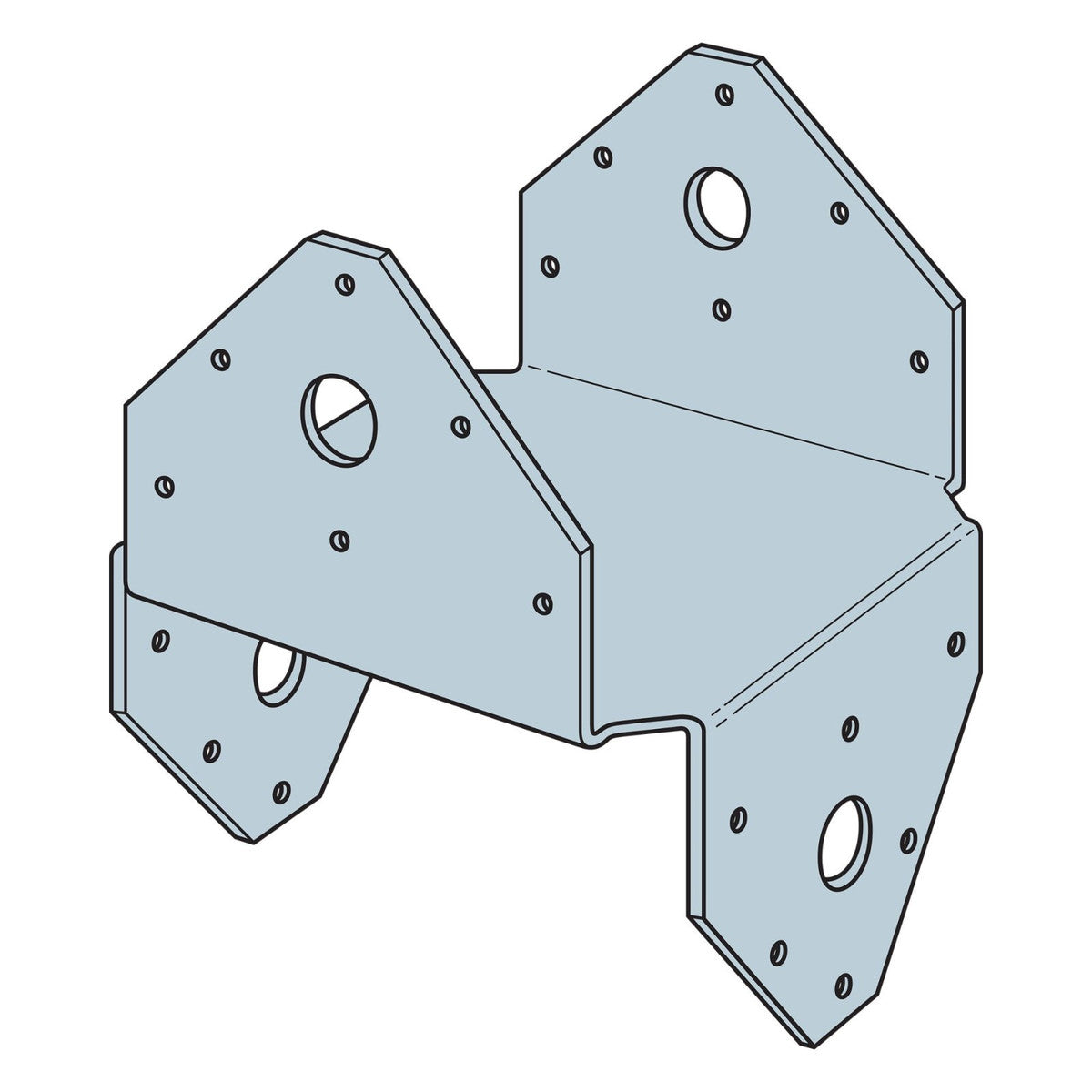

Simpson BC6SS 6x Post Cap - Stainless Steel

SKU: BC6SS

$126.36

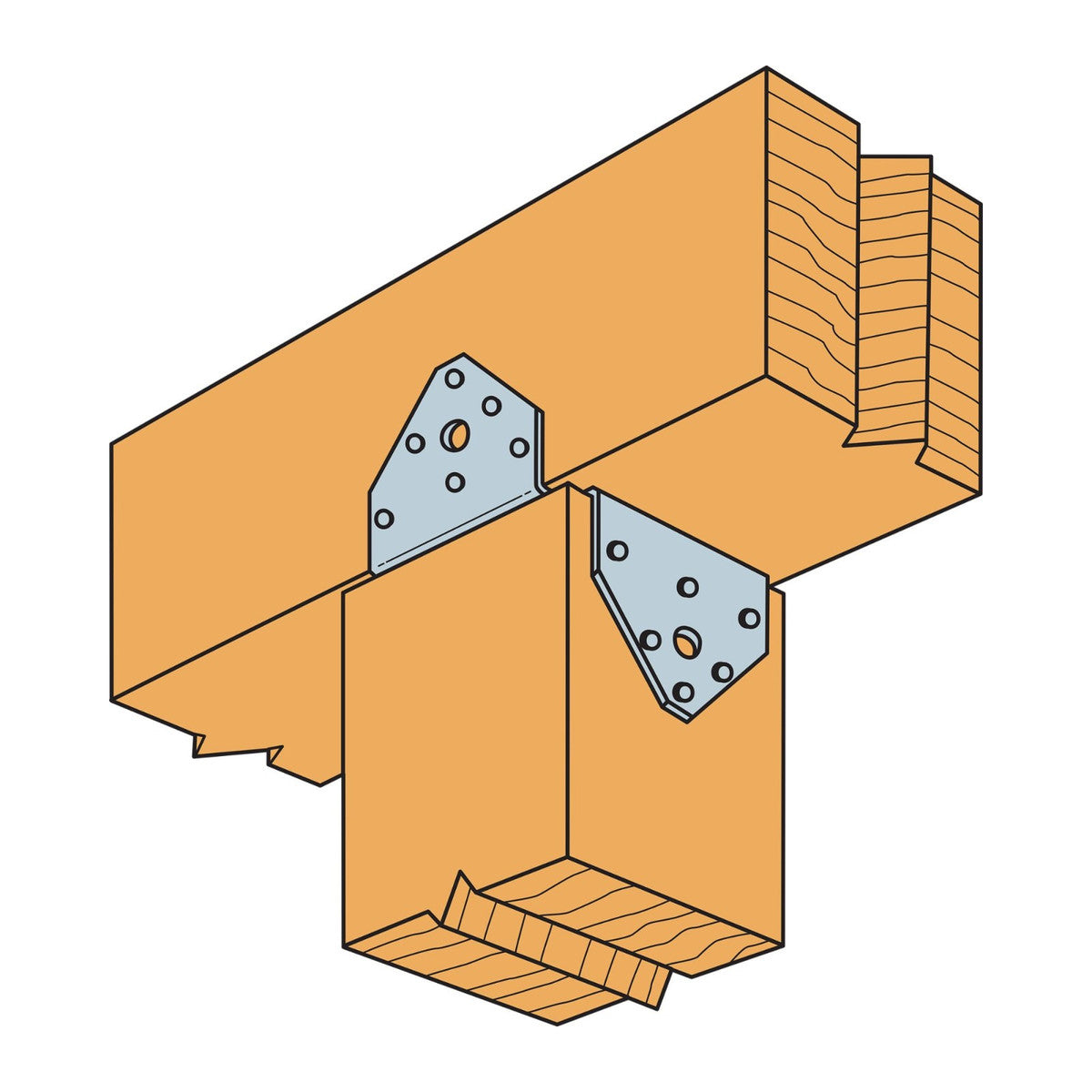

The Simpson Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BC6SS post base is approved to be installed with the specified nails or Strong-Drive SD connector screws. The Strong-Tie BC6SS post cap is made from 316L stainless steel for maximum corrosion resistance.


Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes
  • BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson BC & BCS Post Caps.


California Residents: WARNING

The Simpson Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BC6SS post base is approved to be install...

Read More

The Simpson Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BC6SS post base is approved to be installed with the specified nails or Strong-Drive SD connector screws. The Strong-Tie BC6SS post cap is made from 316L stainless steel for maximum corrosion resistance.


Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes
  • BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson BC & BCS Post Caps.


California Residents: WARNING

Show Less

Fasteners Required:
Beam Flange - (12) 0.162 x 3-1/2" Nails Post Flange - (12) 0.162 x 3-1/2" Nails

For Treated Lumber:
no

Manufacturer Name:
Simpson Strong-Tie

Material:
316L Stainless Steel

Thickness:
18 Gauge
