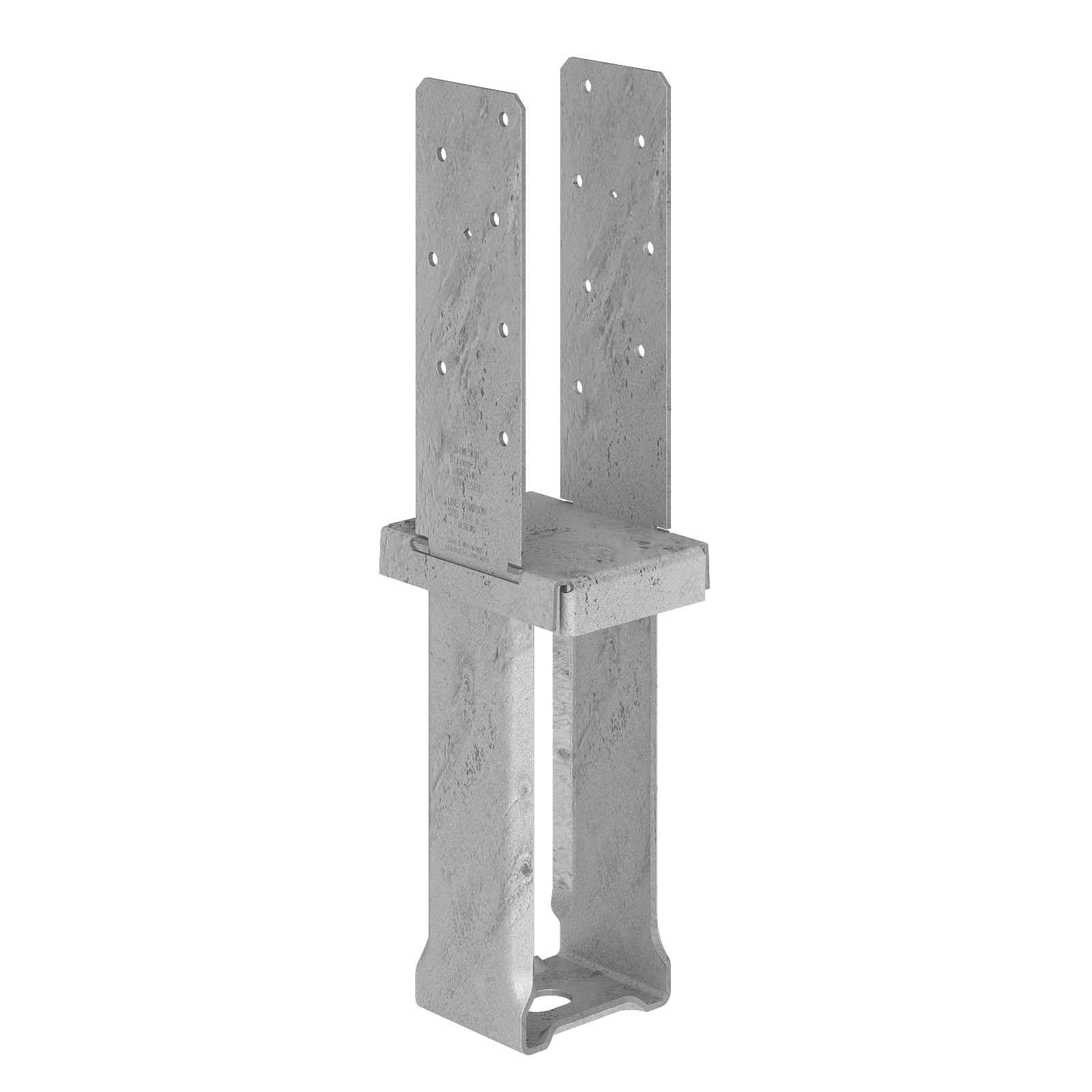

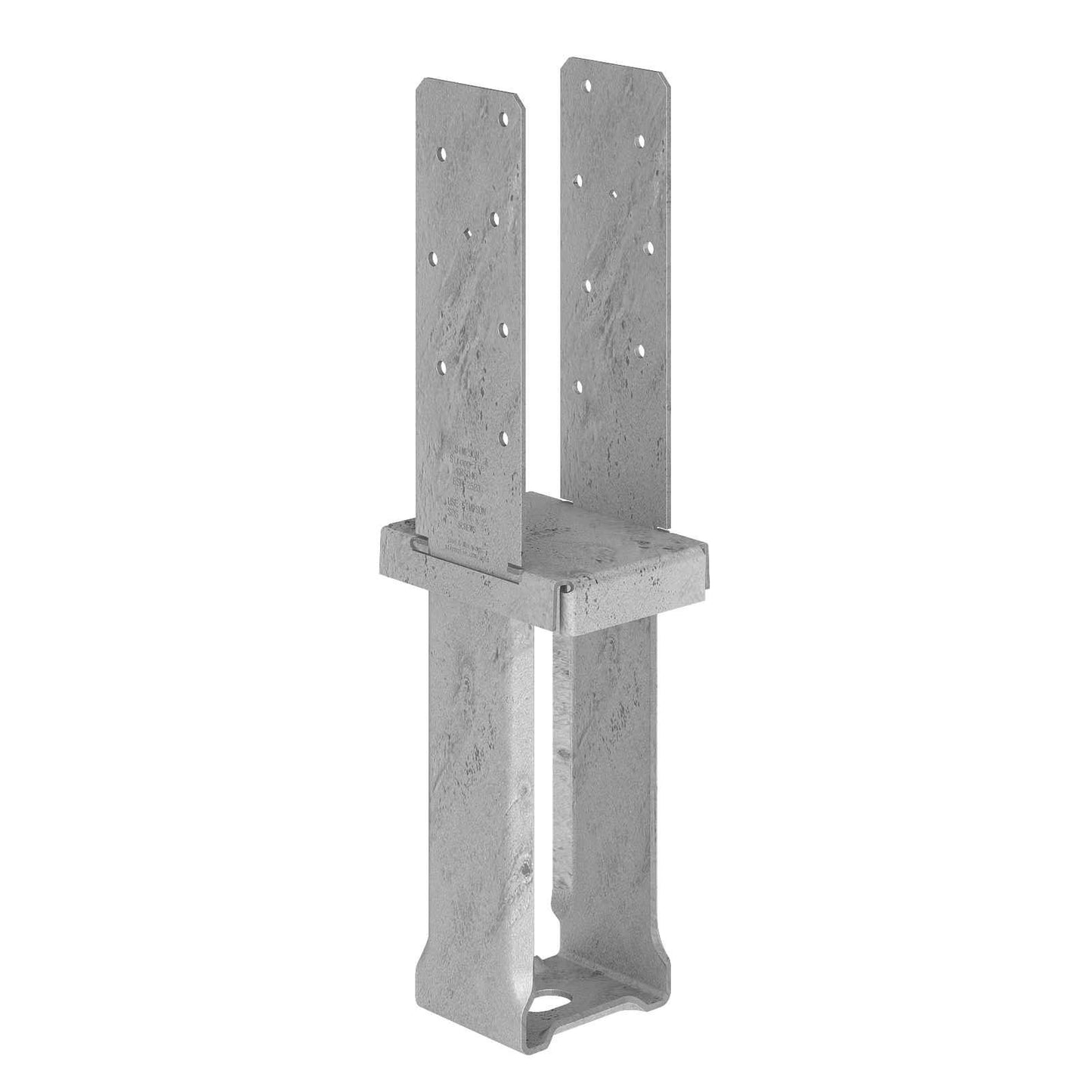

Simpson CBSQ46 Column Base, Quick-Install - G90 Galvanized
Simpson CBSQ46 Column Base, Quick-Install - G90 Galvanized
Couldn't load pickup availability
![shipping truck, lead time icon](http://www.fastenersplus.com/cdn/shop/t/41/assets/shipping-truck-transparent_small.png?v=108044571132242994361688033592)
Description:
Description:
The Simpson CBSQ46 Column Base, Quick-Install - G90 Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column base is designed to connect columns or posts to concrete foundations and distribute the structure's stresses to the foundation.
These connectors are cast-in-place or wet-set in concrete and feautre a 1" standoff to meet code requirements for structural posts installed in basements or outdoors.
This product is intended for use with 4x6 posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.
Features:
- Connection Type: Designed to be cast-in-place or wet-set into concrete in order to connect columns to concrete foundations and provides a 1" standoff to meet building codes.
- Lumber Size: Intended for use with 4X6 posts/columns.
- Material and Finish: Made from Heavy Gauge Steel for durability and finished with G90 Galvanized coating.
- Performance: This bases functions to transmit the structure's stresses to the foundation.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4x6
Height: 8-11/16"
Fasteners required: 1/4" x 2" Strong-Drive SDS Heavy-Duty Connector screws - provided
Thickness: 12 Gauge
Depth: 7-13/16"
Quantity: 1
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Column size: 4X6
Additional information:
Width (1): 3-9/16"
Width (2): 5-5/16"
Product Guide: View Spec Sheet
Features
Features
•1" standoff of the CBSQ meets code requirements for structural posts installed in basements or exposed to weather or water splash
•Included fasteners provide faster installation than bolts
•SDS Heavy-Duty Connector screws that provide a greater wood net section area than bolts

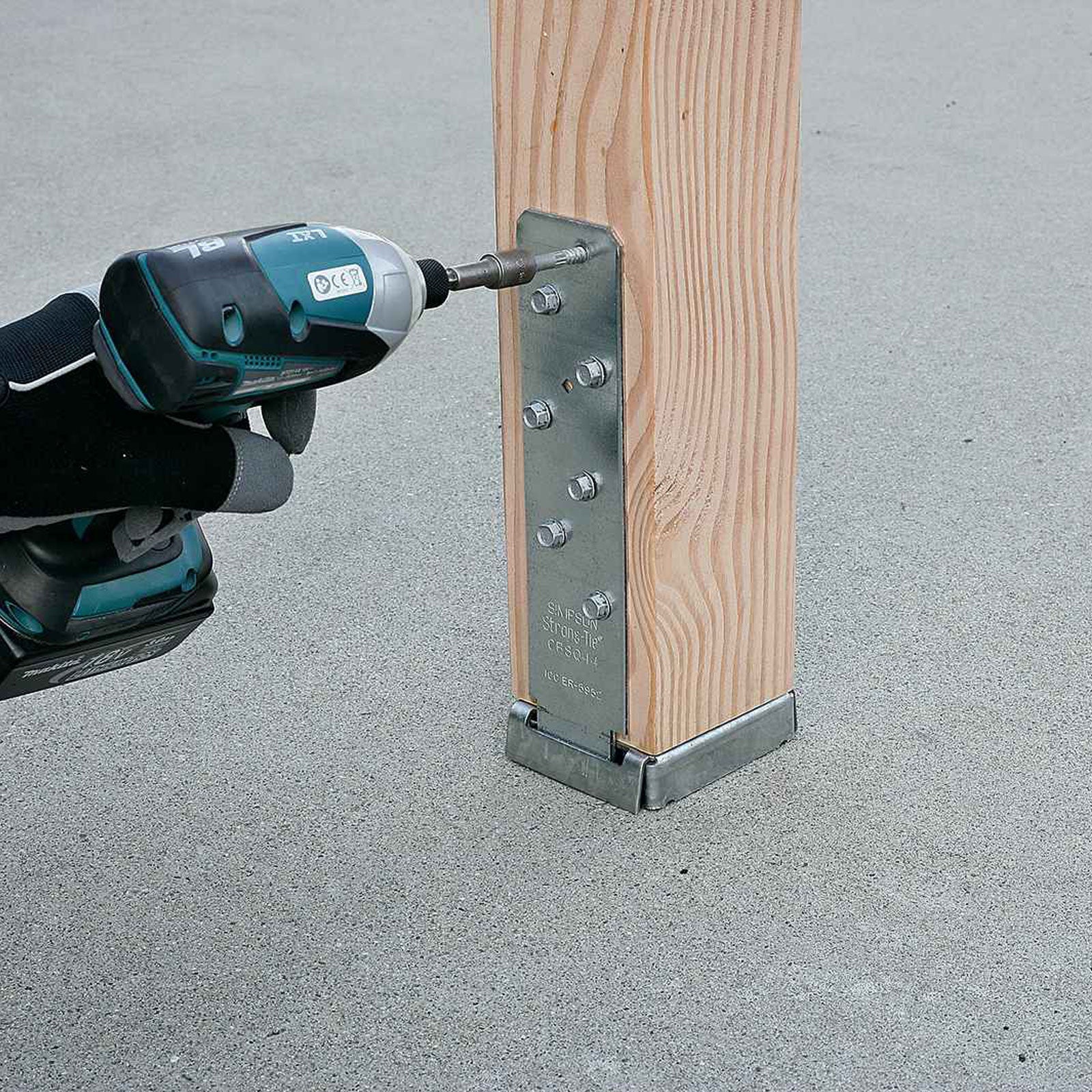

Installation
Installation
•Use all specified fasteners; see General Notes.
•Install 1/4" x 2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column base. (Lag screws will not achieve the same load.)
•Install CBSQ with bottom of standoff flush to top of concrete
•Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
