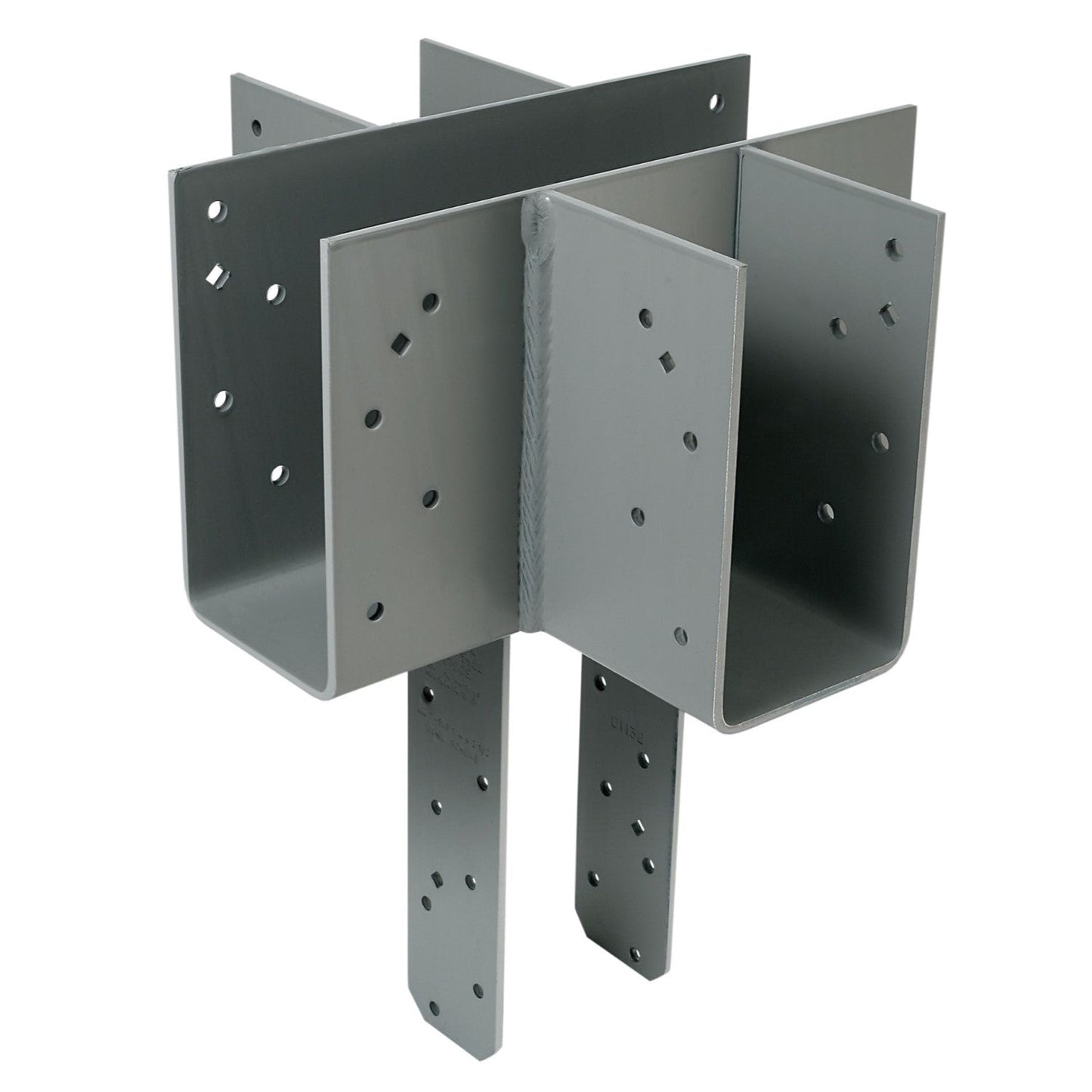

Simpson CCCQ3-6SDS Cross Column Cap, Quick-Install

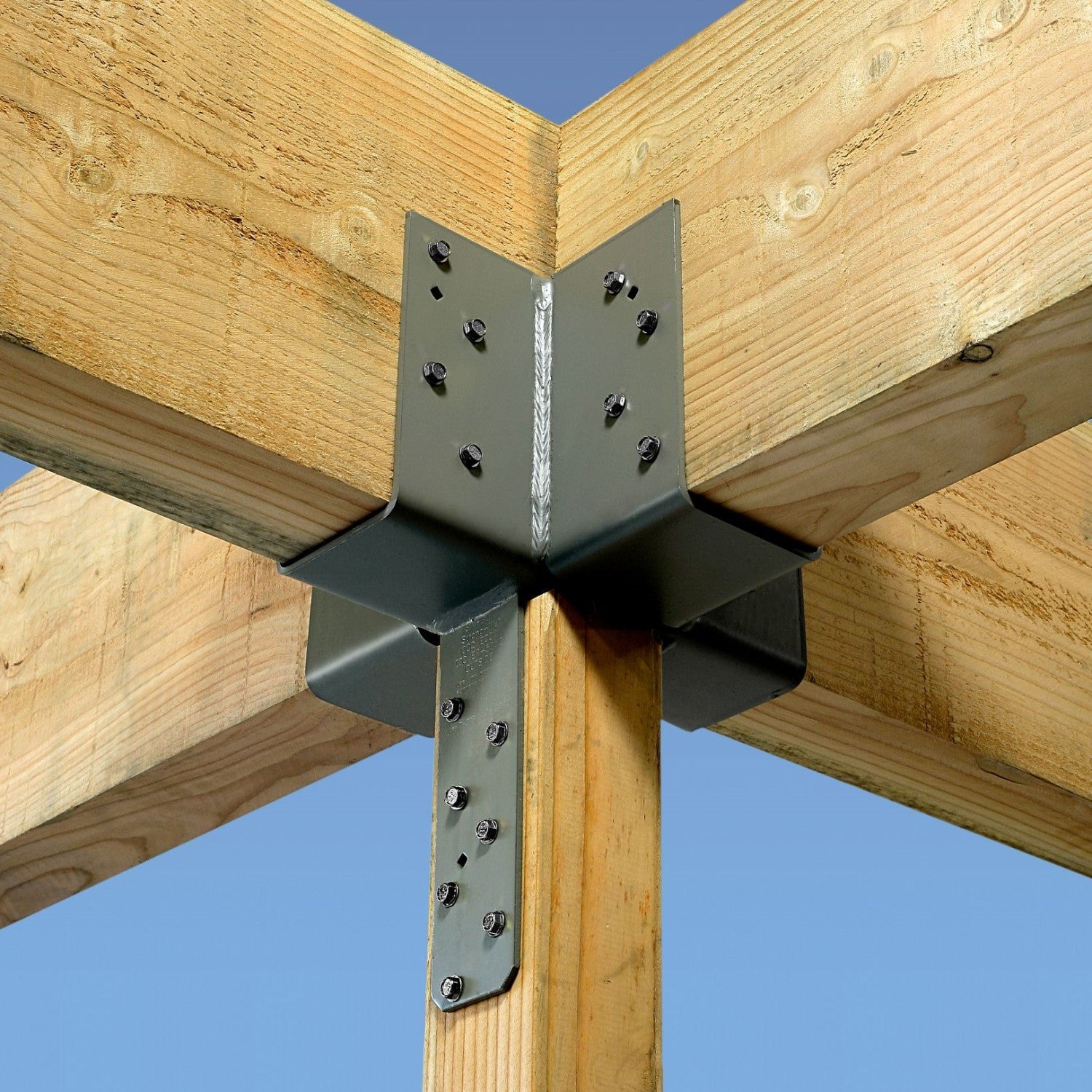

The CCCQ is designed to provide strong column-to-beam connections when there are multiple wood beams on top of a column. When properly installed, this cross-column cap helps to distribute the load from the intersecting beams and provides support for the connection. The CCCQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

• Simpson Strong-Tie gray paint. Also available in HDG; please request when ordering.
• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• Diamond holes to provide temporary fastening
• Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
• Available in widths up to 8" wide; additionally, many combinations of beam and post sizes can be manufactured.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
