SKU: ECCLQ7.1-4SDS

Simpson ECCLQ7.1-4SDS End Column Cap L-Shaped, Quick-Install

Simpson ECCLQ7.1-4SDS End Column Cap L-Shaped, Quick-Install!

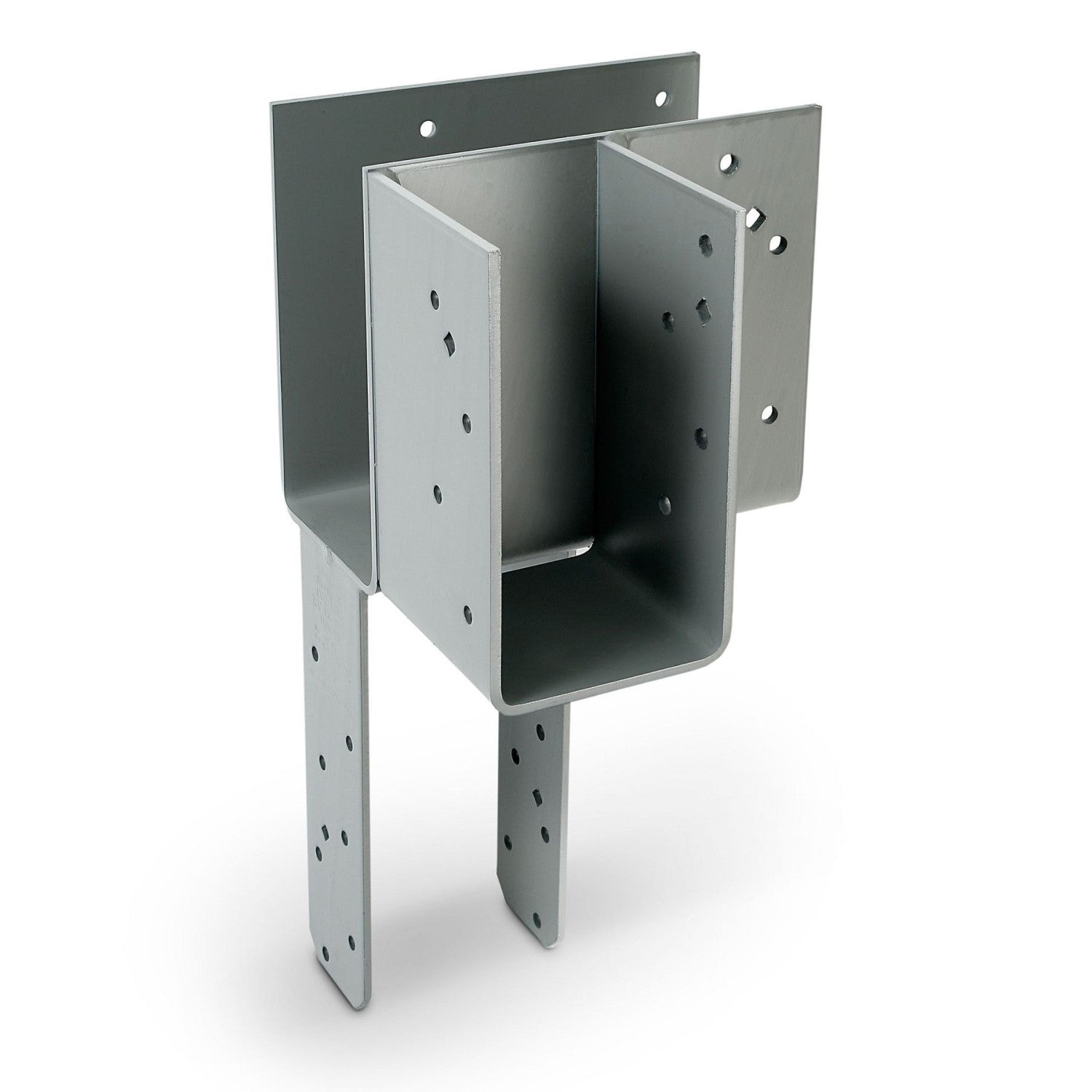

  • ECCLQ End Column Cap L-Shaped, Quick-Install ECCLQL shown

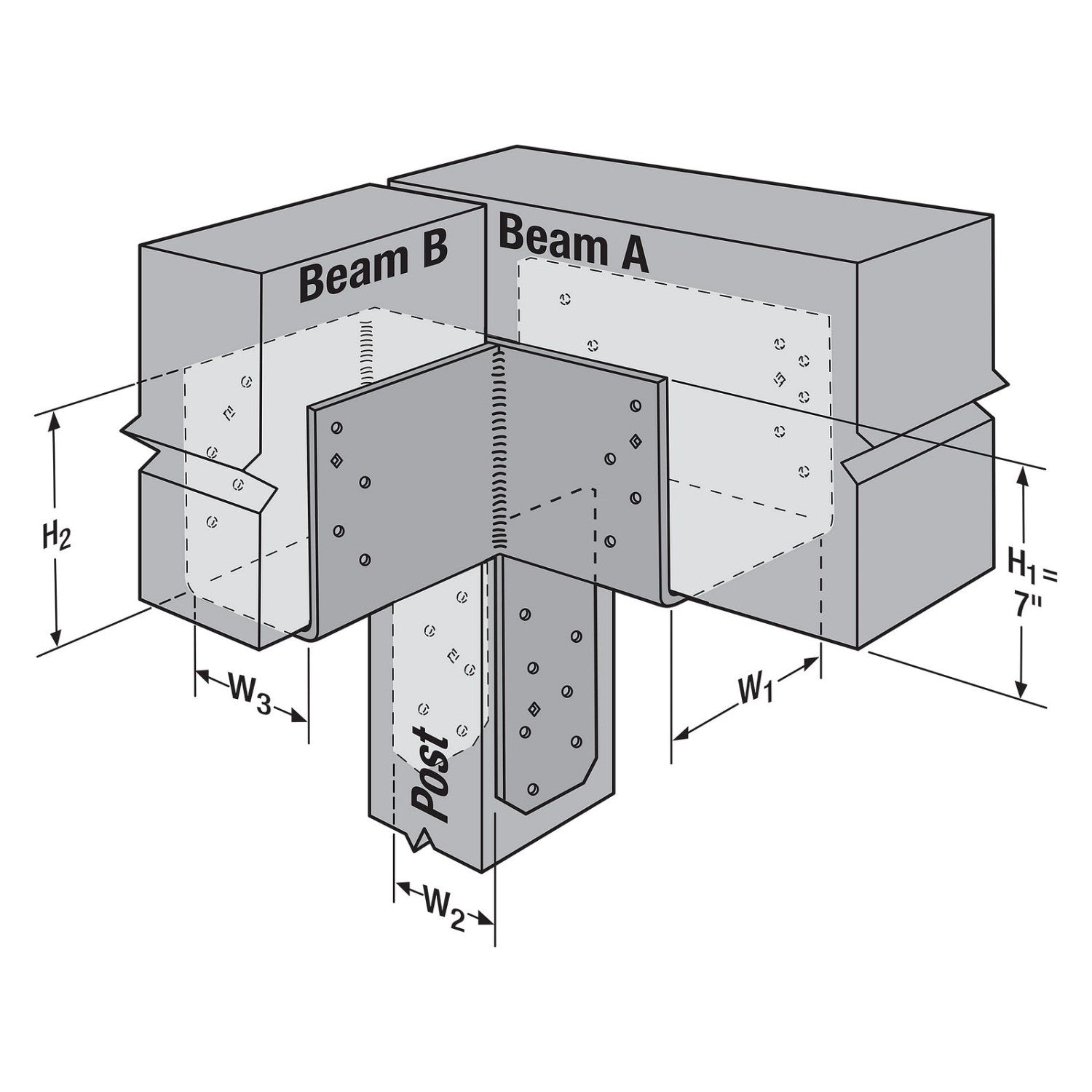

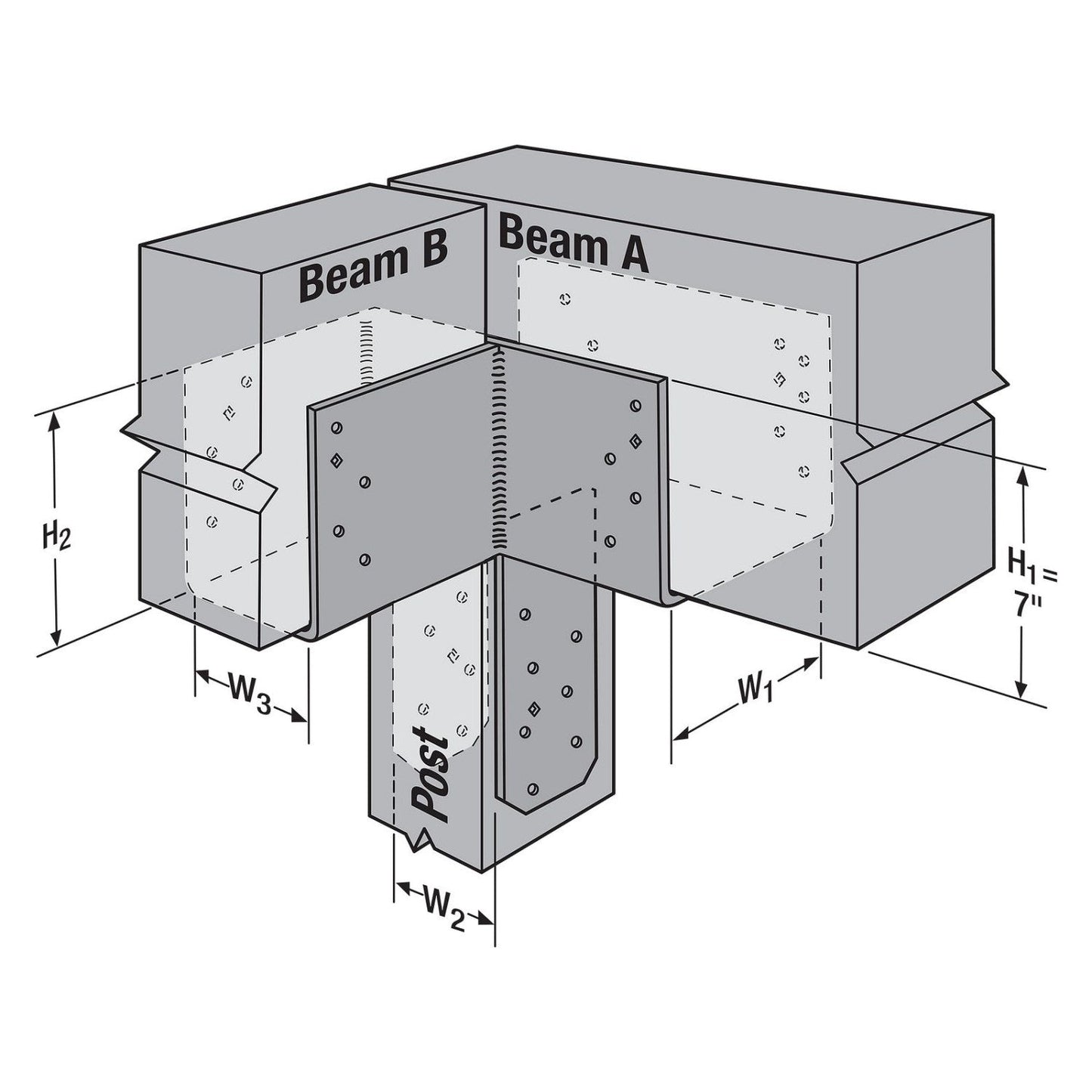

  • ECCLQ End Column Cap L-Shaped, Quick-Install callout
  • Simpson Platinum DistributorSimpson AC6Z Adjustable Post Cap for 6X Beam - ZMAX
1 3

Continue Browsing

ECCLQ/CCCQ/CCTQ Column Caps
SKU: ECCLQ7.1-4SDS

Simpson ECCLQ7.1-4SDS End Column Cap L-Shaped, Quick-Install

Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Material: Painted Steel
Fasteners required: Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2"
Manufacturer name: Simpson Strong-Tie
Thickness: 3 Gauge
Description

 This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product



The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Features

  • 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Also available in hot dip galvanized (HDG) finish, please specify when ordering.
  • Available in widths up to 8" wide, straps may be rotated, and column caps may be ordered without the column straps for field welding to a steel column.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
