SKU: HDU5-SDS2.5HDG

Simpson HDU5-SDS2.5HDG 13-3/16" Predeflected Holdown w/Screws - Hot Dip Galvanized

Simpson HDU5-SDS2.5HDG 13-3/16" Predeflected Holdown w/Screws - Hot Dip Galvanized!

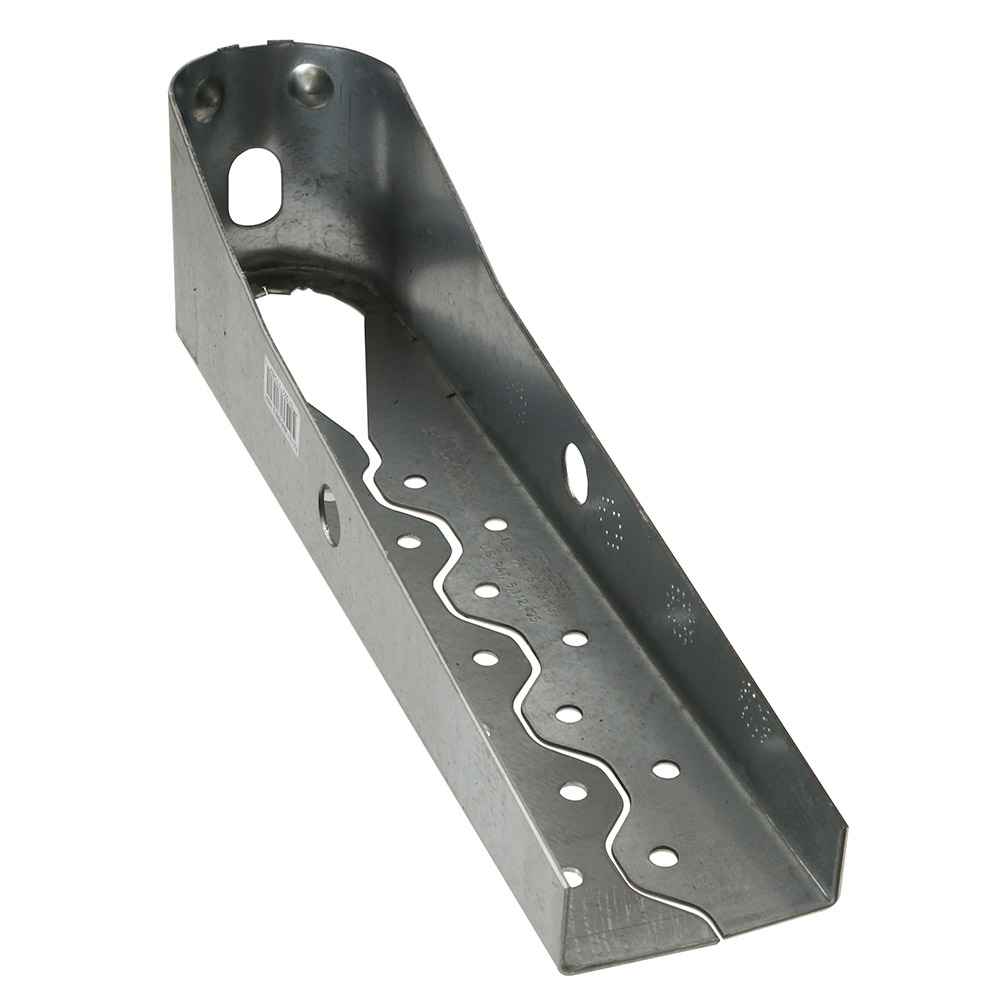

  • Simpson HDU5SDS25HDG 13316 inch Predeflected Holdown wScrews Hot Dip Galvanized image 1 of 6
  • Simpson HDU5SDS25HDG 13316 inch Predeflected Holdown wScrews Hot Dip Galvanized image 2 of 6
  • Simpson HDU5SDS25HDG 13316 inch Predeflected Holdown wScrews Hot Dip Galvanized image 3 of 6
  • Simpson HDU5SDS25HDG 13316 inch Predeflected Holdown wScrews Hot Dip Galvanized image 4 of 6
  • Simpson HDU5SDS25HDG 13316 inch Predeflected Holdown wScrews Hot Dip Galvanized image 5 of 6
  • Simpson HDU5SDS25HDG 13316 inch Predeflected Holdown wScrews Hot Dip Galvanized image 6 of 6
1 6

Continue Browsing

HDU/HDQ/HHDQ Holdowns
SKU: HDU5-SDS2.5HDG

Simpson HDU5-SDS2.5HDG 13-3/16" Predeflected Holdown w/Screws - Hot Dip Galvanized

$59.19

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 4 and order in the next 4 hours 31 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Hot Dip Galvanized

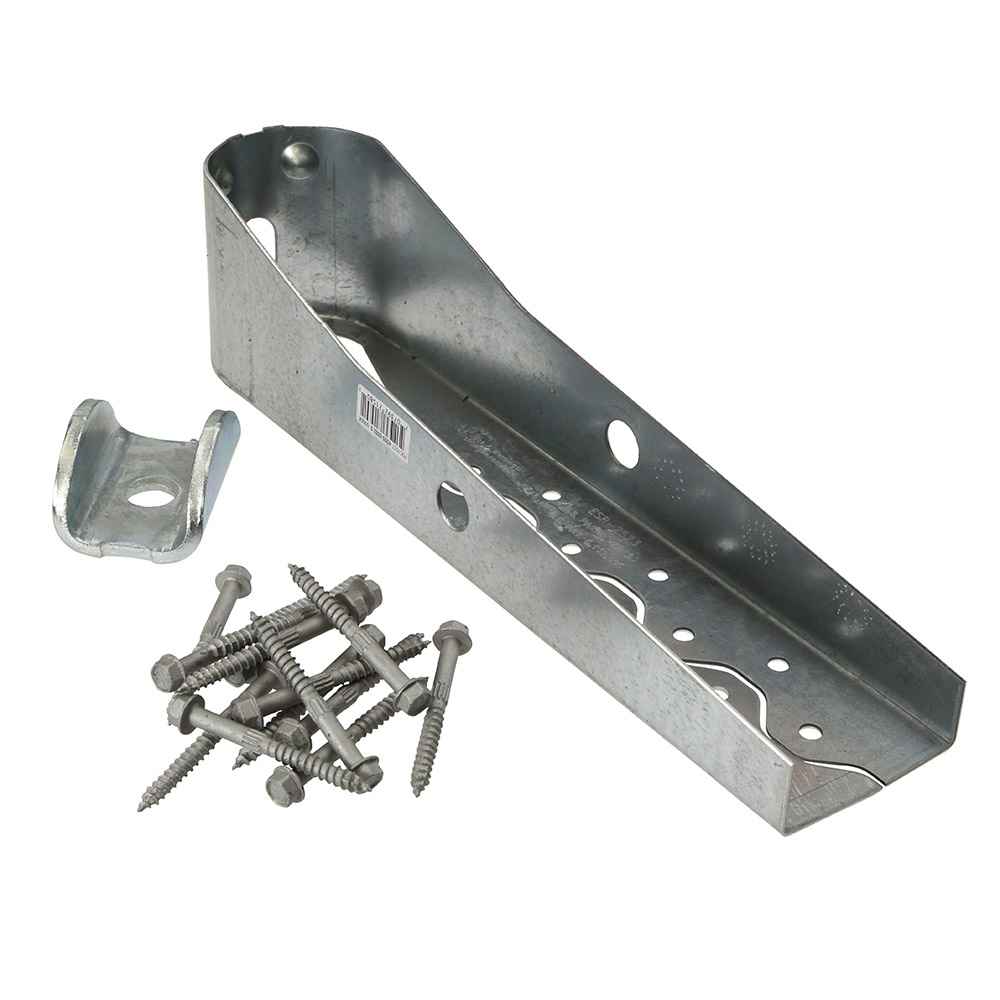

Fasteners required: All Fasteners Included
For Treated Lumber: Yes

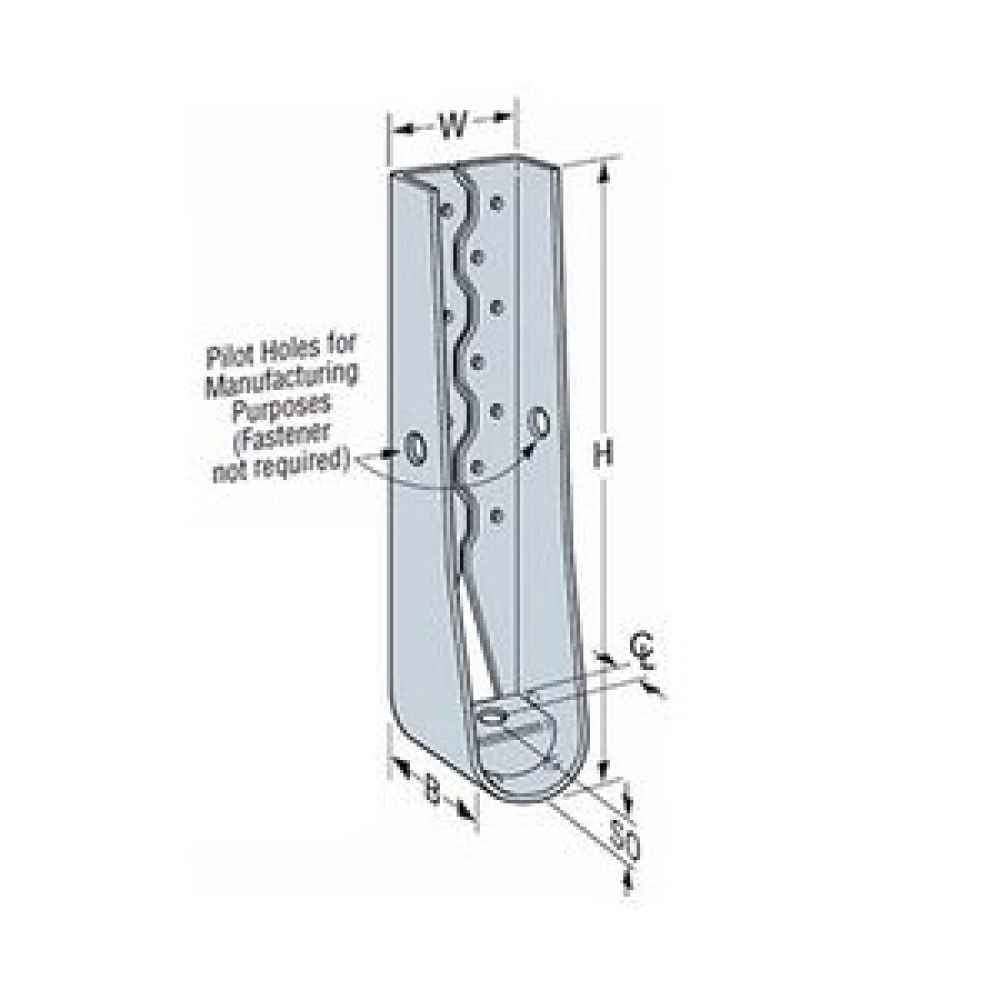

Height: 13-3/16"
Manufacturer name: Simpson Strong-Tie
Description

Simpson Strong-Tie HDU Holdowns are pre-deflected to virtually eliminate deflection under load due to material stretch. The Strong-Tie HDU5-SDS2.5HDG pre-deflected holdown is installed with Simpson Strong-Drive SDS heavy-duty connector screws which are included with the holdown.


HDU Special Features

  • Holdown designs virtually eliminate deflection due to material stretch.
  • Uses Strong-Drive SDS Heavy-Duty Connector screws which install easily, reduce fastener slip, and provide a greater net section area of the post compared to bolts.
  • Strong-Drive SDS Heavy-Duty Connector screws are supplied with the holdowns to ensure proper fasteners are used.
  • No stud bolts to countersink at openings.


Installation:

  • Use all specified fasteners.

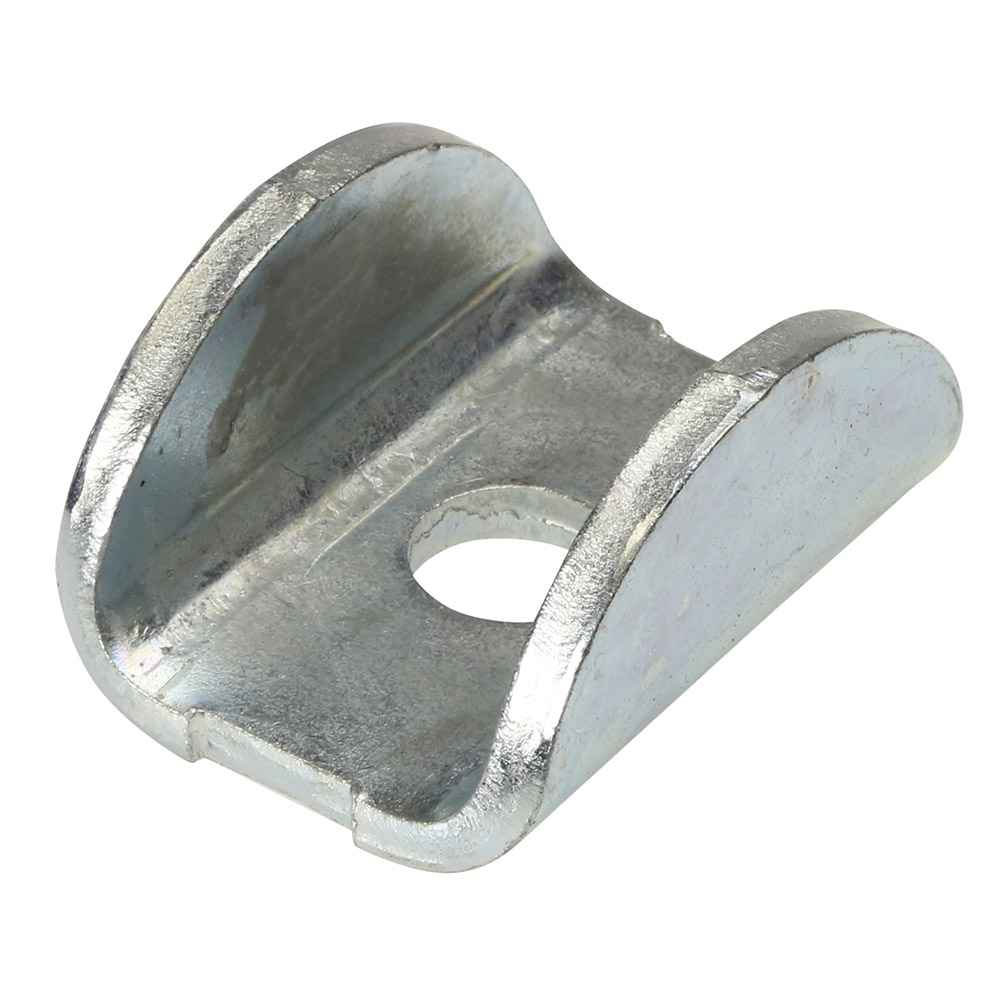

  • The HDU requires no additional washer, the DTT requires a standard cut washer (included with DTT2Z) be installed between the nut and the seat.
  • Strong-Drive SDS Heavy-Duty Connector screws install best with a low-speed high torque drill with a 3/8" hex head driver.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
