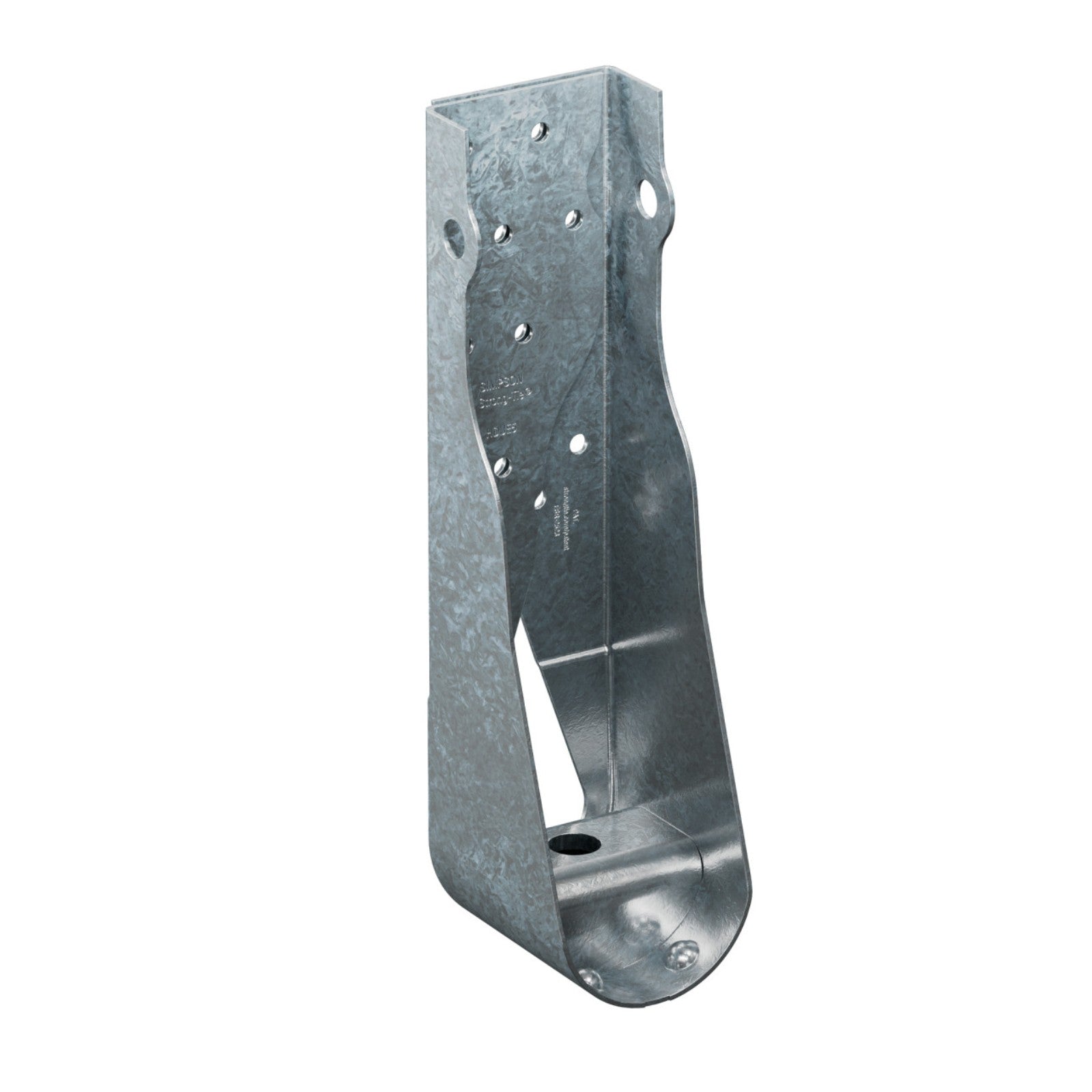

Simpson HDUE5 11-5/16" Predeflected Holdown - G90 Galvanized
Simpson HDUE5 11-5/16" Predeflected Holdown - G90 Galvanized!

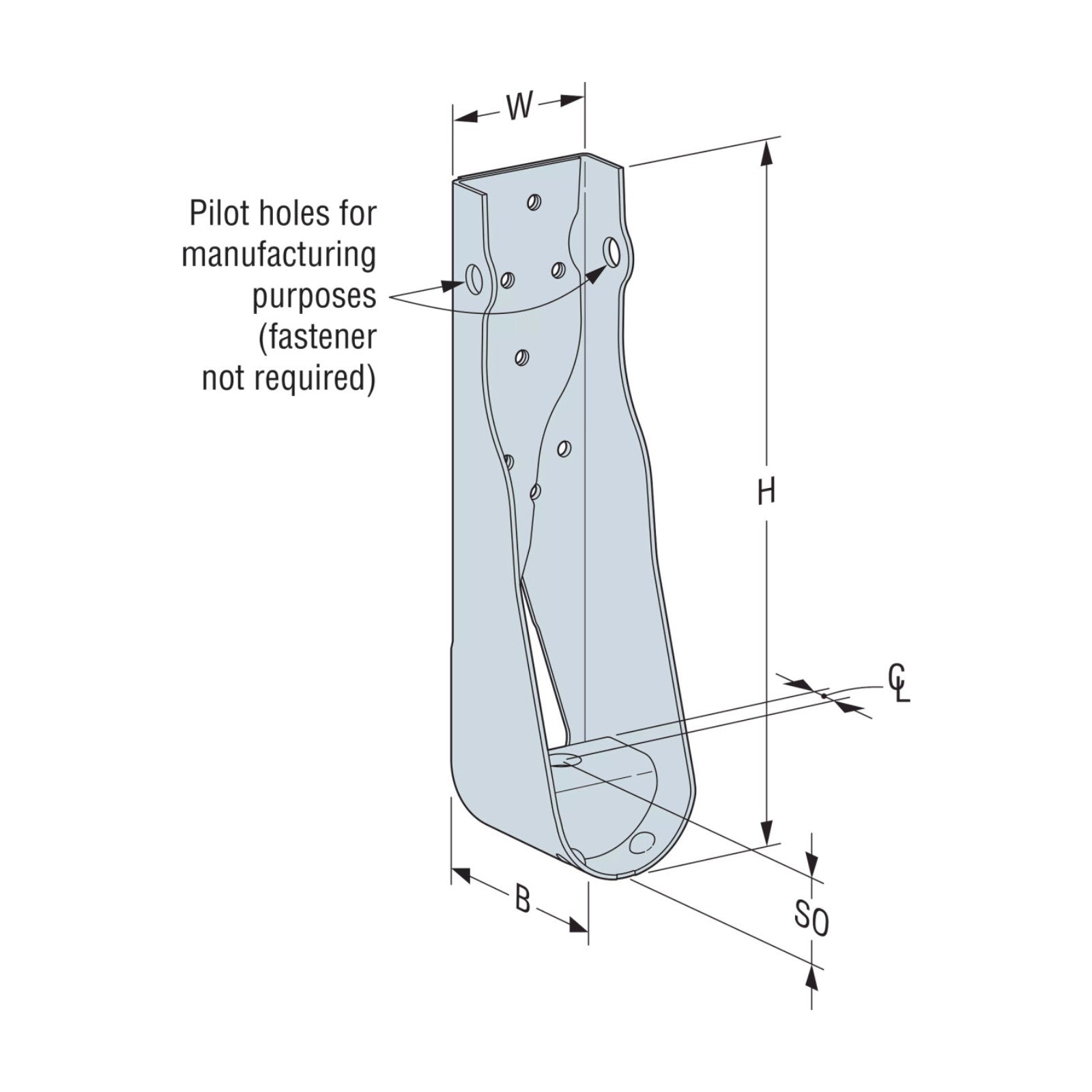

Specifications
CL: 1-1/4"
SO: 1-1/2"
• (10) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
• (1) crescent washer
The Simpson Strong-Tie HDUE Holdown series delivers exceptional lateral-load resistance for demanding residential and multi-story applications. Designed with modern construction needs in mind, HDUE holdowns ensure strong, reliable connections for shearwalls, braced wall panels, and other structural elements.
Key Features:
- Enhanced Load Capacity: Engineered to meet increased demands in residential construction, especially for large openings and taller walls.
- Innovative Angled Fastening: Larger models feature screw placement that engages both tension and shear for higher allowable loads with fewer fasteners.
- Predeflected Seat Design: Rounded seat minimizes deflection under load, improving structural stability.
- Overlapping Back Plate: Reinforces steel strength while helping prevent post splitting.
- Optimized Screw Patterns: Designed to reduce wood splitting and maximize fastener performance at the post end.

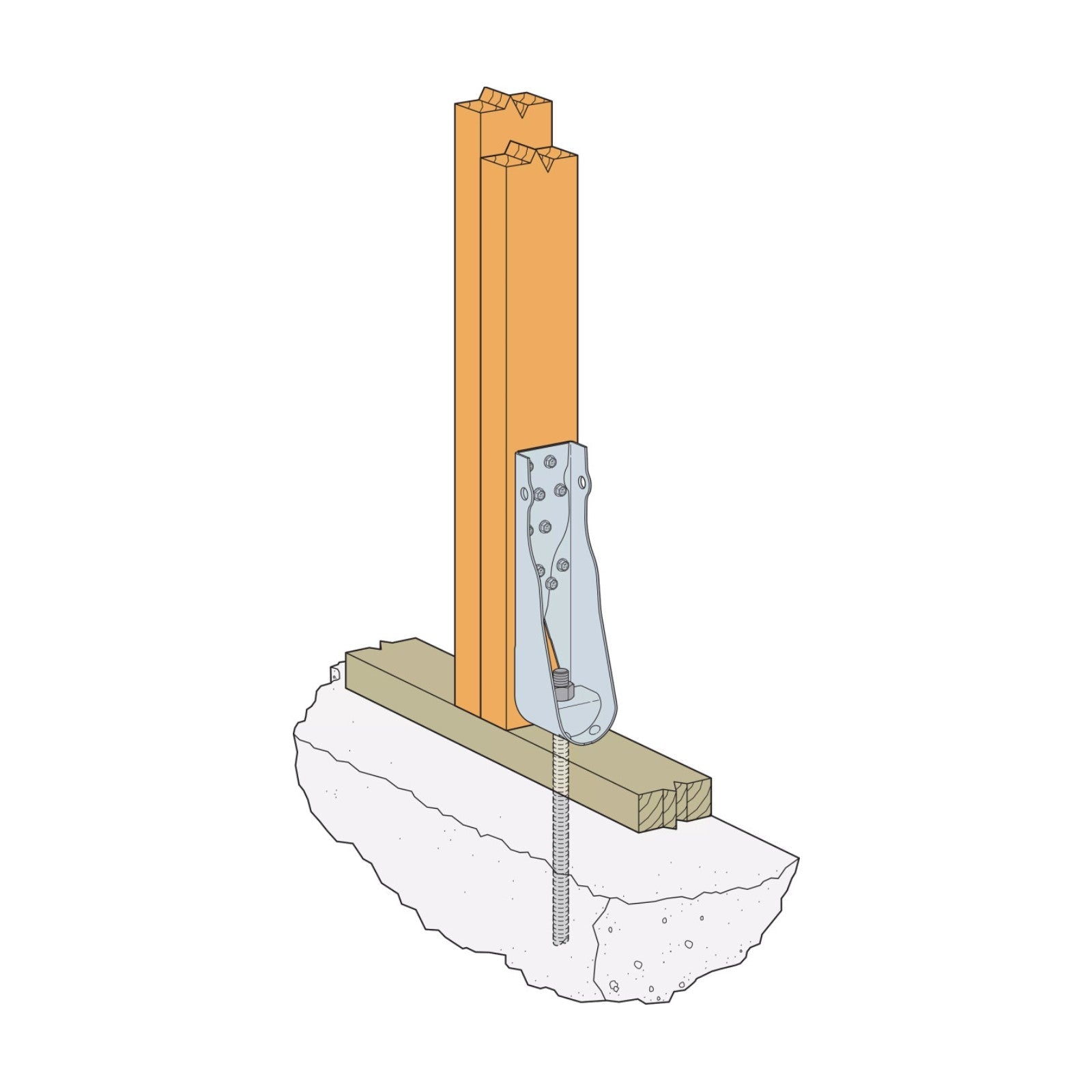

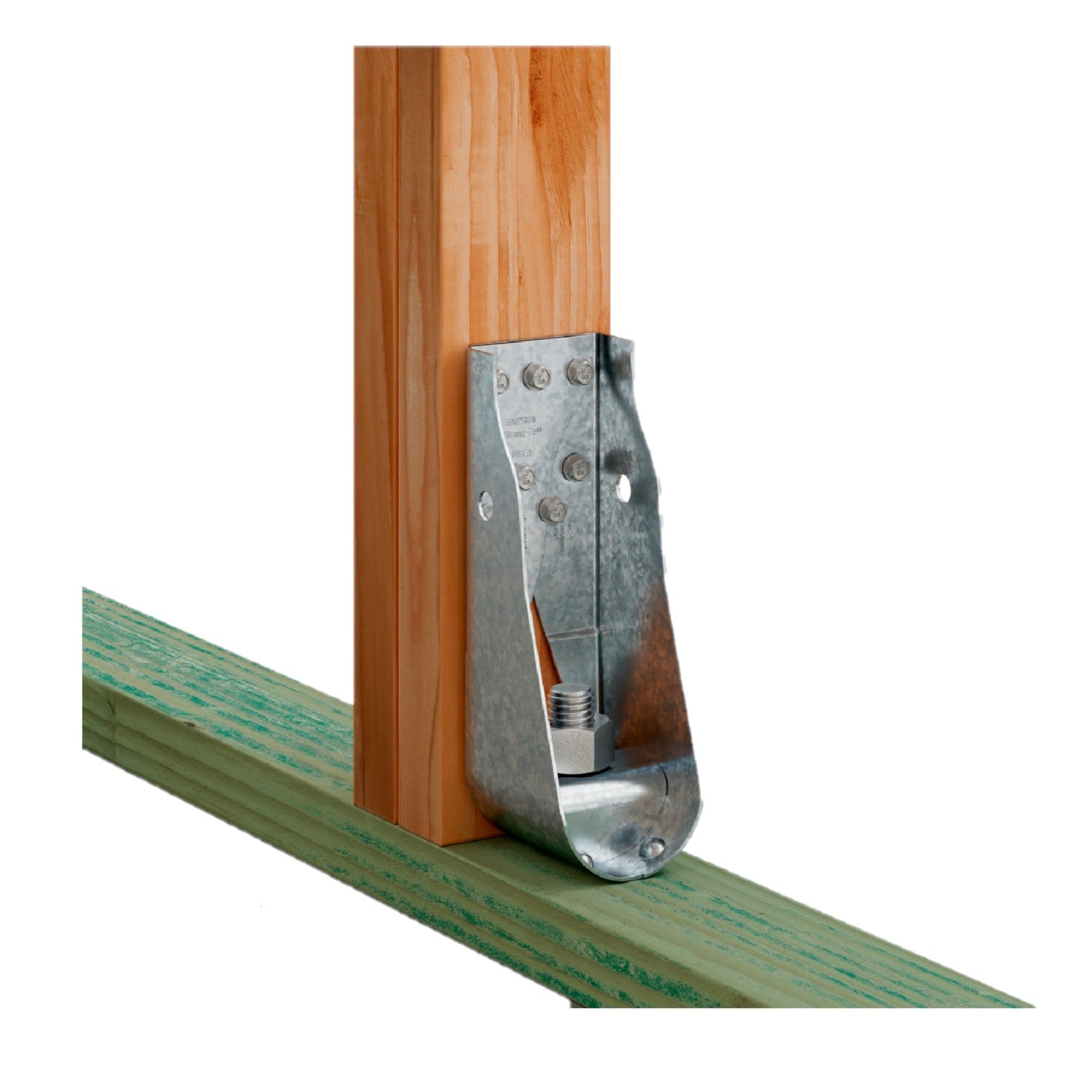

Installation:
Each HDUE holdown is installed using Strong-Drive SDS Heavy-Duty Connector screws. This method minimizes fastener slip and preserves more of the wood post’s net section compared to bolted connections.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
