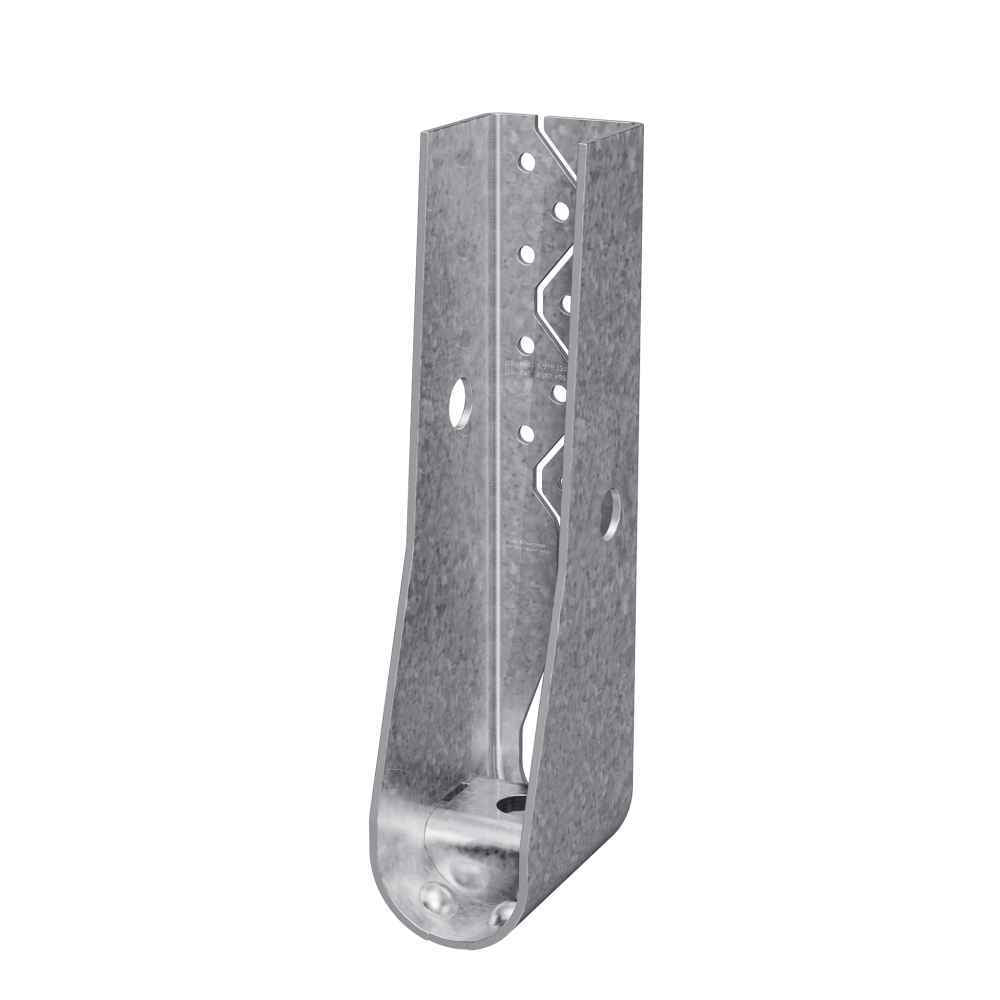

Simpson S/HDU6 Light Gauge Holdown For Steel - G90 Galvanized
Description
Description

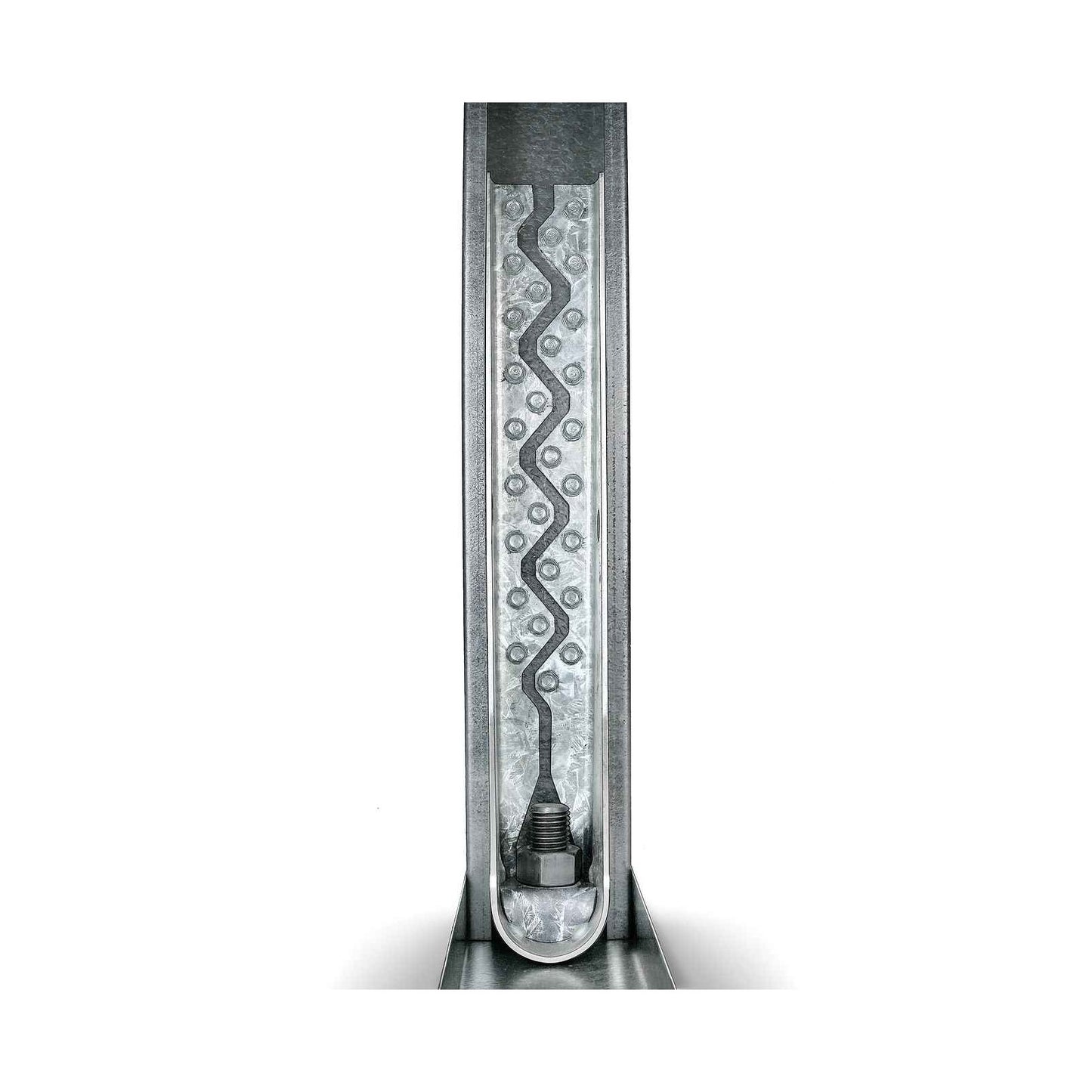

The Strong-Tie S/HDU series of holdowns combines performance with ease of installation providing solutions for cold-formed steel construction. The pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load. Installation using self-drilling tapping screws into the studs reduces installation time and saves labor cost.

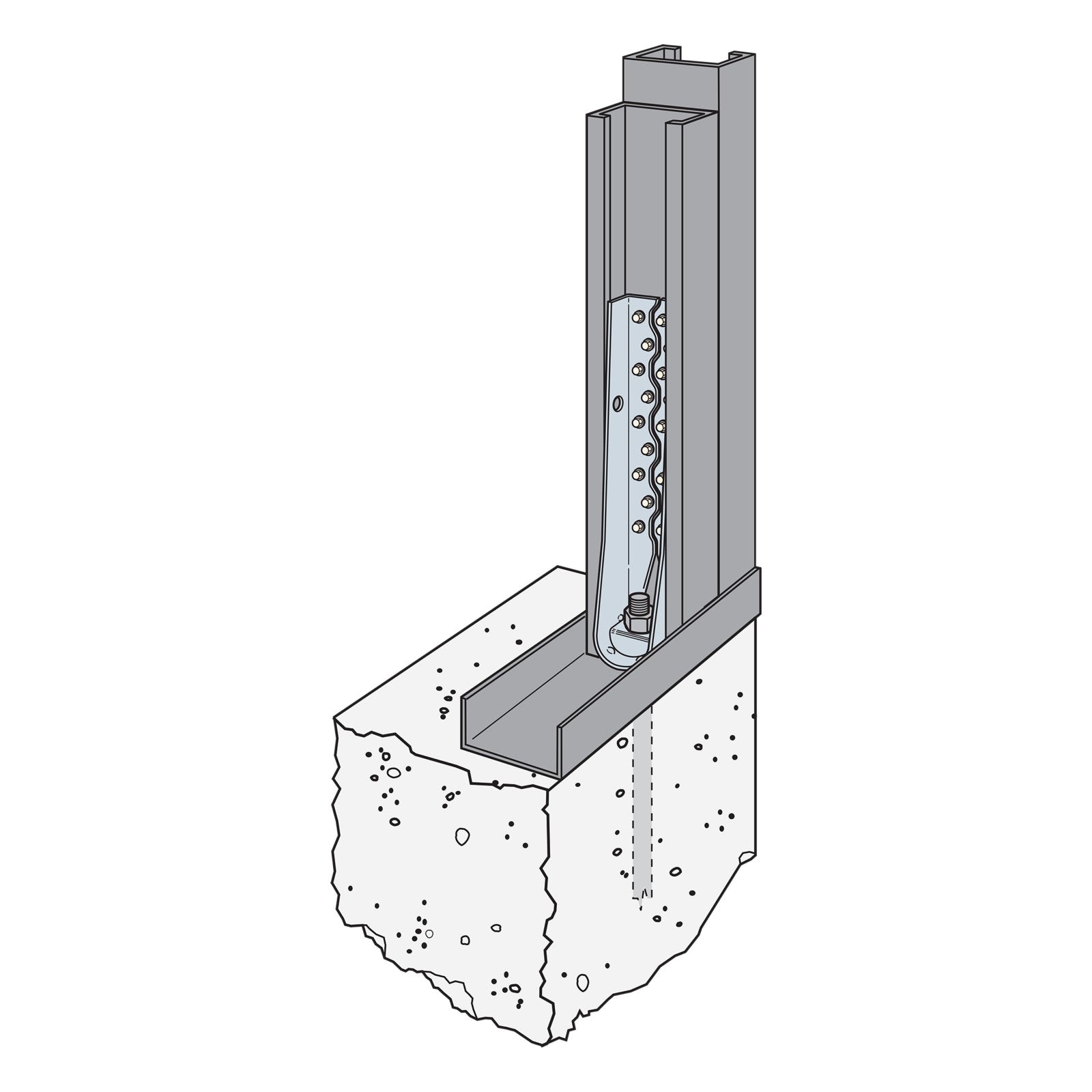

Installation:
- Use all specified fasteners.
- Use standard #14 self-drilling screws to fasten to studs.
- Anchor bolt washer is not required.
- See SET-XP® and AT-XP® adhesive products for anchor bolt retrofit options.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
