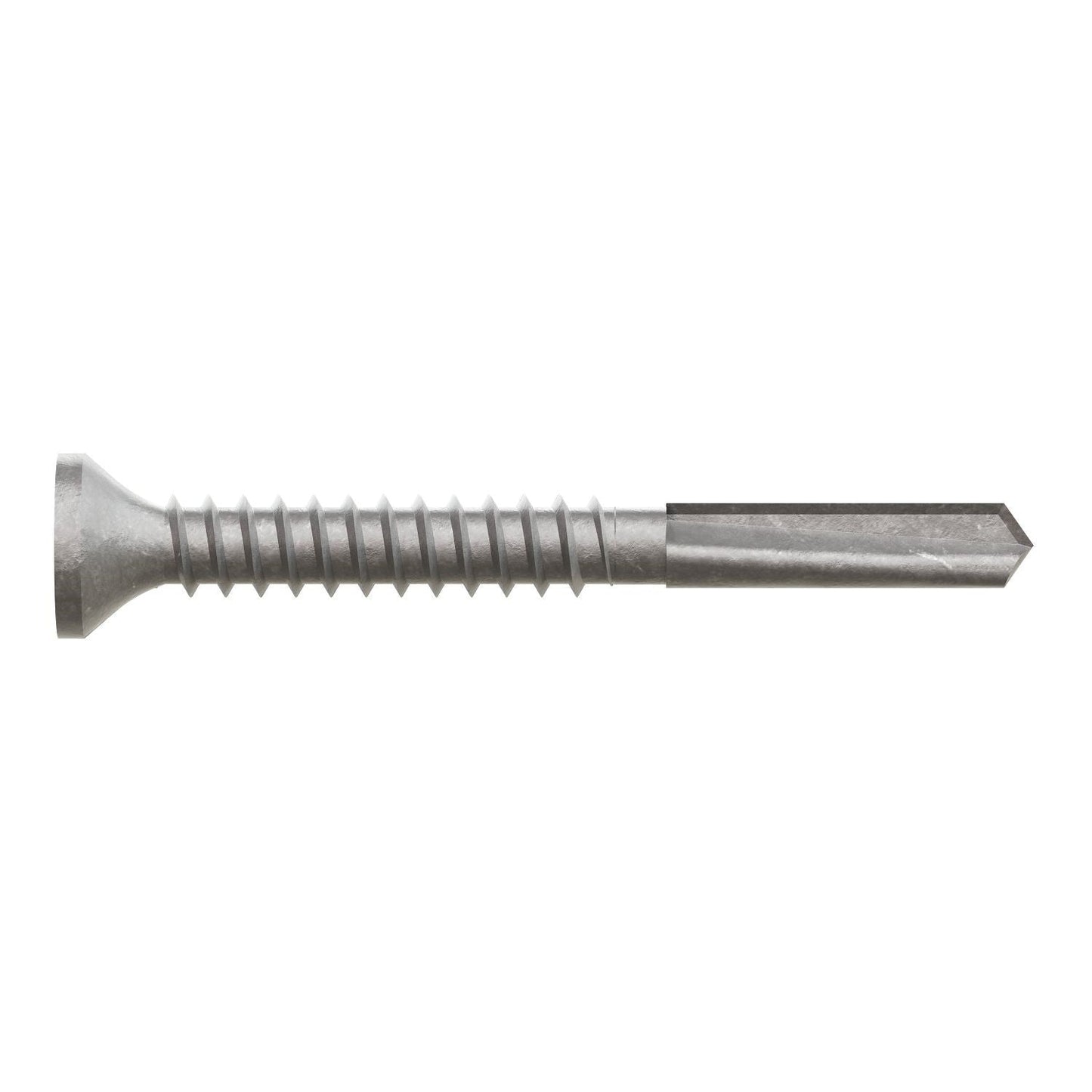

Strong-Drive PPHD Sheathing-To-CFS Screw
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Quik Guard Coating, Collated, Qty. 2,000
Specifications
The Simpson Strong-Tie PPHDQ134S1016 Strong-Drive PPHD Sheathing-to-CFS Screw is purpose-built for attaching wood structural panels, gypsum board, and fiber cement sheathing to cold-formed steel (CFS) framing. Engineered for speed and holding power, this screw features a drill point that penetrates steel up to 0.097" thick without predrilling. It’s an ideal fastening solution for repetitive sheathing tasks in mid-rise construction, commercial framing, and prefabrication environments.
The PPHD screw is collated for use in the Simpson Quik Drive auto-feed system or can be purchased in bulk for single-screw applications. Whether you're fastening OSB, plywood, or gypsum to steel, these screws deliver consistent drive performance, reduced cam-out, and higher holding strength with fewer fasteners.
Key Features:
- Designed for fast, secure sheathing attachment to cold-formed steel up to 0.097"
- Drill point eliminates the need for predrilling in steel applications
- Available collated for Quik Drive or in bulk for hand driving

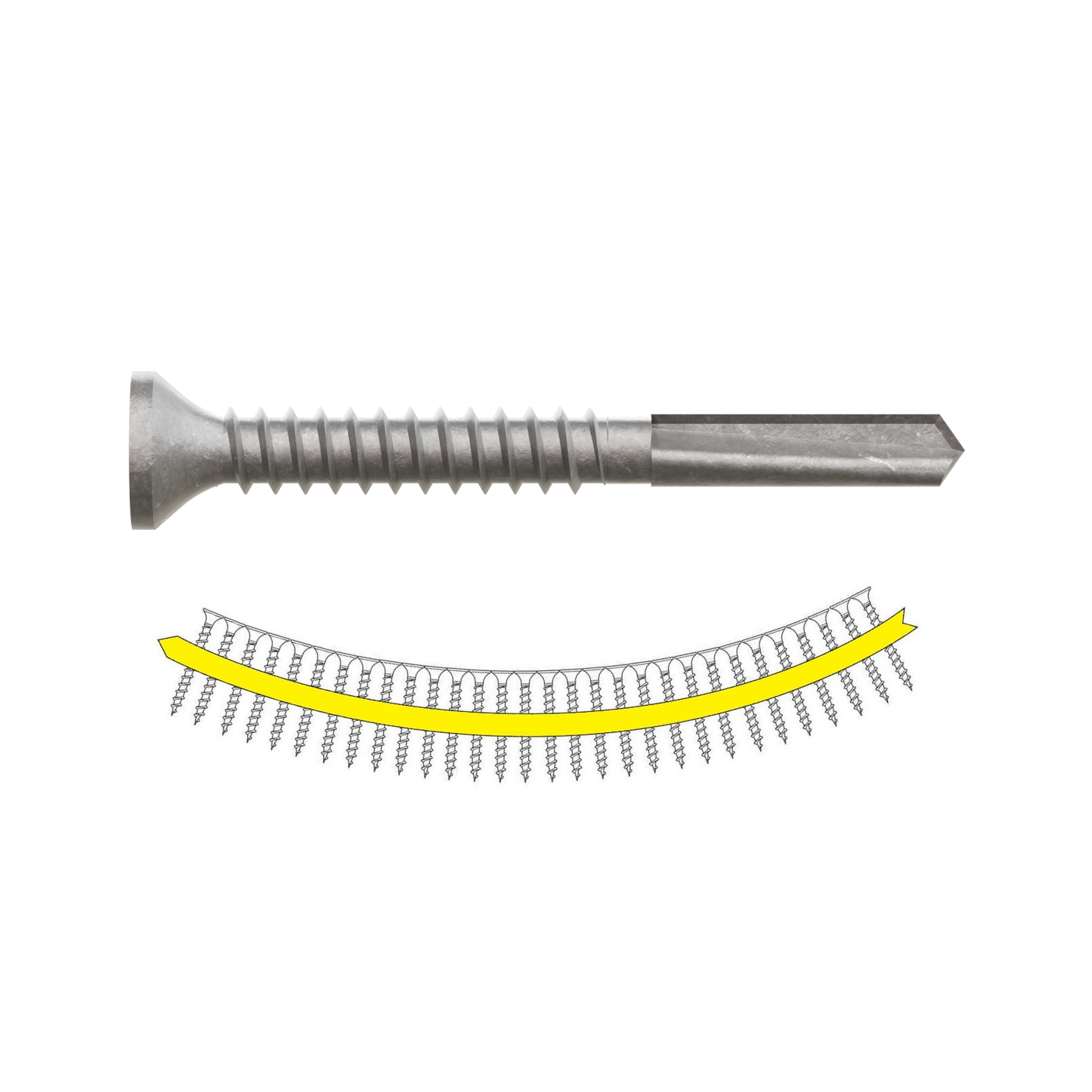

- Patented curved collation strips minimize jamming and improve feed reliability
- Reduced head diameter allows easier countersinking in sheathing materials
- Multiple lengths and finishes for various materials and environments
Applications:
- Wood structural panels to steel framing
- Gypsum sheathing to CFS
- Fiber cement board attachment
- Mid-rise and commercial construction
- Prefabricated panel assembly lines
Installation Notes:
- Compatible with Simpson Quik Drive auto-feed tools (collated versions)
- Use with a variable-speed screw gun or impact driver for optimal performance
- Drive until head is flush with sheathing; avoid overdriving
- Follow local codes and Simpson Strong-Tie recommendations for fastener spacing
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Quik Guard Coating, Collated, Qty. 2,000
My Cart:
Continue Browsing
Strong-Drive PPHD Sheathing-To-CFS Screw
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Quik Guard Coating, Collated, Qty. 2,000
My Cart:
-
Self-Drilling Screws for Efficient Fastening
By combining drilling, tapping and fastening into a single step, self-drilling screws eliminate the need for pre-drilling and increase efficiency on the job. Ideal for a wide range of applications, from attaching metal roofing and siding to fastening materials to metal substrates.
-
Self-Drilling Screws with Seemingly Unlimited Options
Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
-
The Right Point for Every Project
Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
-
