SKU: PPHDQ134S1214

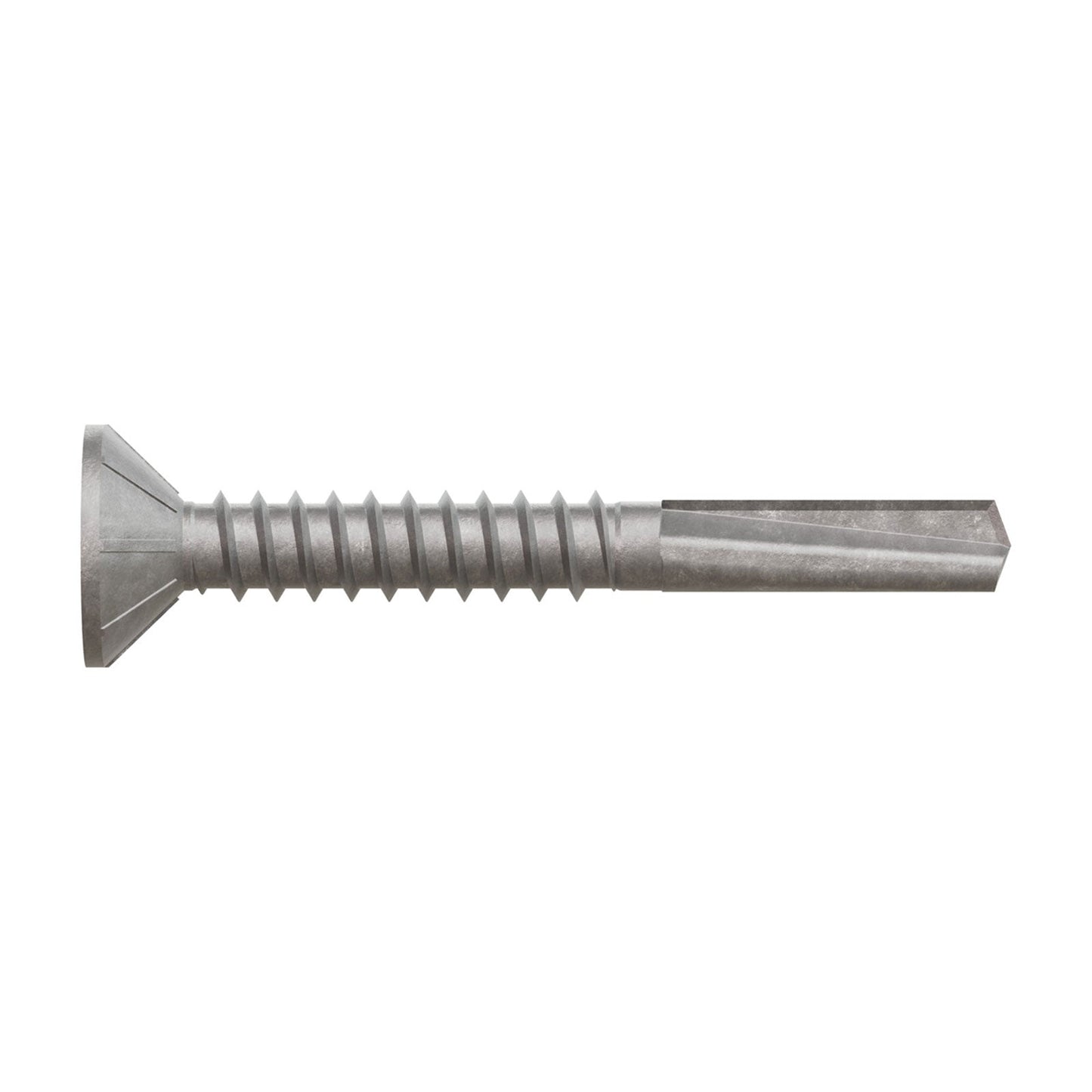

Simpson Strong-Tie #12 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Quik Guard Coating, Collated, Qty. 1,000

Regular price $25799
Ships FREE Nov 20 when you order now

Description

The Simpson Strong-Tie PPHDQ134S1214 Strong-Drive PPHD Sheathing-to-CFS Screw is purpose-built for attaching wood structural panels, gypsum board, and fiber cement sheathing to cold-formed steel (CFS) framing. Engineered for speed and holding power, this screw features a drill point that penetrates steel up to 0.097" thick without predrilling. It’s an ideal fastening solution for repetitive sheathing tasks in mid-rise construction, commercial framing, and prefabrication environments.

The PPHD screw is collated for use in the Simpson Quik Drive auto-feed system or can be purchased in bulk for single-screw applications. Whether you're fastening OSB, plywood, or gypsum to steel, these screws deliver consistent drive performance, reduced cam-out, and higher holding strength with fewer fasteners.

Key Features:

  • Designed for fast, secure sheathing attachment to cold-formed steel up to 0.097"
  • Drill point eliminates the need for predrilling in steel applications
  • Available collated for Quik Drive or in bulk for hand driving

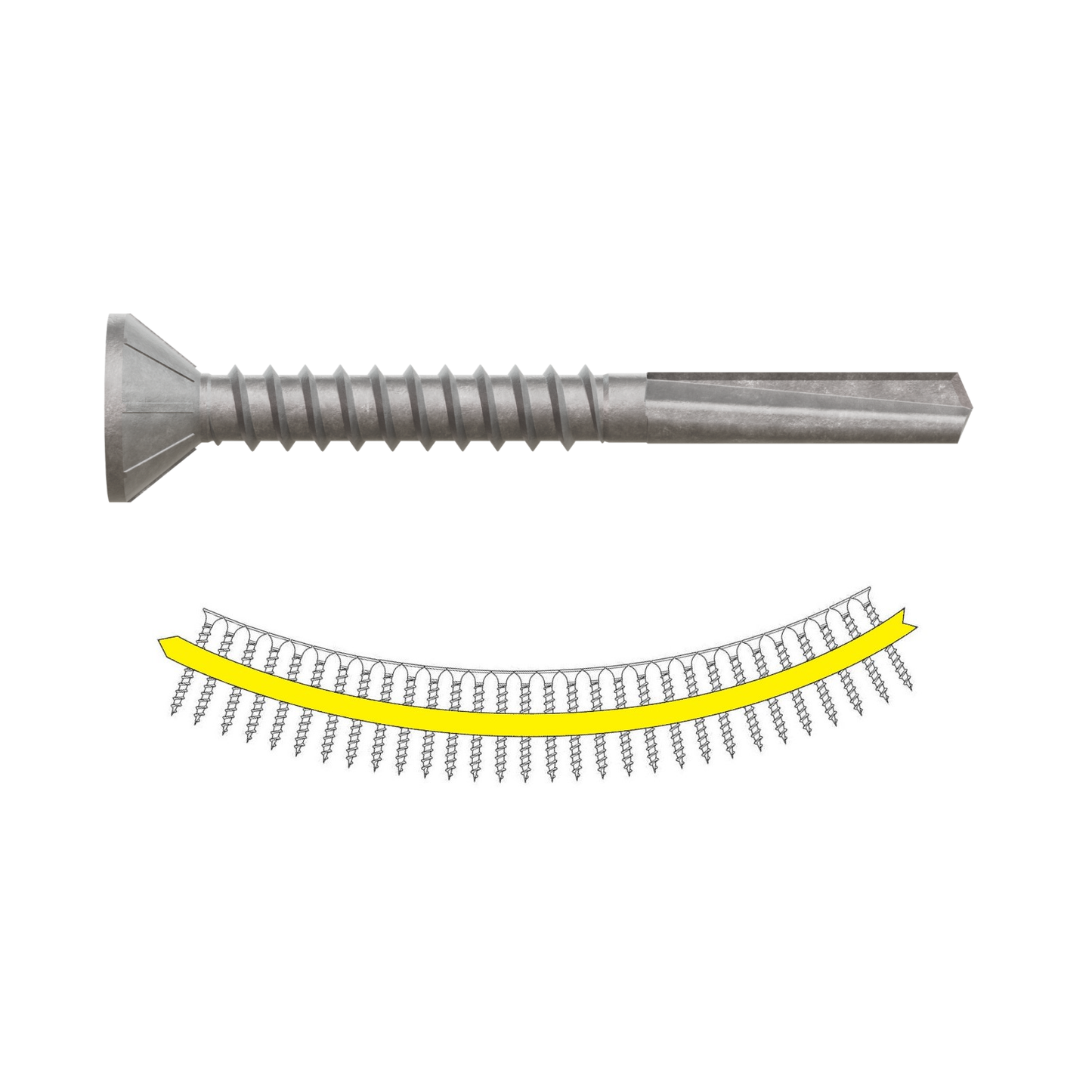

  • Patented curved collation strips minimize jamming and improve feed reliability
  • Reduced head diameter allows easier countersinking in sheathing materials
  • Multiple lengths and finishes for various materials and environments

Applications:

  • Wood structural panels to steel framing
  • Gypsum sheathing to CFS
  • Fiber cement board attachment
  • Mid-rise and commercial construction
  • Prefabricated panel assembly lines

Installation Notes:

  • Compatible with Simpson Quik Drive auto-feed tools (collated versions)
  • Use with a variable-speed screw gun or impact driver for optimal performance
  • Drive until head is flush with sheathing; avoid overdriving
  • Follow local codes and Simpson Strong-Tie recommendations for fastener spacing

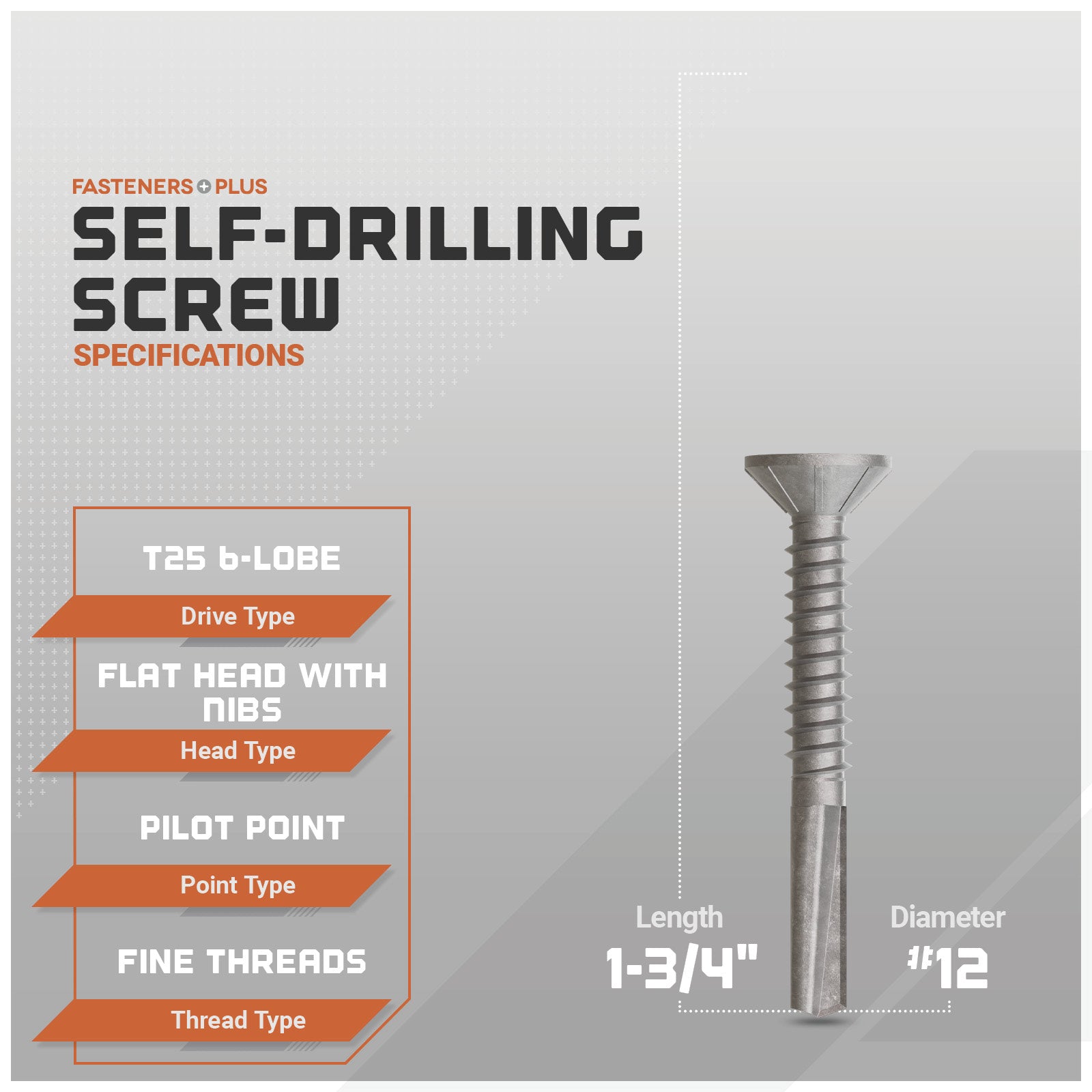

Specifications

Diameter: #12
Length: 1-3/4"
Head Diameter: 0.766"
For Metal Thickness: Up to 12 Ga.
Thread Type: Fine Threads
Threads Per Inch: 14
Drive Type: T25 6-Lobe
Head Type: Flat Head with Nibs
Point Type: Pilot Point
Material: Carbon Steel
Finish: Quik Guard Coating
Manufacturer Name: Simpson Strong-Tie
Quantity: 1,000
