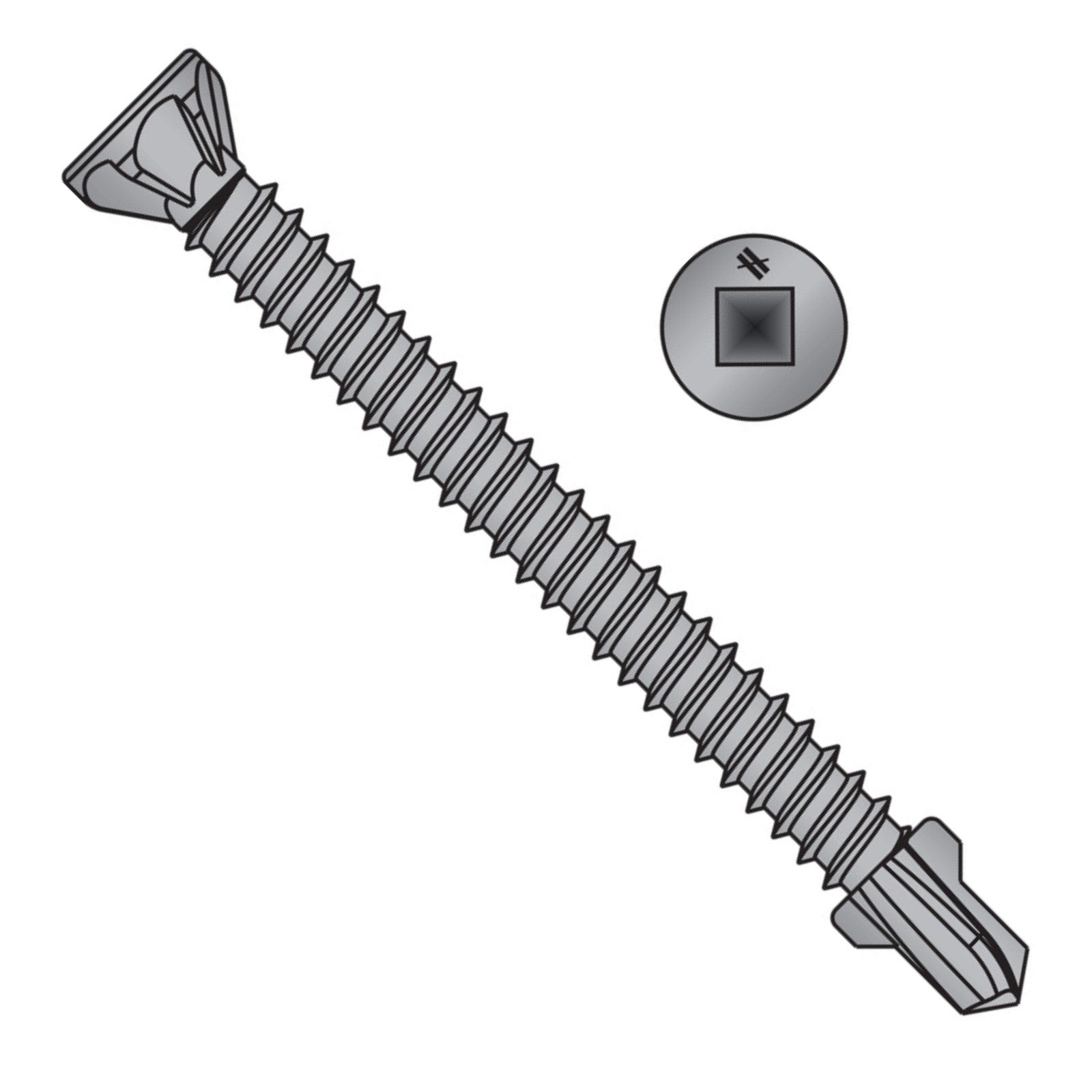

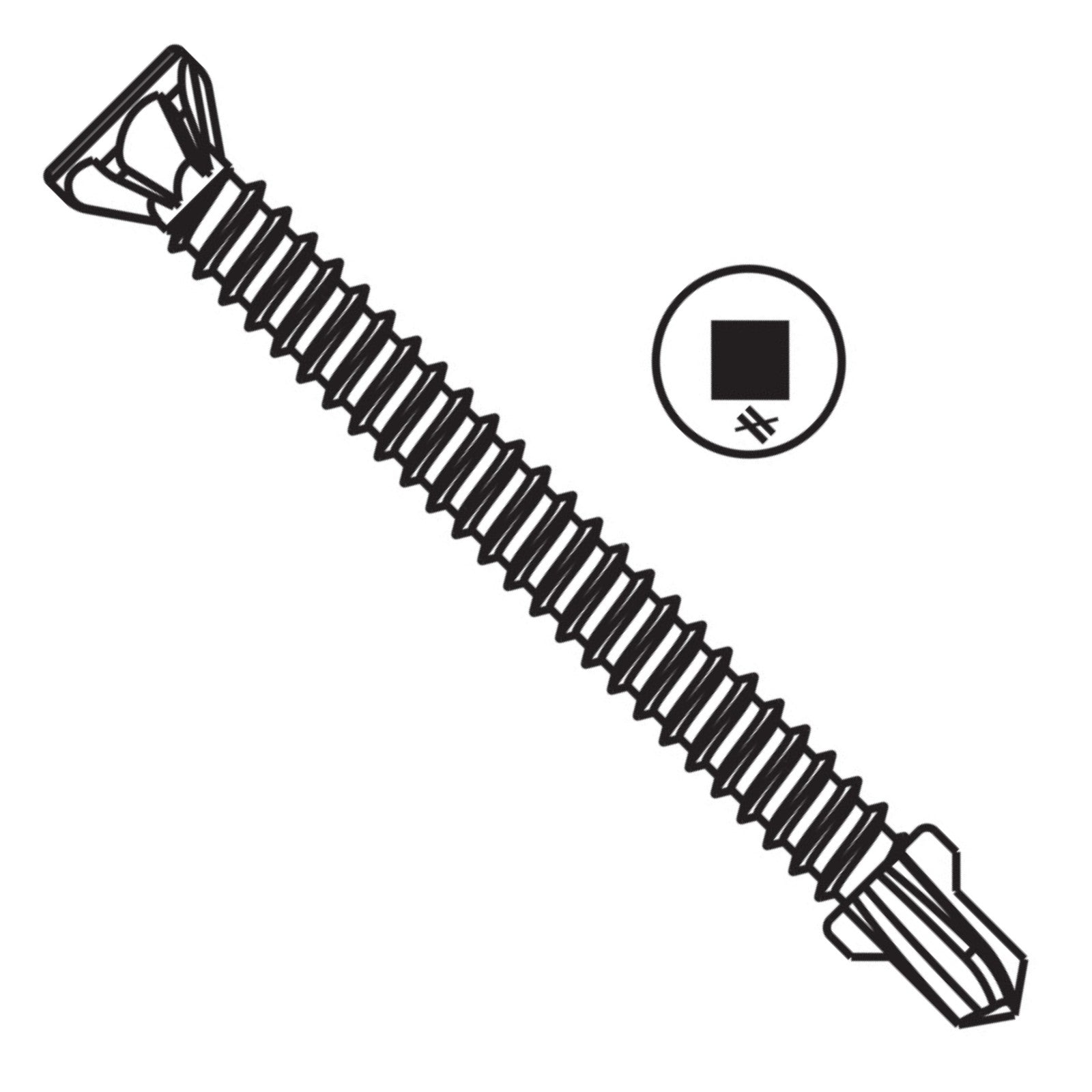

Simpson Strong-Tie #10 X 2-1/4" Quik Drive Sheathing-To-CFS Screw - Quik Guard Coating, Qty. 2,000
Simpson Strong-Tie #10 X 2-1/4" Quik Drive Sheathing-To-CFS Screw - Quik Guard Coating, Qty. 2,000!
Simpson Strong-Tie #10 X 2-1/4" Quik Drive Sheathing-To-CFS Screw - Quik Guard Coating, Qty. 2,000

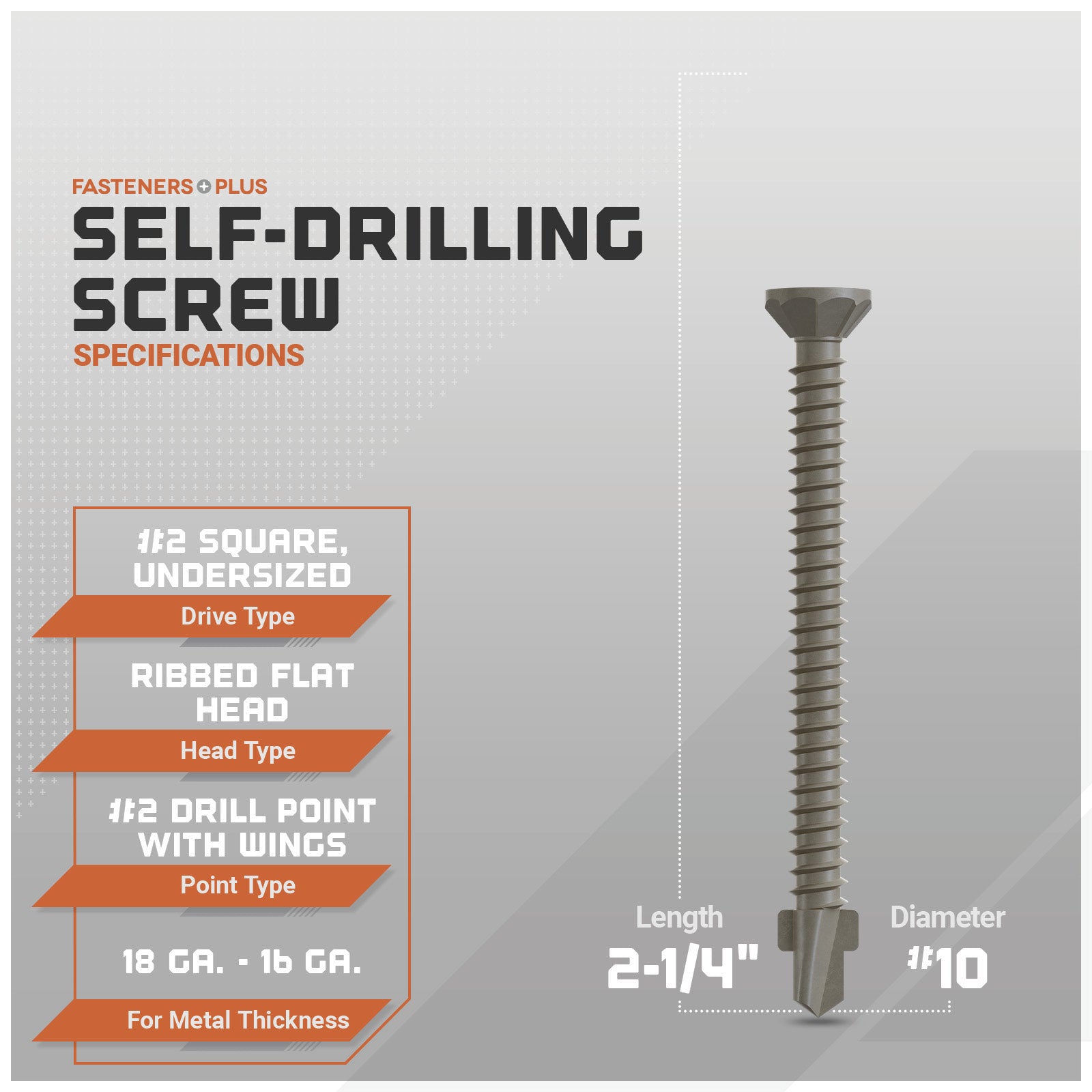

Specifications
Driver bit included in each box
The Simpson Strong-Tie CBSDQ214-2K CBSDQ Sheathing-to-CFS Screws are engineered for high-volume sheathing installations into cold-formed steel (CFS). With optimized drill points and fine threads, they easily pierce steel framing and secure structural sheathing materials without the need for predrilling.
Designed specifically for attaching wood sheathing, gypsum panels, rigid foam insulation, and other sheathing products to steel up to 16 gauge, these screws deliver reliable holding power and meet code requirements with an ICC-ES listing (ESR-4061). The CBSDQ screws are perfect for commercial framing, multi-family construction, and modular builds where speed and consistency matter most.
Key Features:
- Designed for attaching a variety of sheathing materials to cold-formed steel up to 16 gauge
- Self-drilling tip reduces the need for predrilling, saving time and labor
- Optimized thread and point geometry for consistent engagement and reduced stripping
- ICC-ES evaluated under ESR-4061 for code-compliant sheathing-to-steel applications
Applications:

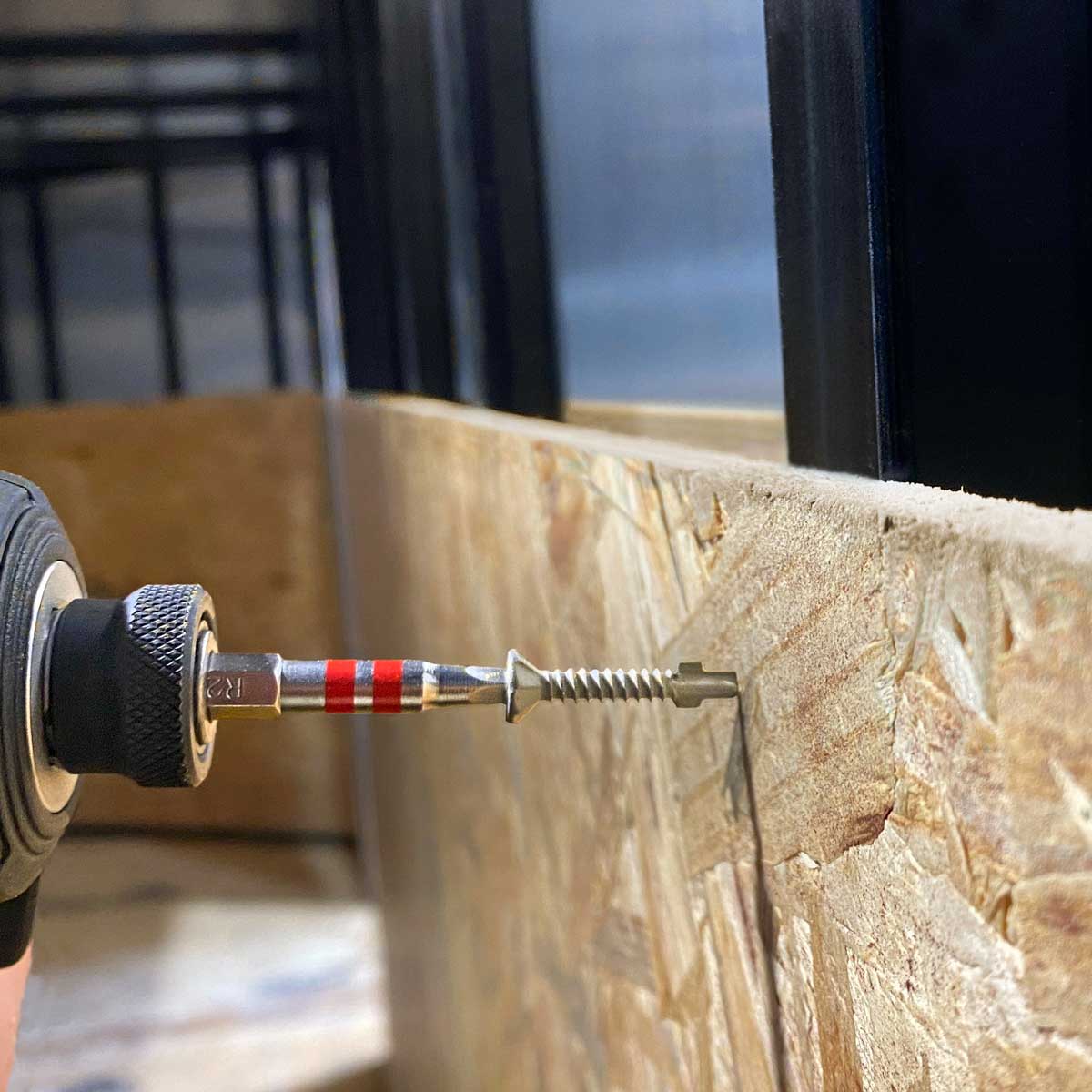

- Structural wood sheathing to steel studs
- Gypsum panels and rigid foam to CFS framing
- Floor sheathing over cold-formed steel joists
- Commercial and multi-family construction
- Modular wall and roof panel assembly
Installation Notes:
- Select screw length based on material thickness and code requirements
- Drive screws flush to the sheathing surface without overdriving
- No predrilling required for most applications in 16 gauge or lighter steel
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 X 2-1/4" Quik Drive Sheathing-To-CFS Screw - Quik Guard Coating, Qty. 2,000
My Cart:
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 X 2-1/4" Quik Drive Sheathing-To-CFS Screw - Quik Guard Coating, Qty. 2,000
My Cart:
-

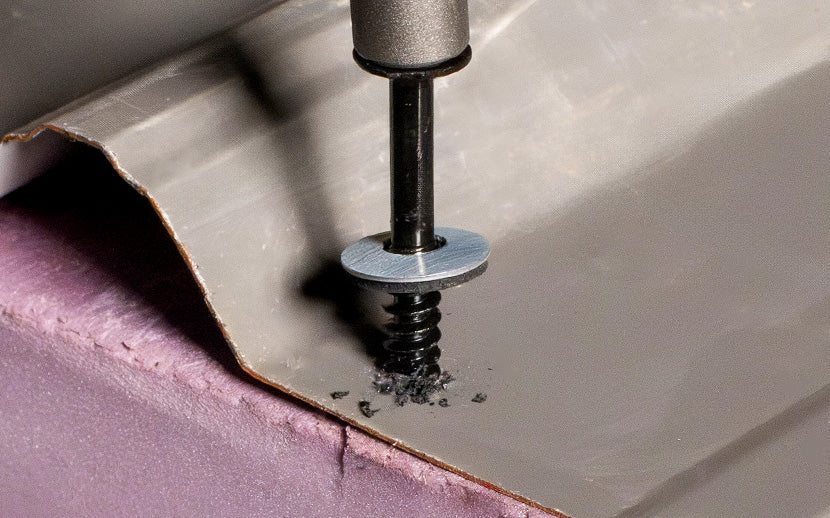

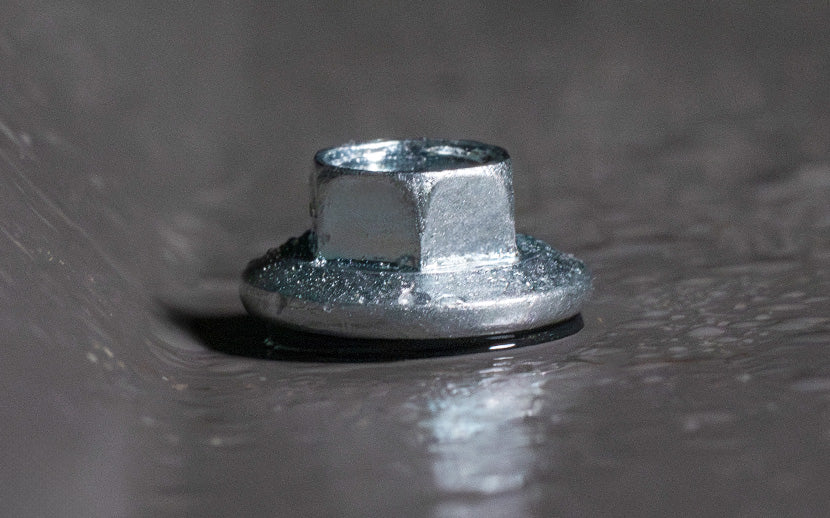

Self-Drilling Screws for Efficient Fastening
By combining drilling, tapping and fastening into a single step, self-drilling screws eliminate the need for pre-drilling and increase efficiency on the job. Ideal for a wide range of applications, from attaching metal roofing and siding to fastening materials to metal substrates.
-
Self-Drilling Screws with Seemingly Unlimited Options
Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
-
The Right Point for Every Project
Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
-
