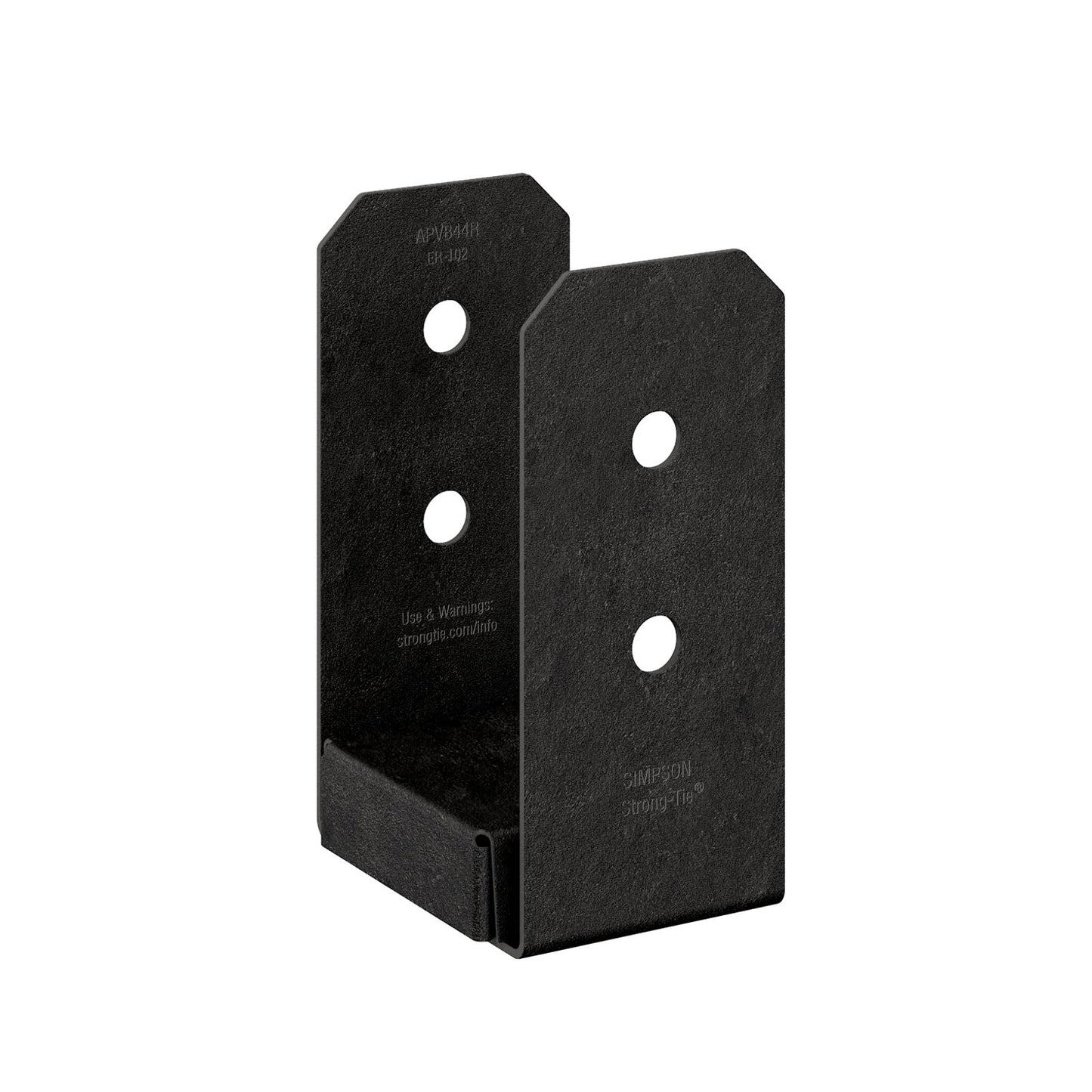

Simpson APVB44R Avant Rough Cut 4x4 Ornamental Post Base - Black Powder Coat
Simpson APVB44R Avant Rough Cut 4x4 Ornamental Post Base - Black Powder Coat
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 4x4". If you have a nominal post measuring 3-1/2x3-1/2" you will need an APVB44 Ornamental Post base

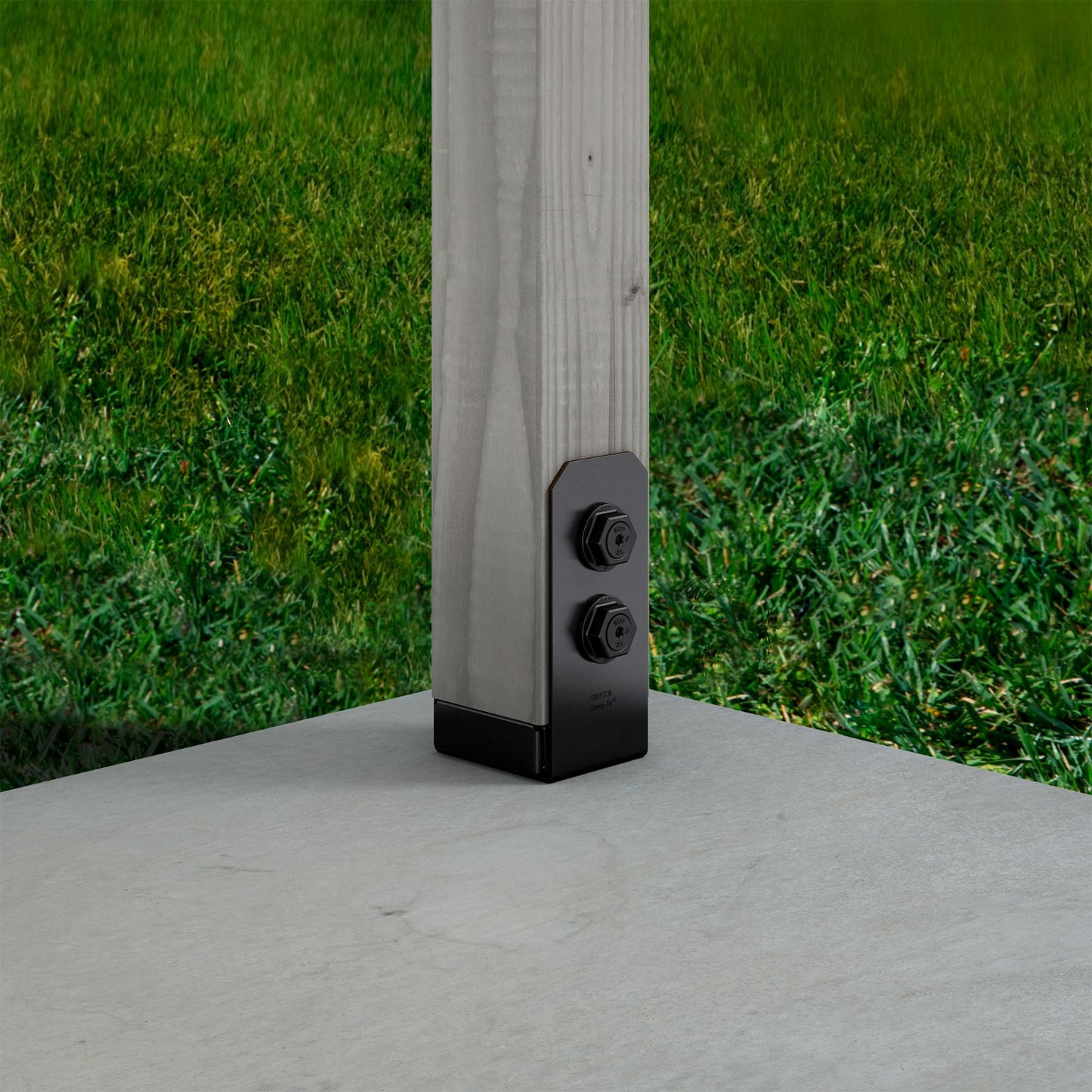

Simpson Strong-Tie Outdoor Accents post bases secure the post or column to concrete and are perfect for outdoor projects, such as pergolas, patio covers and other top-supported structures. These post bases are Zmax finished first and then black powder coated for long lasting outdoor use. The Avant collection features chamfered corners and straight edges for a very clean look when installed. This is a rough cut version of the post base which is designed for a "True 4x4" or sometimes called "old lumber" which means the post actually measures 4" x 4". The post base includes a 1" standoff from the concrete to help avoid post-end rot from moisture. These bases are installed with the Outdoor Accents structural screws, hex head washers and concrete anchors , not included.
Take the guesswork out of what fasteners you need with our APVB44R kit that has the fasteners included to complete your project!
Specifications:
Specifications:

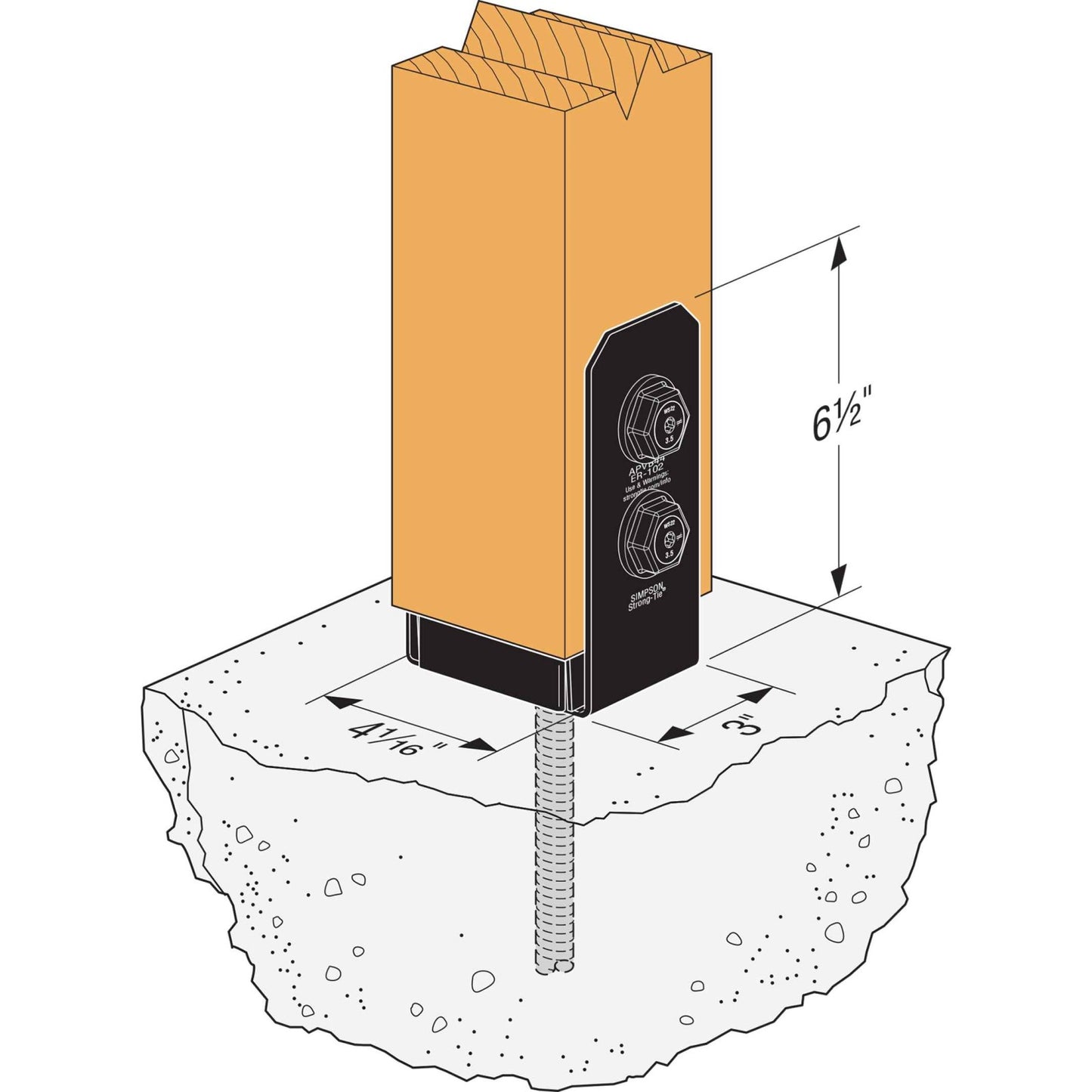

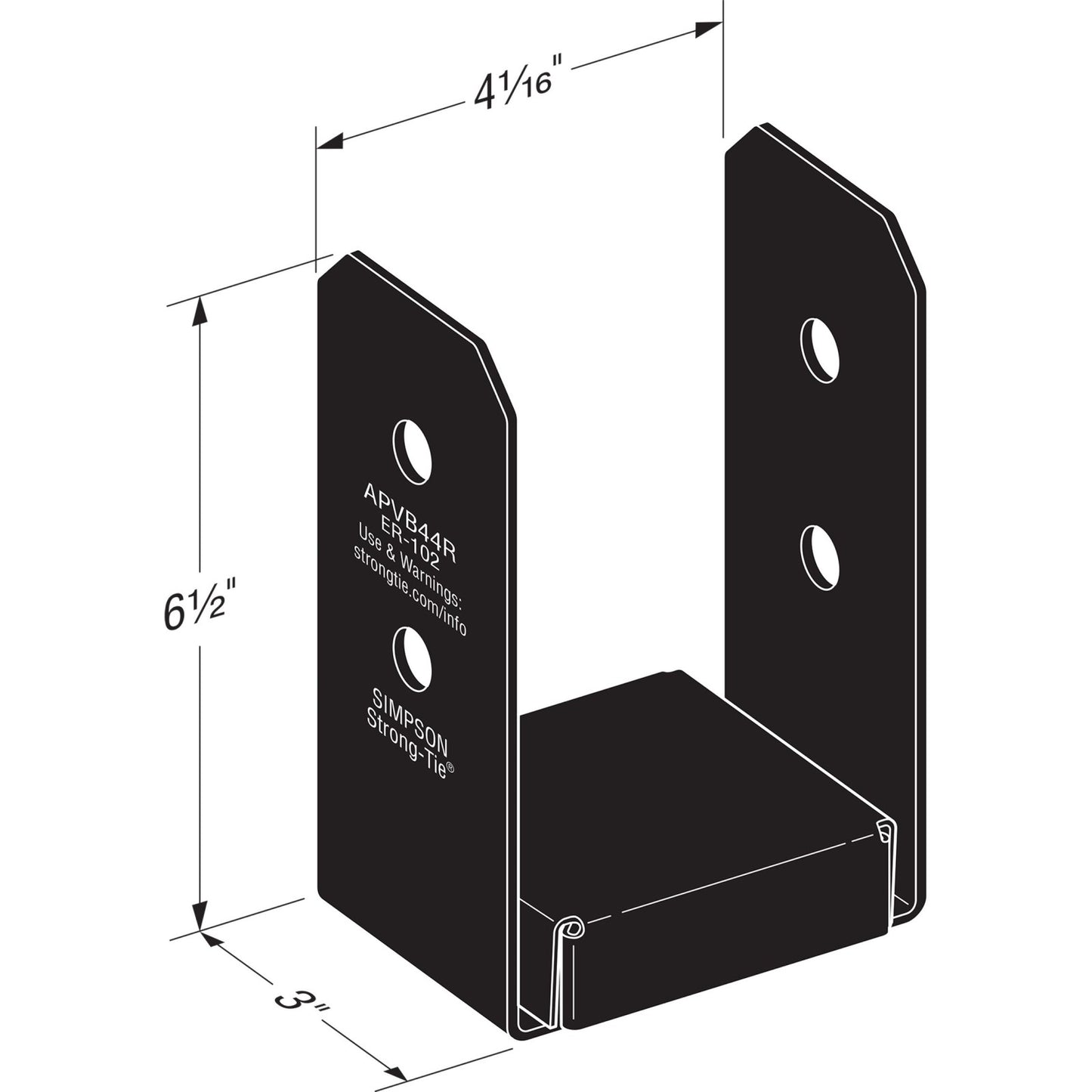

Post Size: Rough 4X4
Height: 6-1/2"
Fasteners required: - (4) SDWS22312DBB Screws - (4) STN22 Washers - (1) 5/8" Concrete Anchor
Thickness: 12 Gauge
Width: 4-1/16"
Finish: ZMAX - Flat Black
Manufacturer name: Simpson Strong-Tie
Type: Avant Collection
For Treated Lumber: Yes
Product Guide: View Spec Sheet
