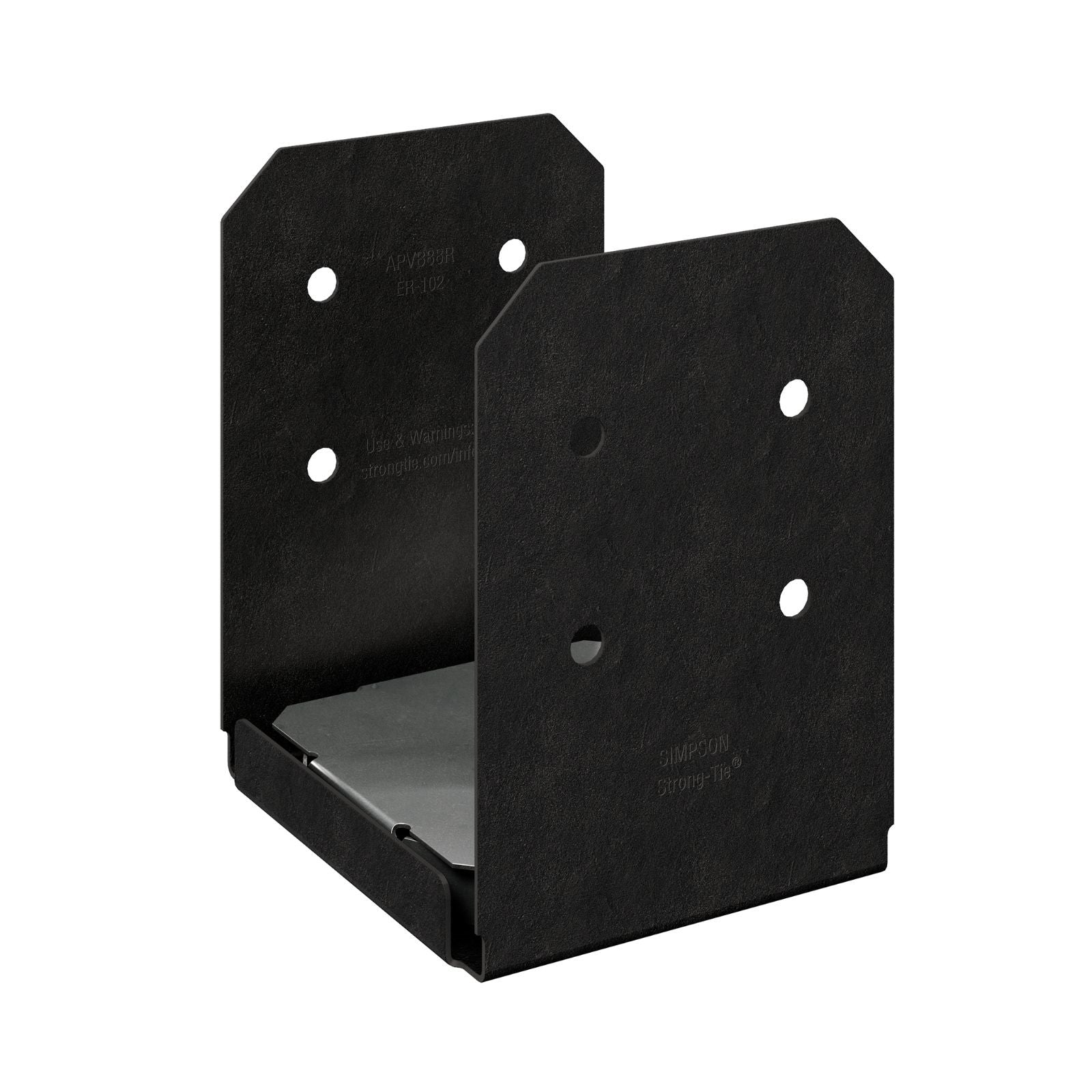

Simpson APVB88R Avant Rough Cut 8x8 Ornamental Post Base - Black Powder Coat

SKU: APVB88R

$119.32

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 8x8". If you have a nominal post measuring 7-1/2x7-1/2" you will need an APVB88 Ornamental Post base

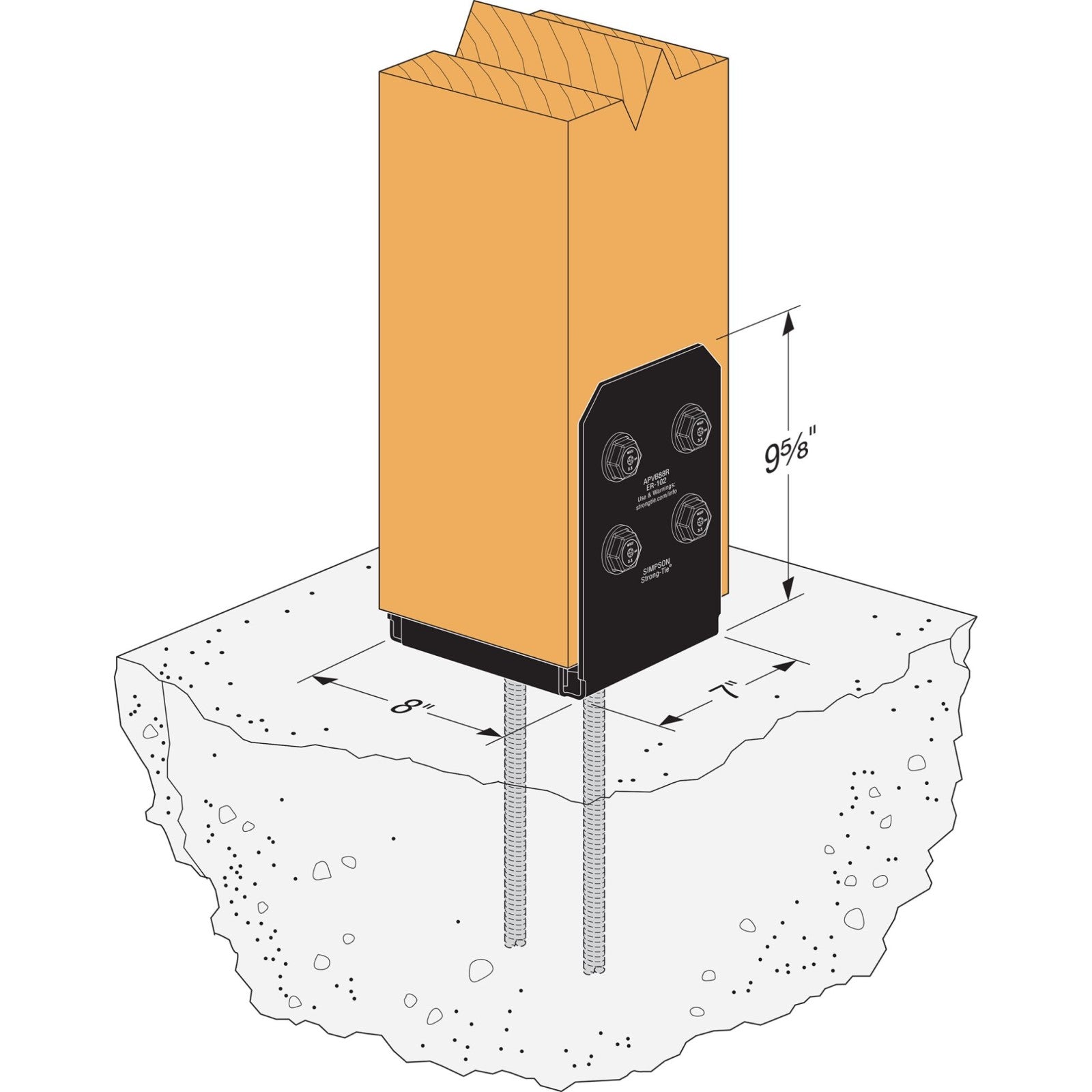

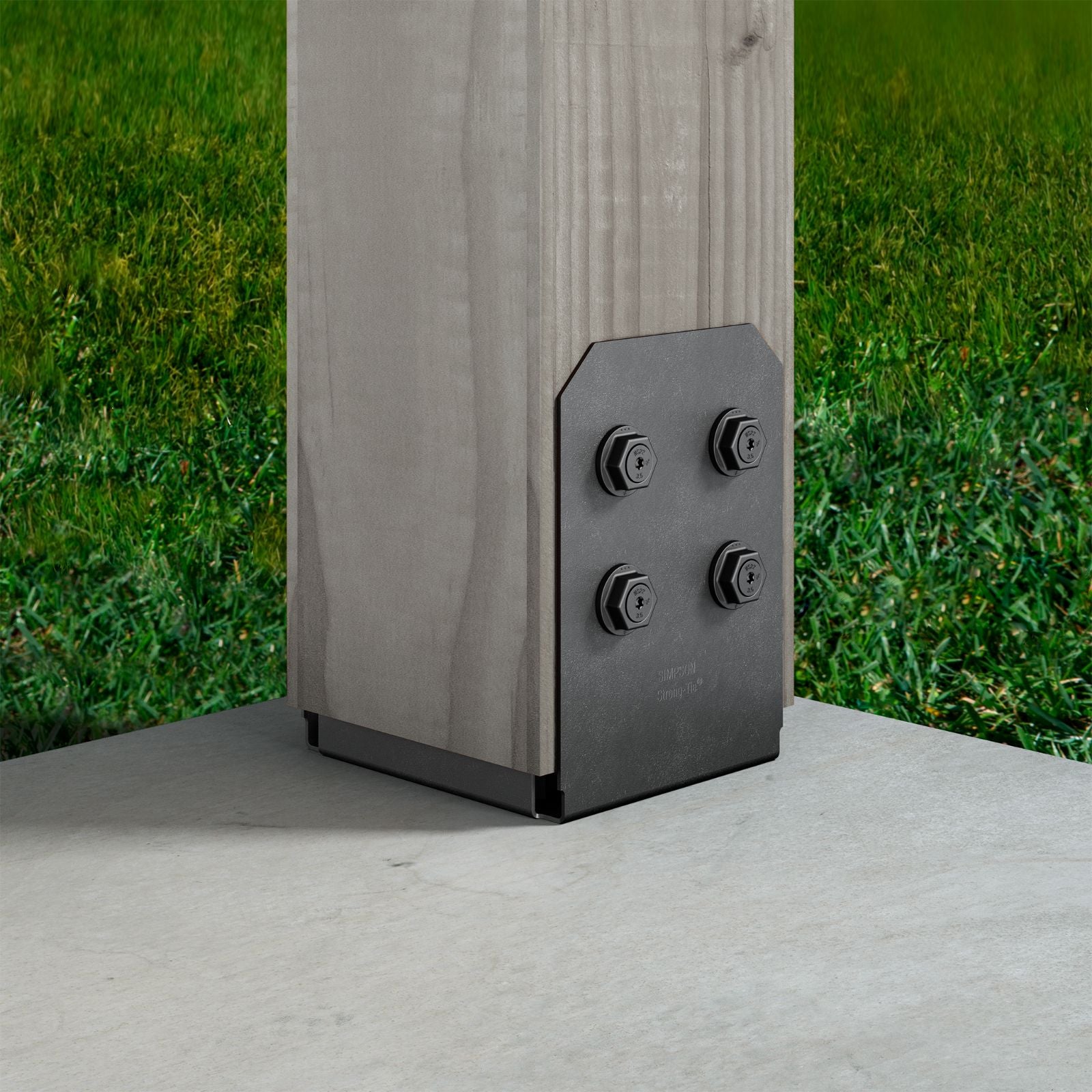

Simpson Strong-Tie Outdoor Accents post bases secure the post or column to concrete and are perfect for outdoor projects, such as pergolas, patio covers and other top-supported structures. These post bases are Zmax finished first and then black powder coated for long lasting outdoor use. The Avant collection features chamfered corners and straight edges for a very clean look when installed. This is a rough cut version of the post base which is designed for a "True 8x8" or sometimes called "old lumber" which means the post actually measures 8" x 8". The post base includes a 1" standoff from the concrete to help avoid post-end rot from moisture. These bases are installed with the Outdoor Accents structural screws, hex head washers and concrete anchors , not included.

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 8x8...

Read More

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 8x8". If you have a nominal post measuring 7-1/2x7-1/2" you will need an APVB88 Ornamental Post base


Simpson Strong-Tie Outdoor Accents post bases secure the post or column to concrete and are perfect for outdoor projects, such as pergolas, patio covers and other top-supported structures. These post bases are Zmax finished first and then black powder coated for long lasting outdoor use. The Avant collection features chamfered corners and straight edges for a very clean look when installed. This is a rough cut version of the post base which is designed for a "True 8x8" or sometimes called "old lumber" which means the post actually measures 8" x 8". The post base includes a 1" standoff from the concrete to help avoid post-end rot from moisture. These bases are installed with the Outdoor Accents structural screws, hex head washers and concrete anchors , not included.

Show Less

Fasteners Required:
- (8) SDWS22312DBB Screws - (8) STN22 Washers - (2) 5/8" Concrete Anchors

For Treated Lumber:
yes

Finish Spec:
ZMAX - Flat Black

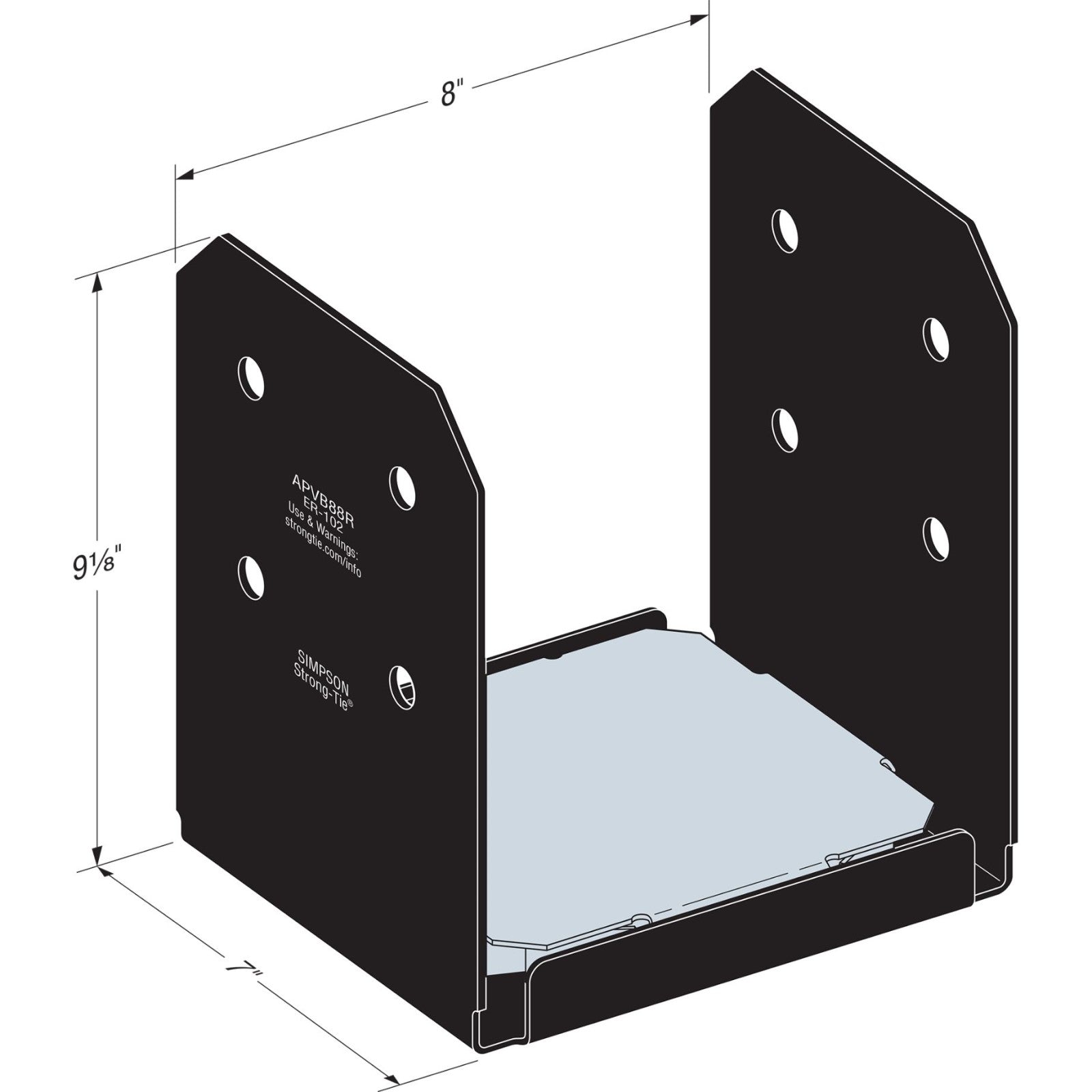

Length Spec:
7"

Height:
9-5/8"

Manufacturer Name:
Simpson Strong-Tie

Material:
Carbon Steel

Post Size:
Rough 8X8

Thickness:
12 Gauge

Width Spec:
8"

Product Guide:

Read More

Show Less

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
M
MARK MORRISSEY
Almost 5 stars.

Would have given 5 but the 12 gauge metal is a bit thin for an 8x8x10 post. Feel 10 gauge would have been better.
