Description:
Description:

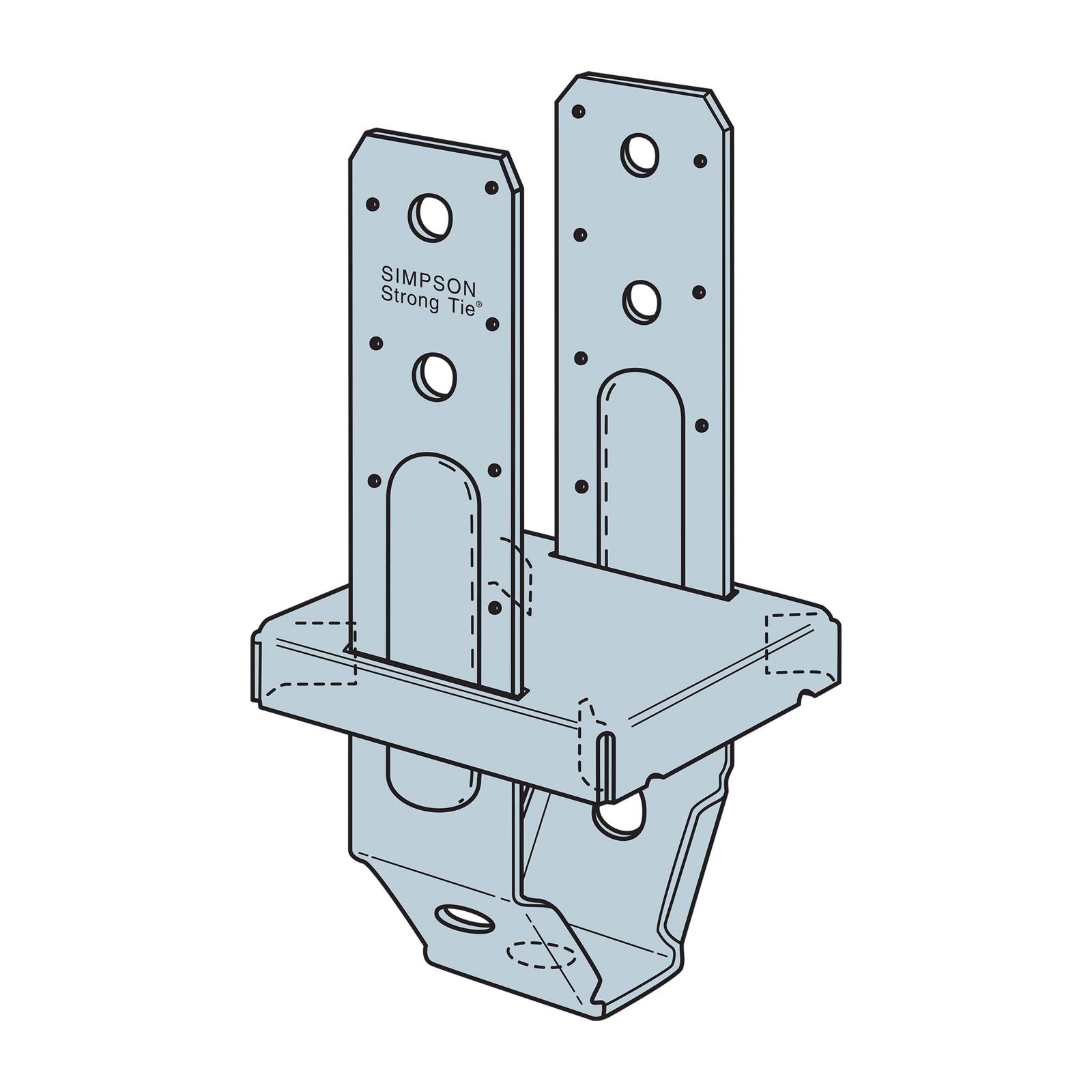

The Simpson Strong-Tie PBS post base is designed to provide a secure connection between a post or column and concrete. It is ideal for projects including decks, patio covers and other top-supported structures. The Strong-Tie PBS46HDG features a hot dip galvanized coating for added corrosion resistance.
Installation:- Use all specified fasteners.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
- PB: Holes are provided for installation with either 16d commons or 1/2" bolts for PB66 and PB66R; all other models use 16d commons only. A 2" minimum sidecover is required to obtain the full load.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson Regular & Standoff Post Bases.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4 X 6
Height: 6-9/16"
Fasteners required: Nails: (14) 0.162 x 3-1/2"; Machine Bolts: (2) 1/2"
Thickness: Base: 12 Gauge; Strap: 14 Gauge
Quantity: 1
Width: 3-9/16"
Finish: Hot Dip Galvanized
Length: 5-7/16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Provides a 1" standoff between post and concrete that meets code requirements
•Embeds in wet concrete before the concrete has cured and is designed to install flush with the concrete surface
•Embossment in the vertical straps provides increased strength
•Optional fastening with either nails or bolts
Installation
Installation
•Use all specified fasteners; see General Notes.
•Install either nails or bolts.
•Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
•Embed into wet concrete, ensuring complete consolidation, up to the bottom of the 1" standoff base plate. A 2" minimum side cover is required to obtain the full load. Holes in the bottom of the straps allow for free concrete flow.
