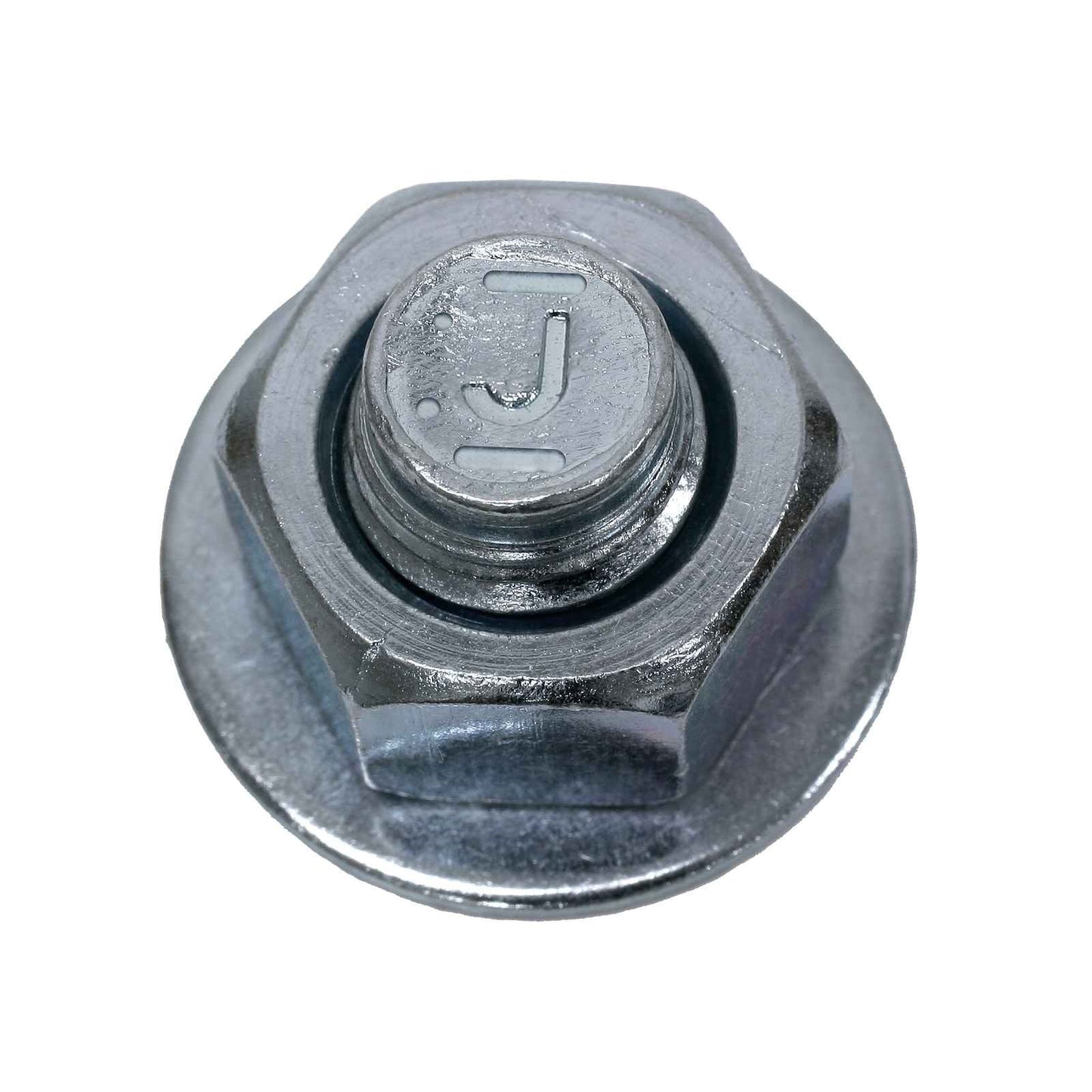

Simpson Strong-Tie Strong-Bolt 2 - 1/2" x 10" Mechanically Galvanized Wedge Anchor - Pkg 25

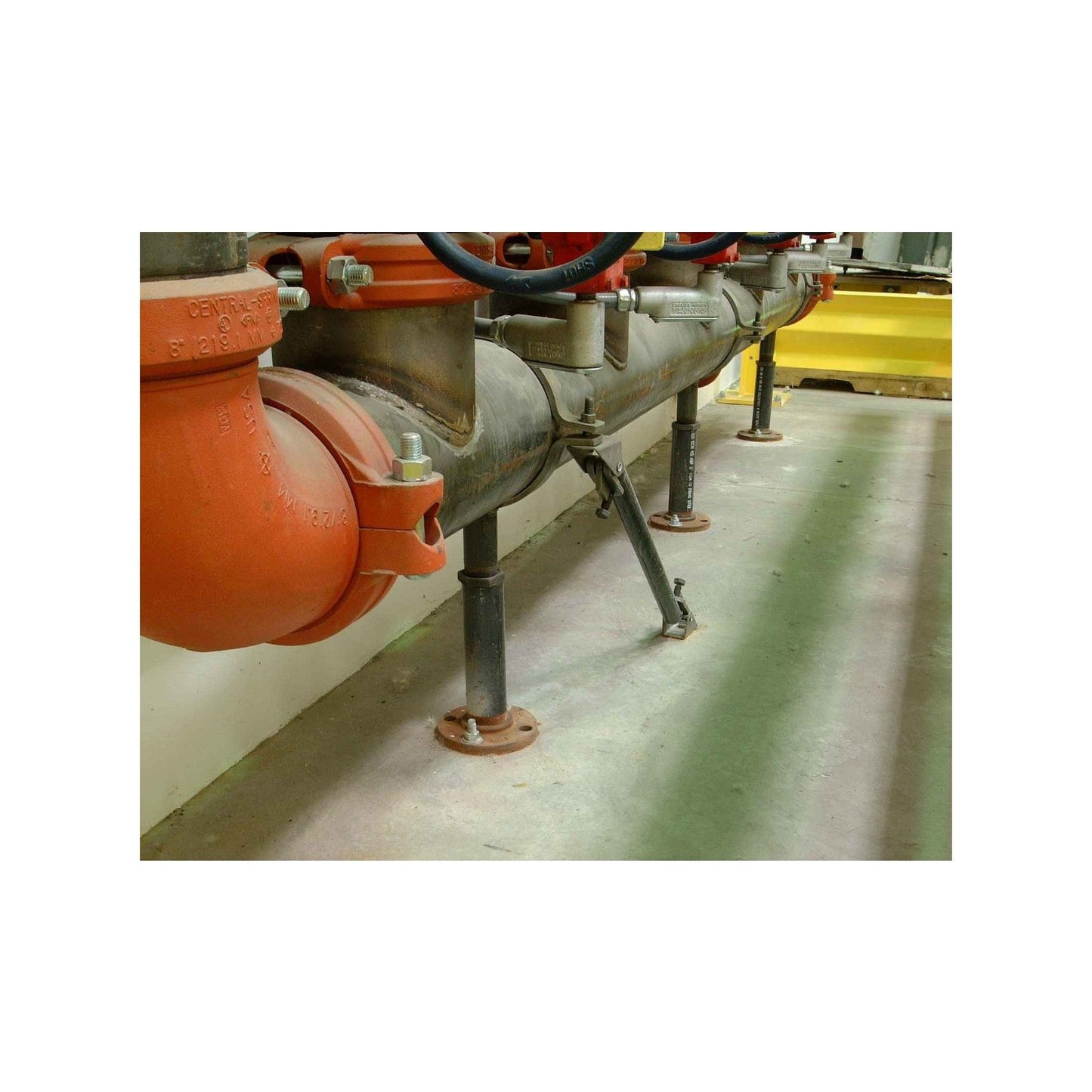

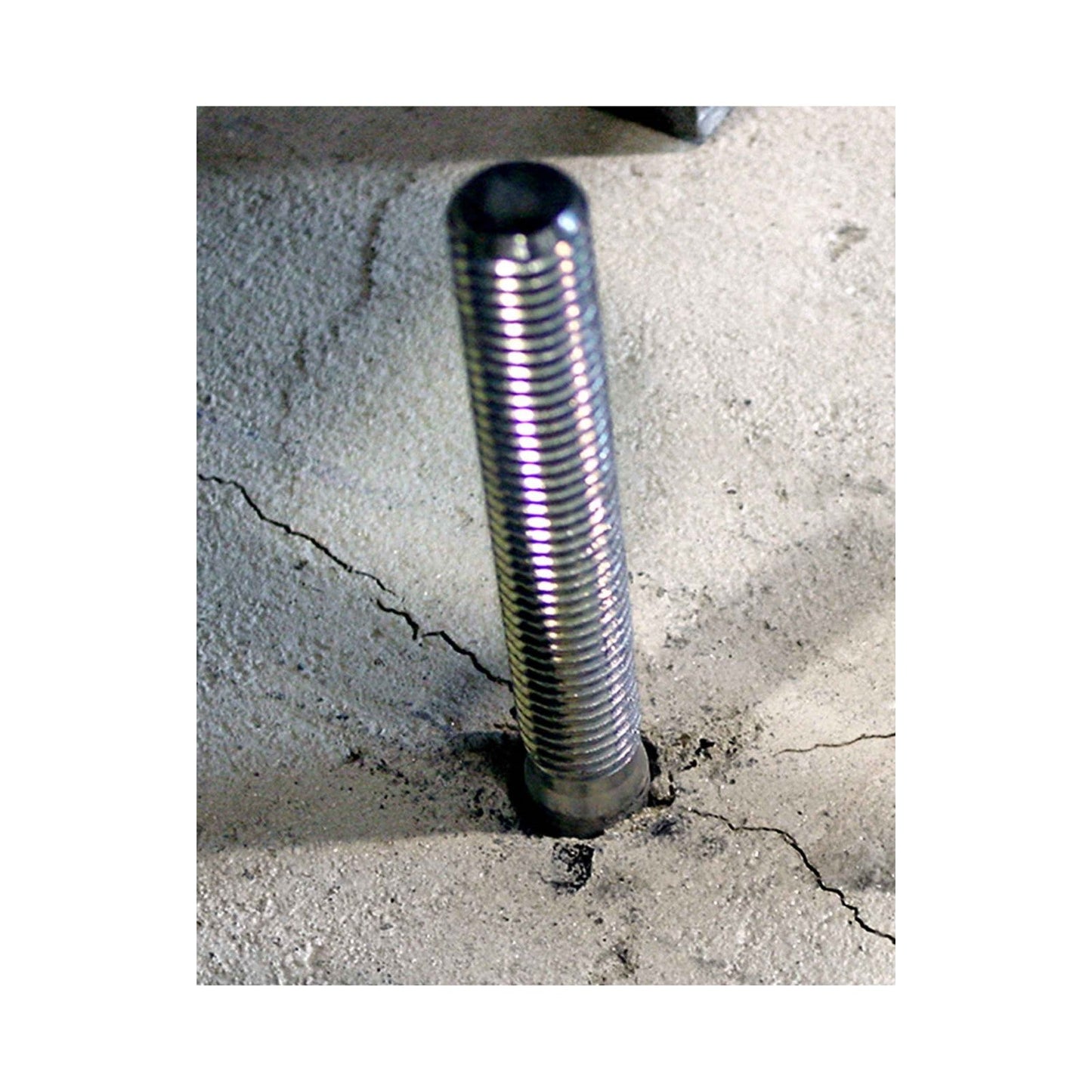

Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. Strong-Bolt 2 Wedge anchors are qualified for both static and seismic loading and suitable for horizontal, vertical and overhead applications.

California Residents: WARNING

Caution:

Do not use an impact wrench to set or tighten anchors

Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.

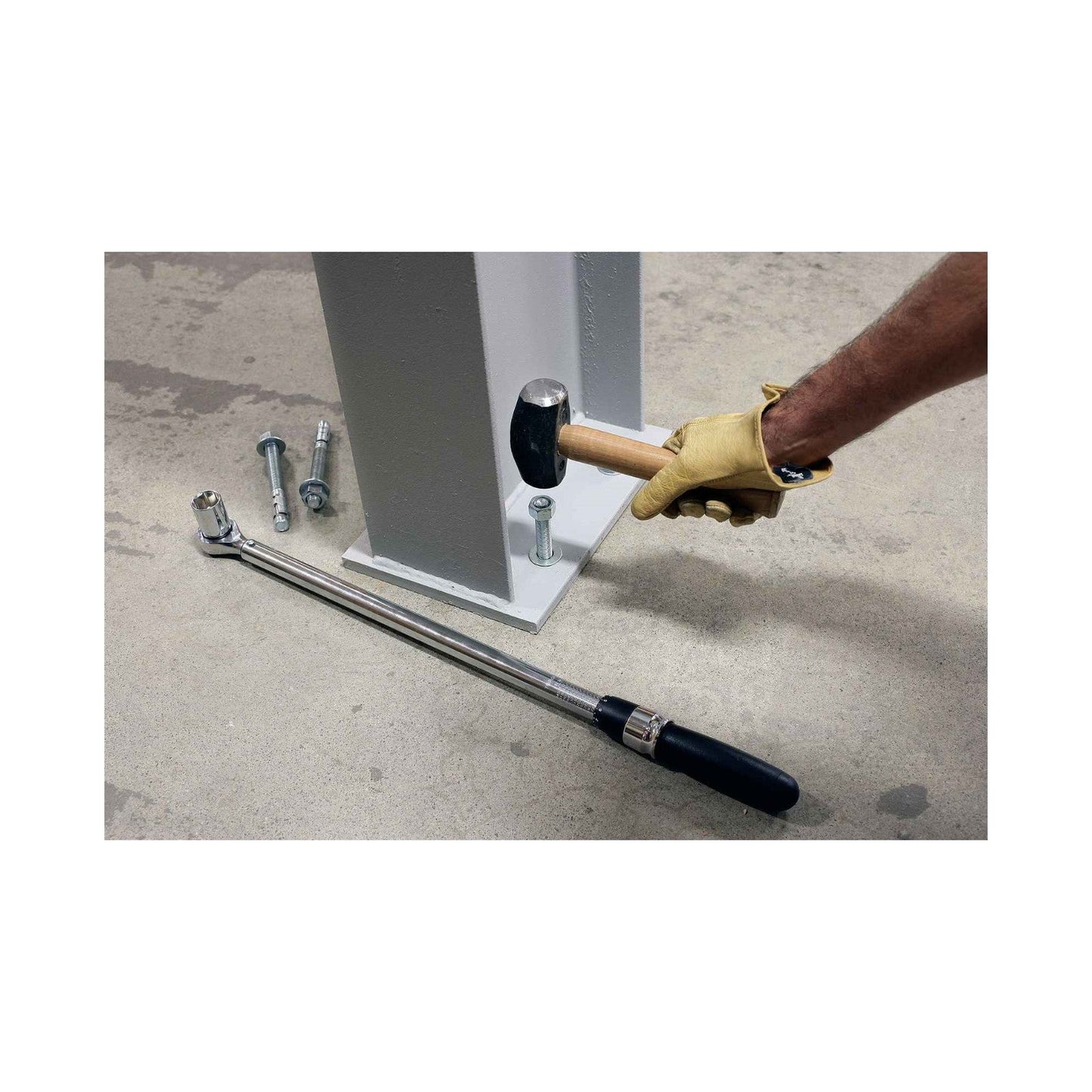

2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

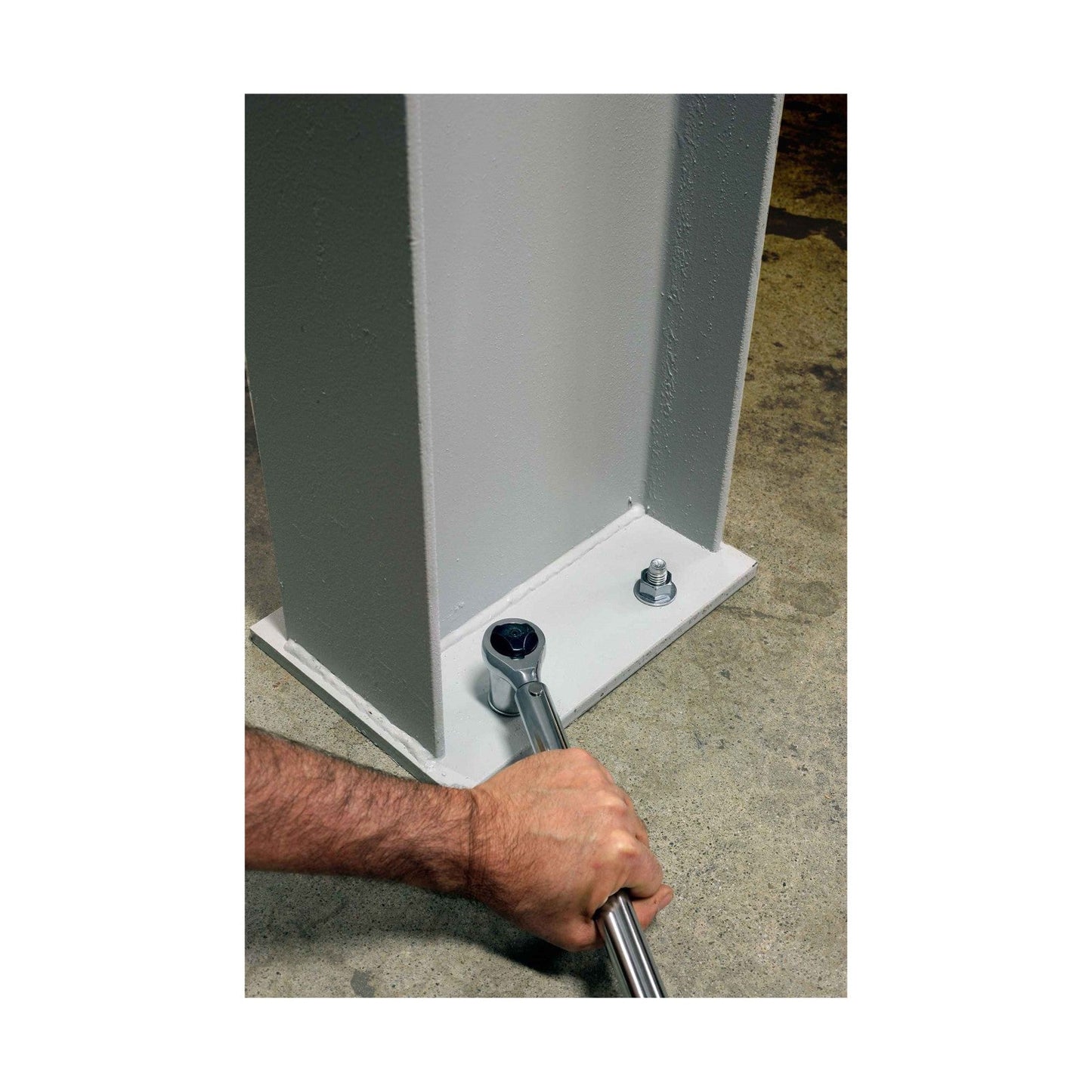

3. Tighten to the required installation torque.
