• This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

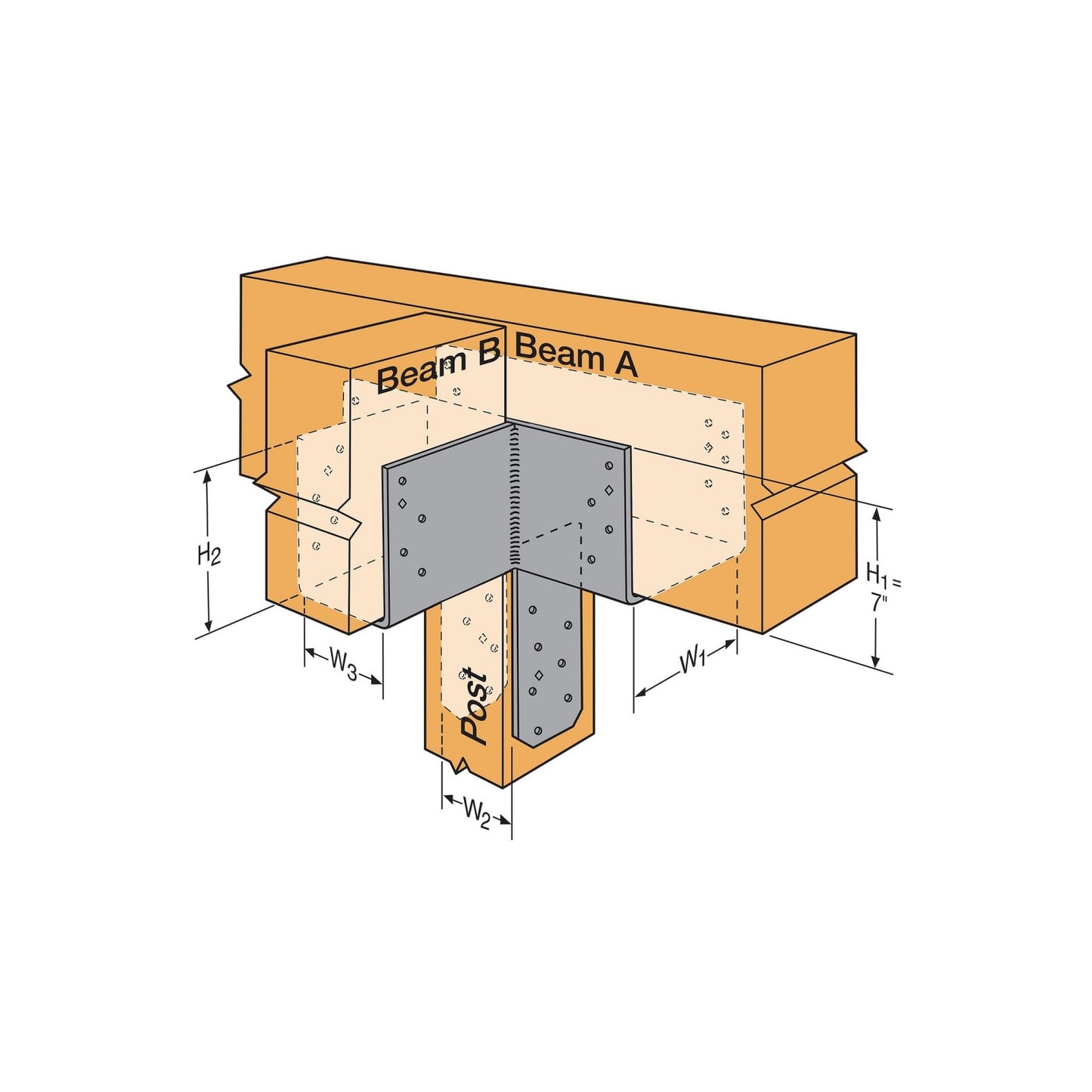

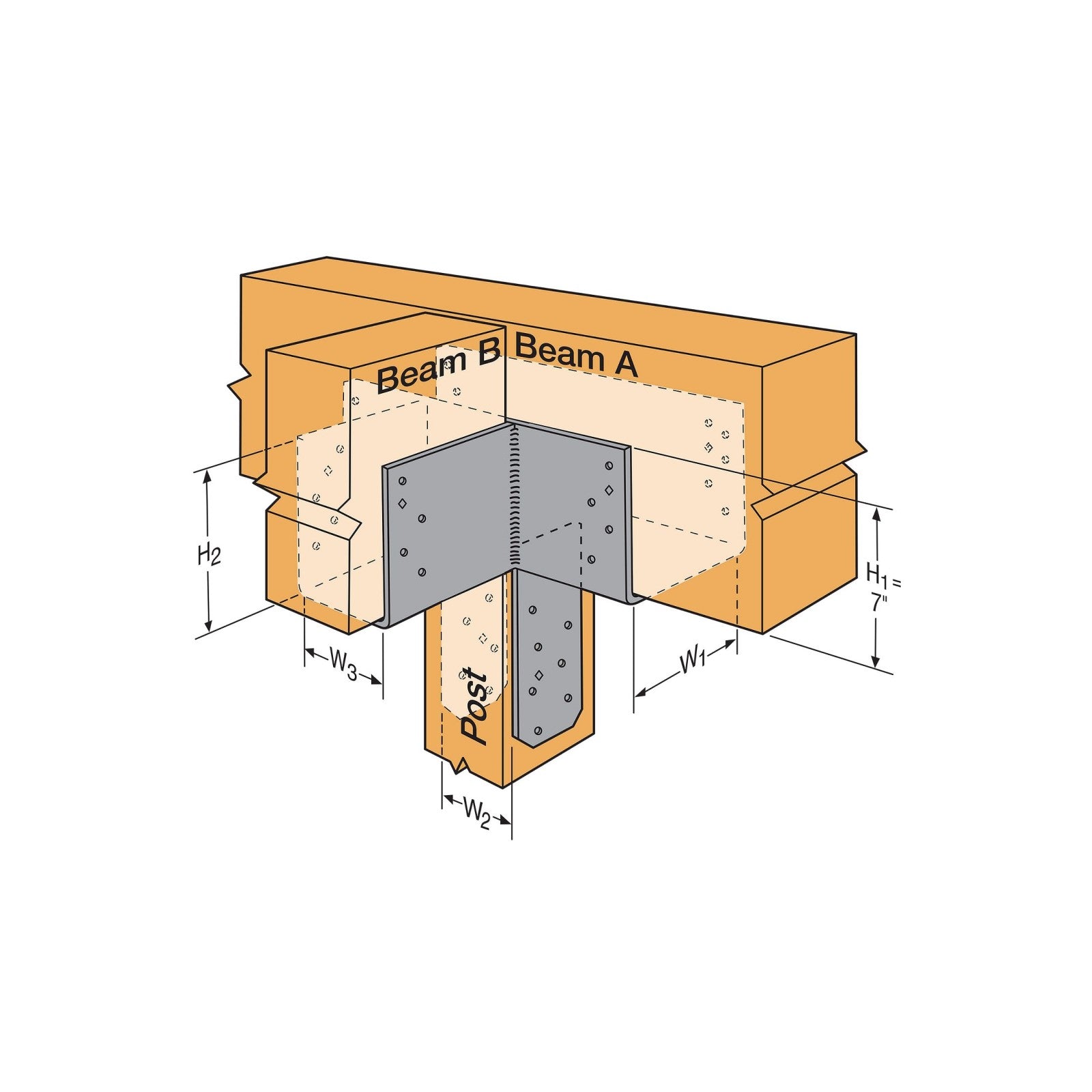

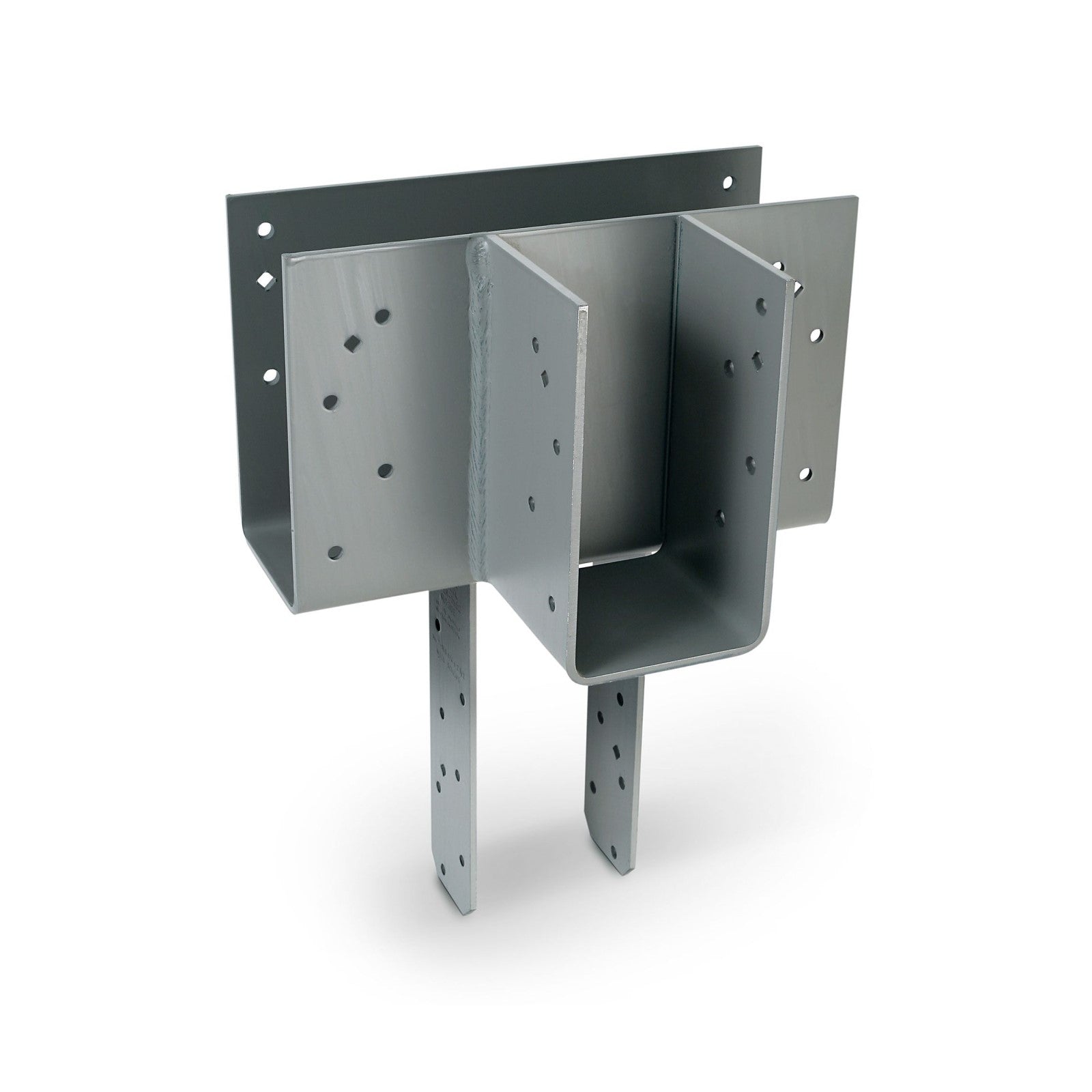

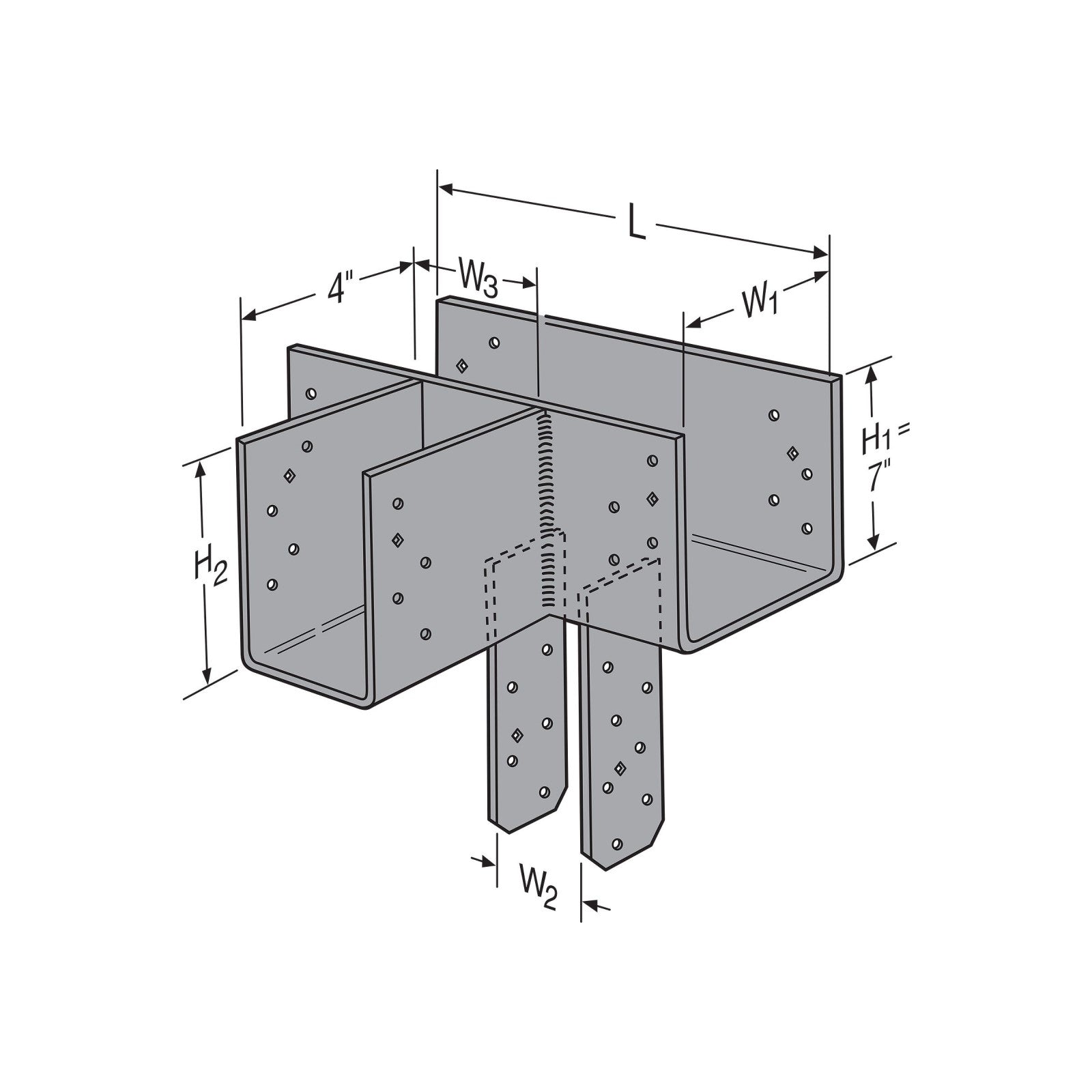

The CCTQ is designed to provide strong column-to-beam connections when there are two beams in a “T” formation on top of a column. When properly installed, this column cap helps to distribute the load from bisecting beams and provides support for the connection. The CCTQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

• Also available in HDG and in widths up to 8" wide.
• Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes.
• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading; no additional welding is allowed.
• Diamond holes to provide temporary fastening

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
