What Is a Foundation Bolt? And Other FAQ

If you're anchoring a post, column, sill plate, or piece of equipment to a concrete foundation, the anchor bolt you choose matters just as much as the concrete itself. Foundation bolts come in several shapes and installation styles, and using the wrong one can mean a connection that doesn't hold the load it's supposed to. Below, we answer the questions people ask most often about foundation bolts, from sizing and embedment depth to the difference between an L-bolt, a J-bolt, and the other anchor styles we carry, so you can spec the right one the first time.

What Is a Foundation Bolt?

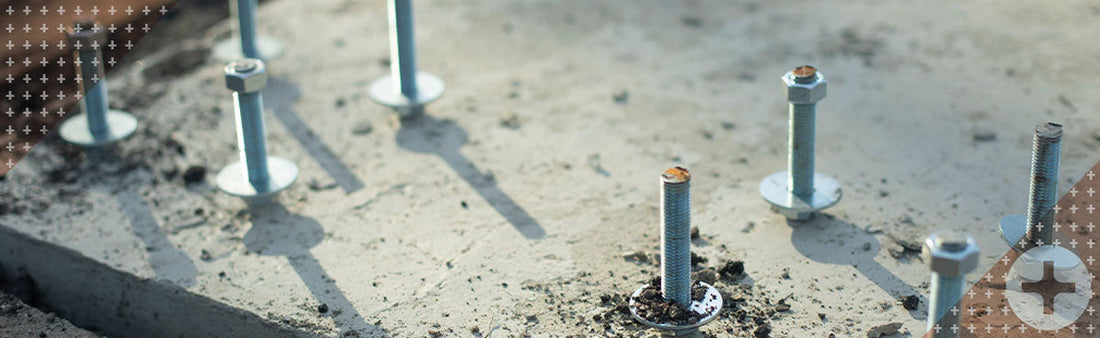

A foundation bolt (also called an anchor bolt) is a fastener embedded partly or fully in concrete, with the remaining threaded end left exposed to bolt down a column, sill plate, piece of machinery, or other structural element. Foundation bolts are what tie a building's wood or steel framing to its footing, so the structure resists wind uplift, seismic movement, and everyday lateral loads instead of just sitting on top of the concrete.

What Size Foundation Bolt Do I Need?

Foundation bolt diameter and length depend on your framing thickness, sill plate size, and the load the connection needs to resist, so there isn't one universal size. That said, 1/2" diameter is the most common starting point for residential sill plate anchoring, with 5/8" and 3/4" diameters used for heavier commercial or engineered connections. Length should give you enough embedment in the concrete (see below) plus enough exposed thread to clear your sill plate or base plate, a washer, and a nut.

How Deep Should a Foundation Bolt Be Embedded?

Embedment depth depends on the bolt diameter, concrete strength, and the load the connection needs to resist, so there isn't a single number that applies to every job. As a commonly cited prescriptive baseline, the International Residential Code calls for anchor bolts at least 1/2" in diameter to be embedded a minimum of 7" into concrete or grouted masonry for standard sill plate anchoring. Always confirm against your local code and any engineered plans, since amendments and project-specific requirements can call for more.

How Much Weight Can a Foundation Bolt Hold?

Load capacity depends on the bolt's diameter, embedment depth, the concrete's compressive strength, and how close the bolt is to an edge or another anchor. Larger diameters and deeper embedment both increase capacity, but the actual allowable load for your specific bolt and application should come from the manufacturer's published values or an engineer's calculations rather than a general rule of thumb.

What's the Difference Between L-Bolts and J-Bolts?

L-bolts and J-bolts are both bent-bar, cast-in-place anchors, and the difference comes down to the bend. An L-bolt has a 90° bend, while a J-bolt curls into more of a hook shape. That hook gives a J-bolt slightly more resistance to being pulled straight out of the concrete once it cures, which is why it's a common choice where uplift is a bigger concern. Both rely on a nut and washer on the exposed end to clamp down whatever they're anchoring, and which one you use usually comes down to what your engineer specified or what local code requires for that connection.

When Should I Use a PAB Anchor Bolt Instead of an L-Bolt or J-Bolt?

PAB anchor bolts are straight rods, threaded on one or both ends, rather than bent-bar shapes. They show up most often in tilt-up concrete construction and pre-engineered metal buildings, where the anchor needs to line up precisely with a pre-drilled base plate instead of relying on a hook or bend for hold. If your project involves a metal building kit or a tilt-wall panel, there's a good chance the plans call for PABs specifically.

What Are SSTB and SB/SABR Anchor Bolts Used For?

SSTB and SB/SABR anchor bolts are Simpson Strong-Tie® systems built specifically to pair with hold-downs and shear wall hardware. SSTBs are commonly called out in high-wind or seismic shear wall design, while SB and SABR anchors are frequently used for wood framing and sill plate anchoring in residential foundations. Because they're engineered to work as part of a matched system with Simpson's hold-down hardware, it's worth double-checking your plans for the exact model specified rather than substituting a similar-looking bolt.

Can I Add or Retrofit a Foundation Bolt After the Concrete Has Already Cured?

Yes. This is exactly what RFB (rebar fastening bolt) anchors are built for. Unlike an L-bolt or J-bolt, which has to be embedded before the concrete is poured, an RFB is installed into an existing foundation using a drilled hole and an epoxy anchoring system, bonding into the hardened concrete. RFBs are a common choice for seismic retrofits, cripple wall strengthening, and general foundation-anchor upgrades on homes that were built without adequate anchor bolts in the first place, as well as repairs where an original bolt was missed or set out of position.

How Often Do You Need Anchor Bolts Along a Foundation?

Spacing requirements are set by code and can vary by jurisdiction, but a commonly cited IRC prescriptive baseline for residential sill plates calls for anchor bolts spaced no more than 6 feet apart, with at least two bolts per plate section and one bolt located within 12 inches of each end. Always check your local code and engineered plans, since seismic and high-wind regions frequently call for tighter spacing.

Are Foundation Bolts Required to Meet a Building Code?

In most wood-framed construction, yes. Anchor bolts along a foundation are a code-required connection, not an optional upgrade. Beyond the general sill-plate anchorage requirements, products like SSTB and SB/SABR anchor bolts are engineered and tested to meet ICC-ES/IBC requirements when paired with compatible Simpson Strong-Tie hold-down hardware, and PAB anchors are similarly rated for panelized and pre-engineered building systems. Local code amendments and engineered plans can call for more than the baseline, especially in high-wind or seismic zones, so always confirm project-specific requirements before finalizing your anchor bolt spec.

Choosing the Right Foundation Bolt for Your Job

Foundation bolts aren't one-size-fits-all, and the right choice depends on whether you're pouring new concrete or working with concrete that's already cured, what load and code requirements apply, and what hardware the anchor needs to pair with. We stock L-Bolts, J-Bolts, PAB anchor bolts, SSTB and SB/SABR anchors, and RFB anchors for retrofits, so whatever your install scenario, there's a foundation bolt built for it. If you're not sure which anchor fits your project, our product experts can help match specs to your blueprints. You can also read more about the different types of concrete anchor bolts we carry, or see how concrete screws compare to wedge anchors if you're deciding between a screw-in or expansion-style anchor for a post-installed application.
