SKU: FS-5510-HD

3-Hole Corner Channel Connection Right-Hand - Hot-Dip Galvanized

3-Hole Corner Channel Connection Right-Hand - Hot-Dip Galvanized!

  • 3-Hole Corner Channel Connection Right-Hand

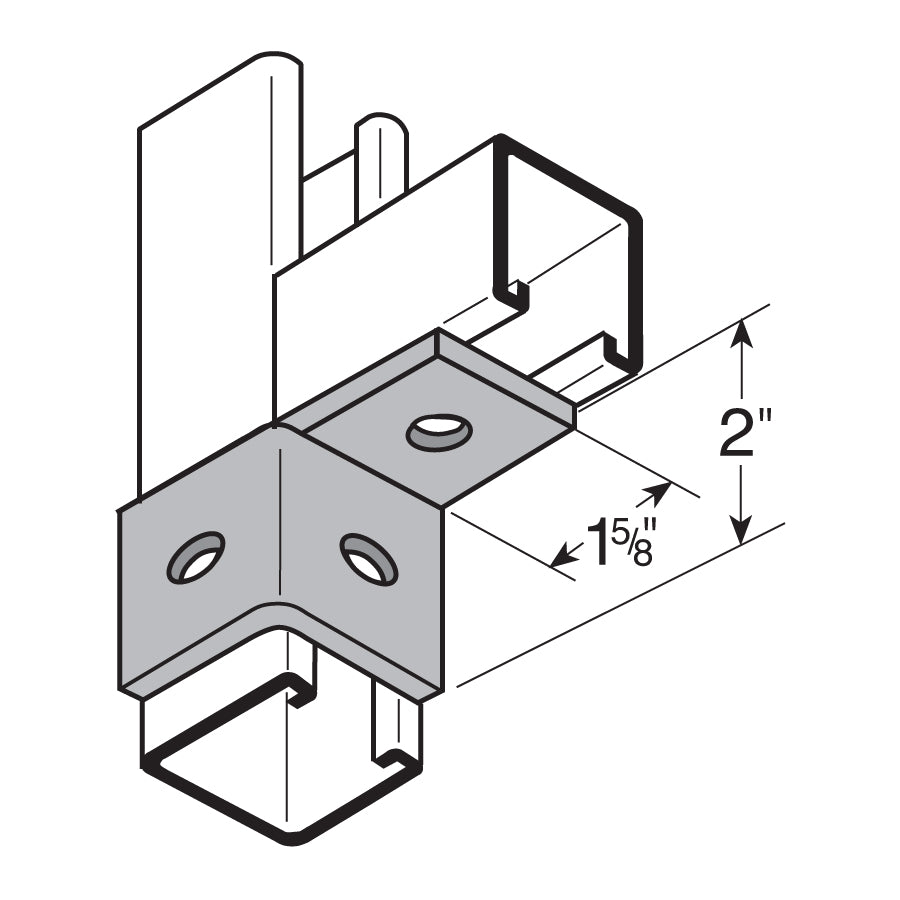

  • Flexstrut FS-5510 Corner Channel Connection Drawing With Dimensions
1 2

Continue Browsing

Wing Fittings
SKU: FS-5510-HD

3-Hole Corner Channel Connection Right-Hand - Hot-Dip Galvanized

$0.00
Request Bulk Pricing
Request Bulk Pricing
Minimum $100 Purchase on Special Order FlexStrut Items - Call 888-794-1590 To Place Your Order
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 888-794-1590.

Specifications

Width: 1-5/8"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Hot Dip Galvanized
Standards: Finish = ASTM A123 Grade 85 & Material = ASTM A575 or ASTM A1011 GR33
Manufacturer Name: Flex-Strut
Description

3-Hole Corner Channel Connection Right-Hand - Hot-Dip Galvanized allows channels to be connected perpendicularly and can be used to create joints along a vertical piece of strut. 3-Hole Right Handed Wing Fittings have 9/16" punched holes and should be used with like metals. Hot-Dip Galvanized steel provides great corrosion resistance.
