SKU: FS-5520-ST4

9-Hole 3-Way Channel Wing Connector - 304 Stainless Steel

9-Hole 3-Way Channel Wing Connector - 304 Stainless Steel!

  • 9-Hole 3-Way Channel Wing Connector
  • 9-Hole 3-Way Channel Wing Connector
  • 9-Hole 3-Way Channel Wing Connector

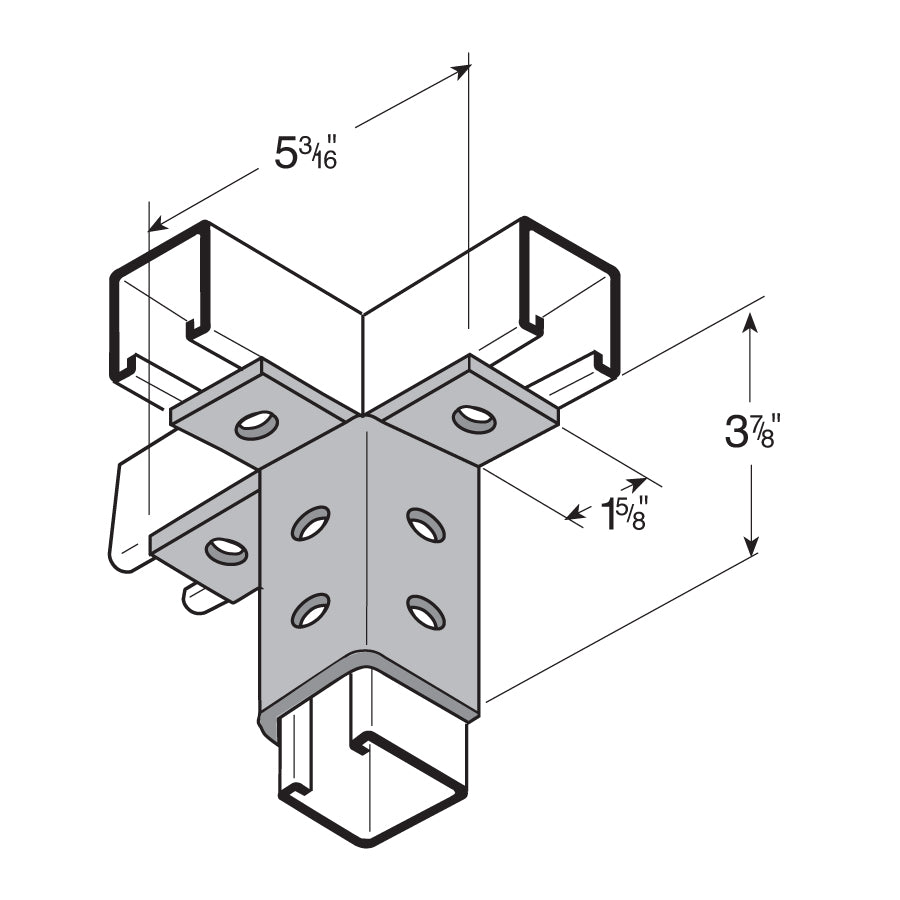

  • Flexstrut FS-5520 3-Way Channel Wing Connector Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 7

Continue Browsing

Wing Fittings
SKU: FS-5520-ST4

9-Hole 3-Way Channel Wing Connector - 304 Stainless Steel

$0.00
Request Bulk Pricing
Request Bulk Pricing
Minimum $100 Purchase on Special Order FlexStrut Items - Call 888-794-1590 To Place Your Order
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 888-794-1590.

Specifications

Width: 1-5/8"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: 304 stainless steel
Finish: Plain
Standards: Finish = ASTM A276 & Material = ASTM A575 or ASTM A1011 GR33
Manufacturer Name: Flex-Strut
Description

9-Hole 3-Way Channel Wing Connector - 304 Stainless Steel allows channels to be connected perpendicularly and can be used to create joints along a vertical piece of strut. 9-Hole 3 Way Wing Fittings allow for 3 arms to be created from the corner wing fitting. These Corner Connectors have 9/16" punched holes and should be used with like metals. 304 Stainless Steel provides excellent corrosion resistance primarily for exterior use.
