SKU: ATR5/8X24

ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod

ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod!

  • ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod
  • ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod
  • ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod
  • ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod
1 4

Continue Browsing

Threaded Rod
SKU: ATR5/8X24

ATR5/8X24 Simpson Strong Tie 5/8" x 24" All-Thread Rod

$6.78

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 4 hours 34 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 5/8"
Length: 2'
Material: Uncoated Black Steel
Additional Info: Standard – ATSM F1554 Grade 36, A36 or A307 Key Features - easy access at wall tops and bottoms for streamlined installation, convenient custom length cutting, and availability in lengths up to 12 feet and diameters up to 2 inches, meeting UNC Class 2A or 1A thread specifications.
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thread type: Coarse
Description

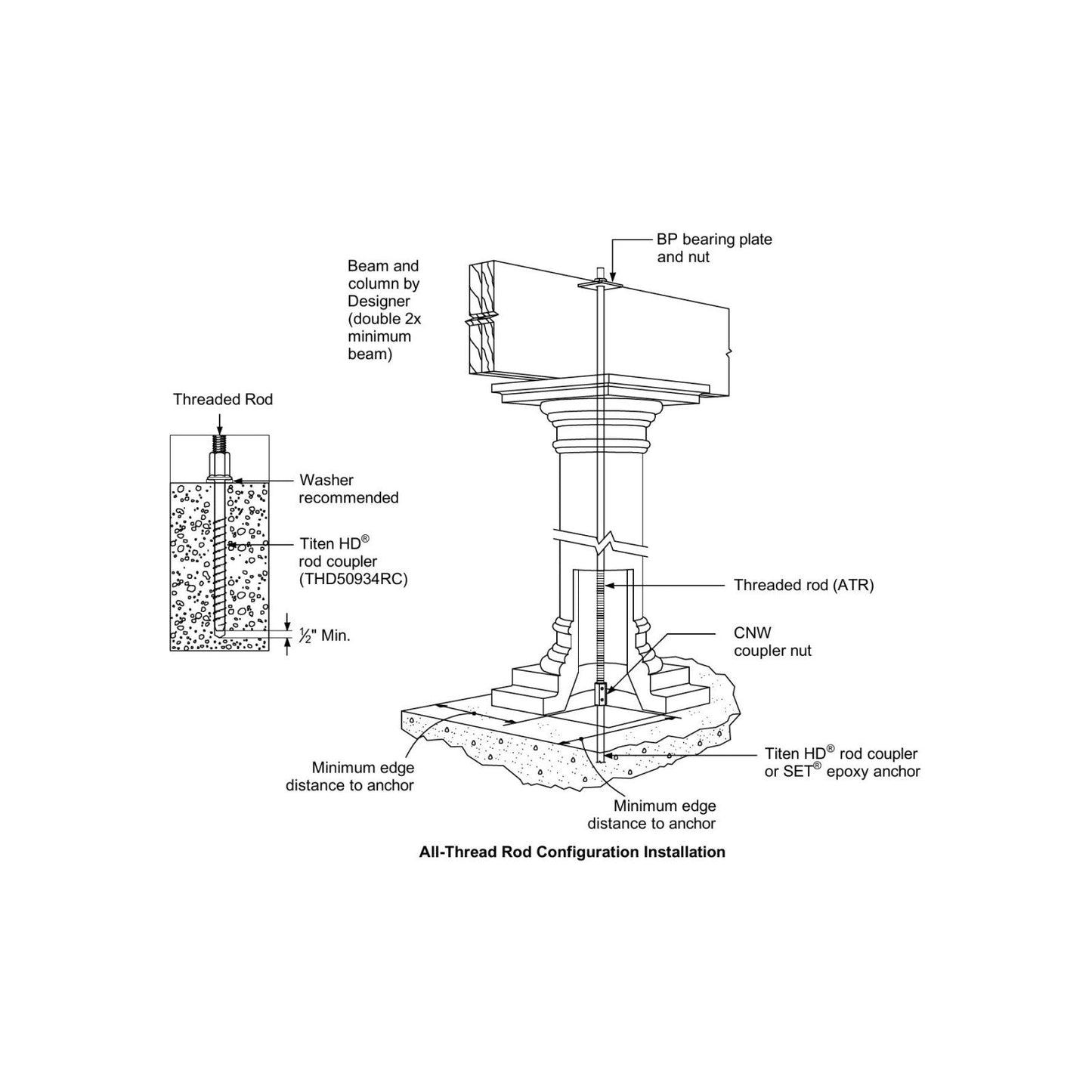

The Simpson ATR5/8X24 All-Thread Rod serves as the primary tension transfer component in both the Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS). This fully threaded rod is part of the Strong Rod series of products.

When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the rod.
