Simpson ICFVL Steel Ledger Connector for ICF Forms, 15 pack
Simpson ICFVL Steel Ledger Connector for ICF Forms, 15 pack!
Continue Browsing
ICFVL Ledger Connector System
Simpson ICFVL Steel Ledger Connector for ICF Forms, 15 pack
Specifications
The ICFVL ledger connector system is engineered to solve the challenges of mounting wood or steel ledgers to insulated concrete form (ICF) walls. The ICFVL is designed to provide both vertical and lateral in-plane performance. The system offers many benefits over traditional anchor bolting, including better on-center spacing in most cases, faster installation, and no protrusions.

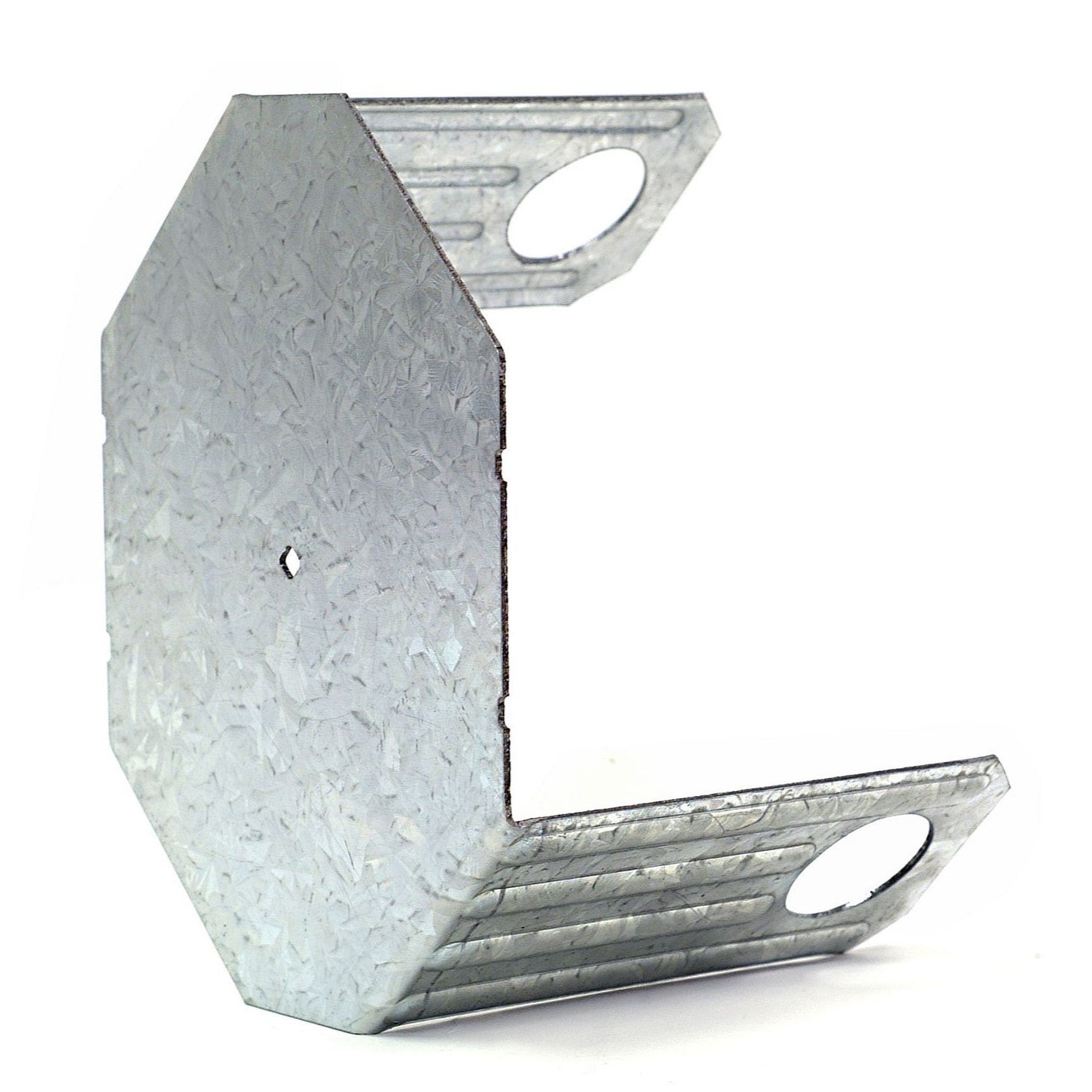

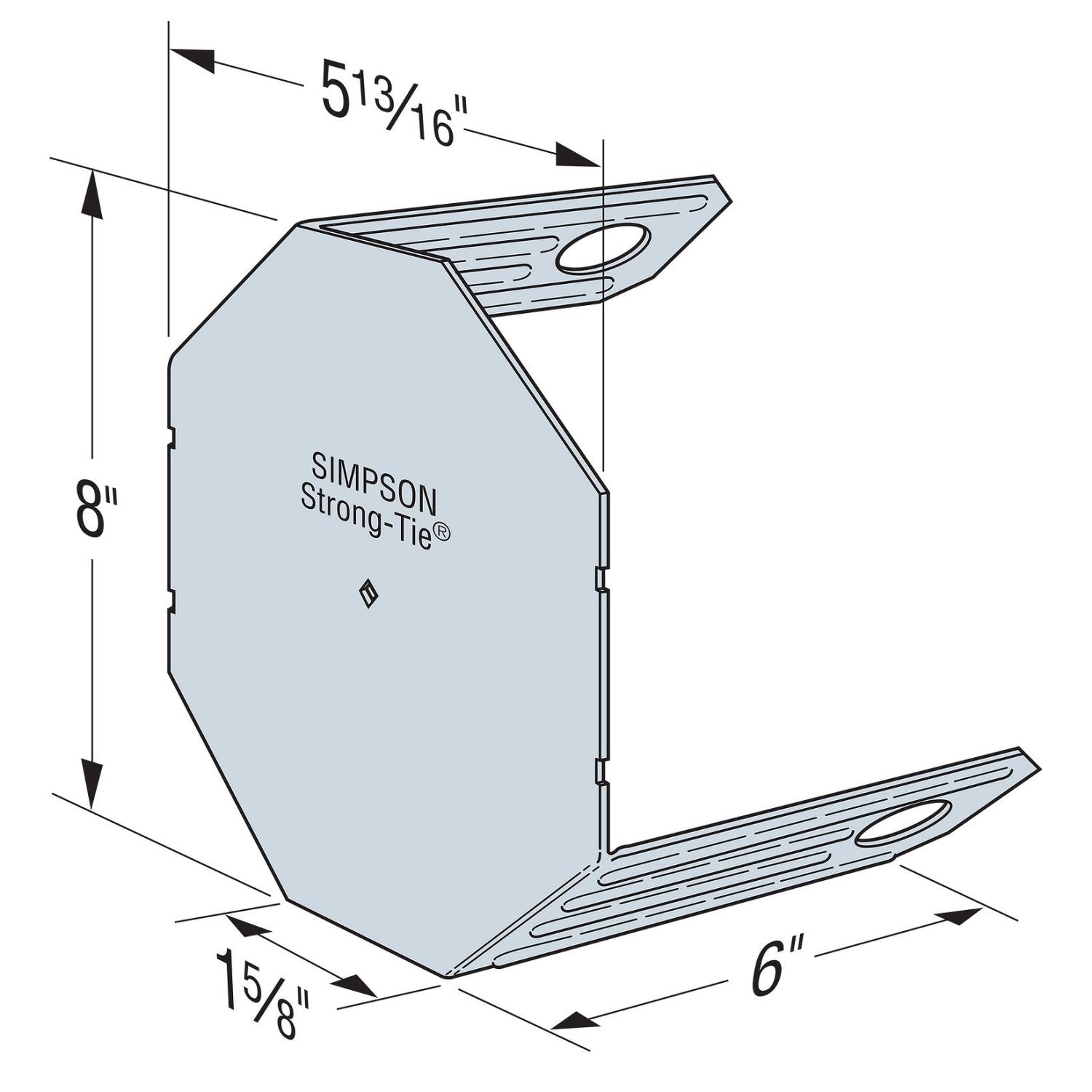

The embedded legs of the ICFVL are embossed for additional stiffness and the hole enables concrete to flow through and around the connector. The exposed flange on the face of the ICF provides a structural surface for mounting a wood ledger.

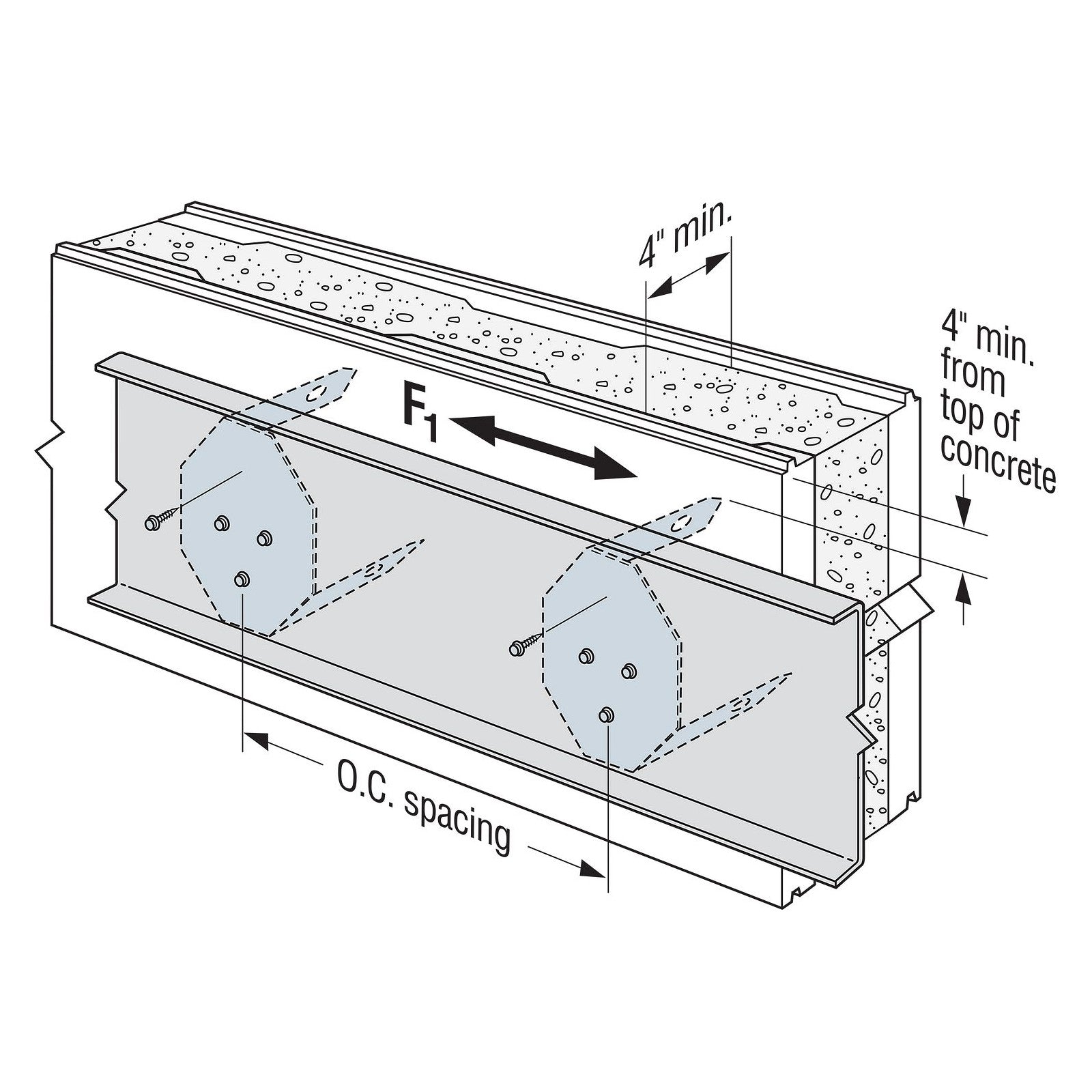

ICFVL in ICF
- Carton contains 15 pieces.
- For use with a minimum 4"-thick core
- Snap a chalk line for the bottom of the ledger
- Mark required on-center spacing
- Use ICFVL to mark kerfs locations
- Cut kerfs as marked
- Insert ICFVL flush to the face of the ICF
- Pour concrete
California Residents: WARNING
