description

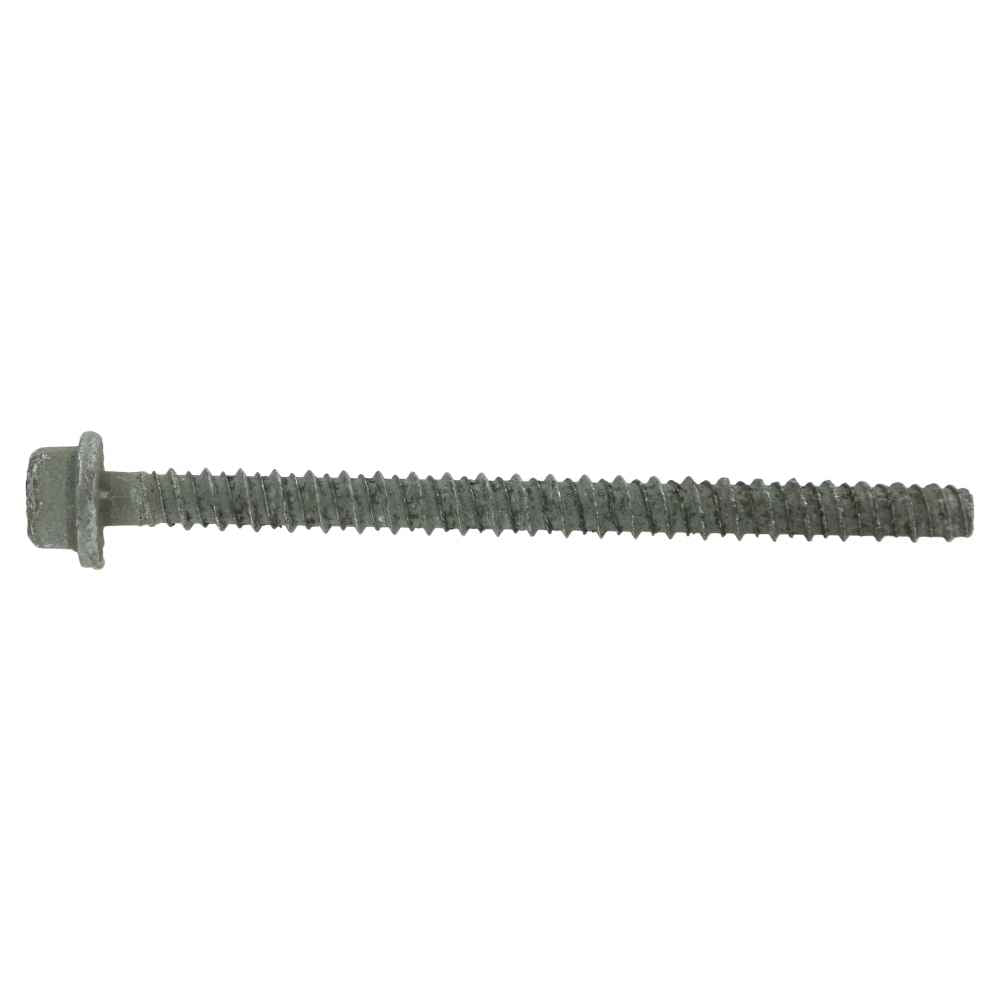

Different lengths of Tapcon screws are used for different thickness of materials being fastened. The large diameter Tapcon screw cuts its own threads into concrete due to its high performance. 410 stainless steel provides extra corrosion resistance over the coated carbon steel version. It has a single piece design and is installed with a length identification code. They perform superior to wedge anchors and Install in less than half the time of a wedge anchor or adhesive anchors. Carbide tipped standard ANSI hammer drill bits should be used to install the anchor. No grinding or torching is essential to remove the anchor. This ITW Red Head stainless steel screw anchor is proudly manufactured right here in the USA.
Different lengths of Tapcon screws are used for different thickness of materials being fastened. The large diameter Tapcon screw cuts its own threads ...
Different lengths of Tapcon screws are used for different thickness of materials being fastened. The large diameter Tapcon screw cuts its own threads into concrete due to its high performance. 410 stainless steel provides extra corrosion resistance over the coated carbon steel version. It has a single piece design and is installed with a length identification code. They perform superior to wedge anchors and Install in less than half the time of a wedge anchor or adhesive anchors. Carbide tipped standard ANSI hammer drill bits should be used to install the anchor. No grinding or torching is essential to remove the anchor. This ITW Red Head stainless steel screw anchor is proudly manufactured right here in the USA.
specifications
Drill Bit Size:
7/16"
Finish Spec:
Plain
Length Spec:
4"
Manufacturer Name:
ITW Red Head
Diameter:
1/2"
Fixture Hole Size:
1/2"
Material:
410 Stainless Steel
Maximum Fixture Thickness:
1-1/2"
Product Guide:
