1-3/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 13.5 Ton
1-3/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 13.5 Ton!
1-3/8" Van Beest Green Pin® Screw Pin Anchor Shackle | G-4161 - 13.5 Ton
Specifications

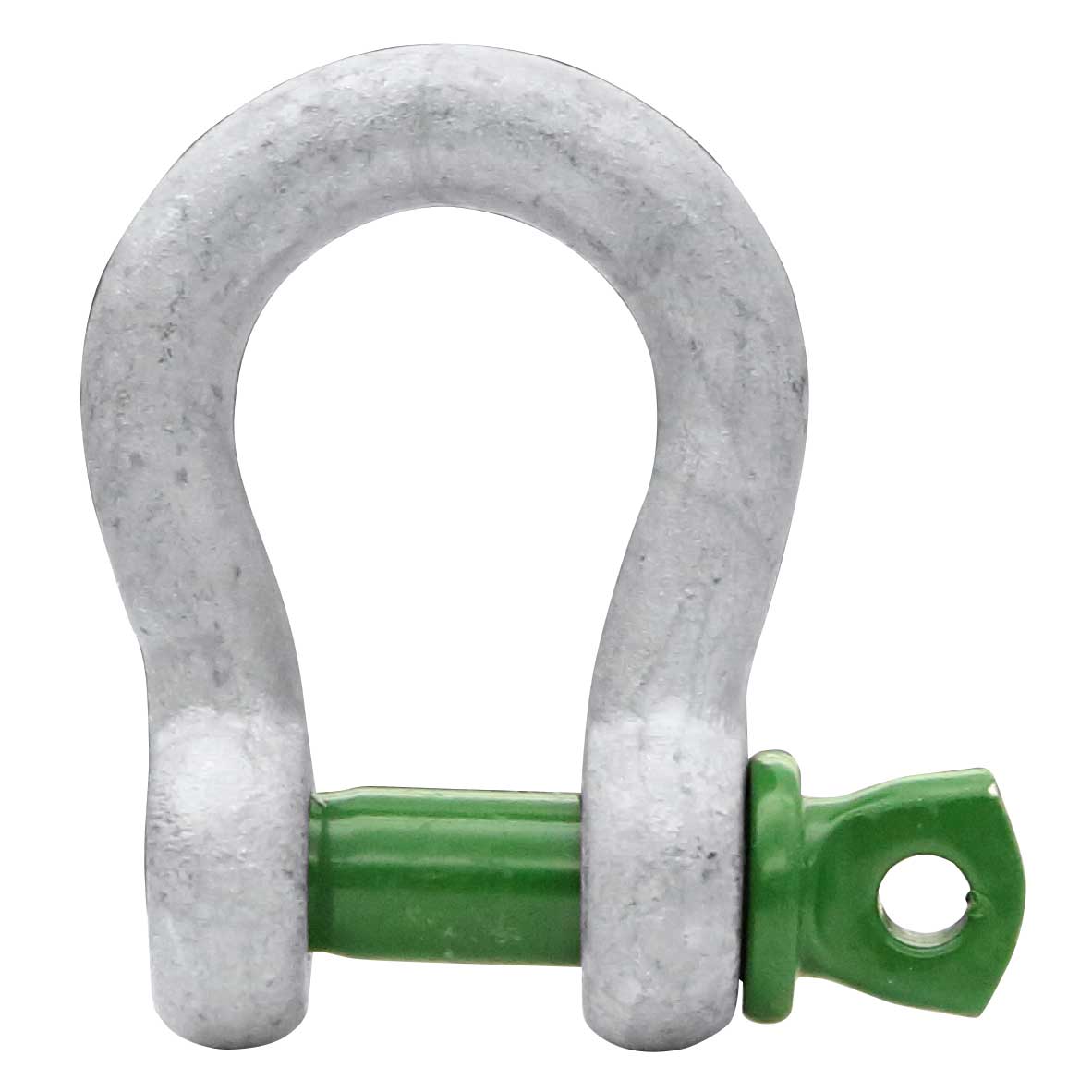

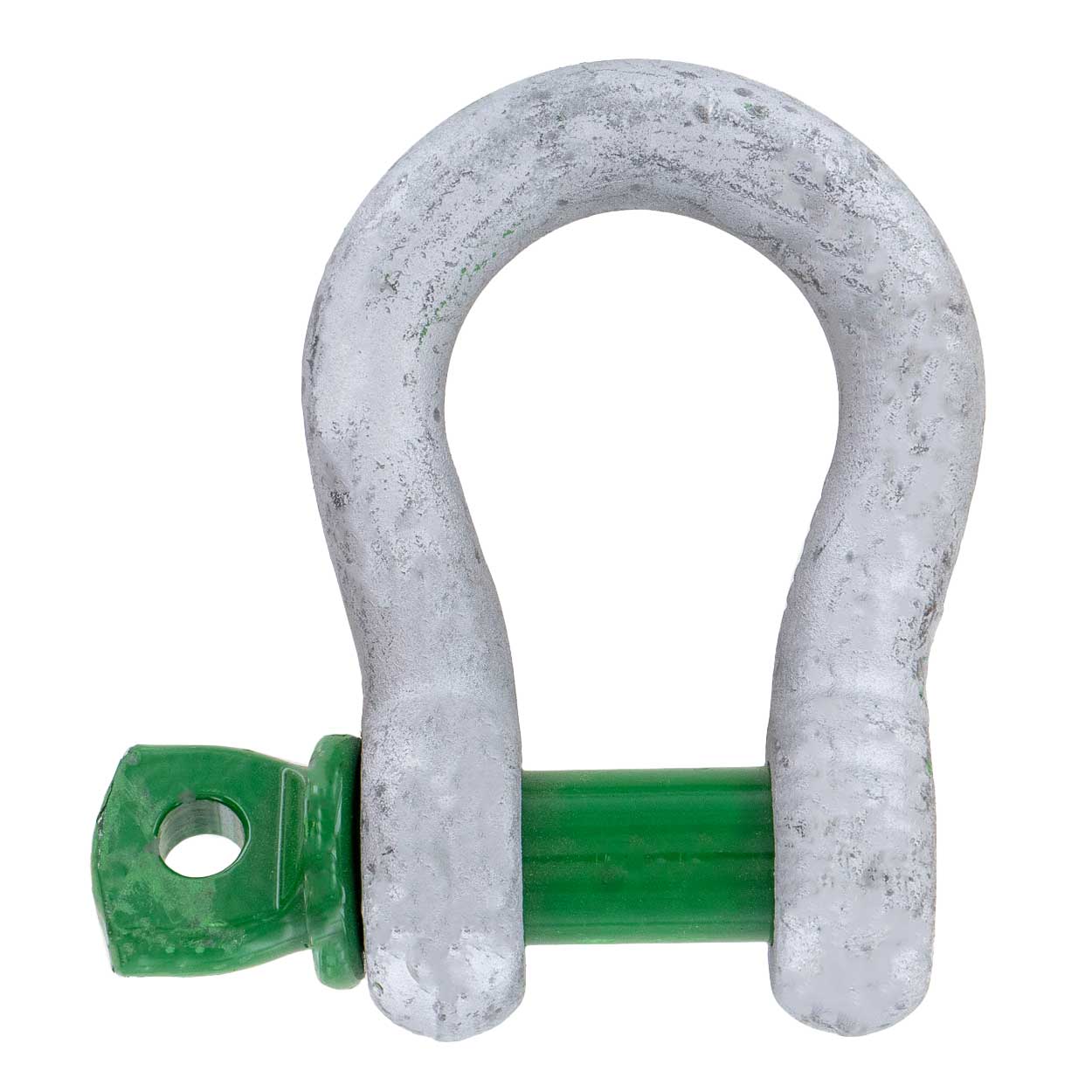

Van Beest Green Pin® Screw Pin Anchor Shackles
Van Beest Green Pin® Screw Pin Anchor Shackles combine convenience with the trusted durability of European-made rigging gear. Forged from quenched and tempered high tensile Grade 6 steel and finished with a hot-dip galvanized coating, these shackles deliver strength and corrosion resistance in demanding field conditions. The signature green pin makes identification simple on the jobsite.
Ideal for temporary or frequently adjusted rigging setups, the screw pin design allows for fast, tool-free attachment and removal. The anchor bow profile provides flexibility in single- or multi-leg sling configurations, especially where loading angles vary.
Each G-4161 shackle is engineered with a recessed screw thread chamber, which reduces wear on connected wire rope or sling hardware by keeping the threads away from contact surfaces. These shackles are also approved for use in extreme temperatures, from -40°F (-40°C) to 392°F (200°C).
Key Features:

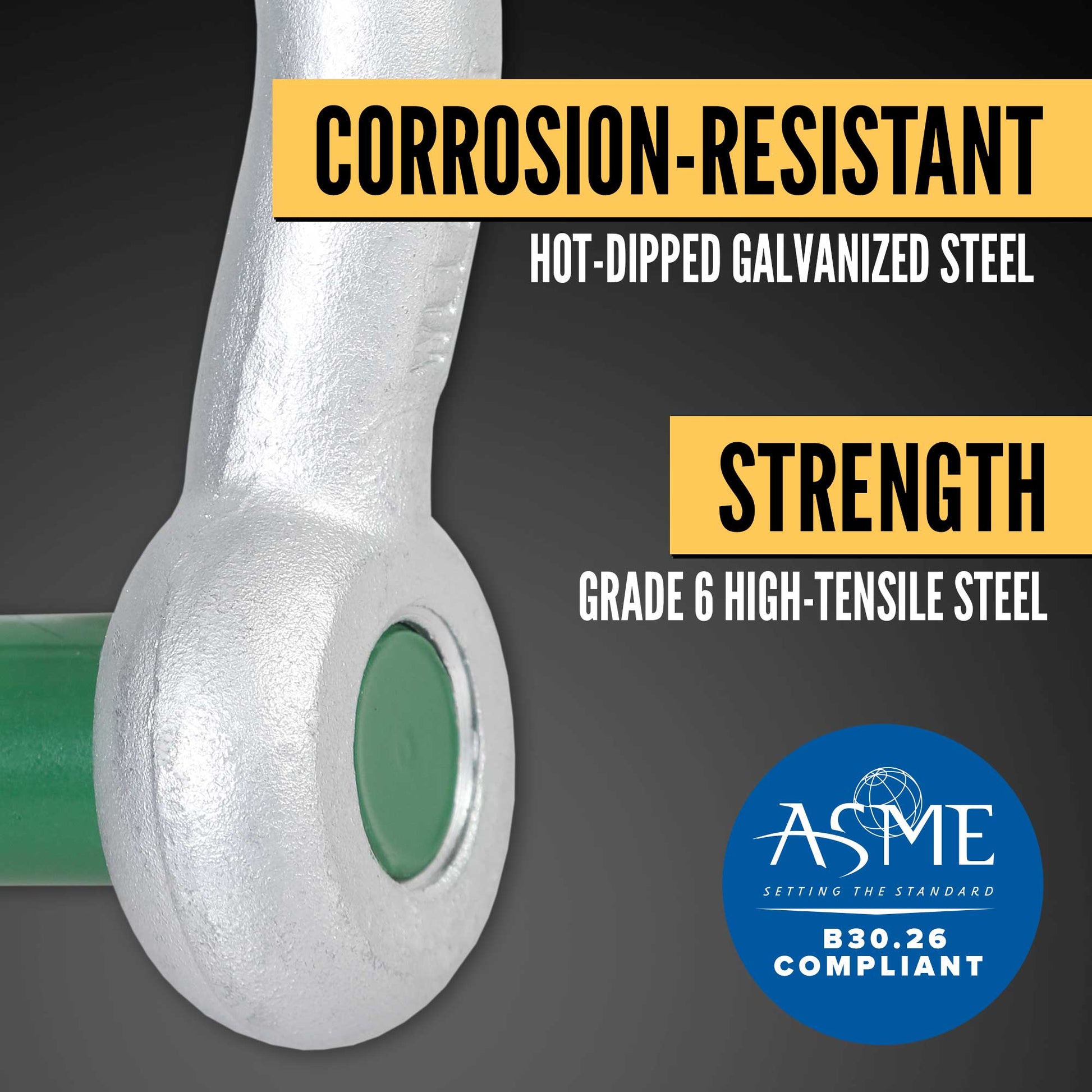

- European-Made Quality: High tensile Grade 6 steel, quenched and tempered for rugged use.
- Quick-Use Screw Pin: Allows for fast rigging in non-permanent or frequently changed setups.
- Hot-Dip Galvanized Finish: Resists corrosion for longer service life in outdoor or industrial use.
- Reduced Wire Rope Wear: Screw threads are protected in a recessed chamber to prevent abrasion.
- Wide Bow Design: Suitable for both single- and multi-leg sling configurations.
- Temperature Rated: Approved for use between -40°F (-40°C) and 392°F (200°C).
