1/4" Crosby® Screw Pin Chain Shackle | G-210 - 0.5 Ton
1/4" Crosby® Screw Pin Chain Shackle | G-210 - 0.5 Ton!
1/4" Crosby® Screw Pin Chain Shackle | G-210 - 0.5 Ton
Specifications

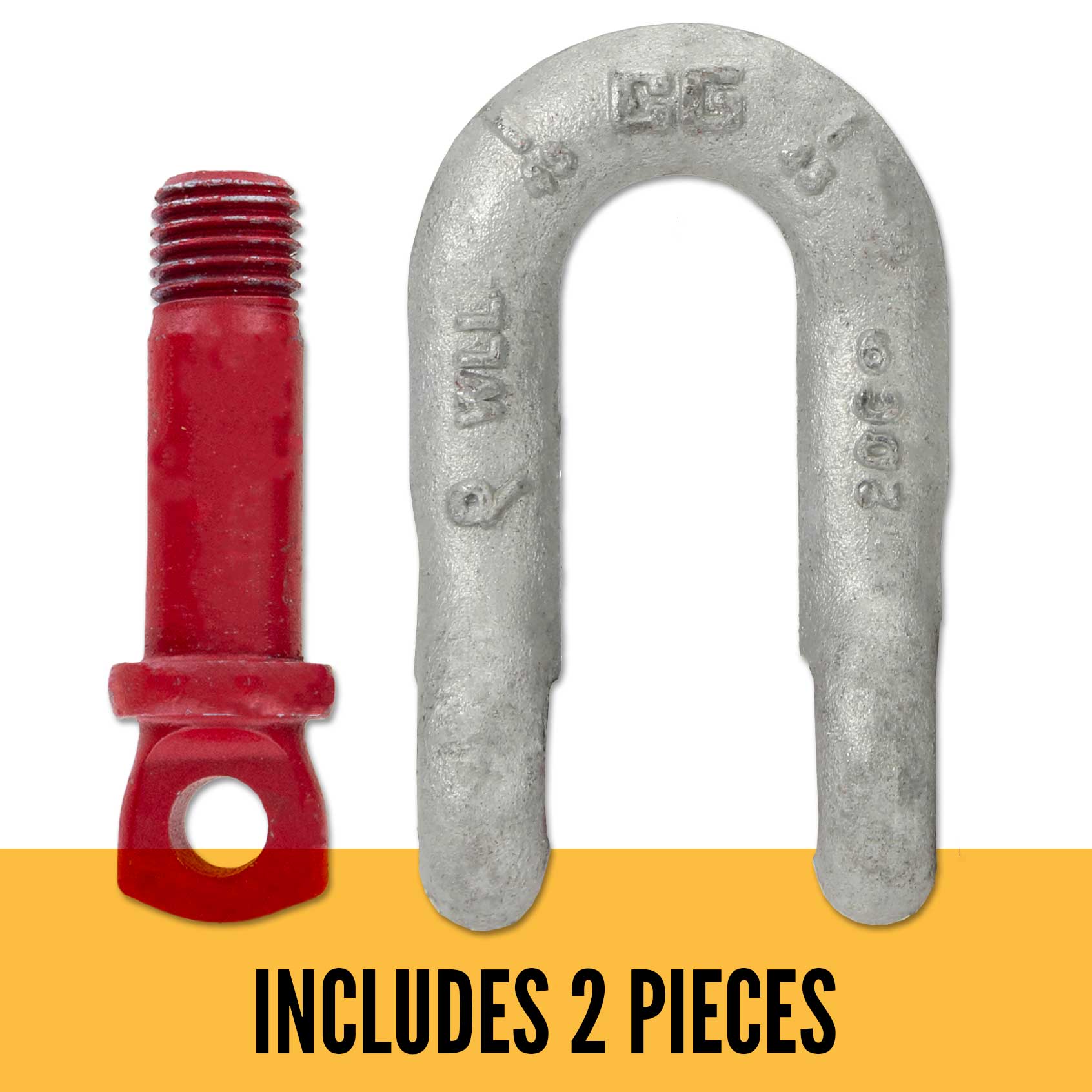

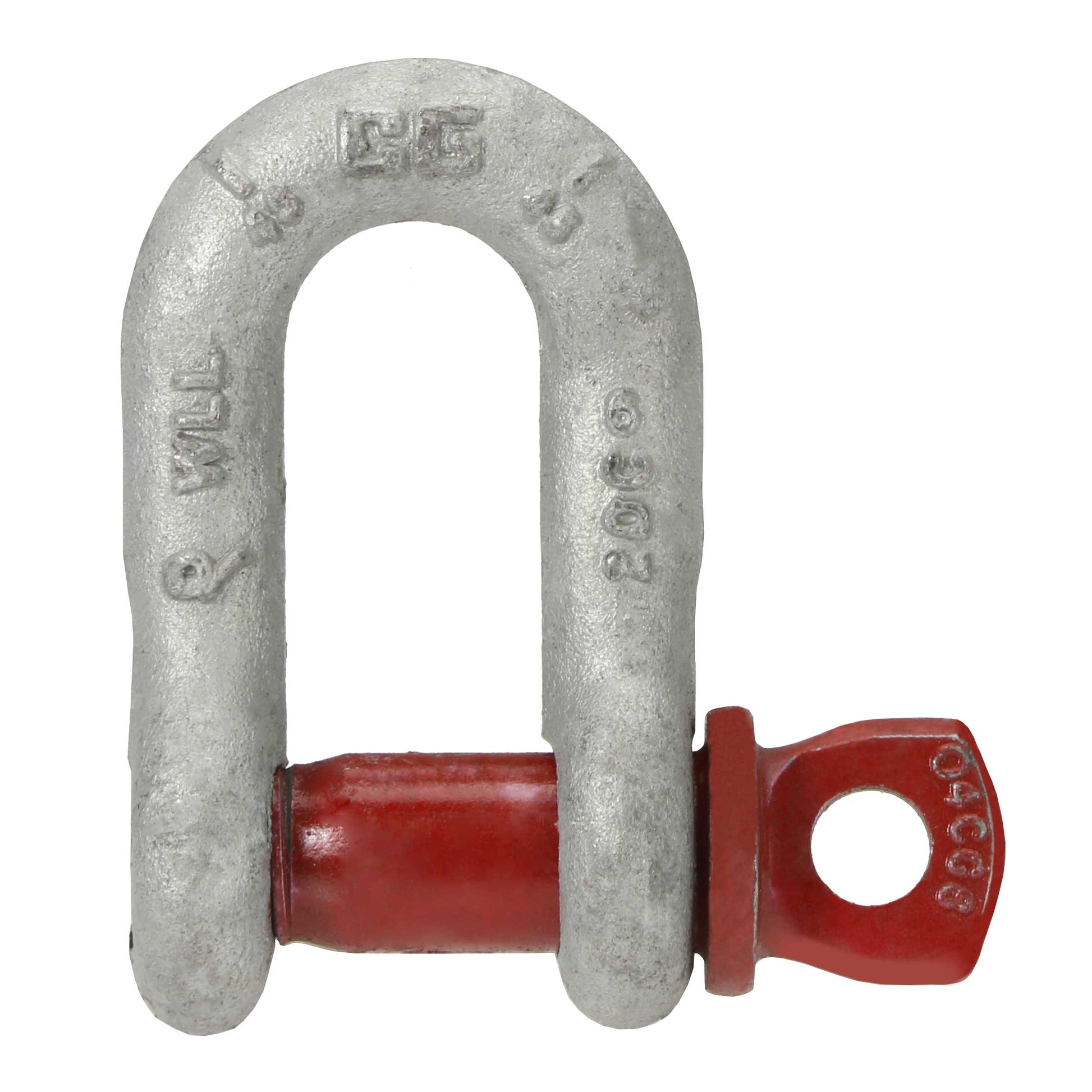

Crosby® G-210 Screw Pin Chain Shackles - The Go-To for Straight-Line Loads
Designed for clean, two-directional tensioning, Crosby Screw Pin Chain Shackles are a solid choice for applications where angular loading isn’t a concern. Their straight, D-style body is purpose-built for straight-line connections, making them ideal for connecting lifting slings, hardware, or rigging assemblies that pull from opposing directions.
The quick-access screw pin offers fast connection and removal, making these shackles especially useful in temporary setups or applications requiring regular reconfiguration.

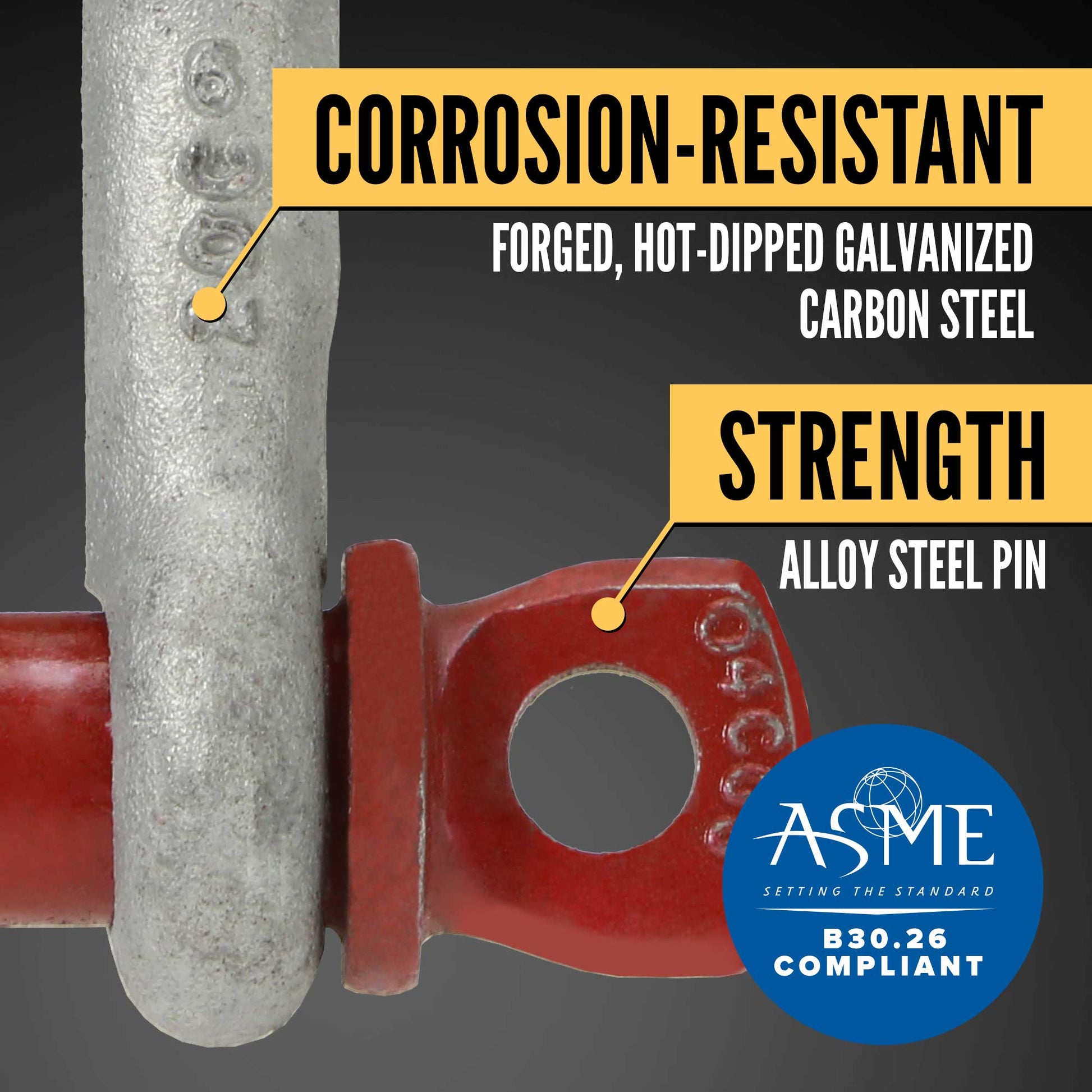

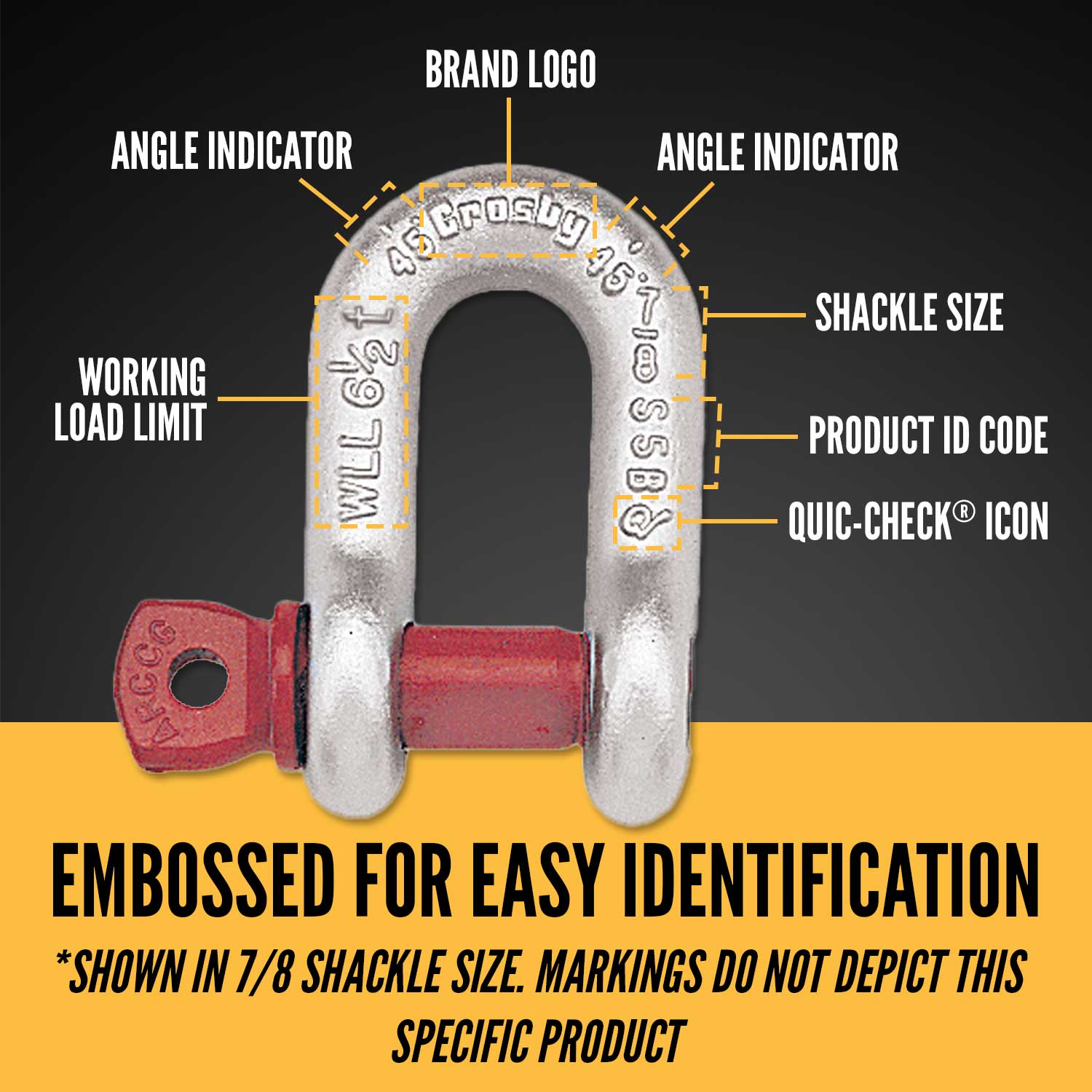

Each shackle is forged in the USA from high-strength steel, quenched and tempered for superior durability. A hot-dip galvanized finish provides corrosion resistance, and the alloy pin ensures added strength where it counts. The G-210 series is fatigue rated for 20,000 cycles at 1.5x the working load limit and clearly stamped with the Crosby name, Grade 6 rating, PIC code, and working load limit.
For critical applications, these shackles can be supplied with proof-testing certificates to standards like DNV, ABS, or Lloyds upon request at the time of order.
Key Features:
- Straight-Body Chain Design: Optimized for straight or two-directional loading without side stress.

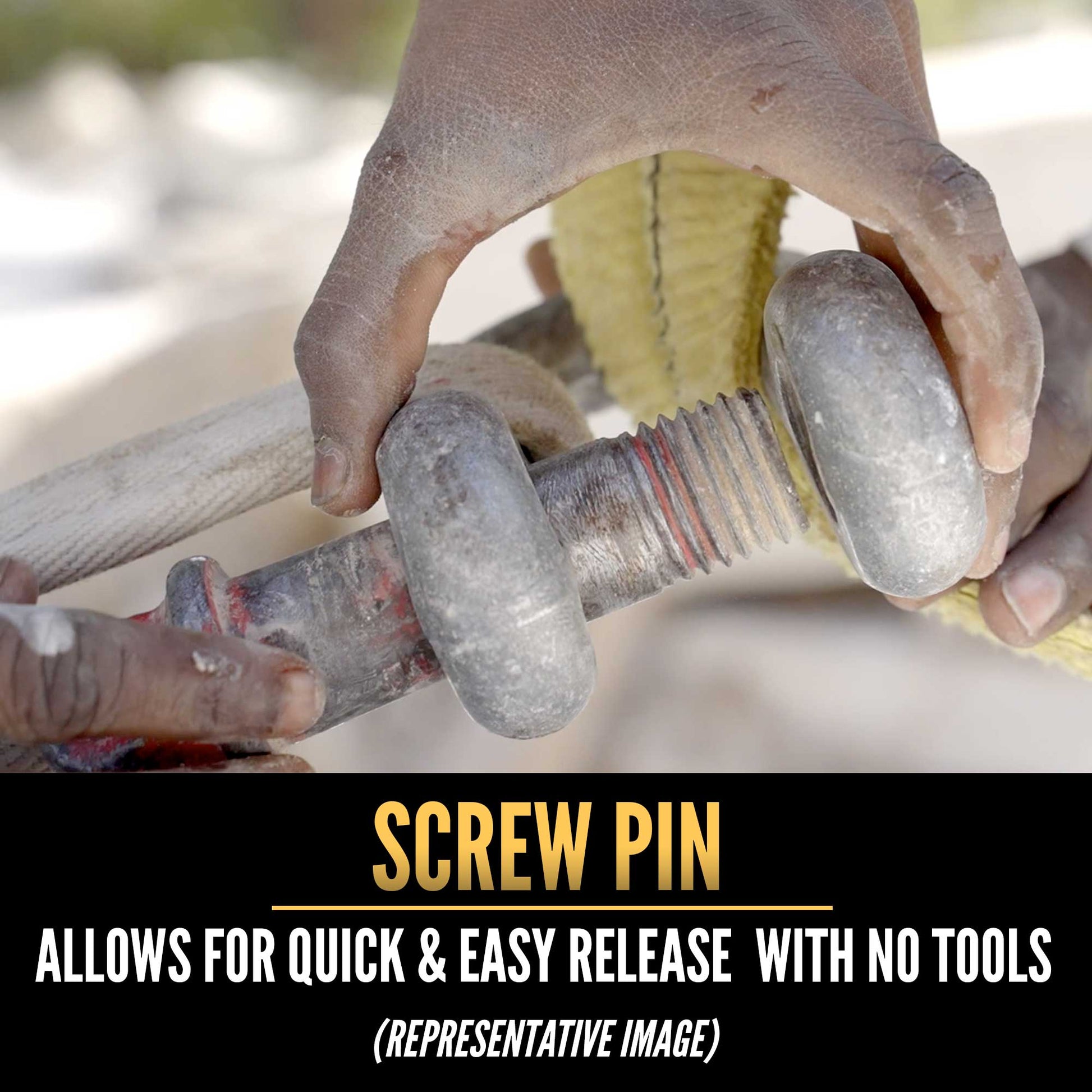

- Quick-Connect Screw Pin: Allows for fast attachment and removal during temporary or mobile setups.
- High-Strength Build: Forged, quenched, and tempered steel body with alloy pin and corrosion-resistant finish.
- Fatigue Rated: Performance tested to 20,000 cycles at 1.5x the working load limit.
- Certified Ready: Can be proof-tested to DNV, ABS, or Lloyds standards upon request (additional fees may apply).
- Temperature Range: Approved for use from -40°F (-40°C) to 400°F (204°C).
