SKU: FS-5524-E/G

10-Hole 2-Way Channel Wing Connector - Electro-Galvanized

10-Hole 2-Way Channel Wing Connector - Electro-Galvanized!

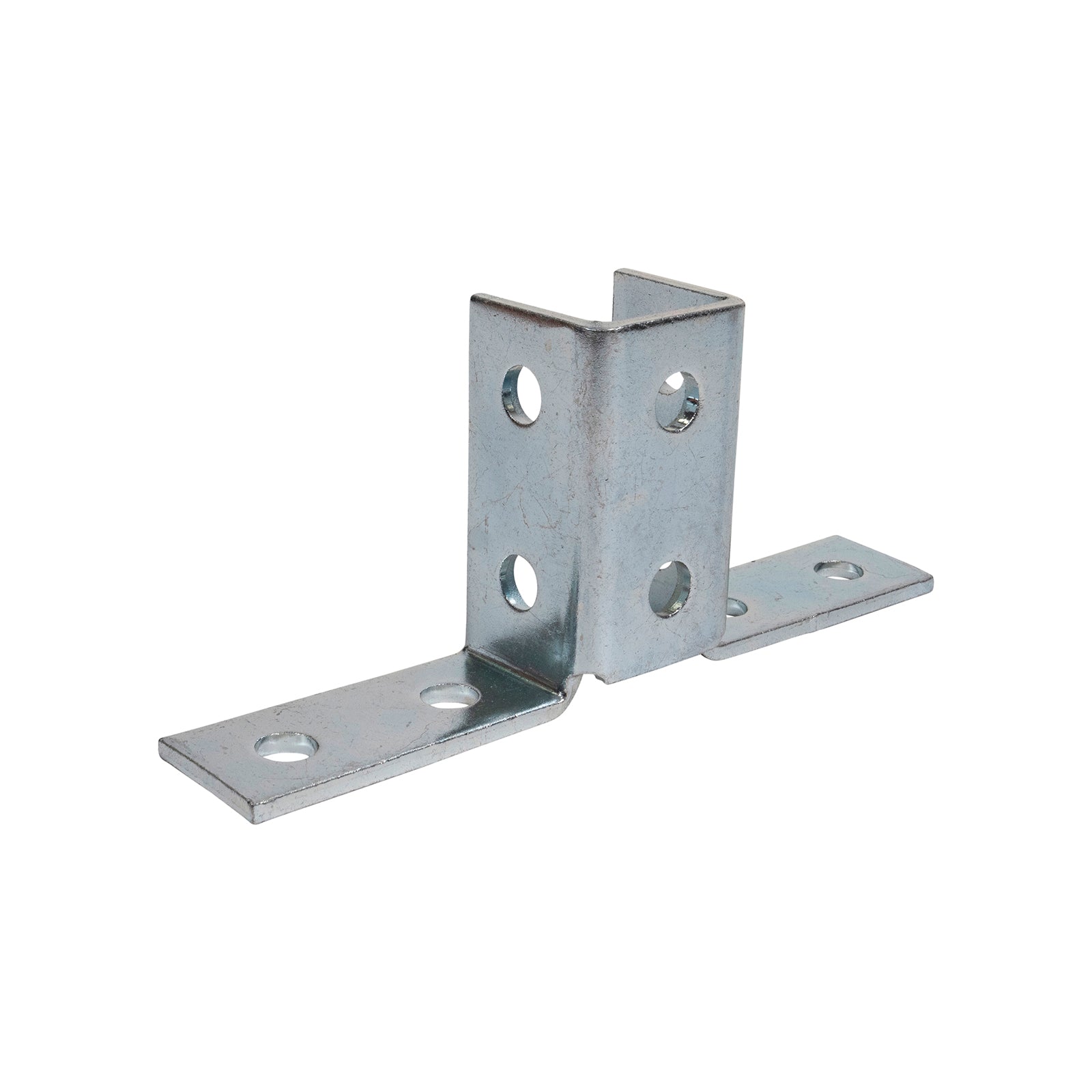

  • 10-Hole 2-Way Channel Wing Connector

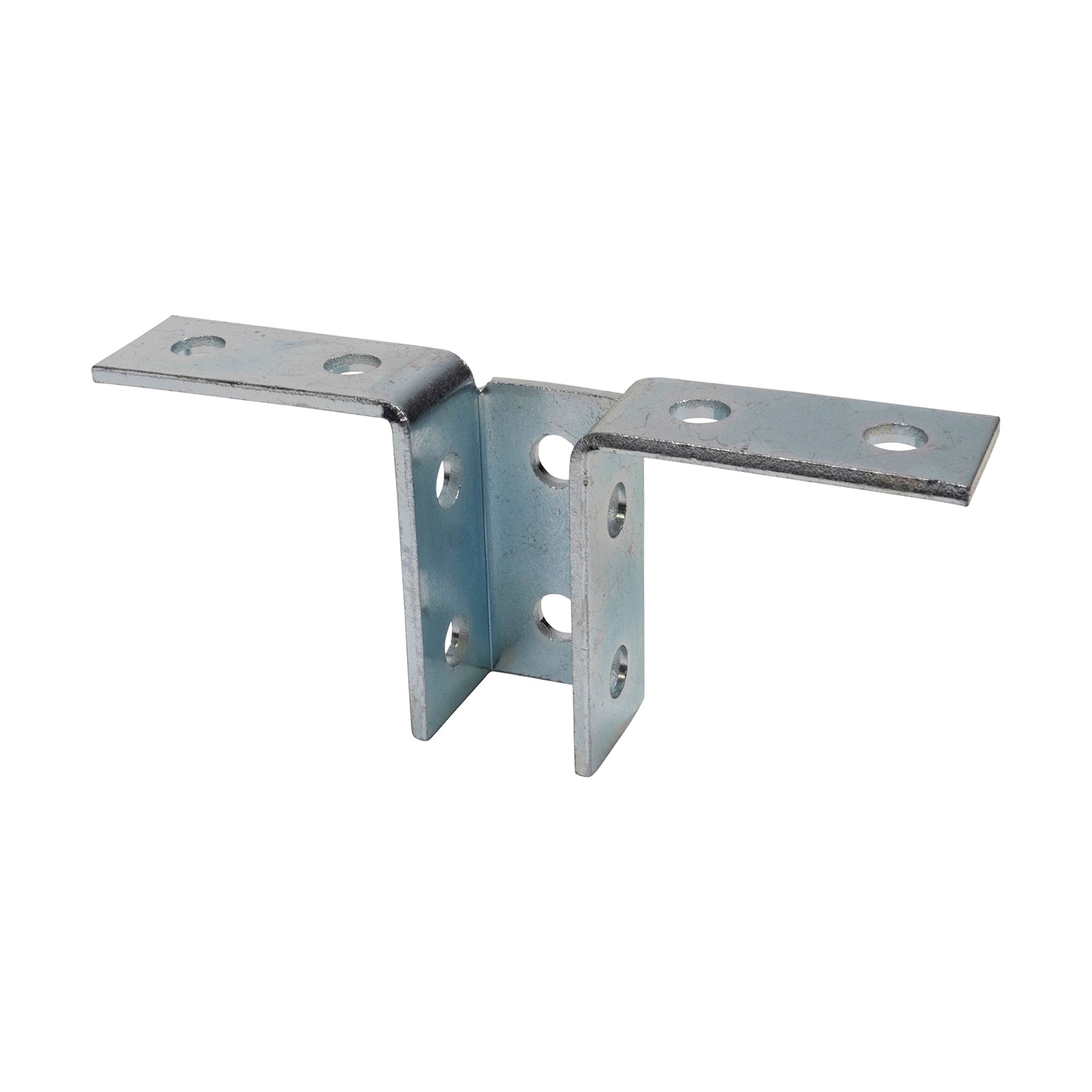

  • 10-Hole 2-Way Channel Wing Connector

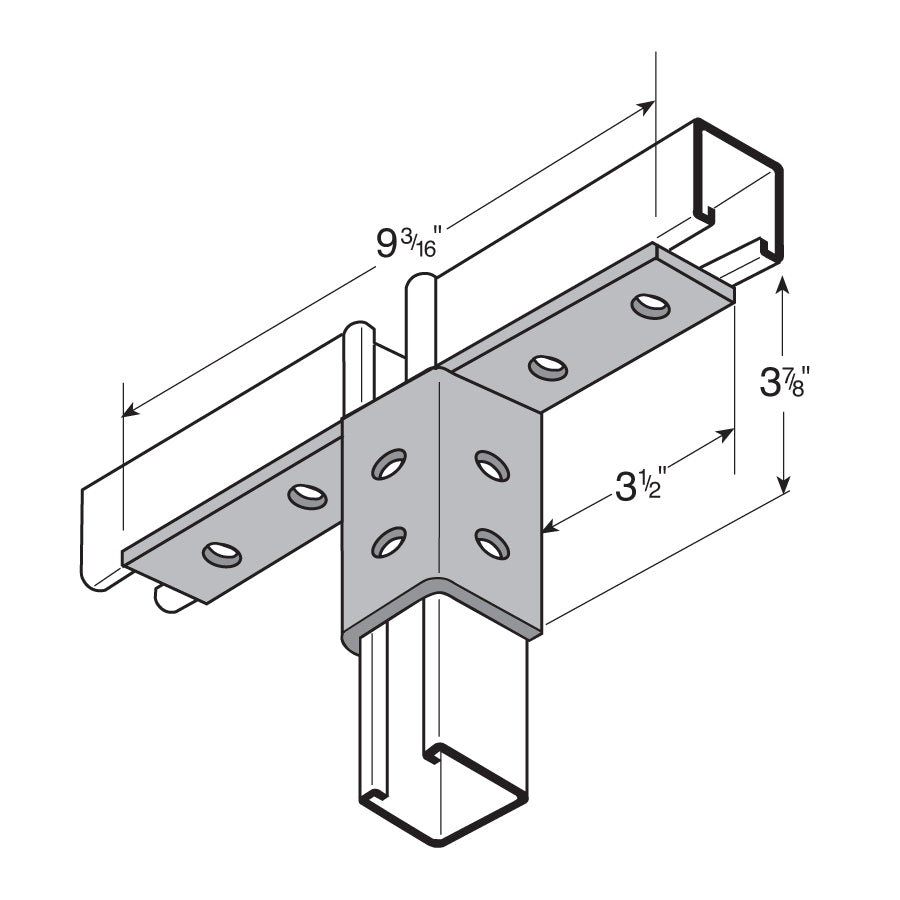

  • Flexstrut FS-5524 2-Way Channel Wing Connector Drawing With Dimensions

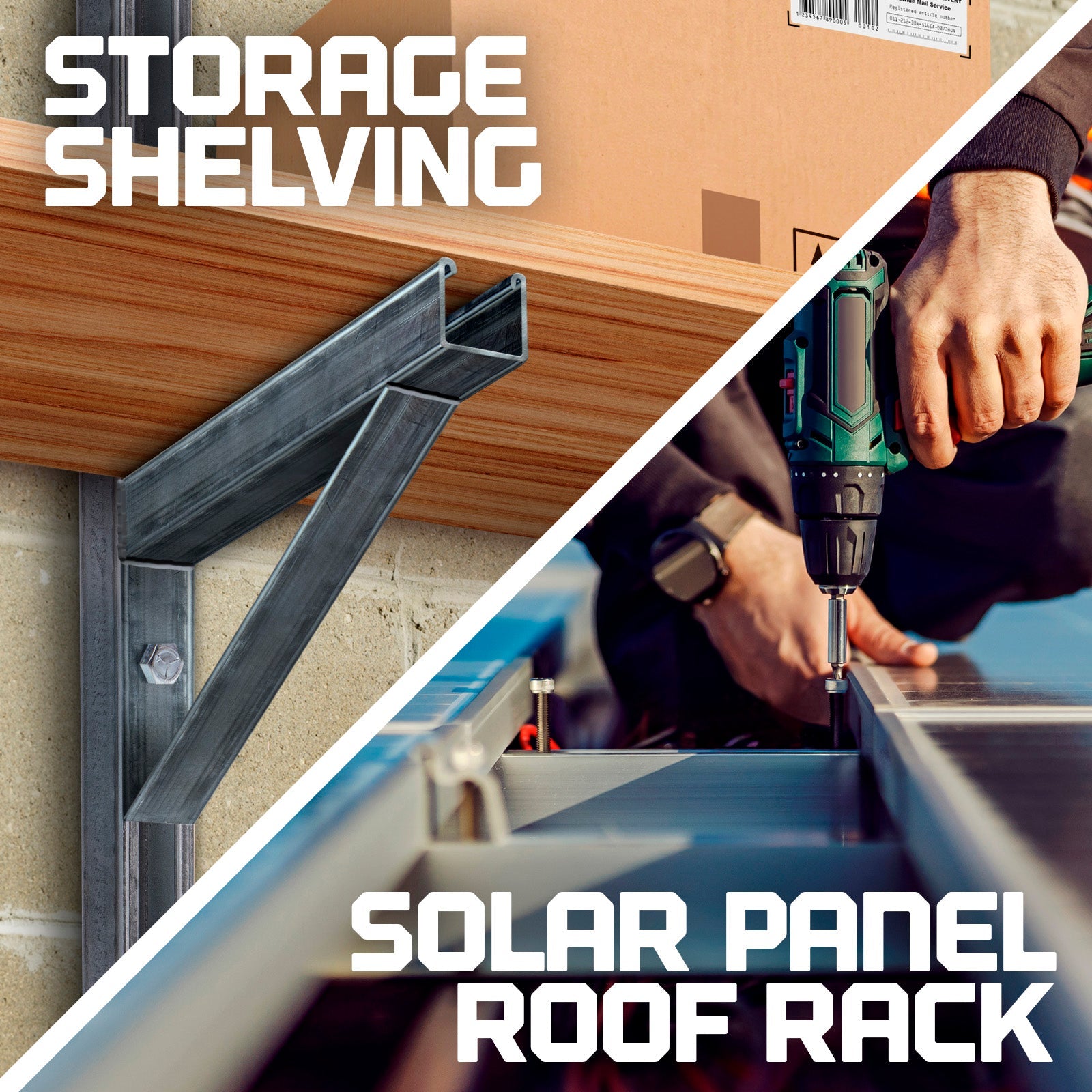

  • Strut Channel applications for storage shelving and solar panel roof racks

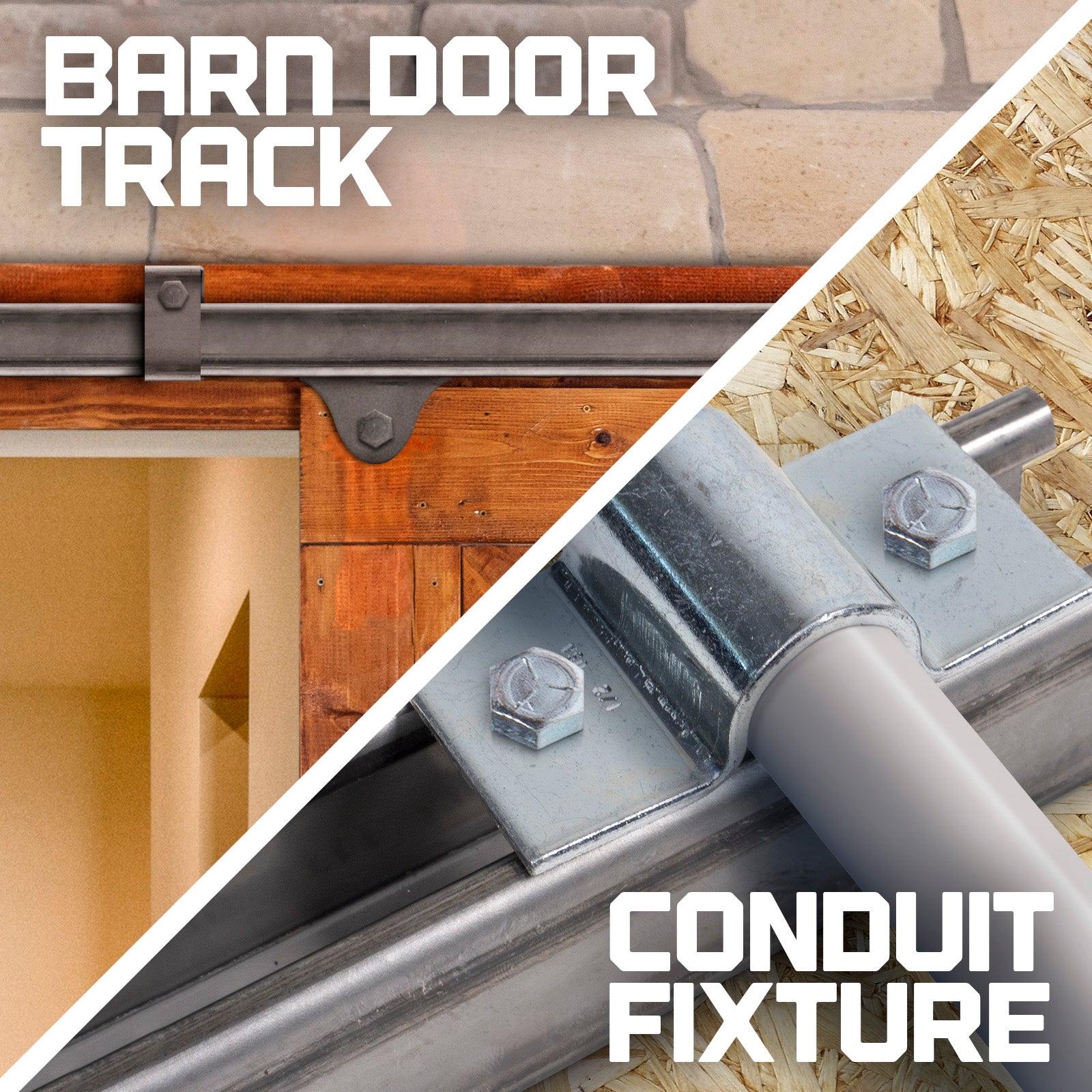

  • Strut Channel applications barn door track and conduit fixtures
1 6

Continue Browsing

Wing Fittings
SKU: FS-5524-E/G

10-Hole 2-Way Channel Wing Connector - Electro-Galvanized

$24.67

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 12 when you add 9 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-galvanized
Material: Carbon Steel
Finish Specification: ASTM B633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 GR33
Thickness: 1/4"
Width: 1-5/8"
Description

10-Hole 2-Way Channel Wing Connector - Electro-Galvanized allows channels to be connected perpendicularly and can be used to create joints along a vertical piece of strut. 8-Hole 2 Way Wing Fittings allow for 2 arms to be created from the T-shaped wing fitting. These Wing Fittings have 9/16" punched holes and should be used with like metals. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
