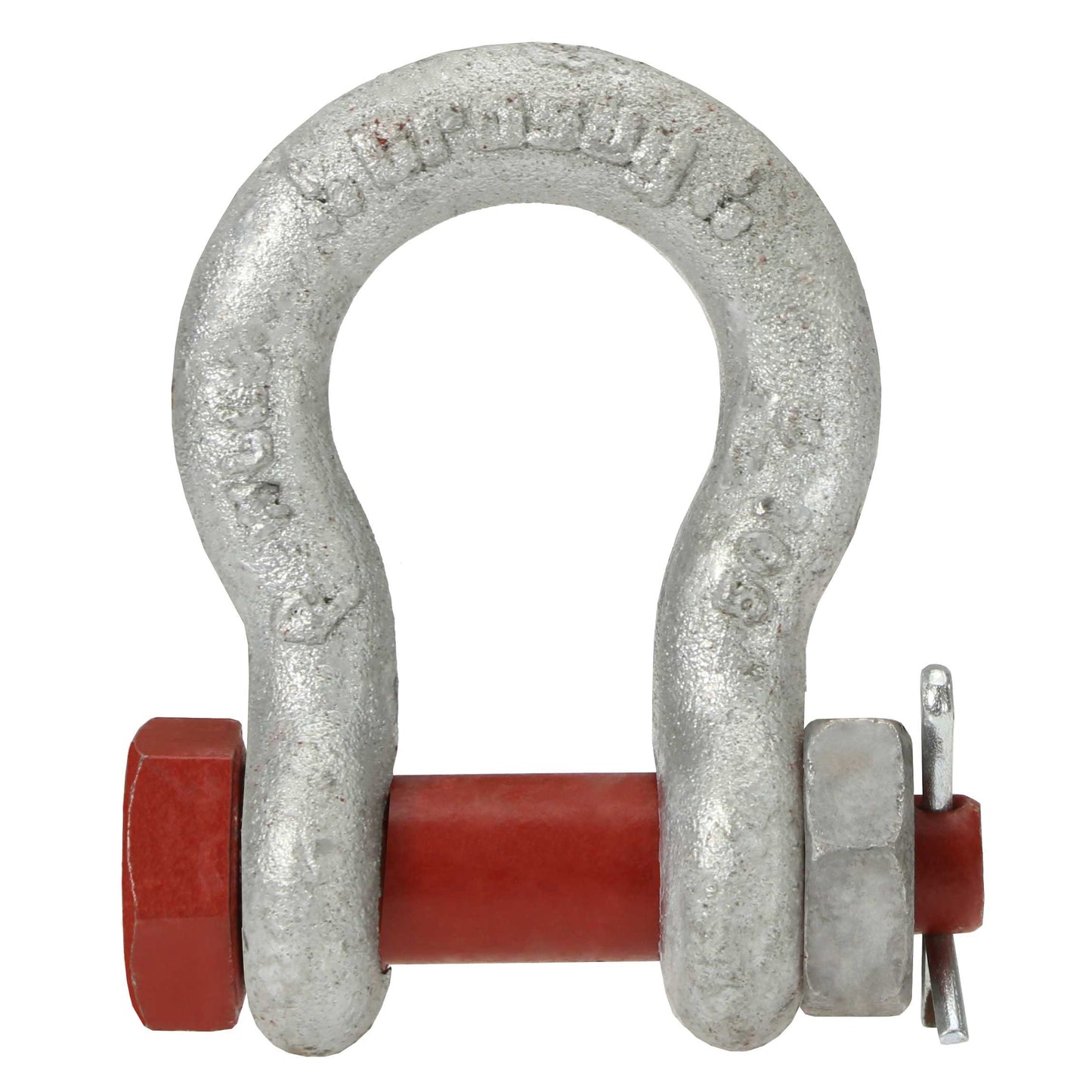

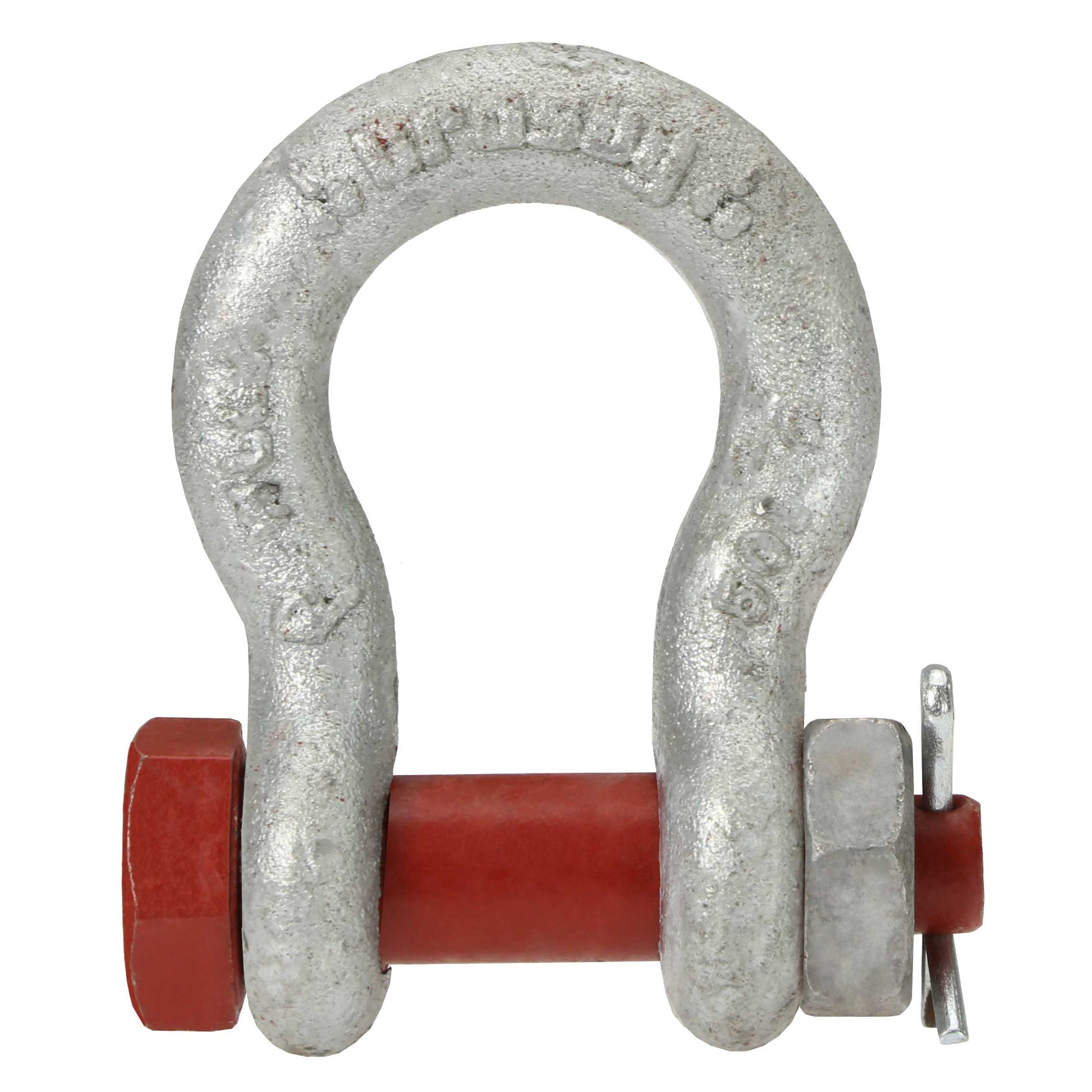

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton primary image

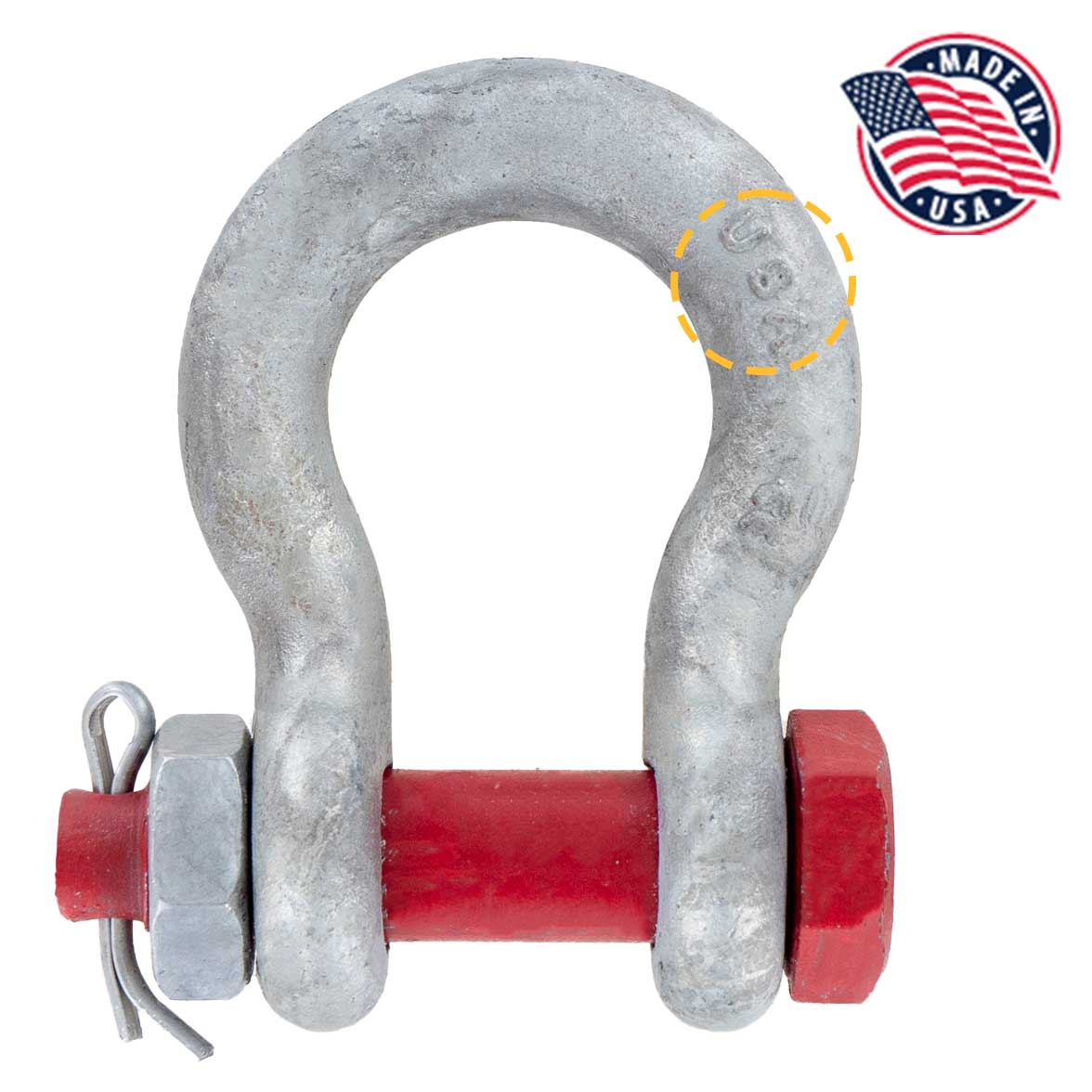

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton made in USA

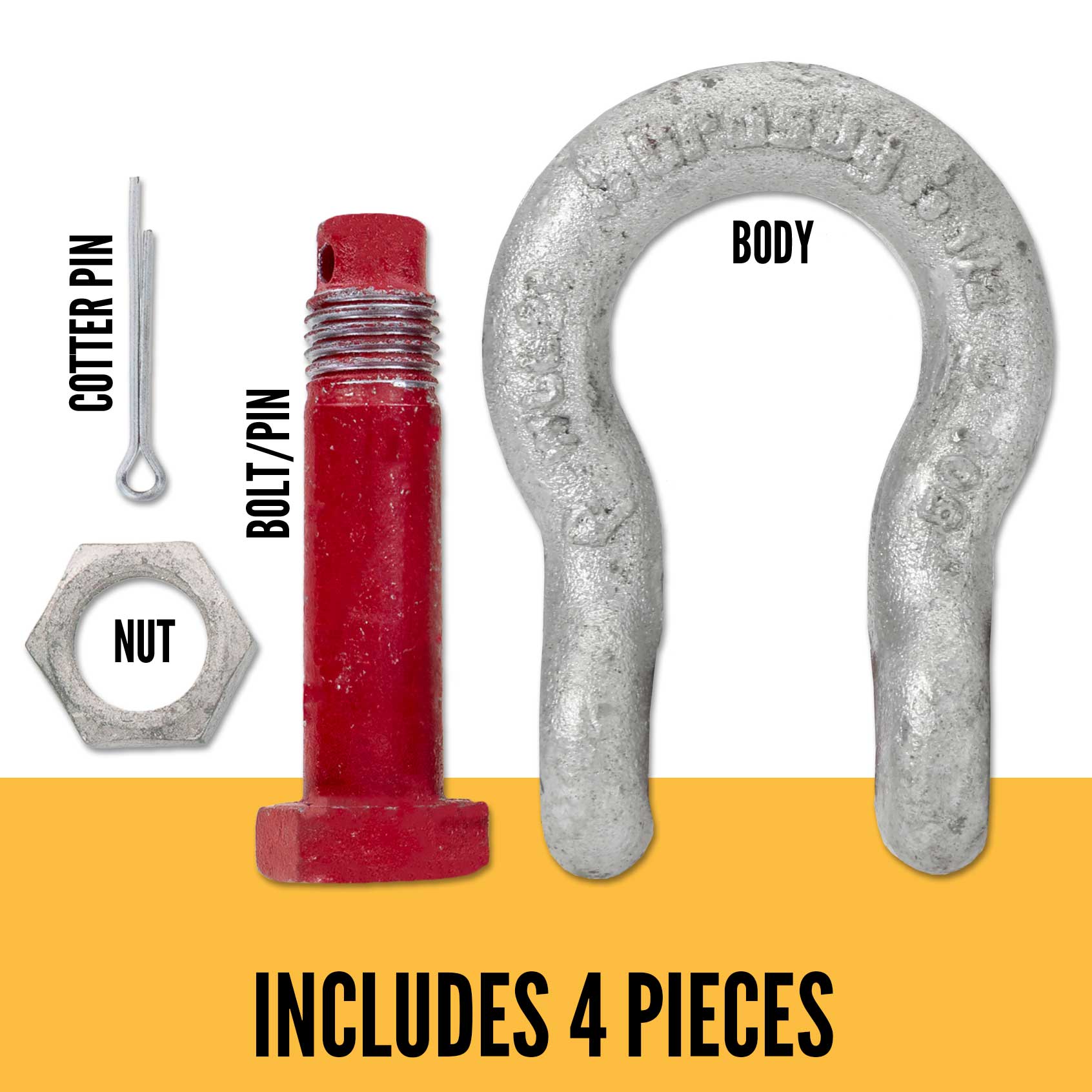

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton parts of a shackle

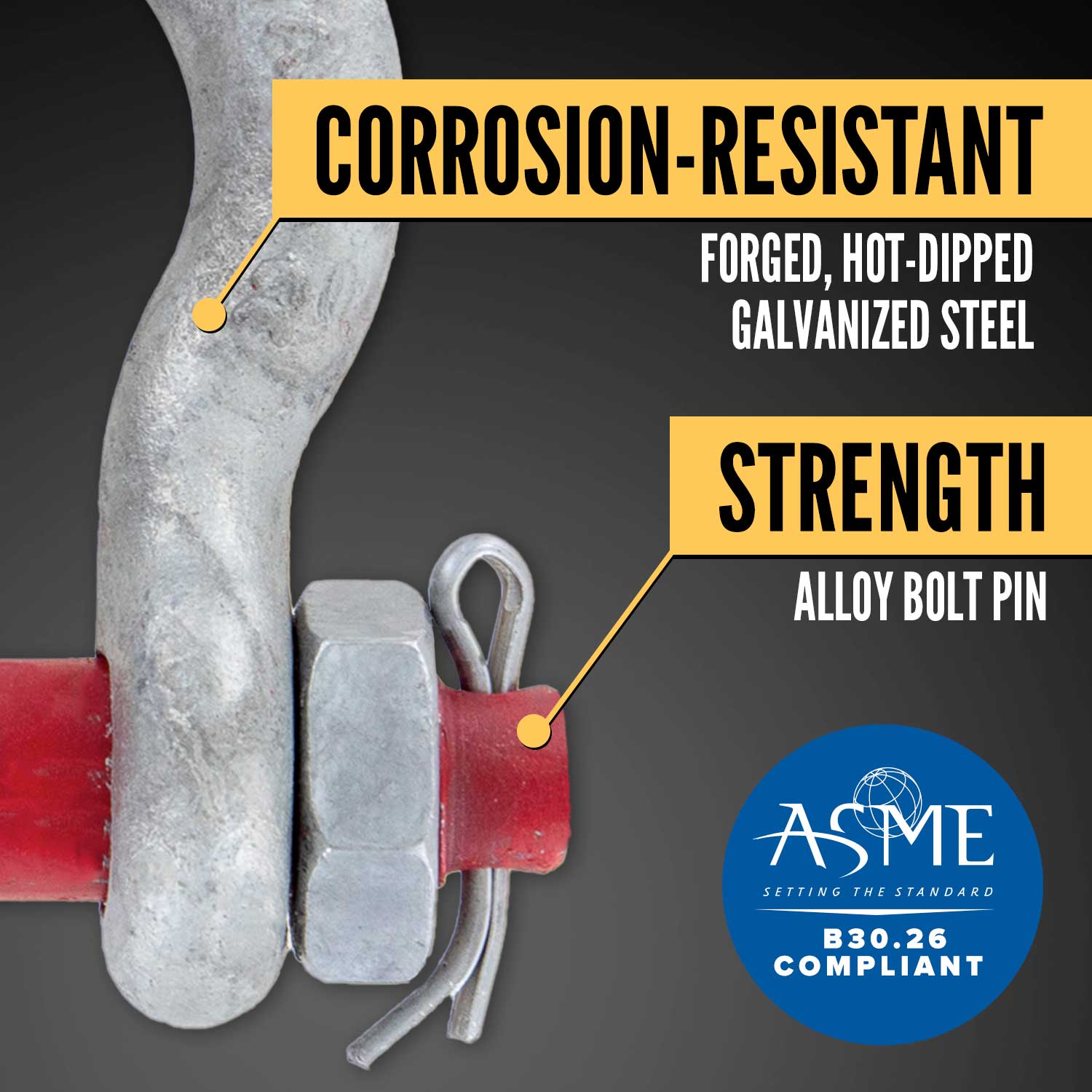

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton shackle construction

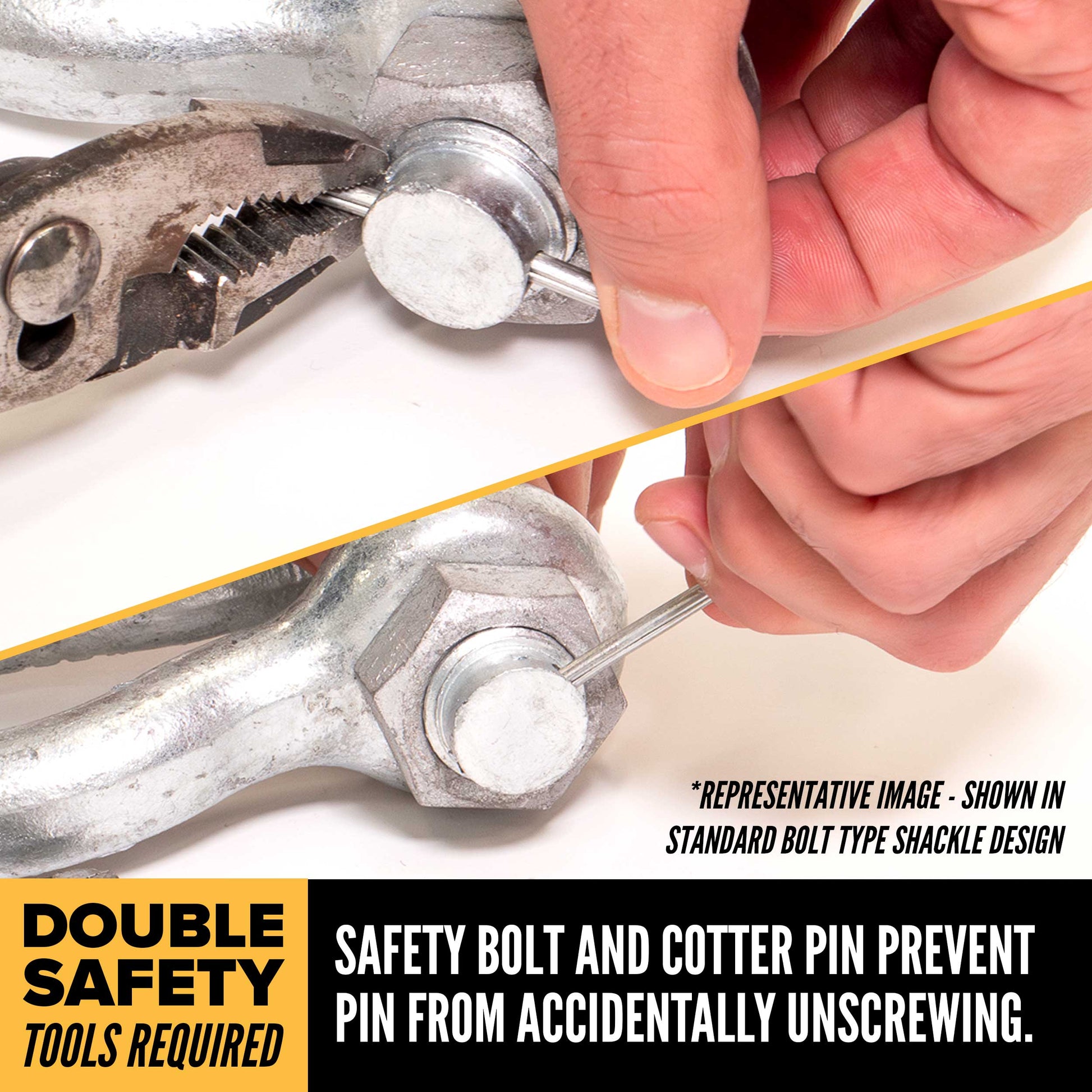

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton safety bolt and cotter pin

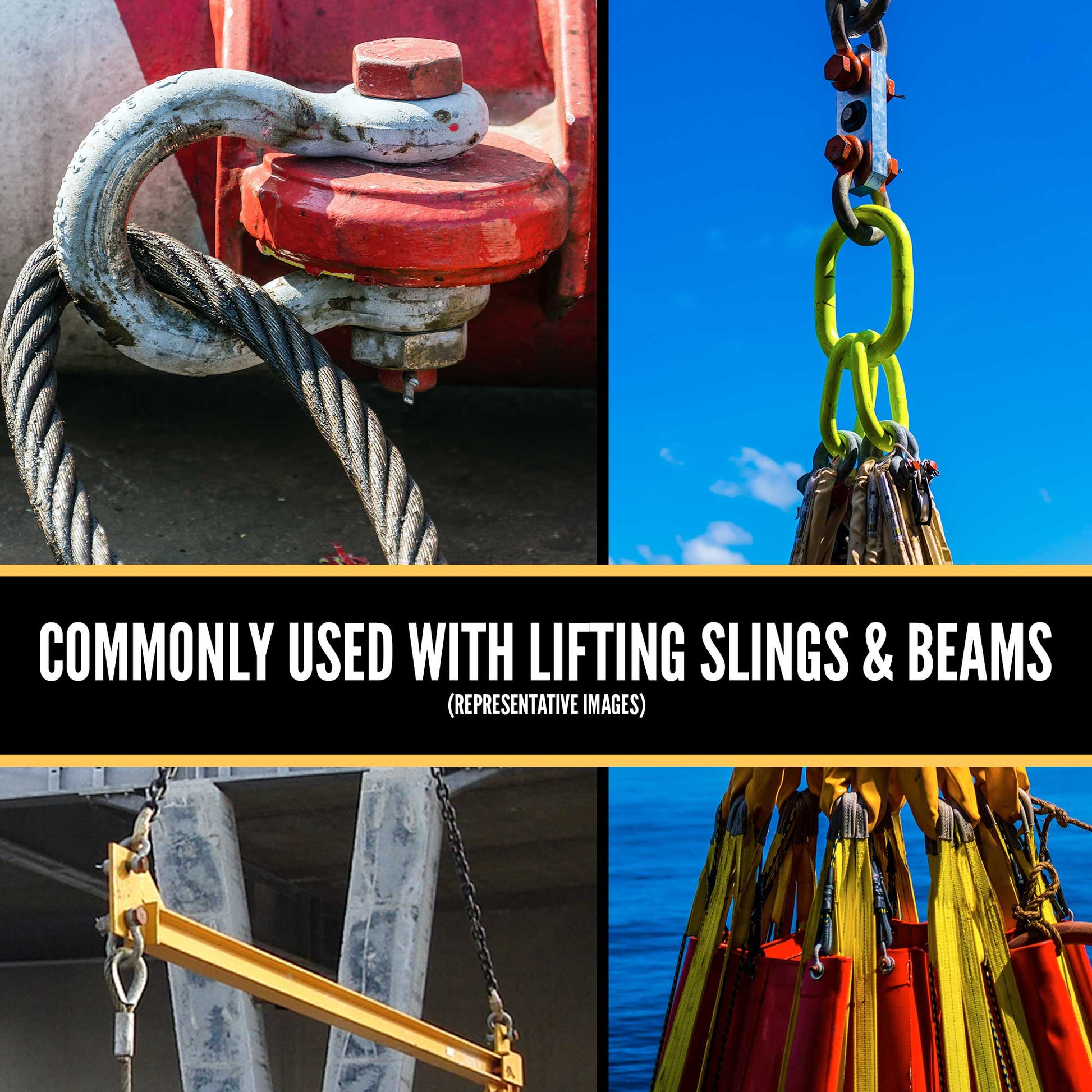

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton common shackle usage

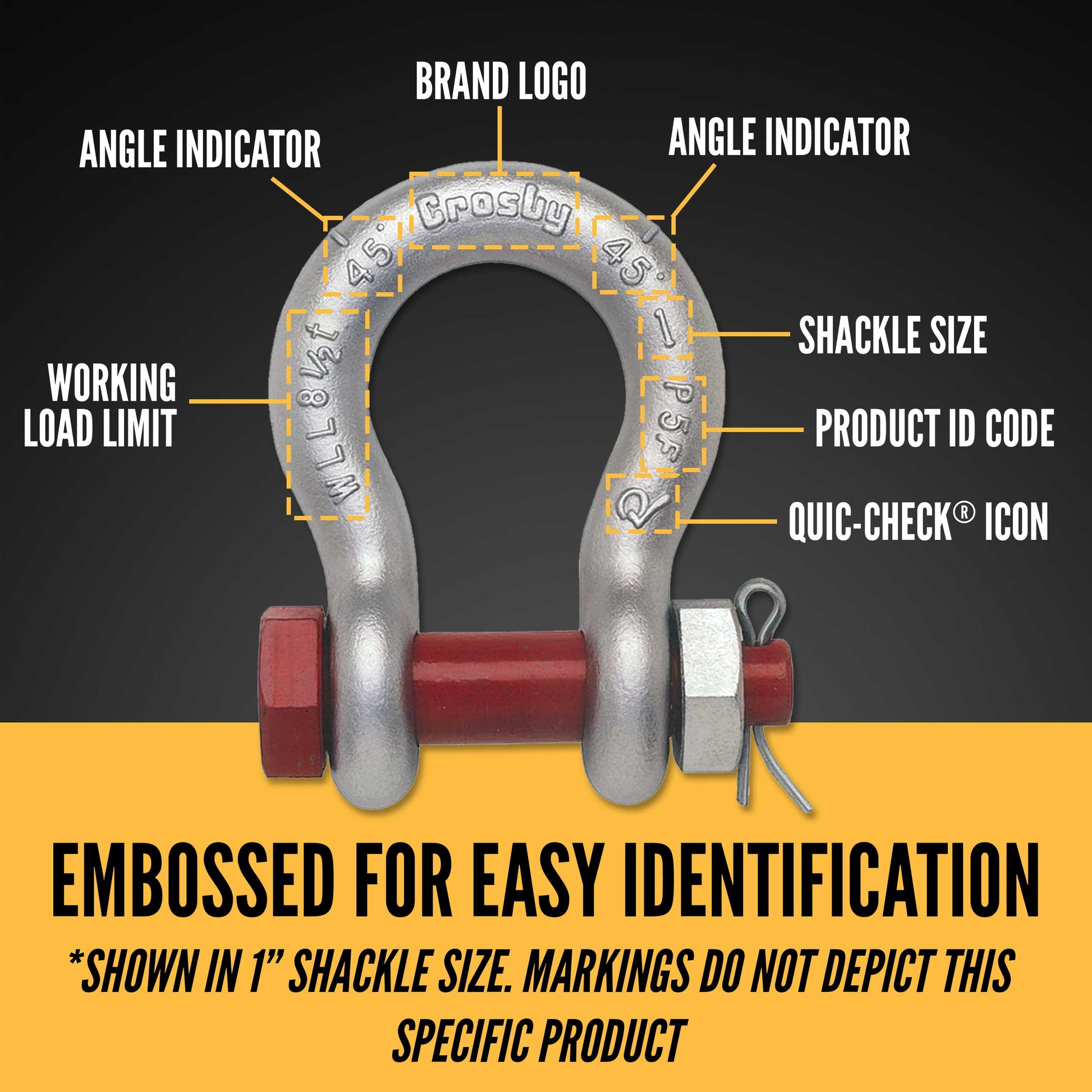

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton embossed for easy identification

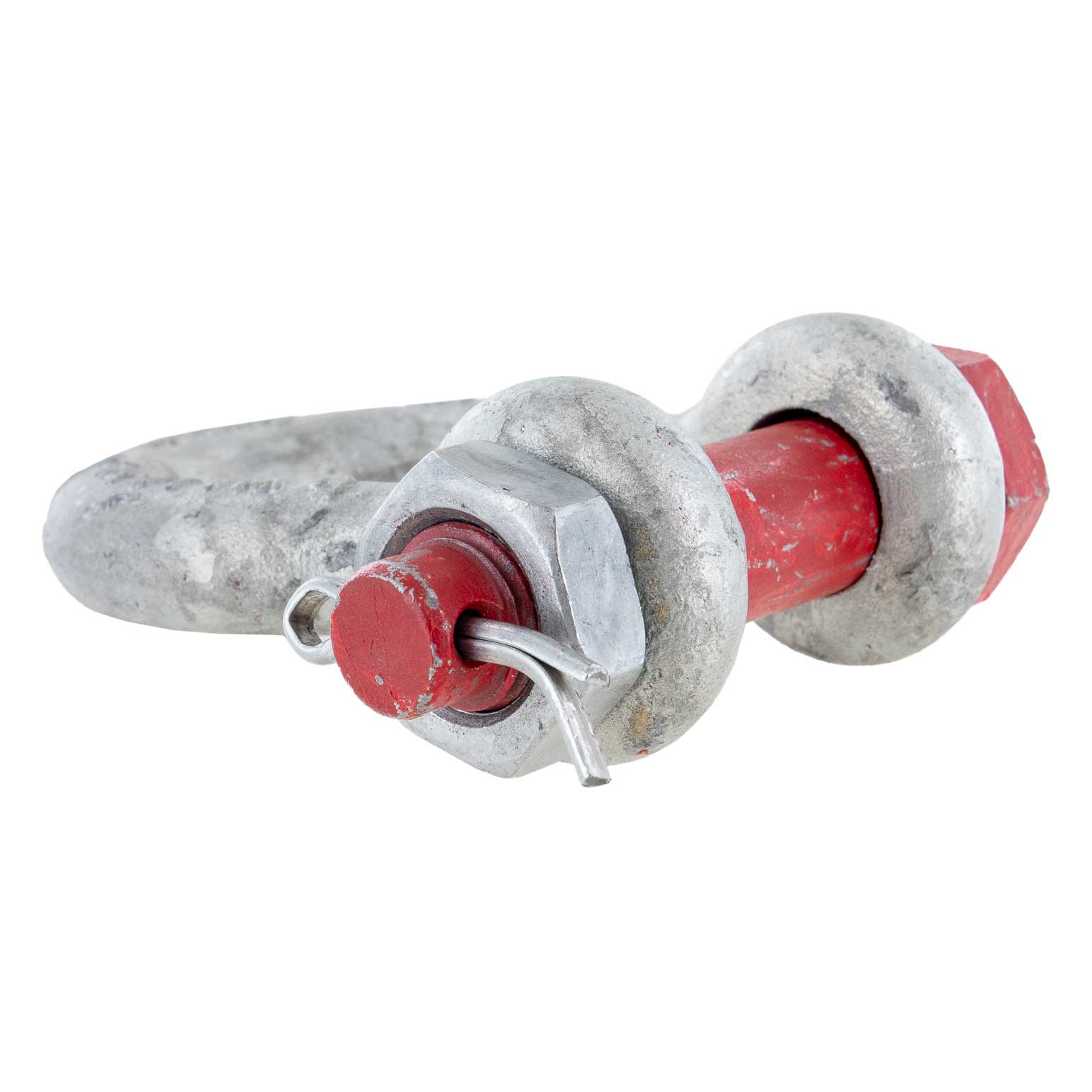

  • 3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton side view
1 8

Continue Browsing

Bolt Type Anchor Shackles - Galvanized

Anchor, Bow, Chain, and D Shackles

Rigging Supplies & Rigging Hardware
SKU: BTAS38-CR

3/8" Crosby® Bolt Type Anchor Shackle | G-2130 - 1 Ton

$22.87

Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 7 hours 58 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Shackle Sizes:

3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" 1-3/8" 1-1/2" 1-3/4" 2"

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Finish: Galvanized
Material: Carbon Steel Shackle with Alloy Steel Bolt
Additional Info: WLL (lbs.): 2,204
Inside Height: 1.44"
Inside Width: 1.03"
Item Weight: .3 lbs.
Manufacturer name: Crosby®
Manufacturer Part Number: 1019470
Mouth Width: 0.66"
Pin Size: 7/16"
Safety Factor: 6:1
Shackle Size: 3/8"
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Type: Bolt Type Anchor
Working Load Limit: 1 ton
Description

Crosby® G-2130 Bolt Type Anchor Shackles - Fatigue Rated and Built to Last

For long-term or permanent rigging applications, Crosby G-2130 Bolt Type Anchor Shackles offer the durability and dependability that professionals count on. The anchor bow design accepts loads from multiple directions, making them especially useful in multi-leg sling configurations and wider strap connections.

Manufactured in the USA from forged steel that is quenched and tempered for added strength, each shackle features a hot-dip galvanized finish for corrosion resistance. The bolt-type design includes a thin head bolt secured with a nut and cotter pin, helping to prevent the pin from rotating under load - especially when loads may slide or shift during use.

Each shackle is fatigue rated to 20,000 cycles at 1.5x the working load limit and clearly stamped with the Grade 6 designation, working load limit, PIC code, and Crosby name for identification and traceability.

Key Features:

  • Long-Term Security: Bolt, nut, and cotter pin system prevents accidental pin loosening under sliding loads.
  • Forged for Performance: Quenched and tempered forged steel with alloy bolt delivers superior strength.
  • Fatigue Rated: Rated for 20,000 cycles at 1.5x WLL for dependable long-term use.
  • Temperature Approved: Suitable for use in environments from -40°F (-40°C) to 400°F (204°C).
  • Clear Identification: Marked with working load limit, Grade 6, Crosby brand, and PIC for traceability.
