description

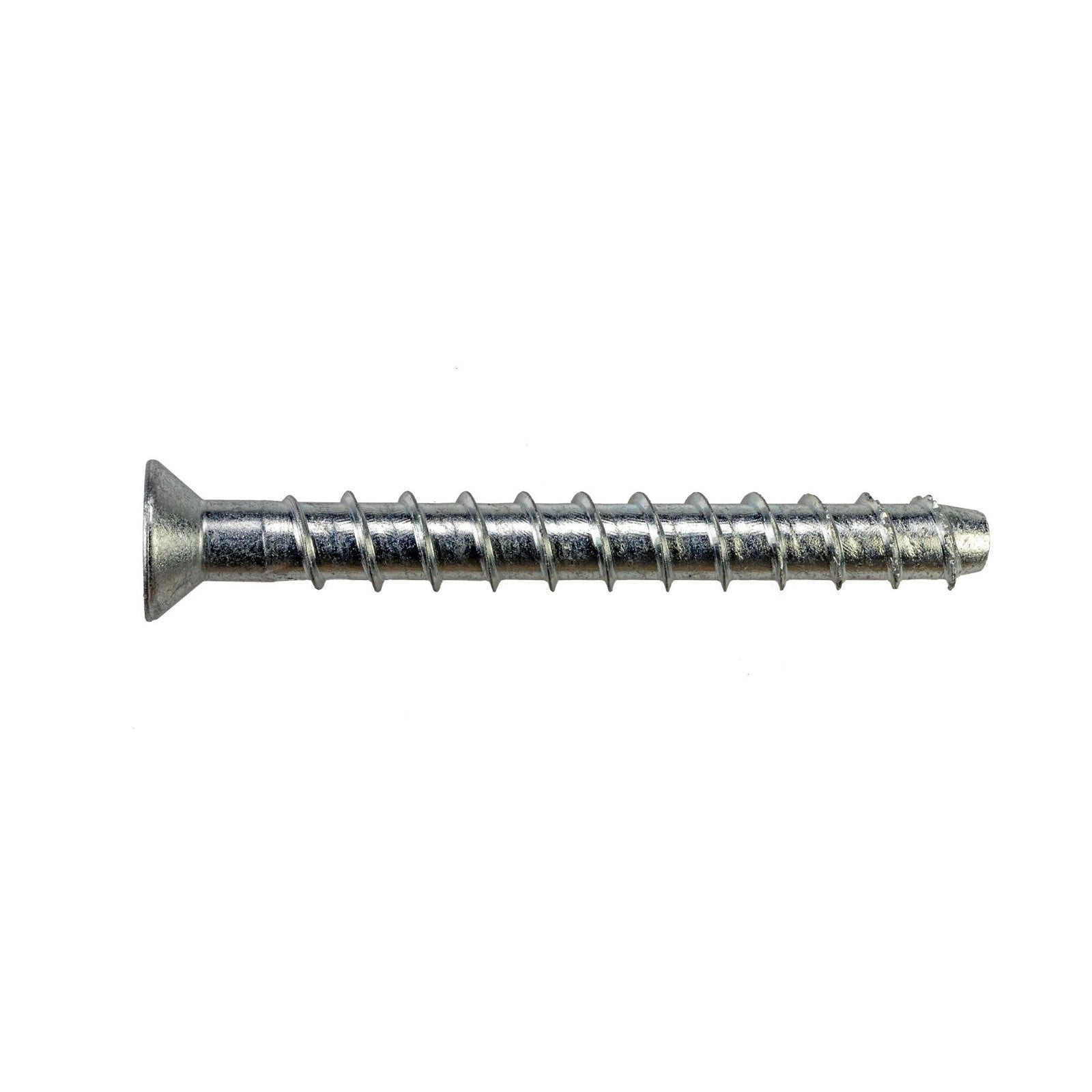

Simpson Titen HD anchors are high performance screw anchors designed for easy installation. The countersunk head on these anchors allows for a flush installation for a clean look when installed. The ease and speed of installation make these anchors ideal for use as door frame achors and window frame anchors when anchoring into concrete. These anchors have a zinc finish which is only suitable for installation in dry, interior, non-corrosive environments. Unlike a lot of other concrete anchors, countersunk Titen HD anchors are removable, which make them ideal for temporary anchoring or in situtations where fixtures will be moved frequently. These anchors are qualified for both static and seismic loading conditions.
Installation:
Installation:
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overall (see table below) to allow the thread tapping dust to settle, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.
- Insert the anchor through the fixture and into the hole.

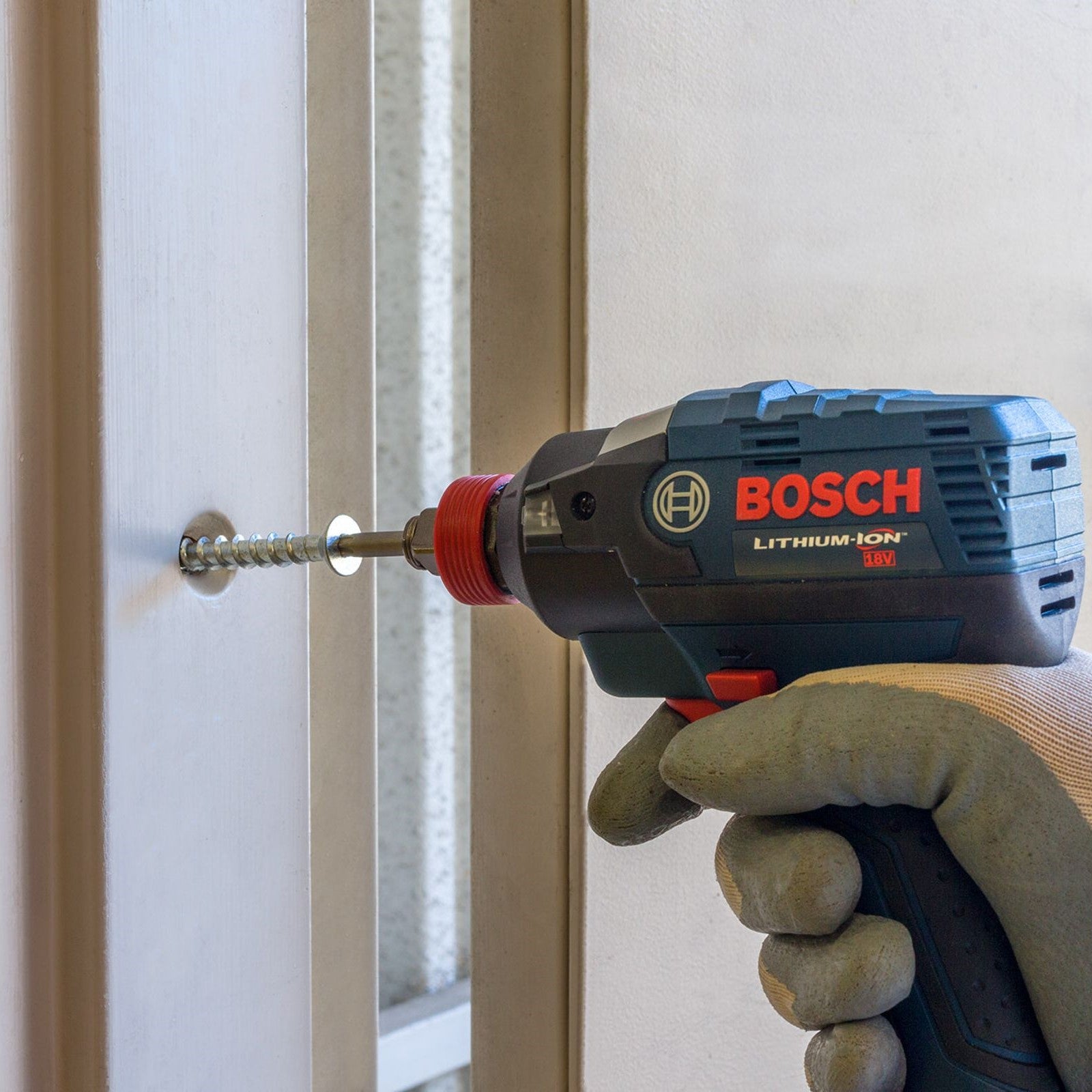

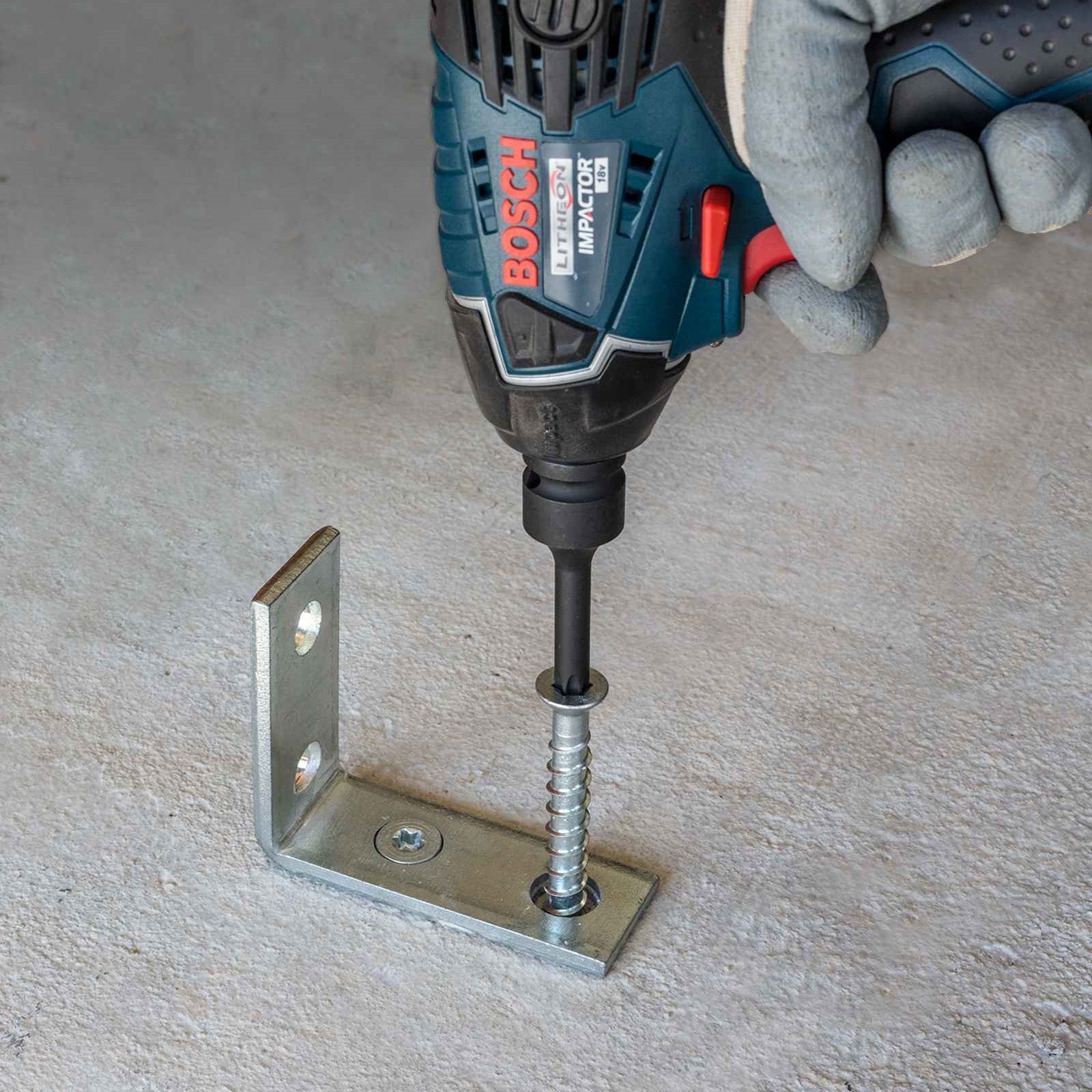

- Tighten the anchor into the base material until the bottom of the countersunk head contacts the fixture.
California Residents: WARNING
Simpson Titen HD anchors are high performance screw anchors designed for easy installation. The countersunk head on these anchors allows for a flush ...
Simpson Titen HD anchors are high performance screw anchors designed for easy installation. The countersunk head on these anchors allows for a flush installation for a clean look when installed. The ease and speed of installation make these anchors ideal for use as door frame achors and window frame anchors when anchoring into concrete. These anchors have a zinc finish which is only suitable for installation in dry, interior, non-corrosive environments. Unlike a lot of other concrete anchors, countersunk Titen HD anchors are removable, which make them ideal for temporary anchoring or in situtations where fixtures will be moved frequently. These anchors are qualified for both static and seismic loading conditions.
Installation:
Installation:
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overall (see table below) to allow the thread tapping dust to settle, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the bottom of the countersunk head contacts the fixture.
California Residents: WARNING

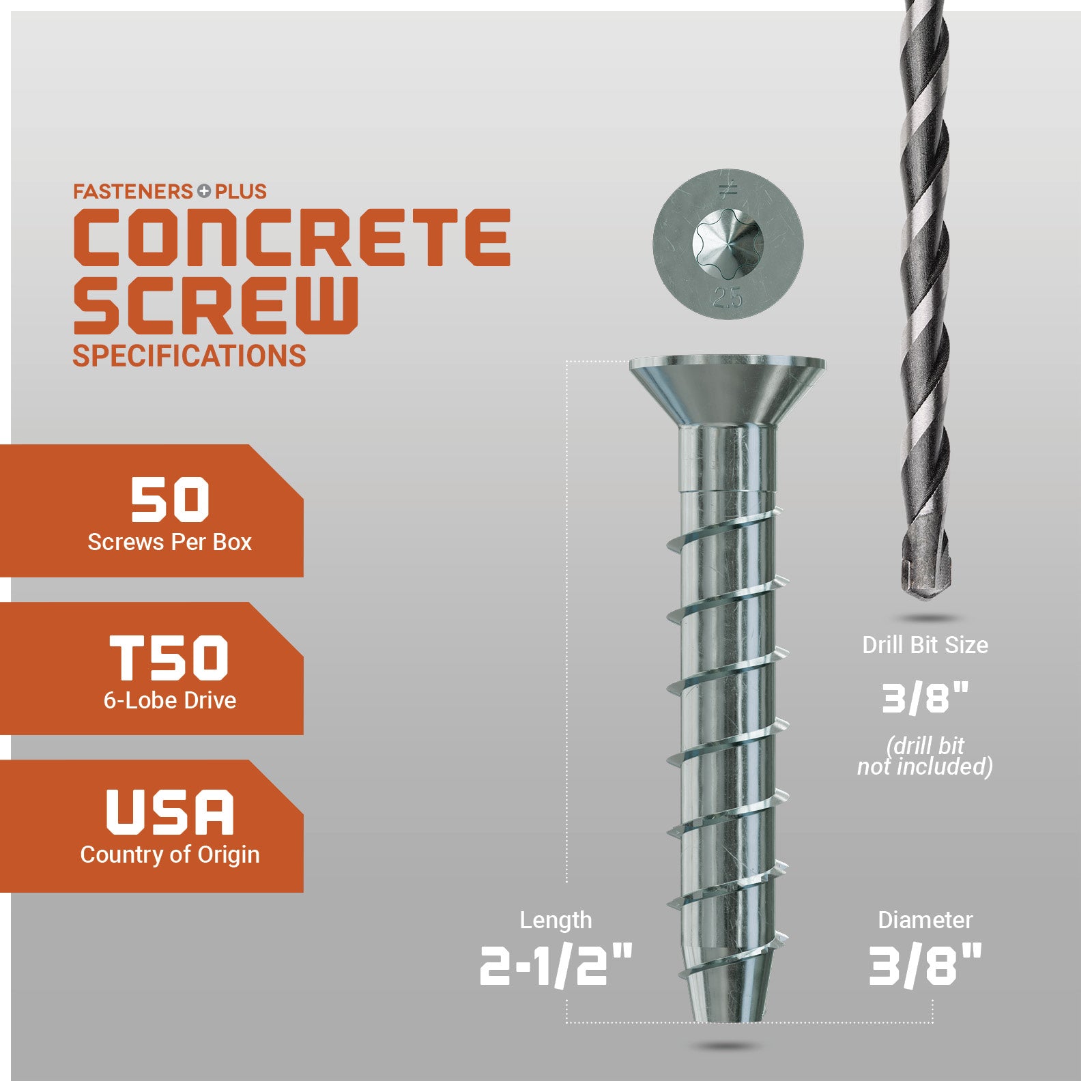

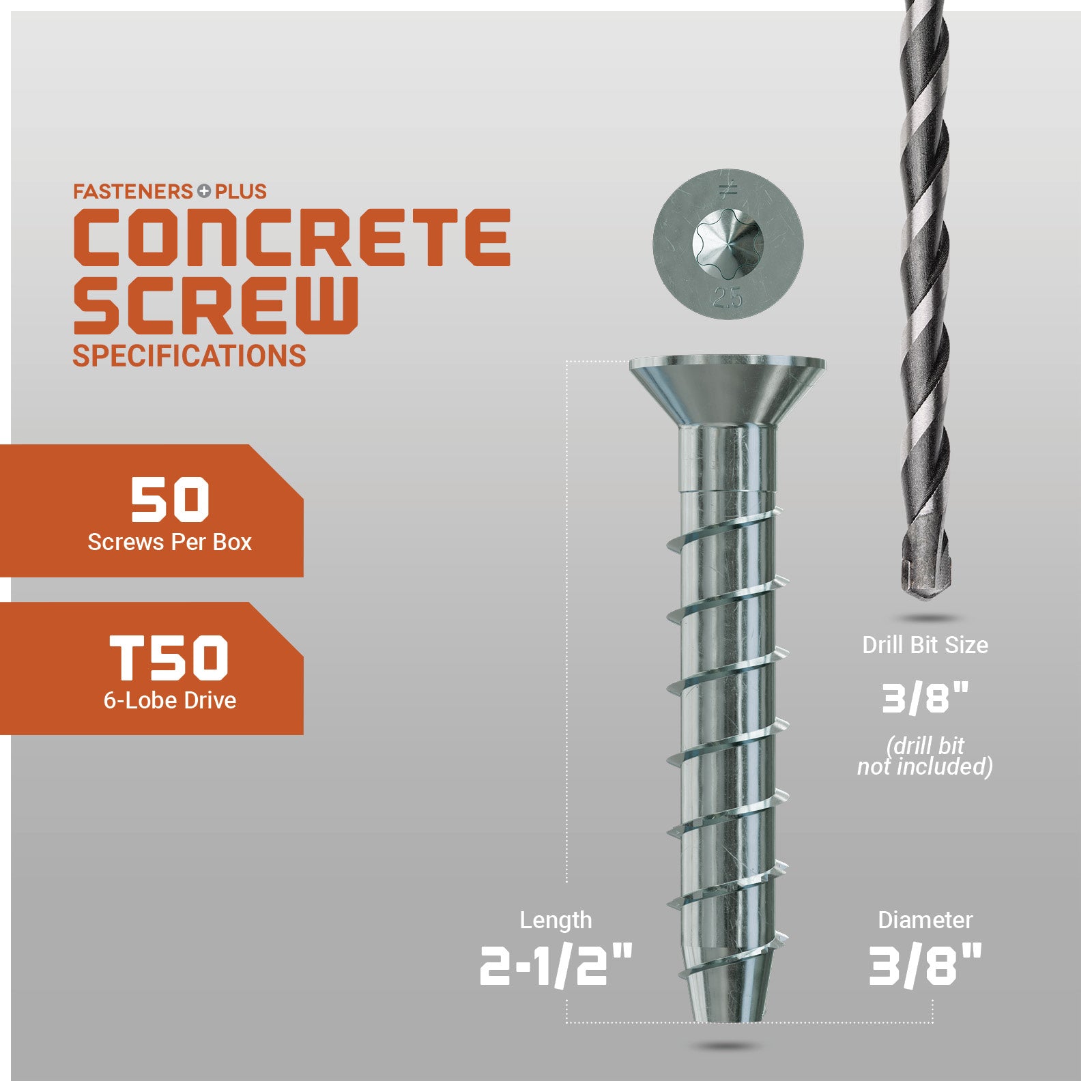

specifications
drill bit size:
3/8"
finish spec:
Zinc
head type:
Flat Head
length spec:
2-1/2"
manufacturer name:
Simpson Strong-Tie
diameter:
3/8"
drive type:
T-50 Star
fixture hole size:
1/2" to 9/16"
material:
Carbon Steel
