Specifications

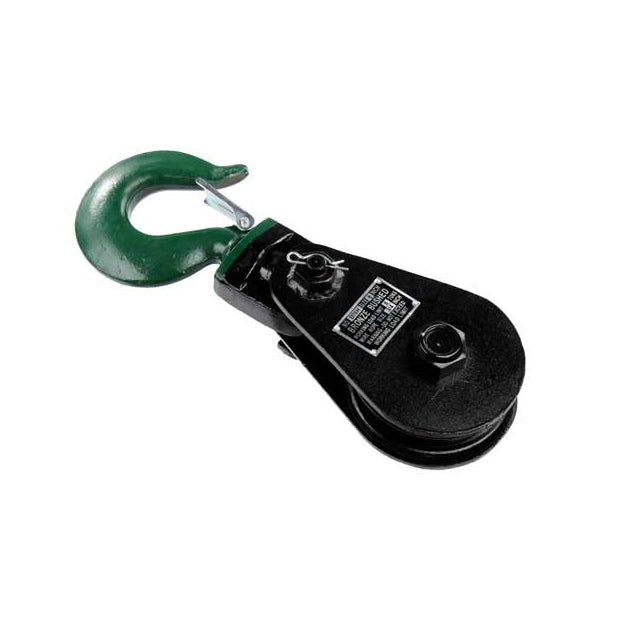

4180 Snatch Block with Hook - 8" Sheave for 3/4" Wire Rope
Designed for heavy rigging, the 4180 Snatch Block with hook features an 8" sheave and is built for 3/4" wire rope. It delivers a 16,000 lb working load limit with an 80,000 lb break strength, supported by a 5:1 safety factor. A bronze bushing ensures low-friction sheave operation under load, making it ideal for consistent, high-stress use.
The drop-side panel allows for fast rope changes in the field, while the latched swivel hook with a 1.77" mouth width provides a secure connection to various anchor points. This block is engineered for strength, simplicity, and compliance on demanding jobsites.
Snatch Block for High-Capacity Lifting, Winching & Load Redirection
Weighing 35 lbs, this block balances rugged durability with maneuverability for rigging crews. It meets or exceeds ASME B30.26 standards and is trusted across industries for lifting, pulling, and directional tensioning where reliability matters.
Key Features
- Wire Rope Size: Fits 3/4" wire rope
- Sheave Diameter: 8" for smooth rope operation and load control
- Load Ratings: 16,000 lb working load limit; 80,000 lb break strength
- Hook Mouth Width: 1.77" with latch for secure anchoring
- Drop-Side Plate: Allows fast rope insertion without full disassembly

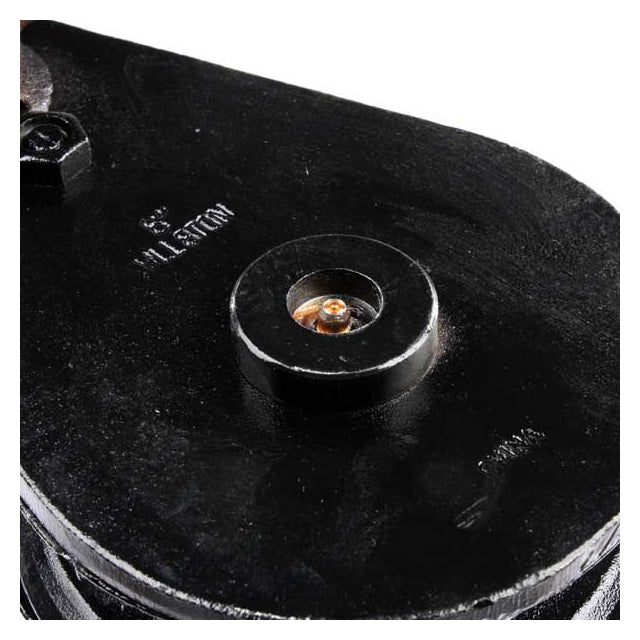

- Bronze Bushing: Supports extended use and consistent performance
- Product Weight: 35 lbs - heavy-duty yet manageable in field operations
- Compliance: Meets or exceeds ASME B30.26 safety and design standards
- Applications: Built for heavy rigging, lifting, directional pulling, and winching operations
