Specifications
Crosby® G-2140 Bolt Type Anchor Shackles 2.66 Ton - Built for Long-Term Rigging Integrity

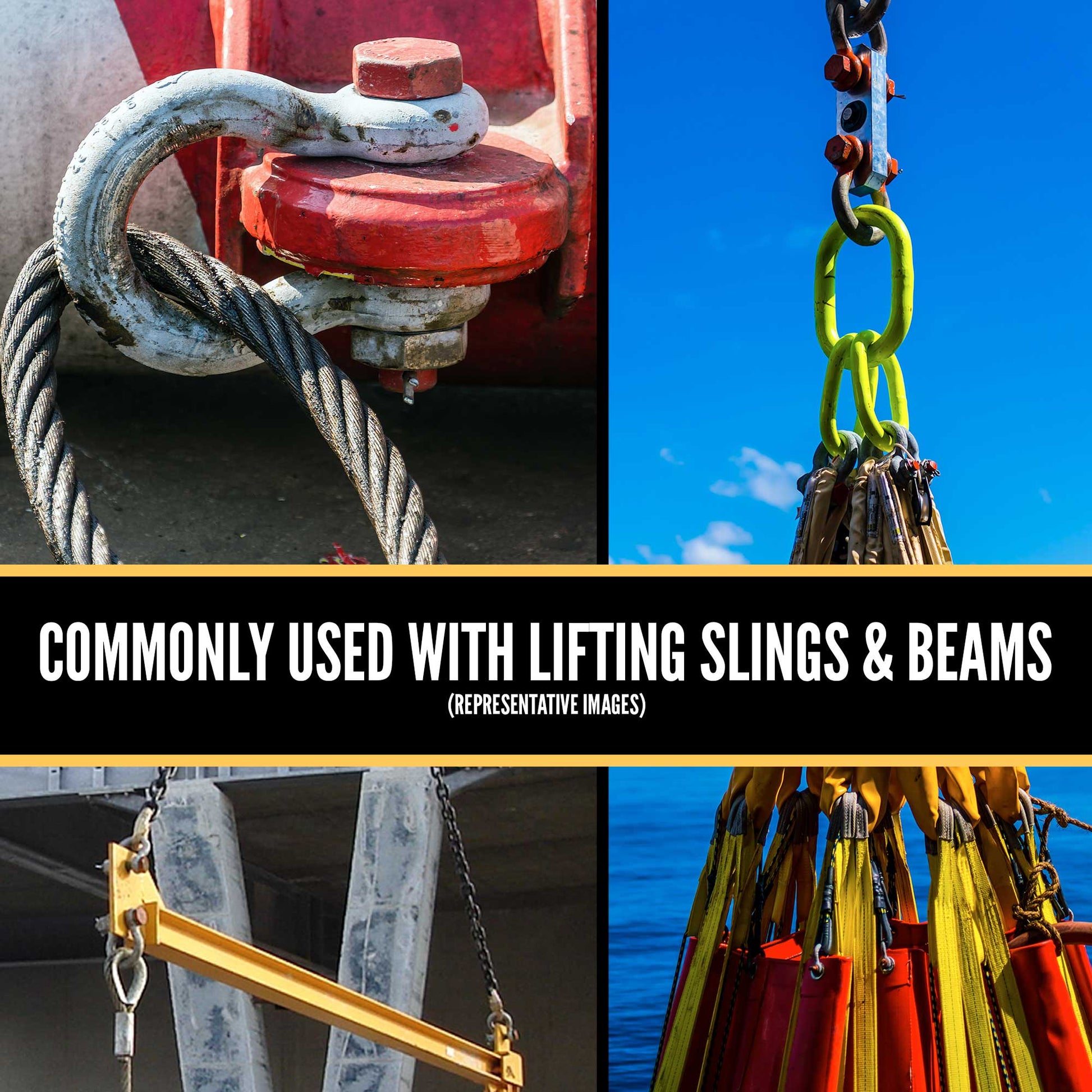

Designed for secure, long-term use in demanding rigging setups, Crosby Bolt Type Anchor Shackles provide reliable strength and stability where it matters most. Their rounded bow shape accommodates loads from multiple angles, making them ideal for multi-leg slings, wider straps, or connections to load rings without generating excessive side loading.

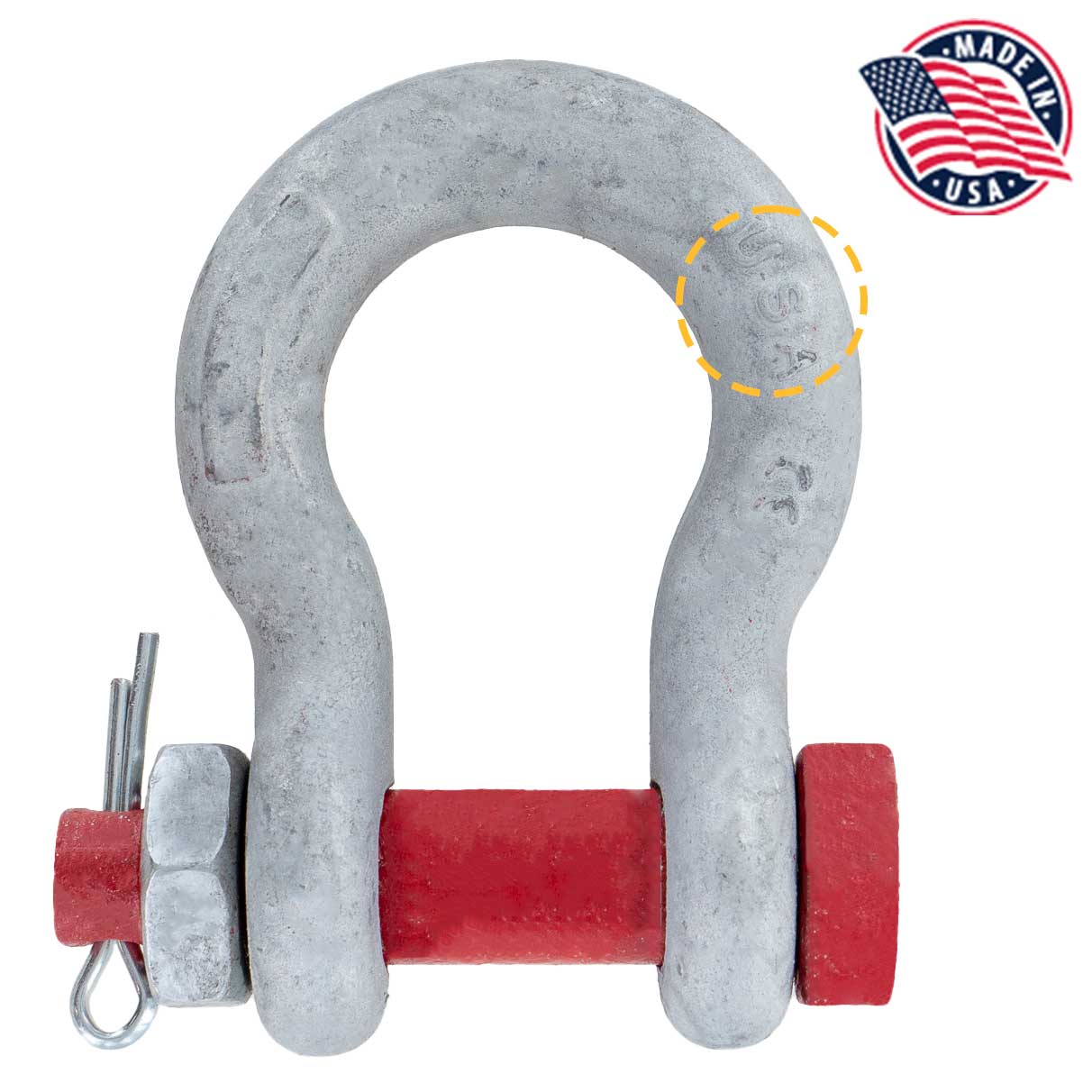

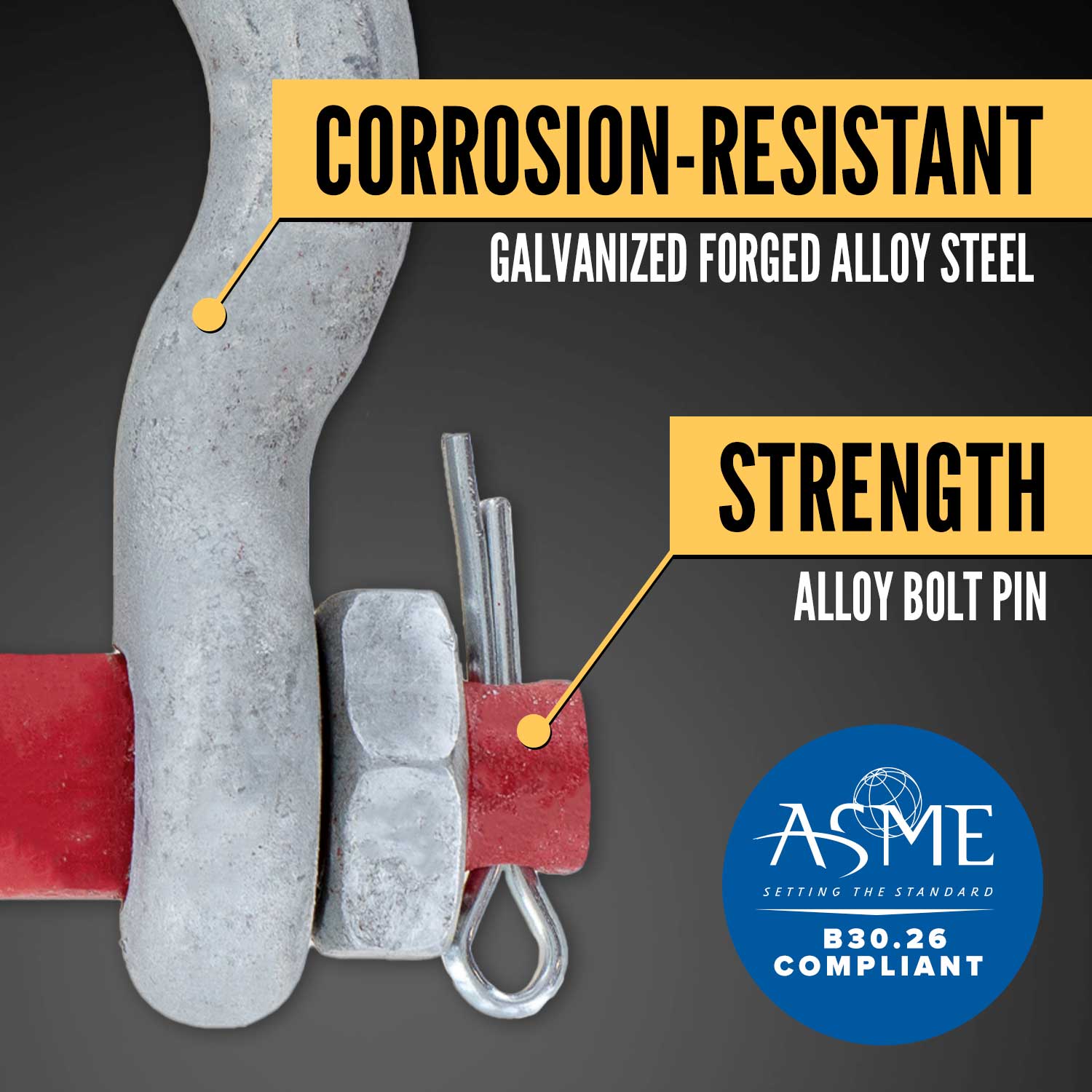

Each shackle is made in the USA from quenched and tempered alloy steel and includes a red-painted, Dimetcoted bolt that resists corrosion and ensures consistent performance under load. The bolt type pin system is especially suited for permanent or semi-permanent installations where a sliding load could otherwise rotate and loosen a screw pin.

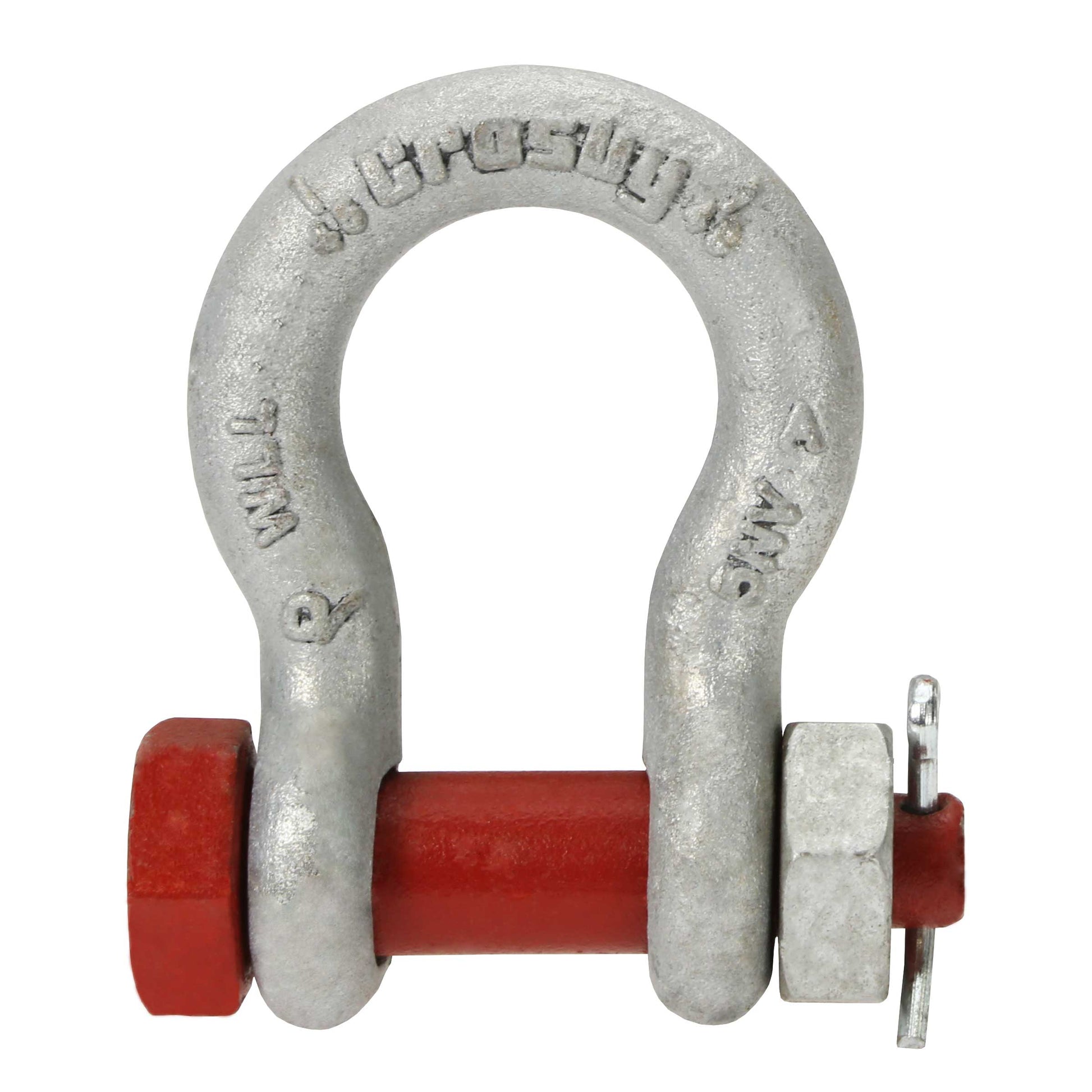

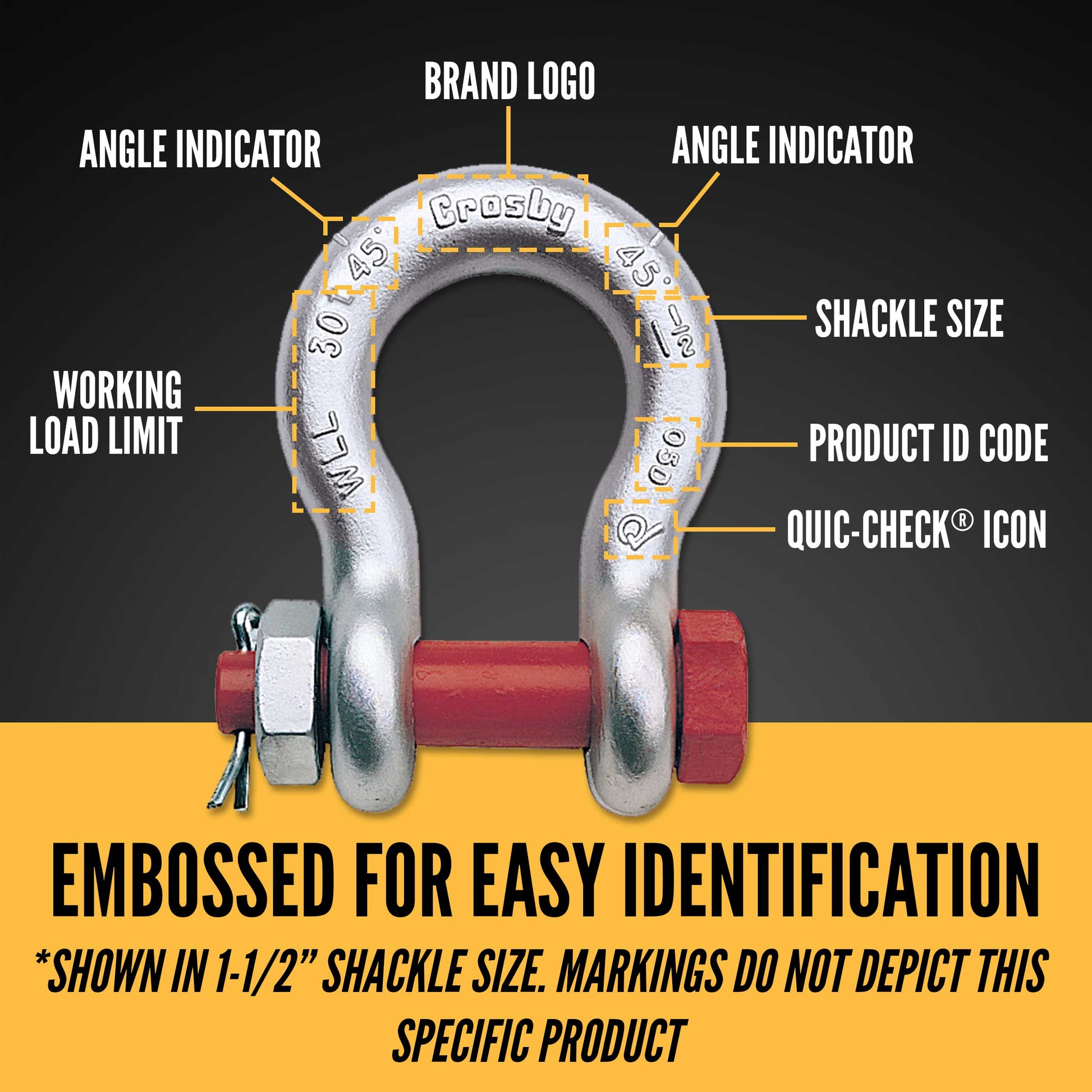

These G-2140 shackles meet Grade 8 performance standards and are stamped with the Crosby name, PIC, and working load limit for traceability. They’re rated for use in temperatures from -40°F to 400°F and can meet DNV impact certification requirements when requested at time of order.
Key Features:

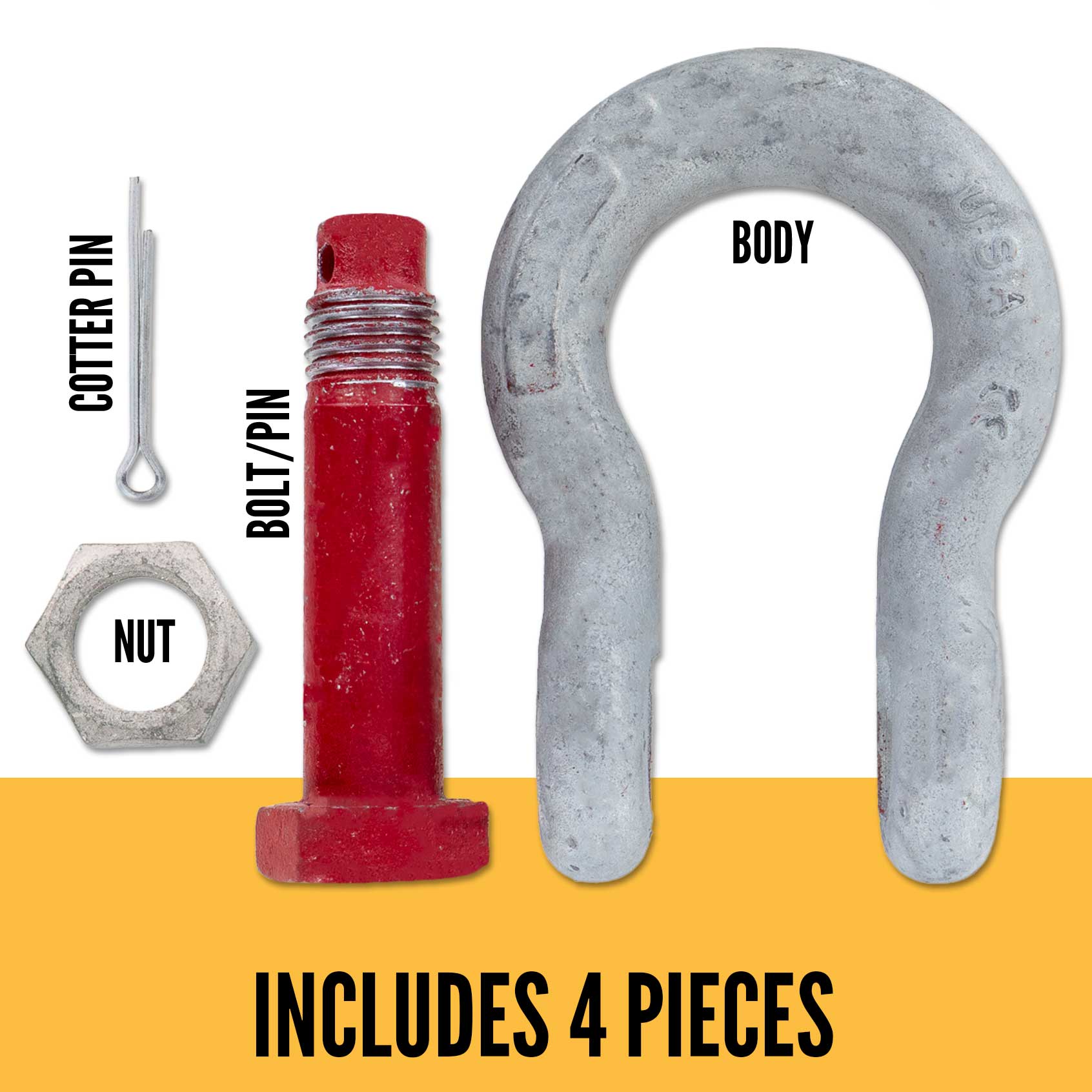

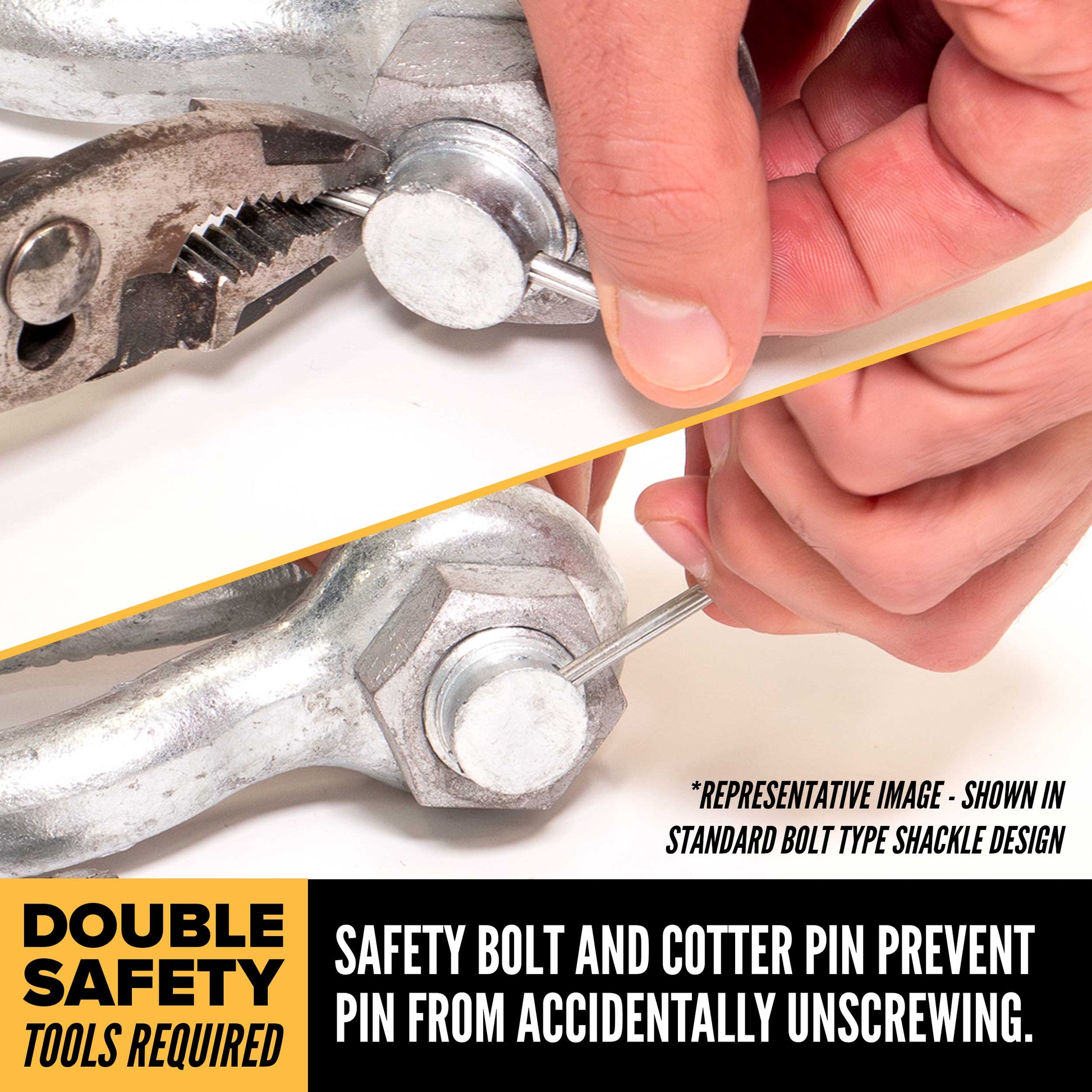

- Permanent Installation Ready: Bolt-style pin system prevents unwanted pin rotation under shifting loads.
- Multi-Directional Load Capacity: Anchor bow design allows connections from multiple angles.
- Forged for Strength: USA-made from quenched and tempered alloy steel with a corrosion-resistant finish.
- Temperature Rated: Approved for use between -40°F (-40°C) and 400°F (204°C).
- Certification Options: Can meet DNV and ABS standards when requested (additional fees may apply).
Note: Certification requests must be made at the time of order.
