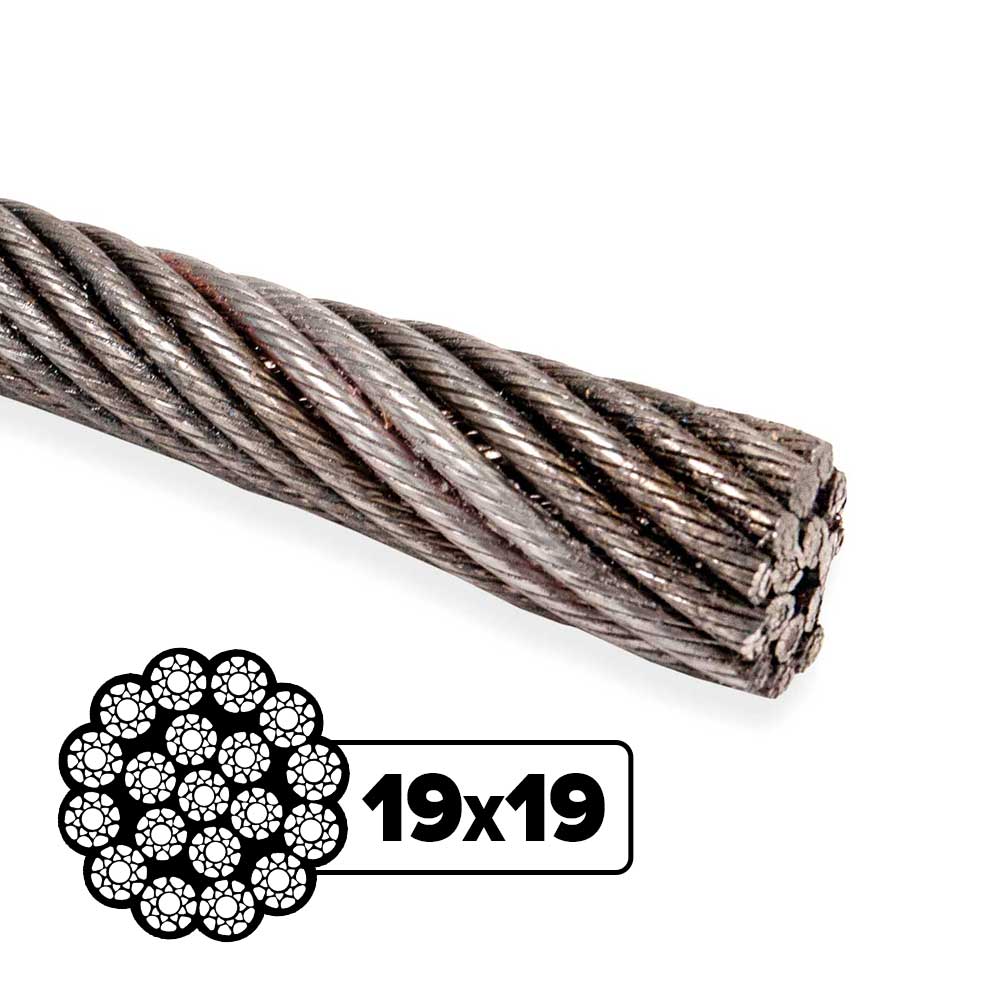

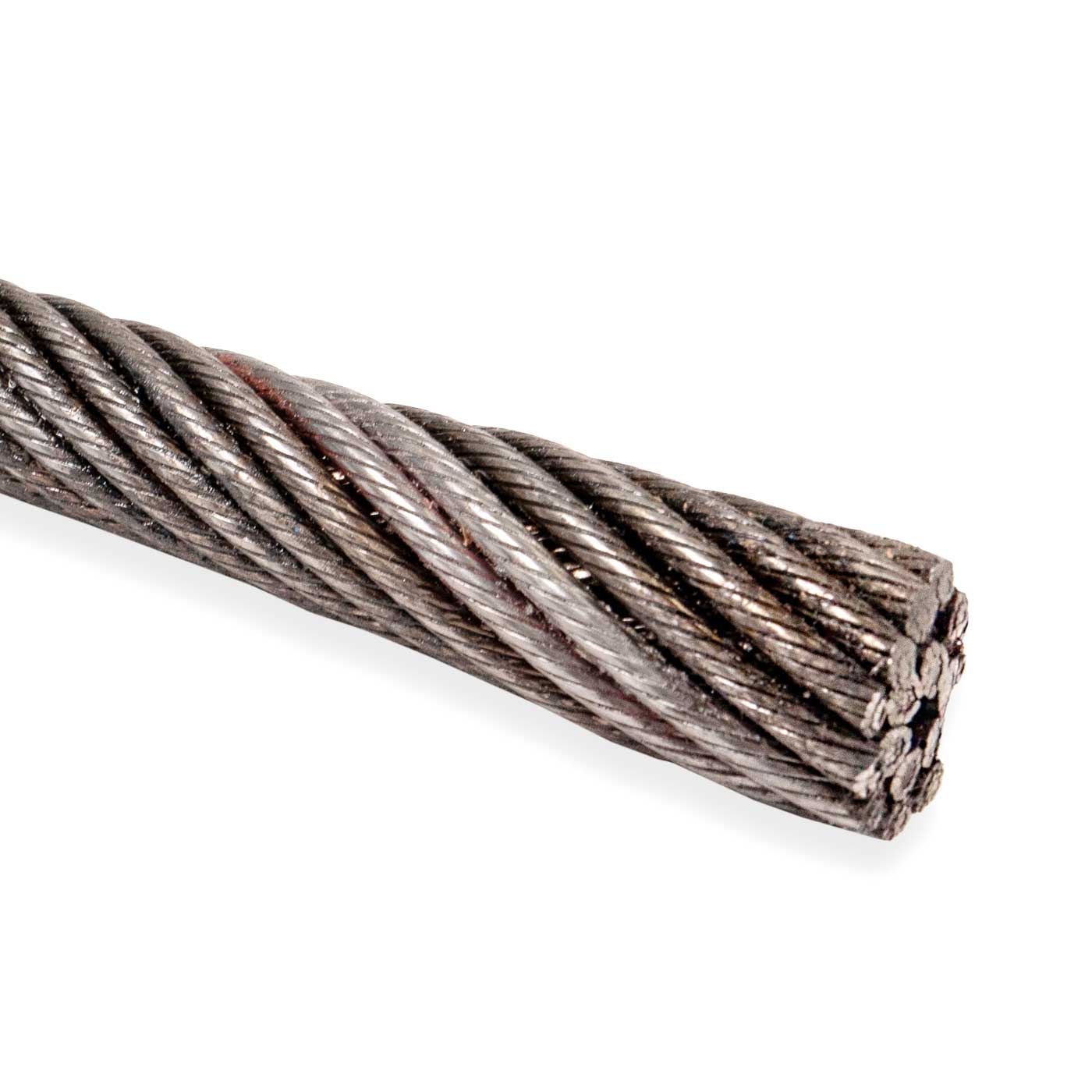

9/16" 19x19 Rotation-Resistant Wire Rope Cable

This 9/16" 19x19 rotation-resistant wire rope features a compacted construction that delivers increased strength, improved wear resistance, and enhanced service life compared to non-compacted ropes of the same diameter. Designed for demanding lifting and hoisting applications, the smooth compacted strands improve spooling performance while reducing crushing, abrasion, and surface wear.

High-Performance Rotation-Resistant Wire Rope for Hoisting & Lifting Applications

The 19x19 construction provides excellent flexibility and handling characteristics while minimizing rope rotation under load. Its rotation-resistant design uses inner strands laid in the opposite direction of the outer strands, helping counteract rotational forces and improve load stability during lifting operations.

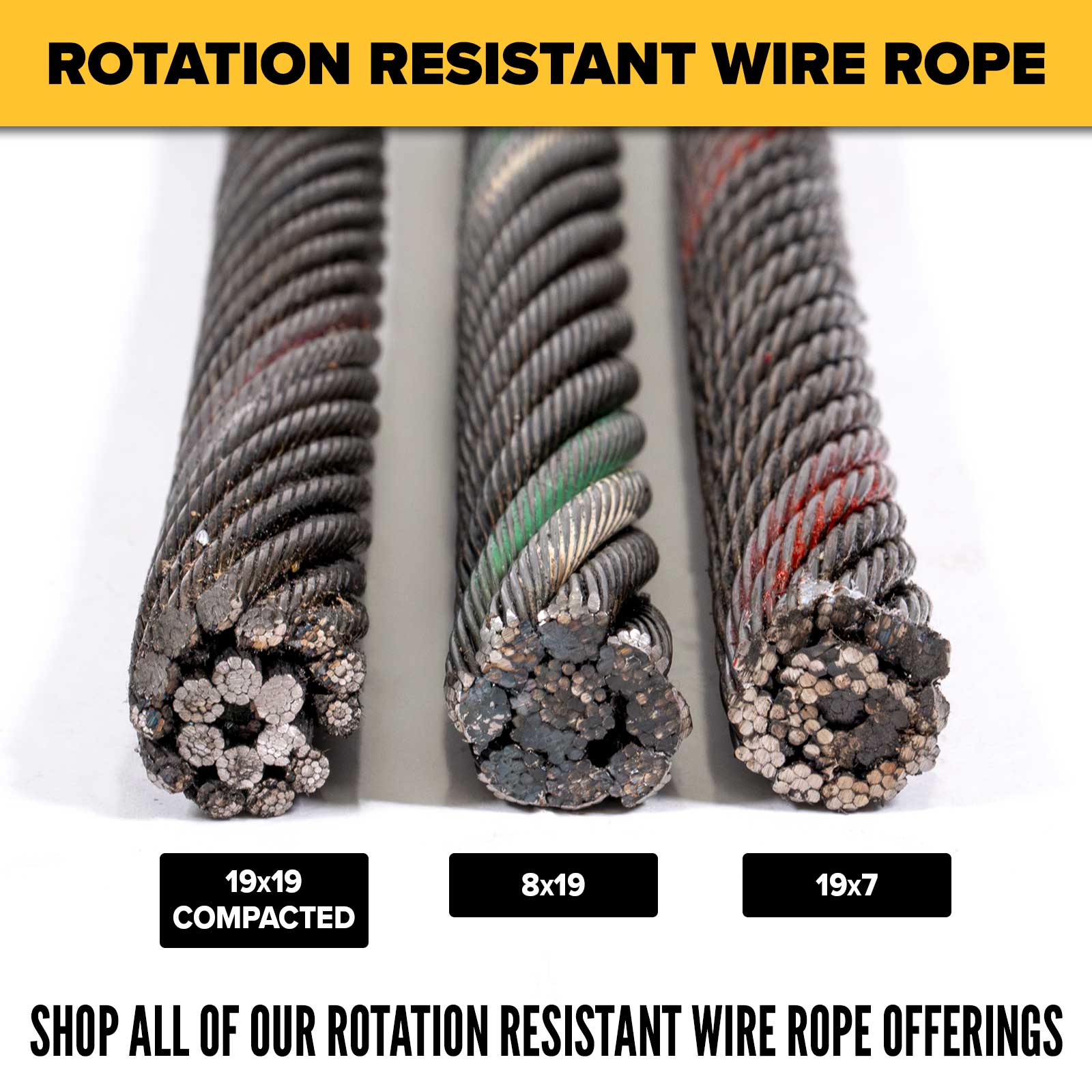

With more than 10 outer strands, this rope is classified as a Category 2 Rotation-Resistant Rope, offering significant resistance to rotation and superior spin control compared to Category 3 constructions such as 8x19 wire rope.

19x19 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in increased breaking strength and dependable performance in demanding lifting applications.

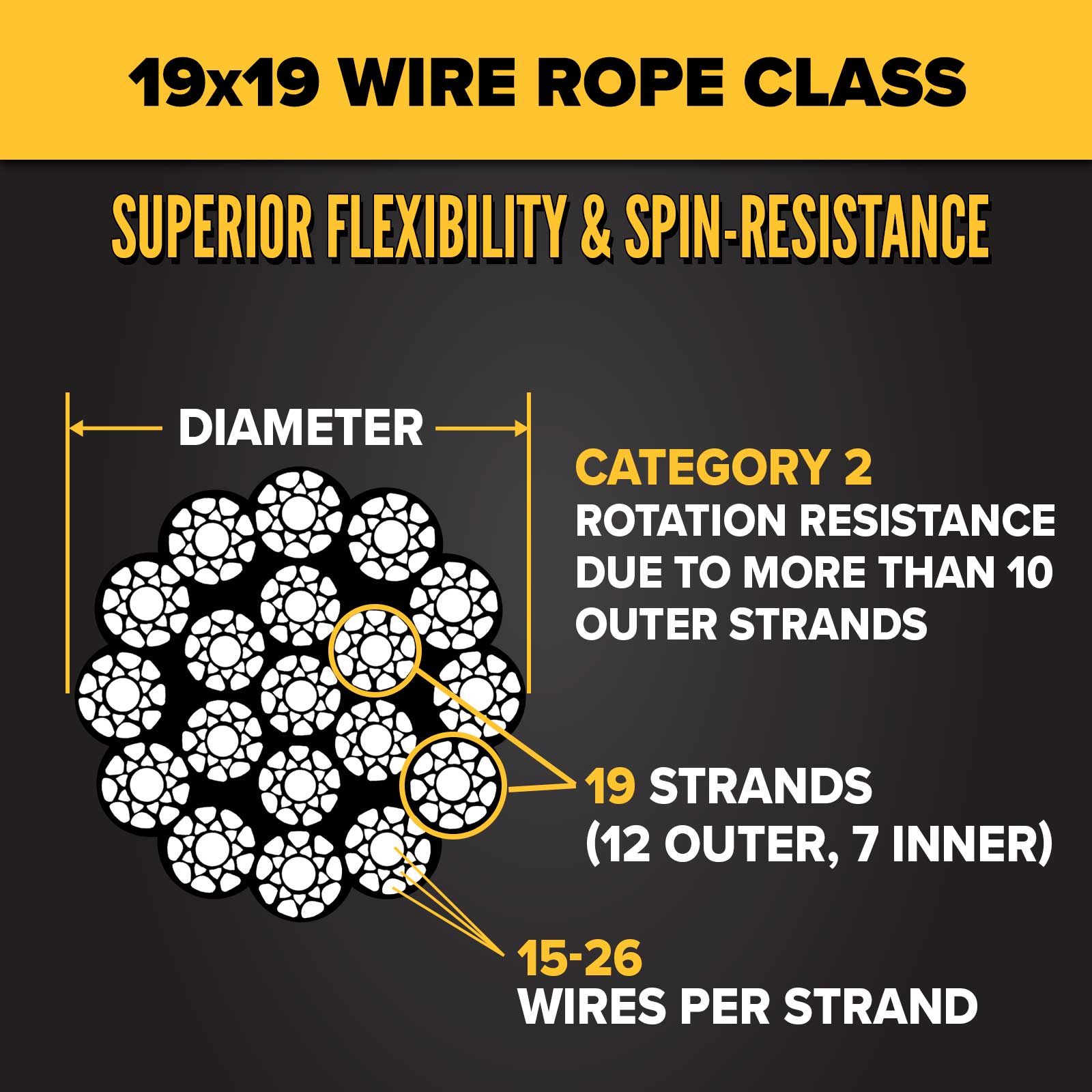

The class of this wire rope is 19x19. These numbers nominally refer to the rope construction, consisting of 19 outer strands with approximately 15-26 wires making up each strand. This high strand count contributes to the rope's flexibility, handling characteristics, and rotation-resistant performance.

Compacted Construction

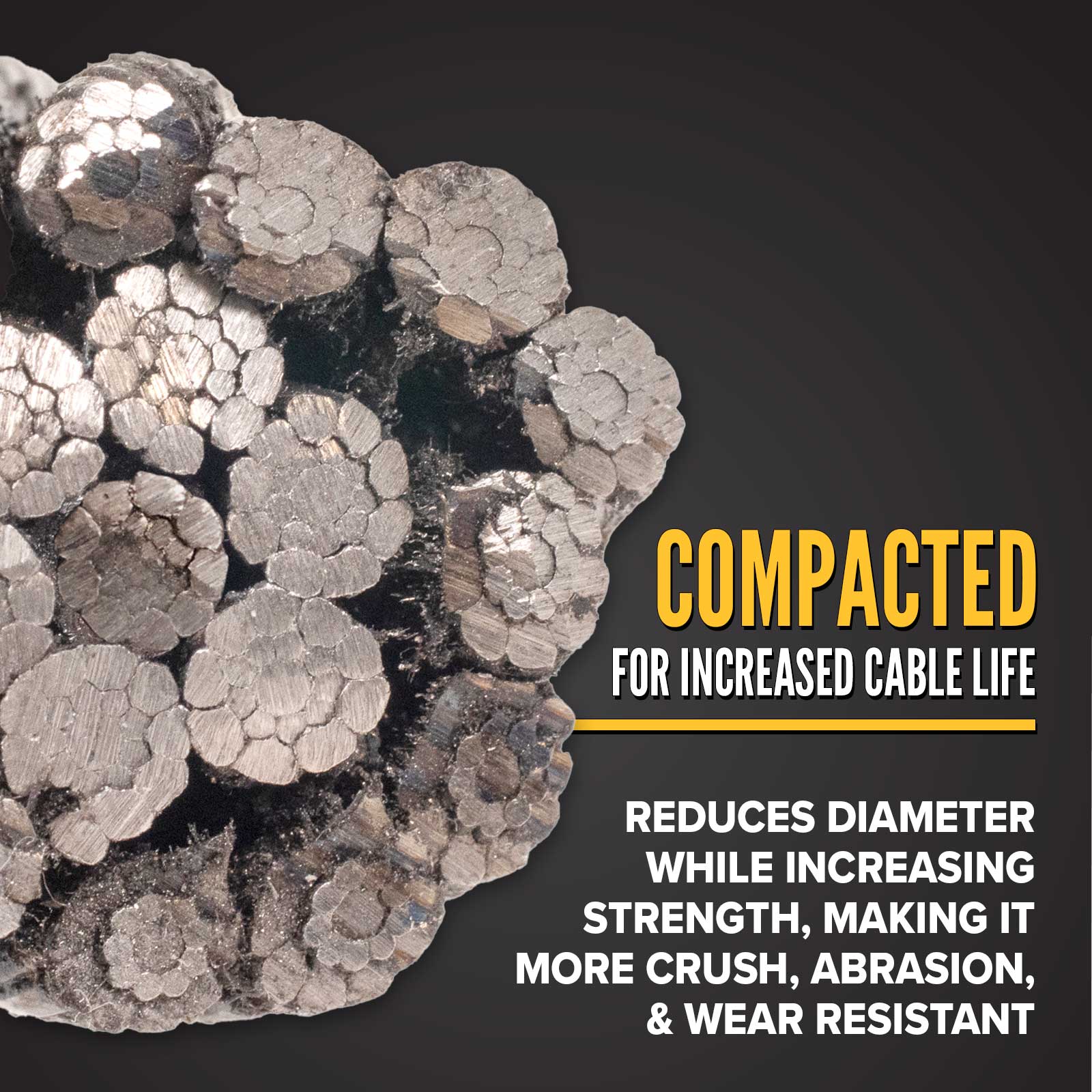

This wire rope utilizes compacted strands that are drawn through a series of rollers and dies during manufacturing. The compacting process reduces strand diameter and creates a smoother outer surface, resulting in increased strength, improved spooling characteristics, enhanced abrasion resistance, and greater resistance to crushing and wear.

The smoother profile also helps extend service life in demanding lifting and hoisting environments.

Bright Finish & IWRC Construction

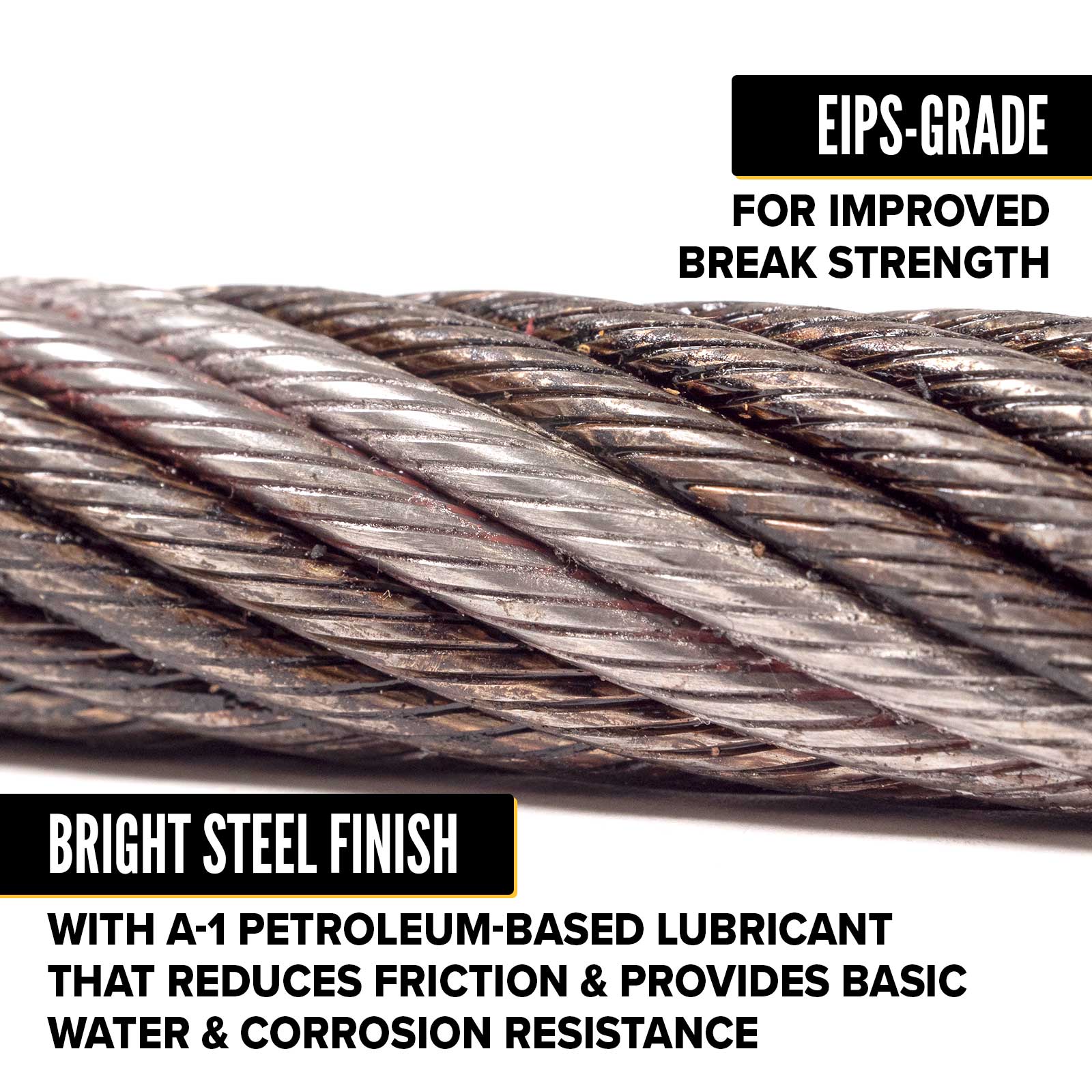

This wire rope features a bright steel finish protected with an A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic resistance against moisture and corrosion.

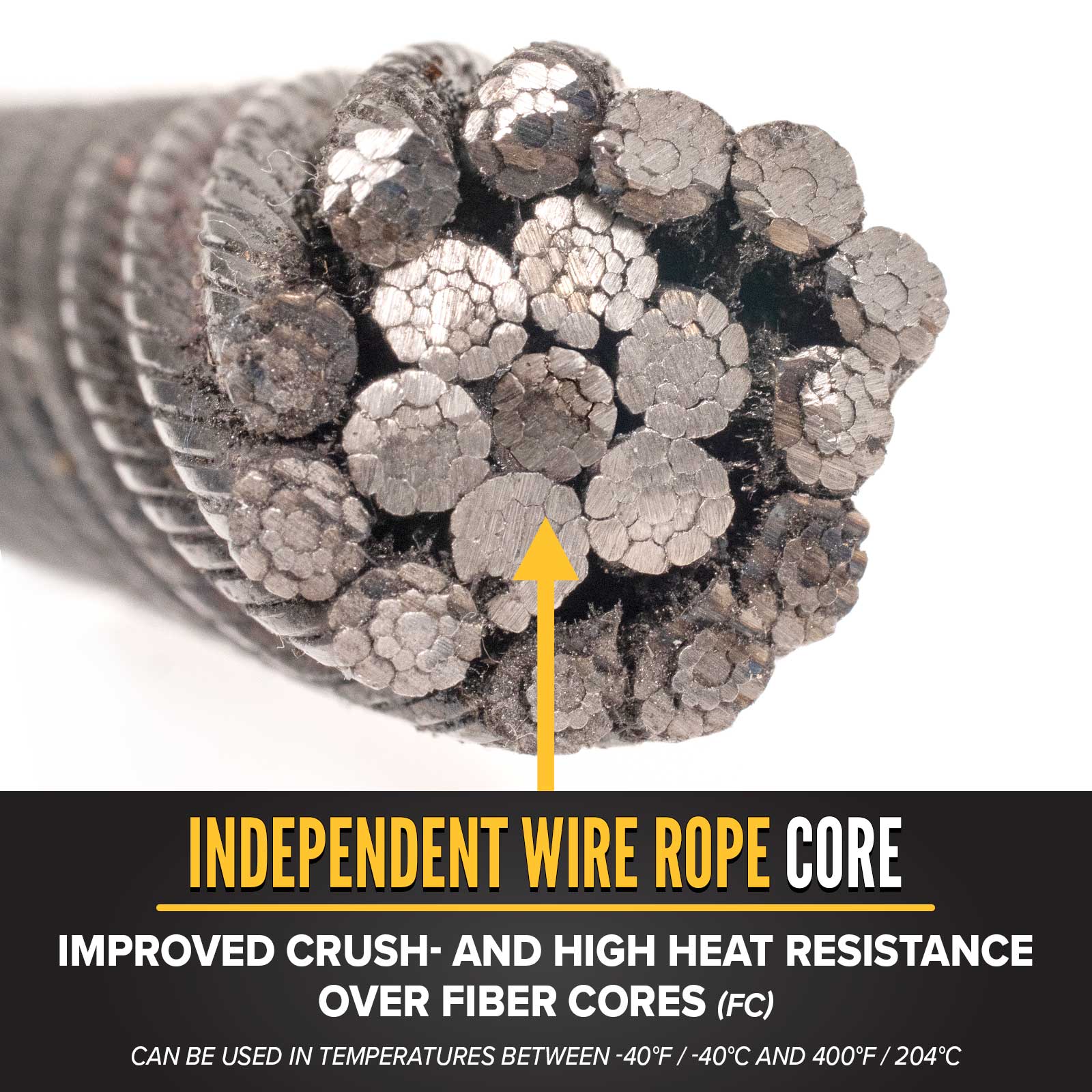

The Independent Wire Rope Core (IWRC) provides greater structural support than fiber core constructions. IWRC wire rope offers enhanced crushing resistance, improved load stability, and dependable operation in temperatures ranging from -40°F to 400°F.

Key Features

• EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
• 19x19 construction provides flexibility and excellent handling characteristics
• Category 2 rotation-resistant design offers significant resistance to load rotation
• Compacted strands improve strength, spooling, and wear resistance
• Smoother rope surface reduces abrasion and extends service life
• Bright finish with A-1 lubricant reduces friction and internal wear
• Lubricant applied to internal and external wires for added protection
• IWRC core improves crushing resistance and load support
• Ideal for hoisting, crane operations, and lifting applications requiring load stability
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
• Should not be used with a swivel
• Imported from a vetted supplier
• Certificate of Conformity available upon request

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
