ATR7/8X48 Simpson Strong Tie 7/8" x 48" All-Thread Rod - Zinc Plated
ATR7/8X48 Simpson Strong Tie 7/8" x 48" All-Thread Rod - Zinc Plated!
Continue Browsing
Threaded Rod

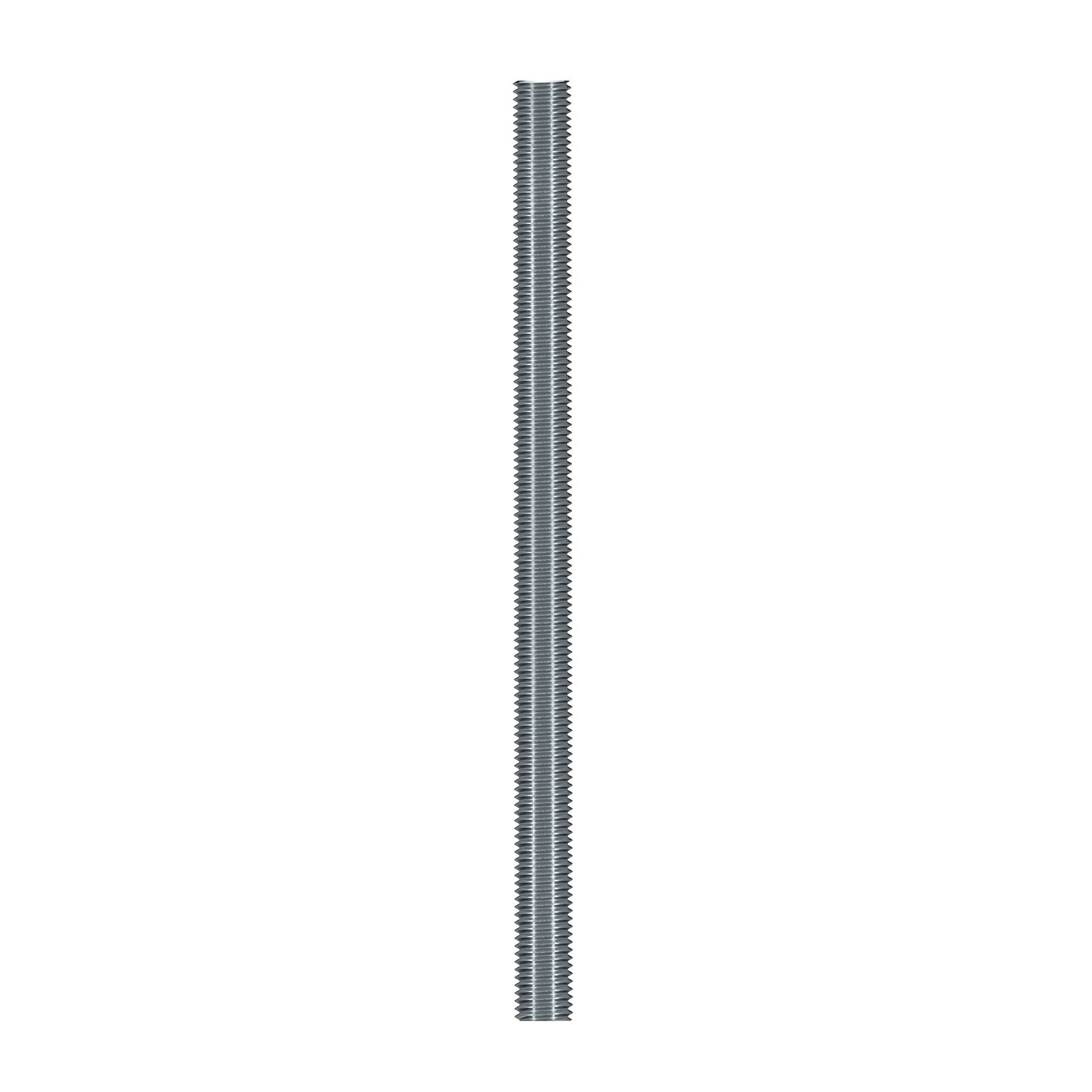

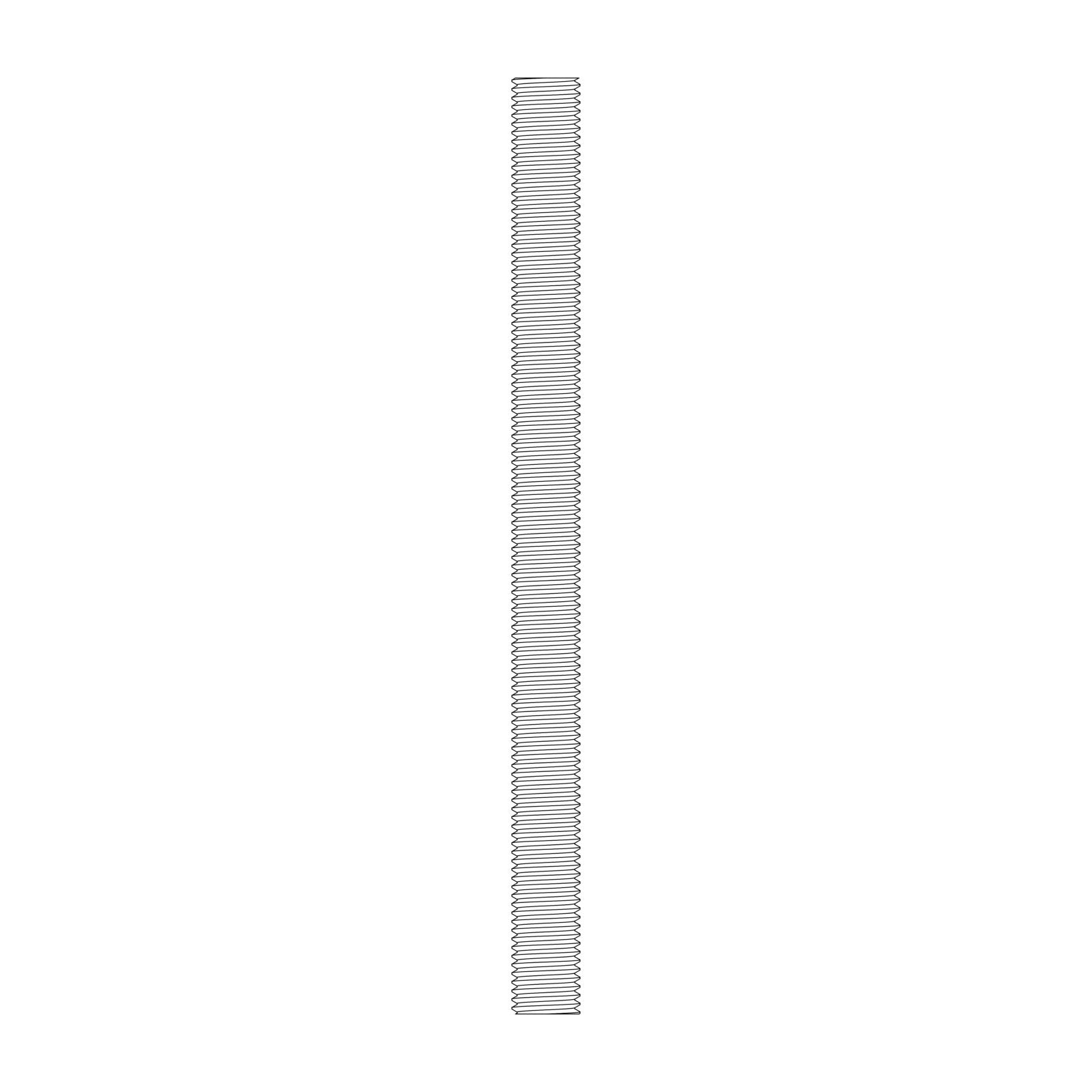

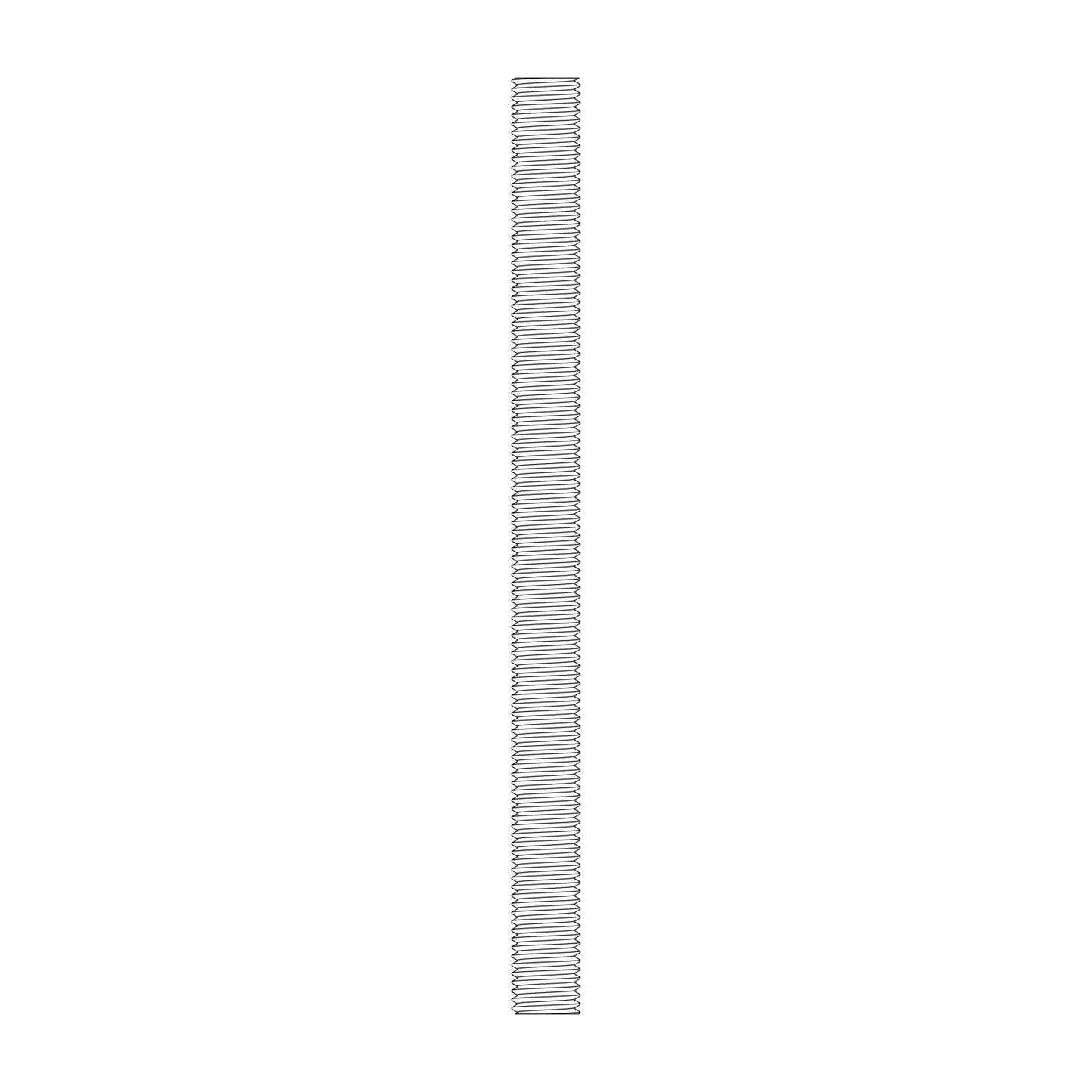

ATR7/8X48 Simpson Strong Tie 7/8" x 48" All-Thread Rod - Zinc Plated
Specifications
Tension Capacity: 13,080 lbs.
When pairing a nut with threaded rod, the material and finish must match. If these do not match, the nut will not fit the threaded rod.
The Simpson Strong-Tie ATR All-Thread Rod is engineered for high-strength anchoring and structural applications. Crafted from steel conforming to ASTM F1554 Grade 36, A36, or A307 standards, it offers a minimum yield strength of 36 ksi and tensile strength of 58 ksi, ensuring reliable performance in demanding conditions.

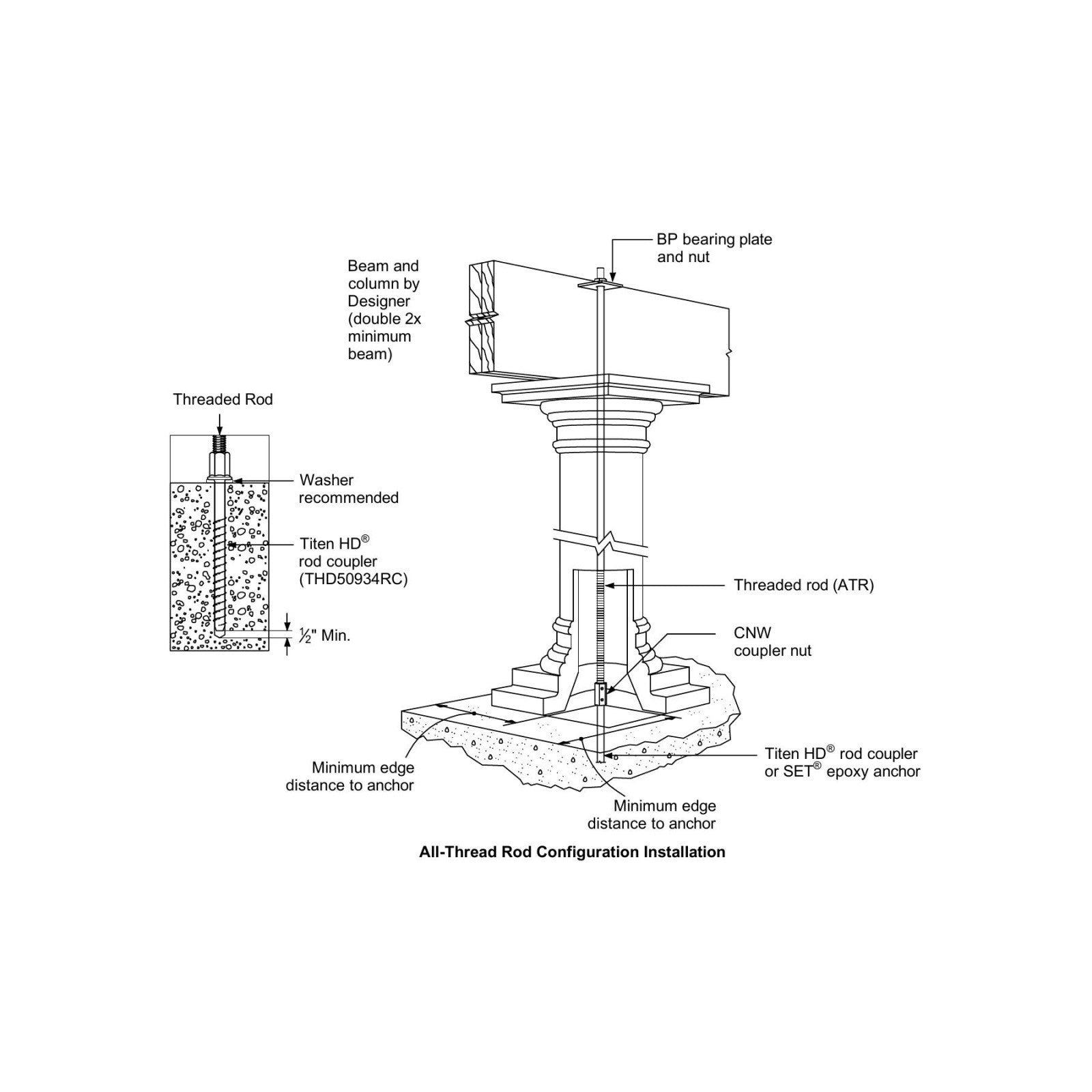

Fully threaded along its entire length, this rod facilitates versatile installation and secure connections. The zinc-plated finish provides corrosion resistance, making it suitable for various environments. Commonly utilized in Simpson Strong-Tie’s Anchor Tiedown System (ATS) for shearwall overturning restraint and the Wind Uplift Restraint System (URS), it also serves well in general anchoring and structural applications.
Key Features:
- Material Strength: Meets ASTM F1554 Grade 36, A36, or A307 standards with 36 ksi yield strength.
- Threading: Fully threaded design for flexible installation.
- Corrosion Resistance: Zinc-plated finish enhances durability.
- Versatility: Suitable for ATS, URS, and general structural applications.
- Compatibility: Available in various diameters and lengths to meet specific project requirements.
