Specifications

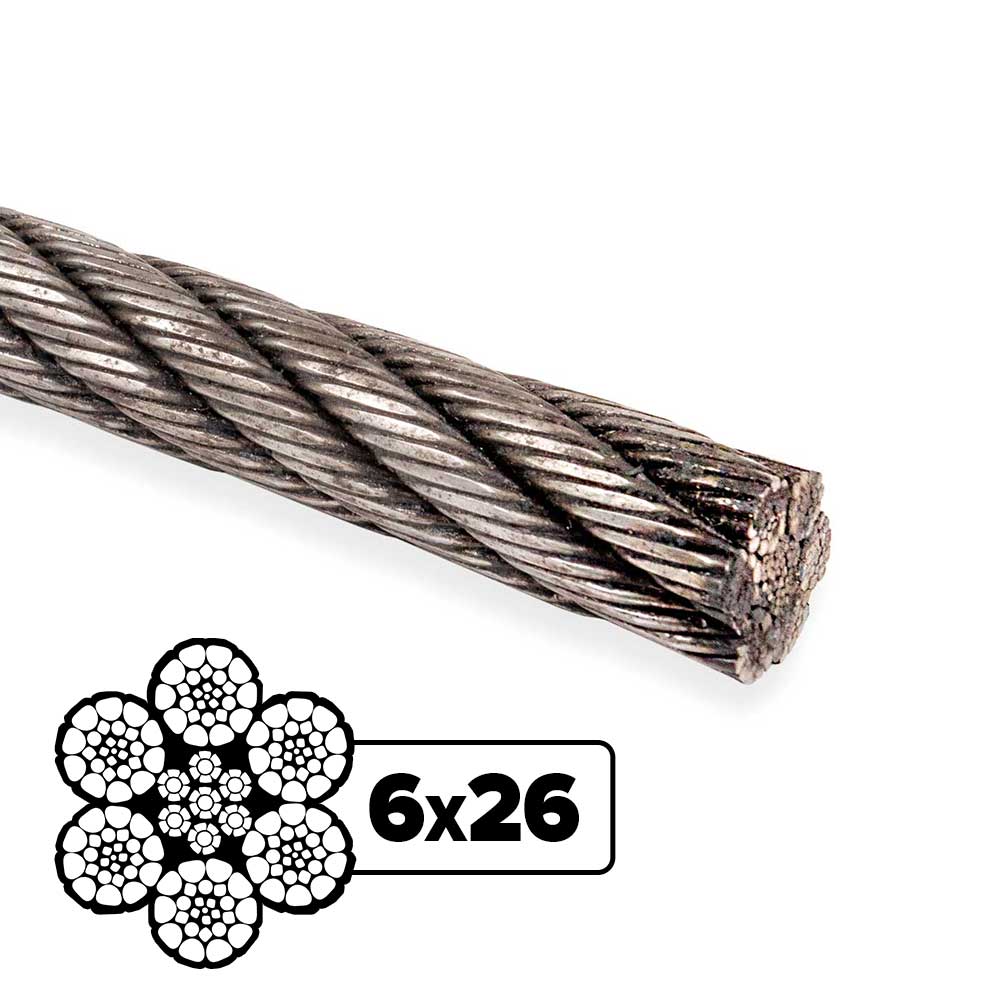

5/8" 6x26 Wire Rope Cable

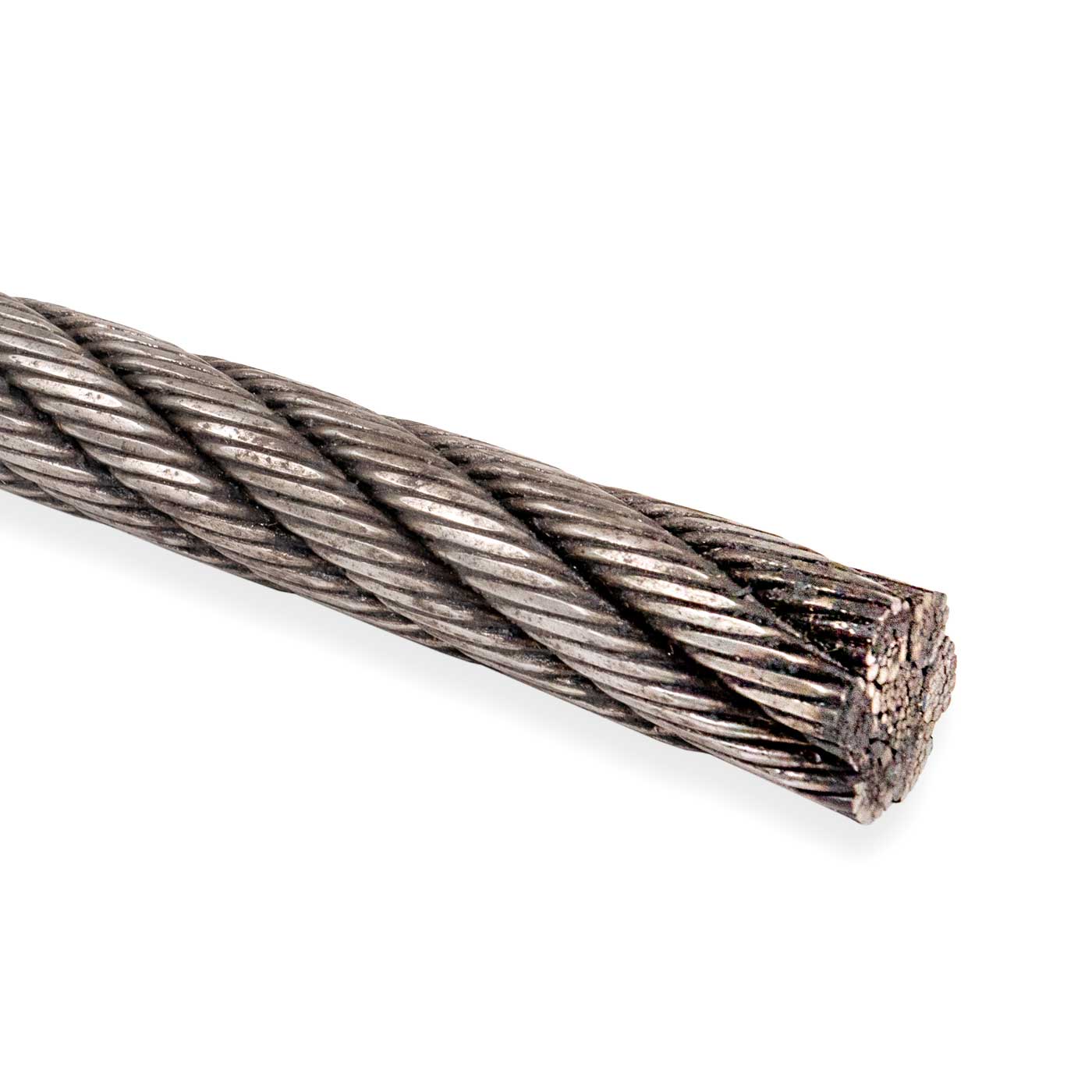

This 5/8" Impact® swaged 6x26 wire rope is compacted during manufacturing to deliver greater strength, flexibility, and service life than standard non-compacted wire rope of the same diameter. The swaging process reduces the rope diameter while increasing wire density, resulting in improved resistance to crushing, abrasion, wear, kinking, and bird-caging. Its enhanced handling characteristics and superior spooling performance make it a preferred choice for demanding lifting and material handling applications.
Compacted Wire Rope for Winches, Hoists & Material Handling Systems
The compacted 6x26 construction combines flexibility and durability, making it ideal for applications that require repeated bending while maintaining excellent wear resistance. Compared to conventional wire rope constructions, compacted wire rope offers greater strength and longer service life, helping reduce downtime and replacement costs.
Common applications include winch lines, hoist ropes, choker ropes, boom lines, trolley lines, and other heavy-duty lifting and rigging systems where reliable performance is critical.
6x26 Wire Rope Configuration
This wire rope is manufactured using EIPS-grade (Extra Improved Plow Steel) steel. EIPS wire rope delivers approximately 10% greater tensile strength than standard IPS-grade wire rope, providing increased breaking strength and dependable performance under heavy loads.

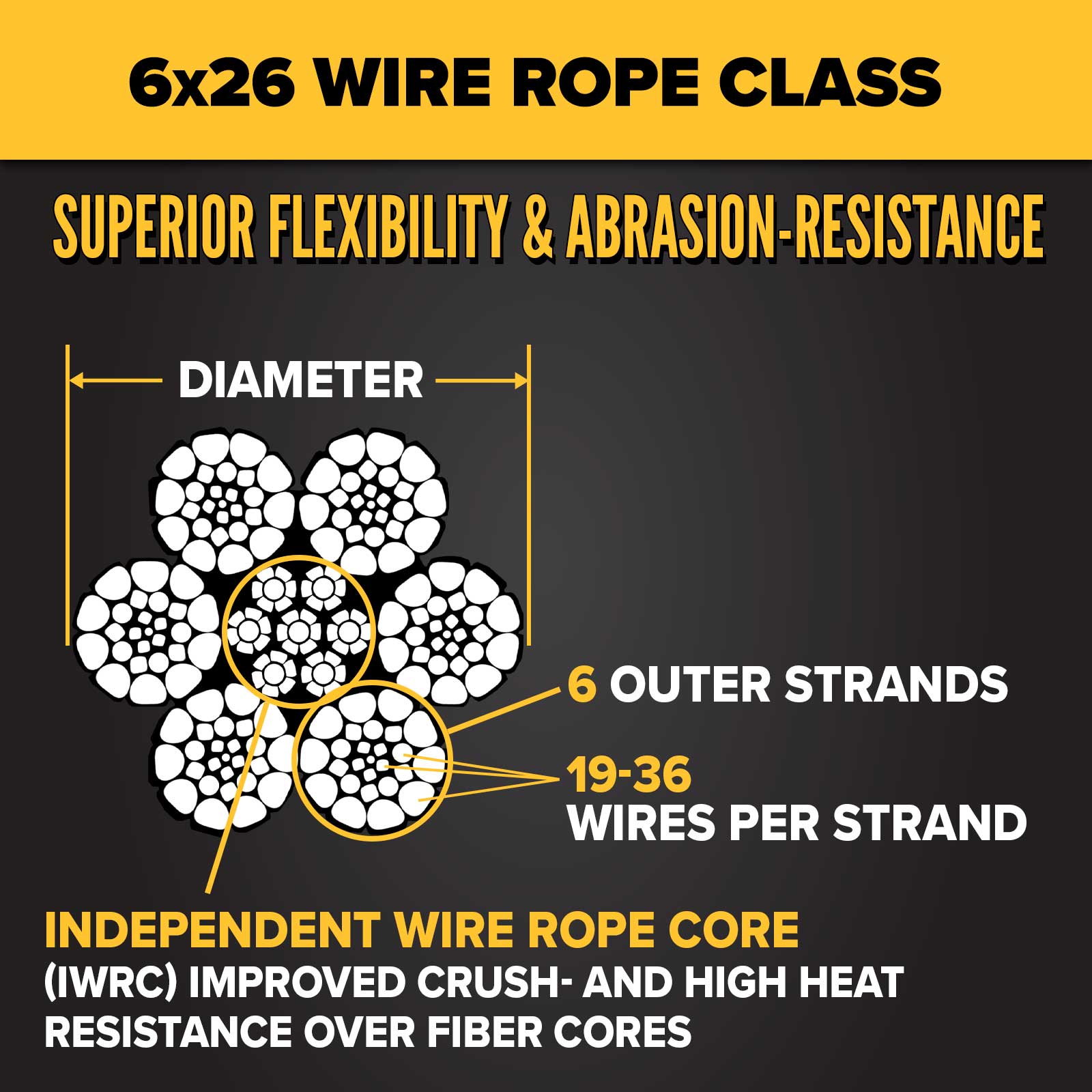

The class of this wire rope is 6x26. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 19-36 wires making up each strand. This design provides an excellent combination of flexibility, strength, and fatigue resistance.
Bright Finish & IWRC Construction

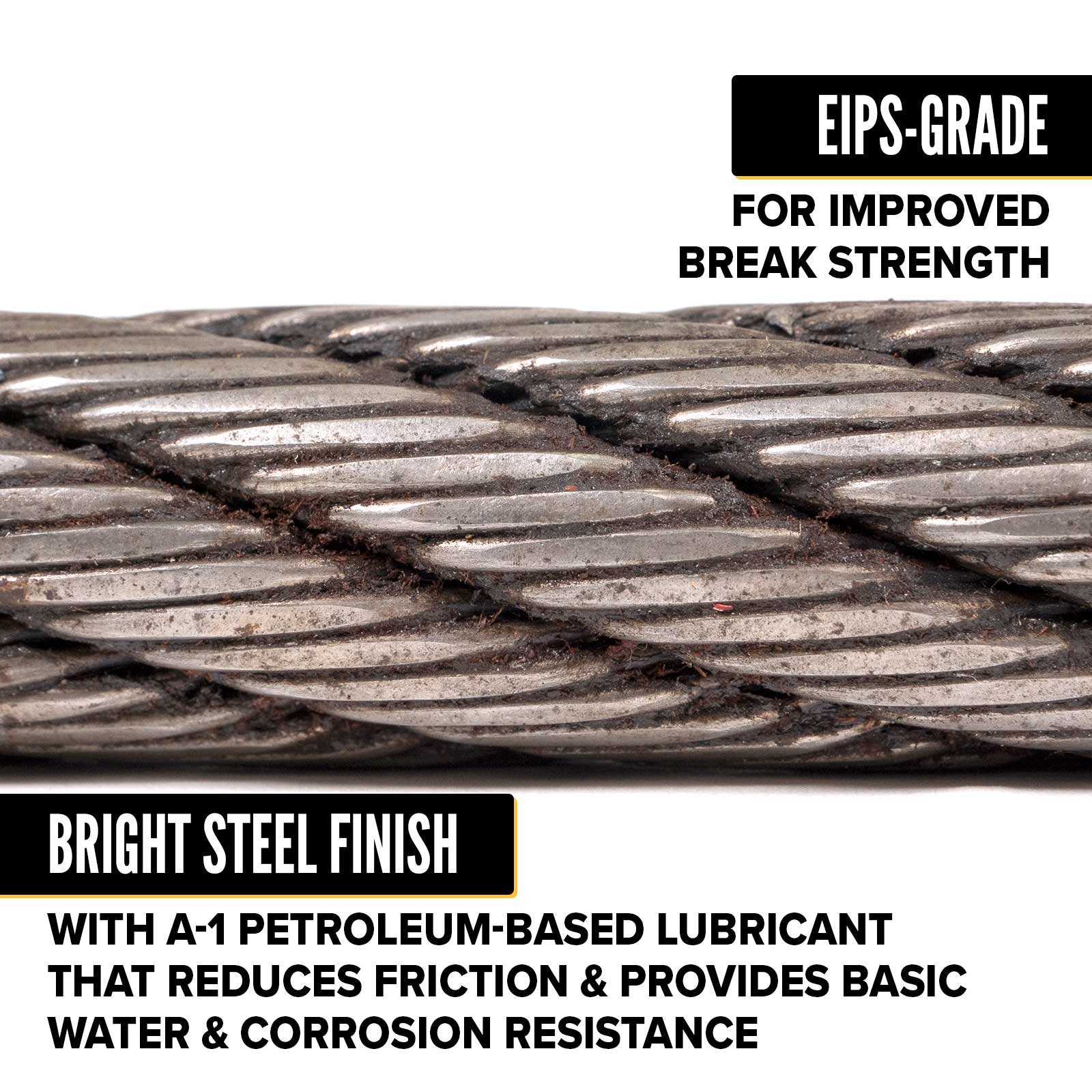

This rope features a bright steel finish protected with A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic protection against moisture and corrosion.

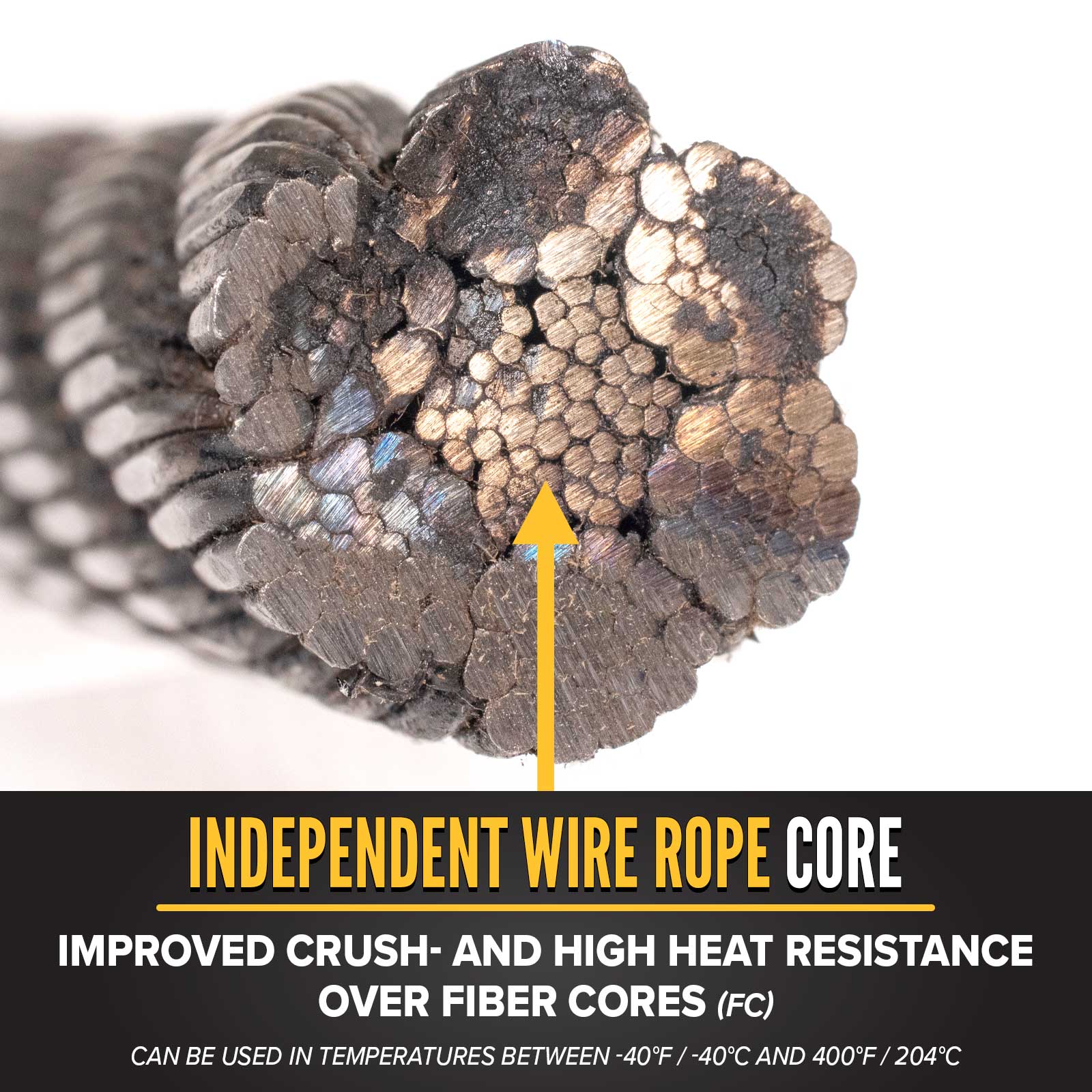

The Independent Wire Rope Core (IWRC) provides greater support than fiber core constructions. IWRC wire rope offers superior crush resistance, improved load stability, and reliable operation in temperatures ranging from -40°F to 400°F.
Benefits of Compacted Wire Rope

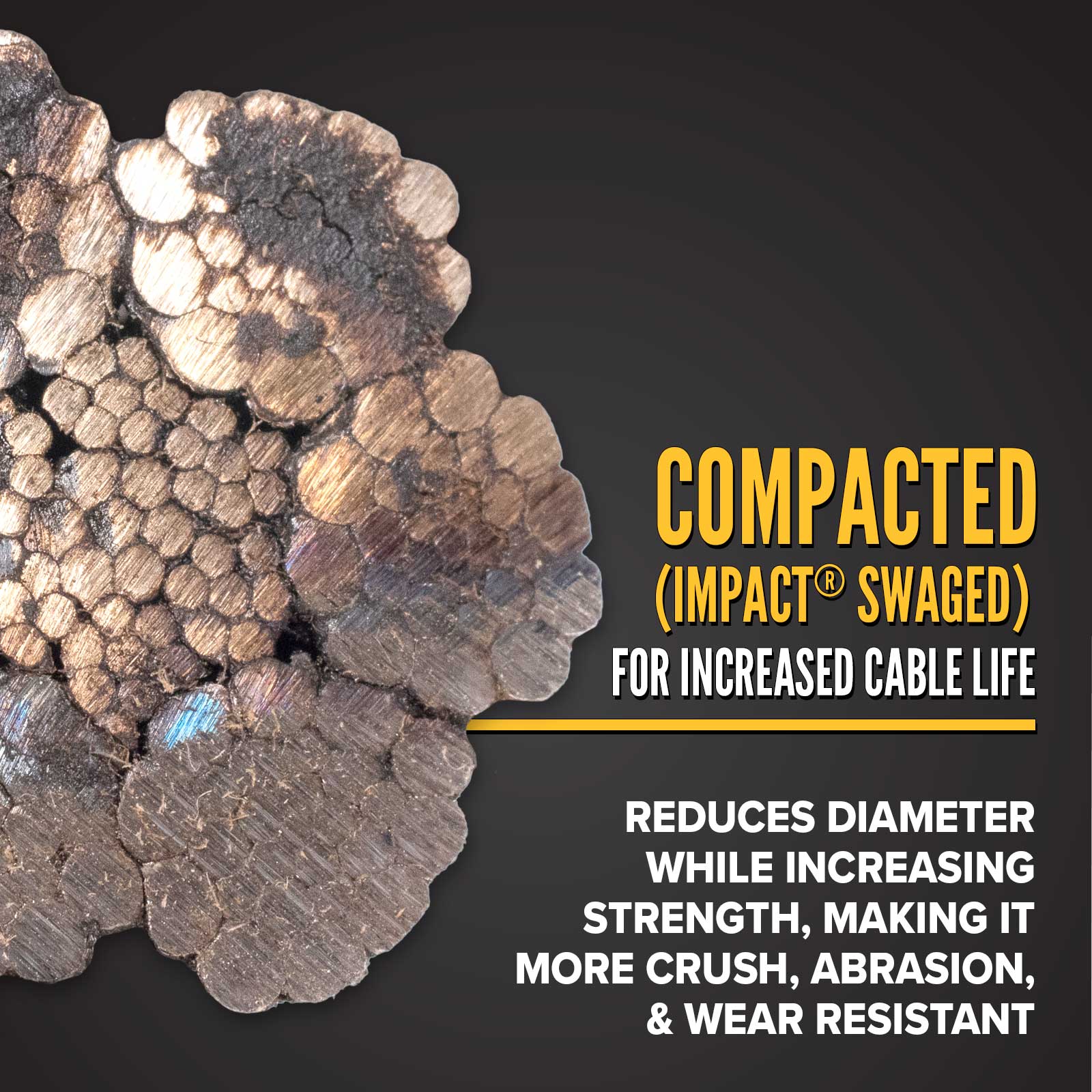

During manufacturing, the rope is swaged to reduce its diameter and increase the density of the steel wires. This process delivers several performance advantages compared to standard wire rope:
- Higher breaking strength than non-compacted wire rope of the same diameter
- Improved flexibility and handling characteristics
- Greater resistance to crushing, abrasion, and wear
- Reduced tendency to kink, bird-cage, or pig-tail
- Smoother spooling on drums and winches
- Extended service life in demanding applications
Key Features
- Impact® swaged compacted wire rope for increased strength and durability
- EIPS-grade steel provides approximately 10% greater tensile strength than IPS grades
- 6x26 construction balances flexibility, fatigue resistance, and wear resistance
- Bright steel finish with A-1 lubricant reduces friction and internal wear
- IWRC core improves crushing resistance and load support
- Ideal for winch lines, choker ropes, hoist ropes, trolley lines, and boom lines
- Temperature range from -40°F to 400°F
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Sold by the foot and shipped as one continuous length when available
Wire Rope by the Foot Ordering FAQ
Will my wire rope arrive as one continuous length?
Yes. The quantity you order will be supplied as one continuous, uncut length of wire rope. For example, if you order a quantity of 1,000, you will receive a single 1,000-foot length.
Can I order multiple separate lengths?
Yes. To receive multiple lengths, add each length to your cart as a separate line item. For example, if you need two 1,500-foot lengths, enter a quantity of 1,500 and add it to your cart twice. Each line item will be cut and supplied as a separate length.
Can I order lengths shorter than the minimum order quantity if the combined total exceeds the minimum?
Yes. If your combined order will exceed the minimum quantity requirement but you need shorter individual lengths, please call our team to place your order. One of our product experts will be happy to assist.
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
