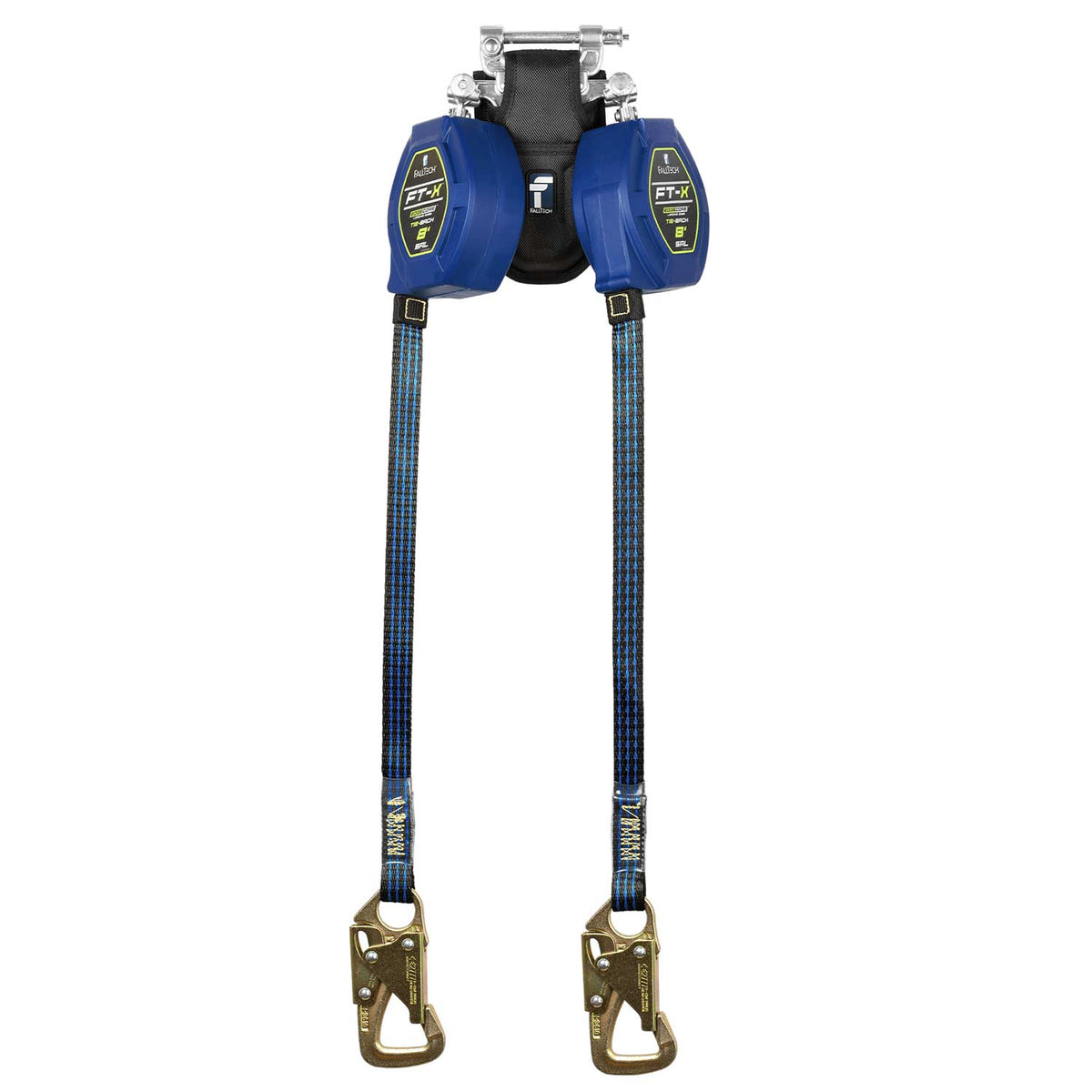

FallTech EdgeCore FT-X LE Tie-Back Self-Retracting Lifeline | Twin-Leg | Snap Hooks | 84108TP8S
FallTech EdgeCore FT-X LE Tie-Back Self-Retracting Lifeline | Twin-Leg | Snap Hooks | 84108TP8S!
FallTech EdgeCore FT-X LE Tie-Back Self-Retracting Lifeline | Twin-Leg | Snap Hooks | 84108TP8S
Specifications
Anchorage Connector Material: Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength
Dorsal Connector Material: Aluminum alloy; 3,600 lb min.
Energy Absorber Material: Polyester tear-away
OSHA User Capacity: 130 to 420 lbs. max.
Static Strength: 3,600 lbs. min.
Avg Arrest Force: 1,350 lbs. max.
Max Arrest Distance: 42"
Max Arrest Force: 1,800 lbs.
The FallTech EdgeCore FT-X LE Tie-Back twin-leg SRL adds tie-back capability to FallTech's twin-leg lineup, so you get 100% tie-off and a way to anchor when there's no dedicated connection point. Each leg is built from EdgeCore lifeline material, Kevlar® cable inside a UV-resistant composite jacket, running about 40% lighter than comparable 3/16" galvanized cable SRLs.
Key Features
- Steel carabiner leg-end connectors built for tie-back use, each with a 5,000 lb. rated gate
- Two independently retracting legs using EdgeCore lifeline material, roughly 40% lighter than 3/16" galvanized cable
- Compact housing and improved internal mechanism reduce nuisance lockups
- Rated for leading edge work, including below-D-ring tie-offs up to five feet over steel and precast concrete
- Fall clearance charts stored inside the energy absorber cover for quick reference
- Legs are field-replaceable using FallTech's SpeedLink spanner tool to cut downtime
- Compatible with FallTech's free AXIS fall clearance calculator for inch-accurate clearance planning
Applications
- Tie-back anchorage where no dedicated tie-off point is available
- 100% tie-off requirements on leading edge or general fall arrest work
- Commercial and industrial sites needing twin-leg fall protection
- Jobs requiring documented fall clearance calculations
