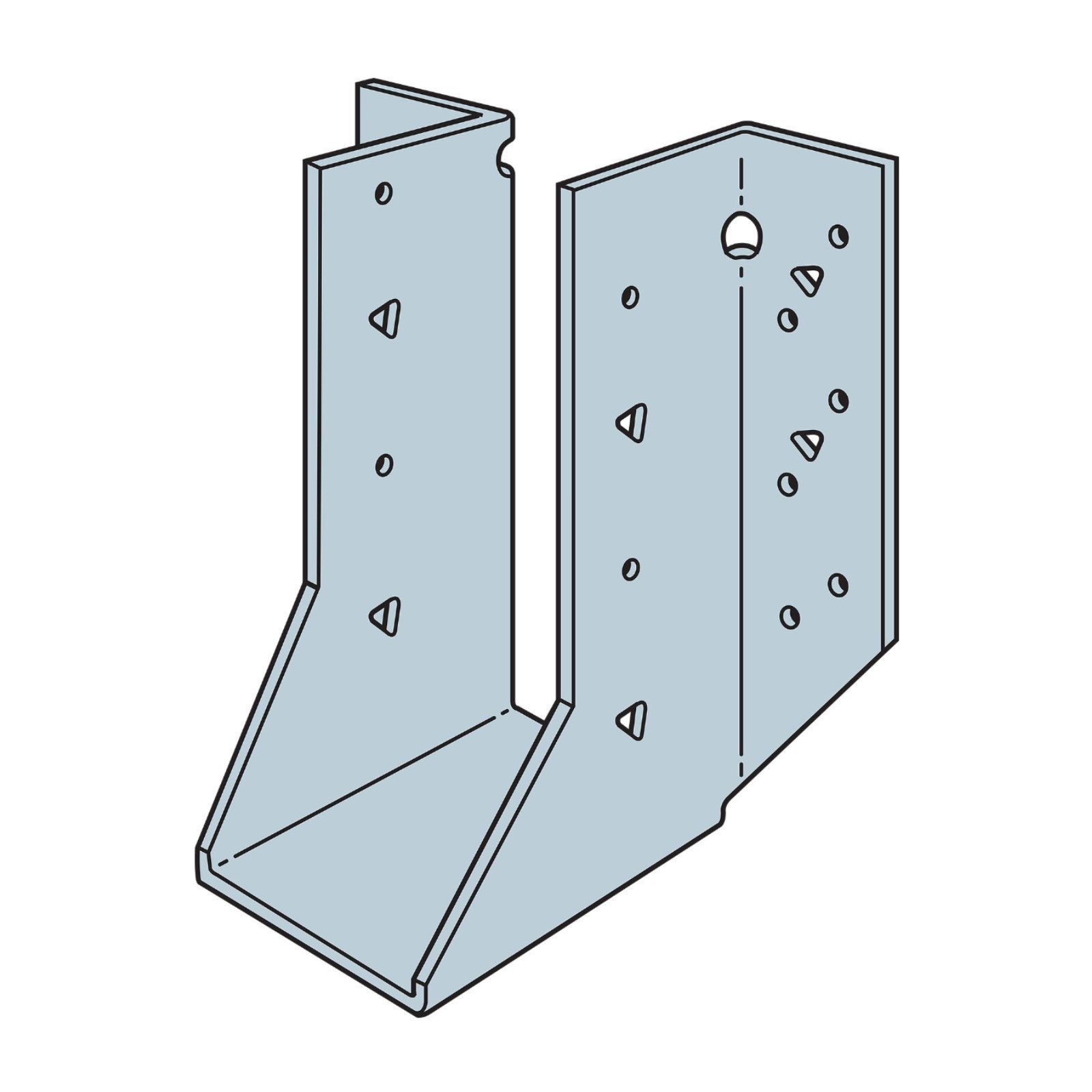

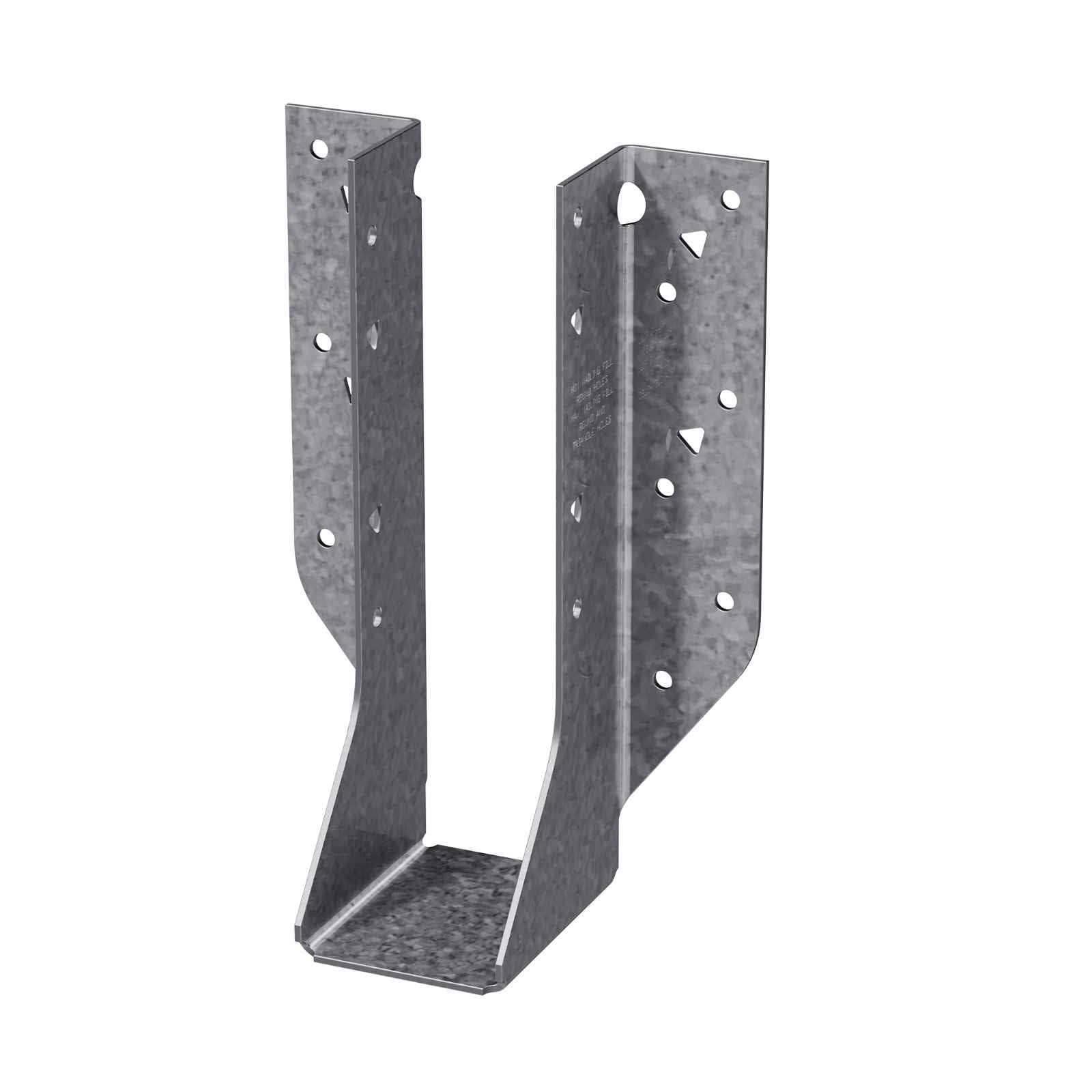

Simpson HU7 Face Mount I-Joist Hanger- G90 Galvanized

SKU: HU7
$9.53

Simpson Strong-Tie HU hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HU7 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • HU/HUC - can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Web Stiffeners are required for all I-joists used with these hangers.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the Hanger tables or the weld capacity.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HU hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safe...

Read More

Simpson Strong-Tie HU hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HU7 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • HU/HUC - can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Web Stiffeners are required for all I-joists used with these hangers.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the Hanger tables or the weld capacity.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Face - (16) 0.162" x 3-1/2" Nails
Joist - (8) 0.148" x 1-1/2" Nails

for treated lumber:
no

height:
6-11/16"

joist size:
1-3/4" X 7-1/4"

thickness:
14 Gauge

Product Spec Sheet:
