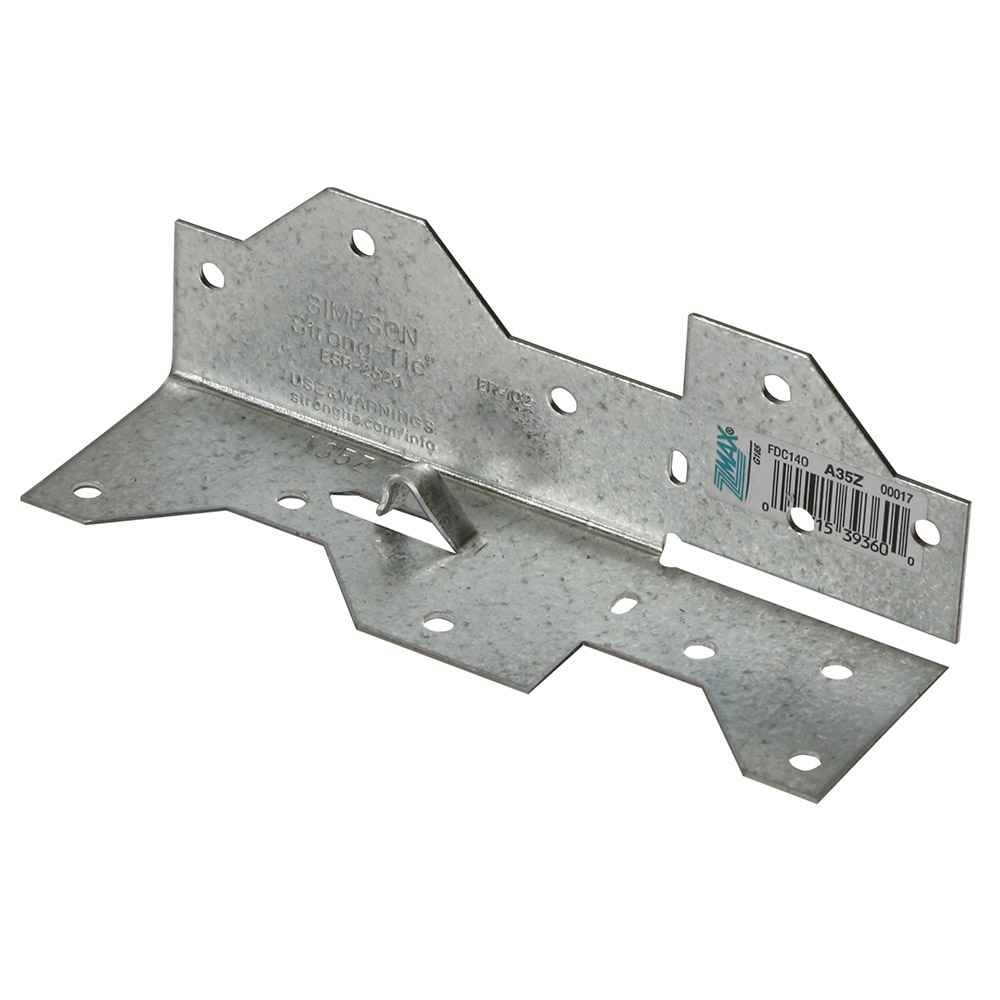

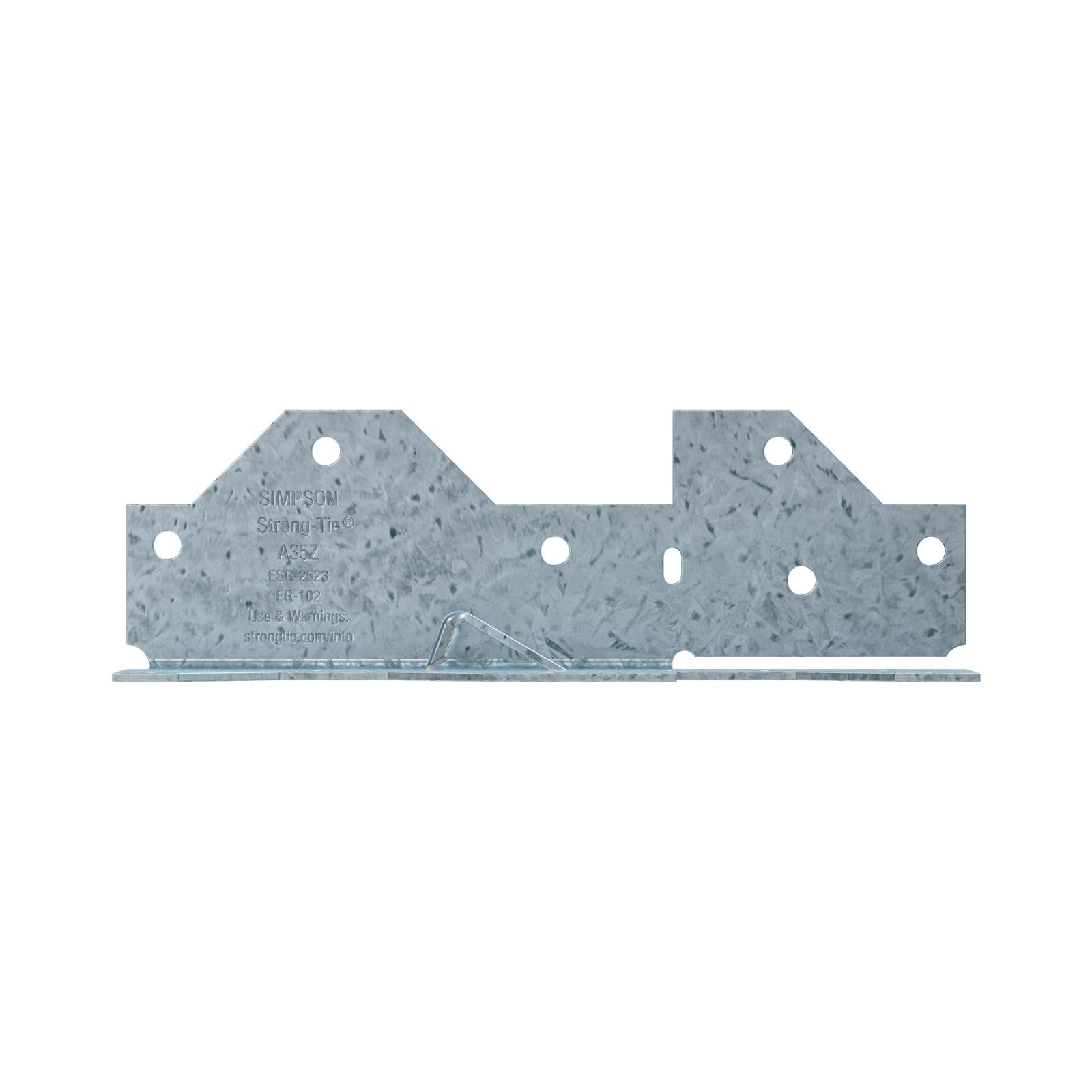

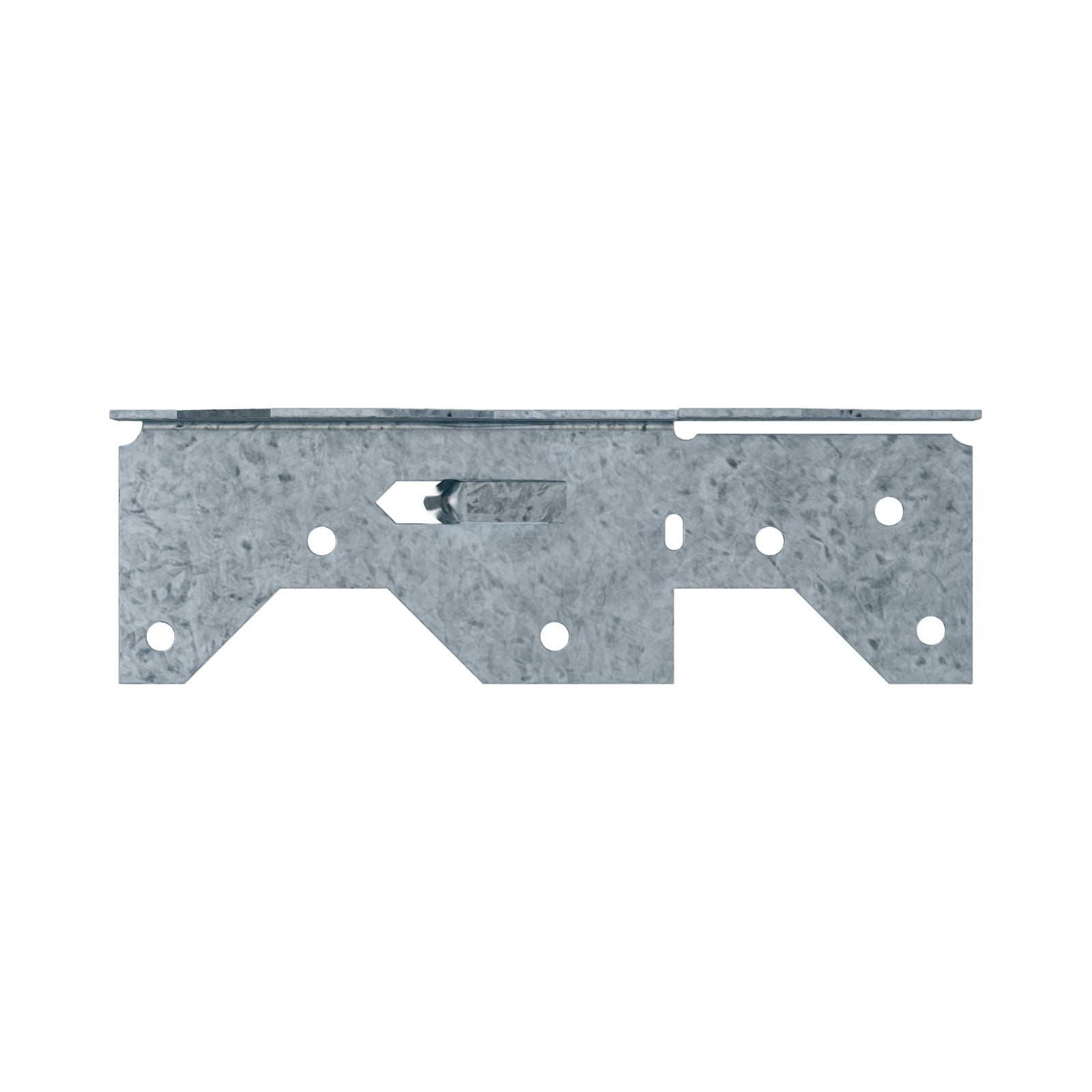

Simpson A35Z 1-7/16" x 4-1/2" Framing Angle Anchor - Zmax Finish

Simpson A35Z 1-7/16" x 4-1/2" Framing Angle Anchor - Zmax Finish!

  • Simpson A35Z 1716 inch x 412 inch Framing Angle Anchor Zmax Finish image 1 of 5
  • Simpson A35Z 1716 inch x 412 inch Framing Angle Anchor Zmax Finish image 2 of 5
  • Simpson A35Z 1716 inch x 412 inch Framing Angle Anchor Zmax Finish image 2 of 5 image 3 of 5
  • Simpson A35Z 1716 inch x 412 inch Framing Angle Anchor Zmax Finish imageimage 4 of 5
  • Simpson A35Z 1716 inch x 412 inch Framing Angle Anchor Zmax Finish image 5 of 5
1 6

Continue Browsing

LTP4/LTP5/A34/A35 Angles & Plates
SKU: A35Z

Simpson A35Z 1-7/16" x 4-1/2" Framing Angle Anchor - Zmax Finish

$0.78

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 16
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: ZMAX
Fasteners required: (12) 0.131 x 1-1/2" Nails
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Description

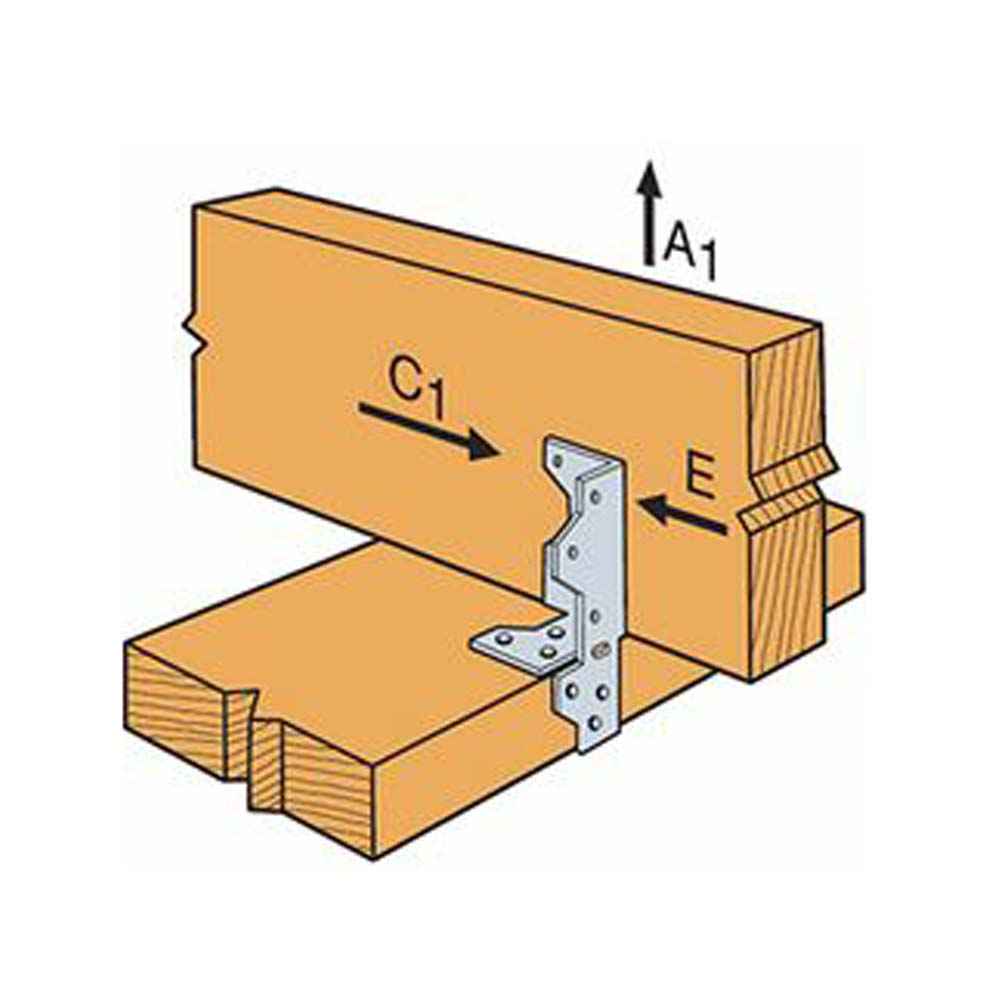

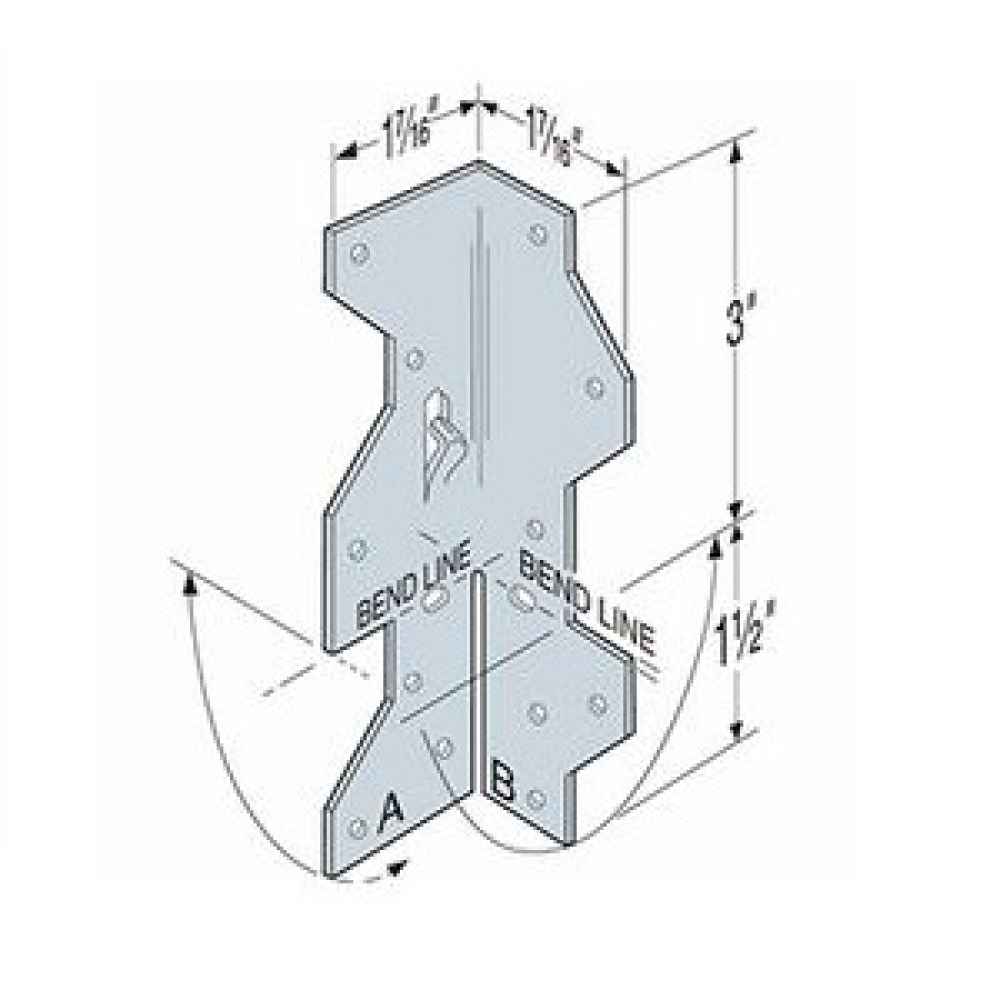

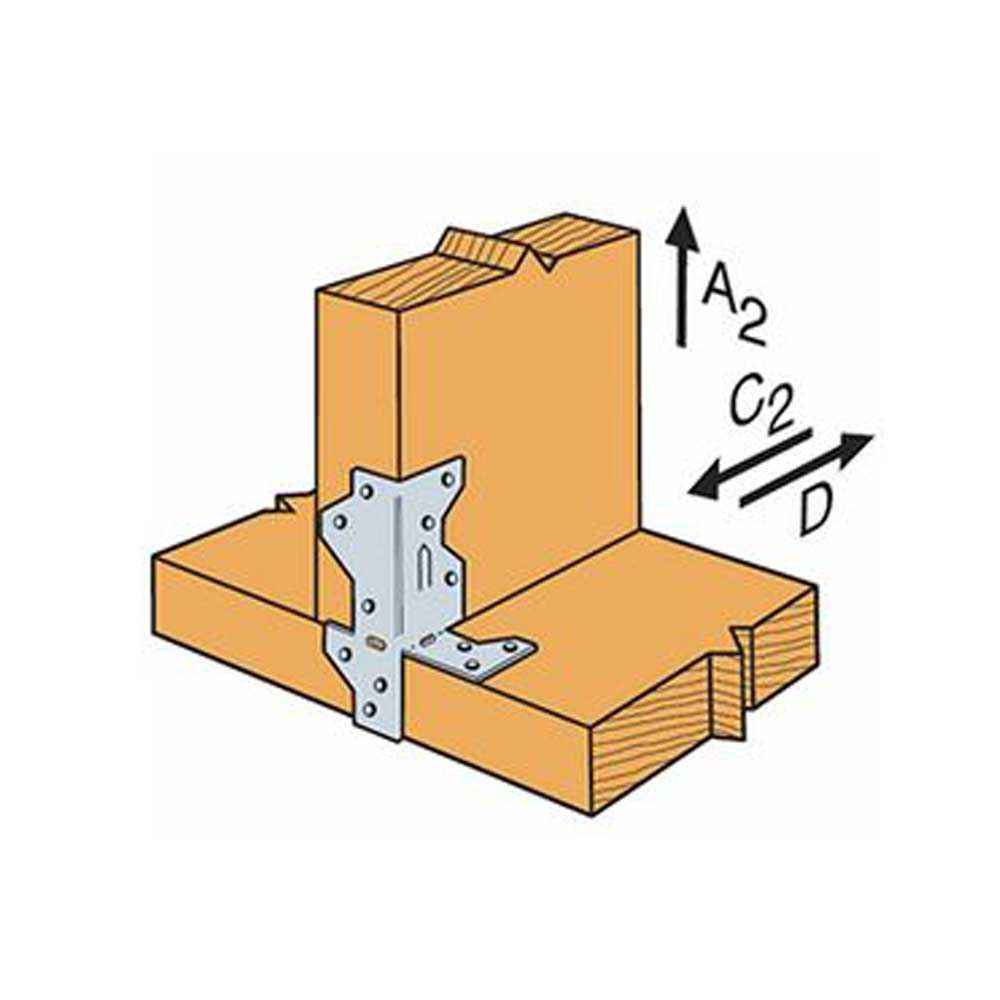

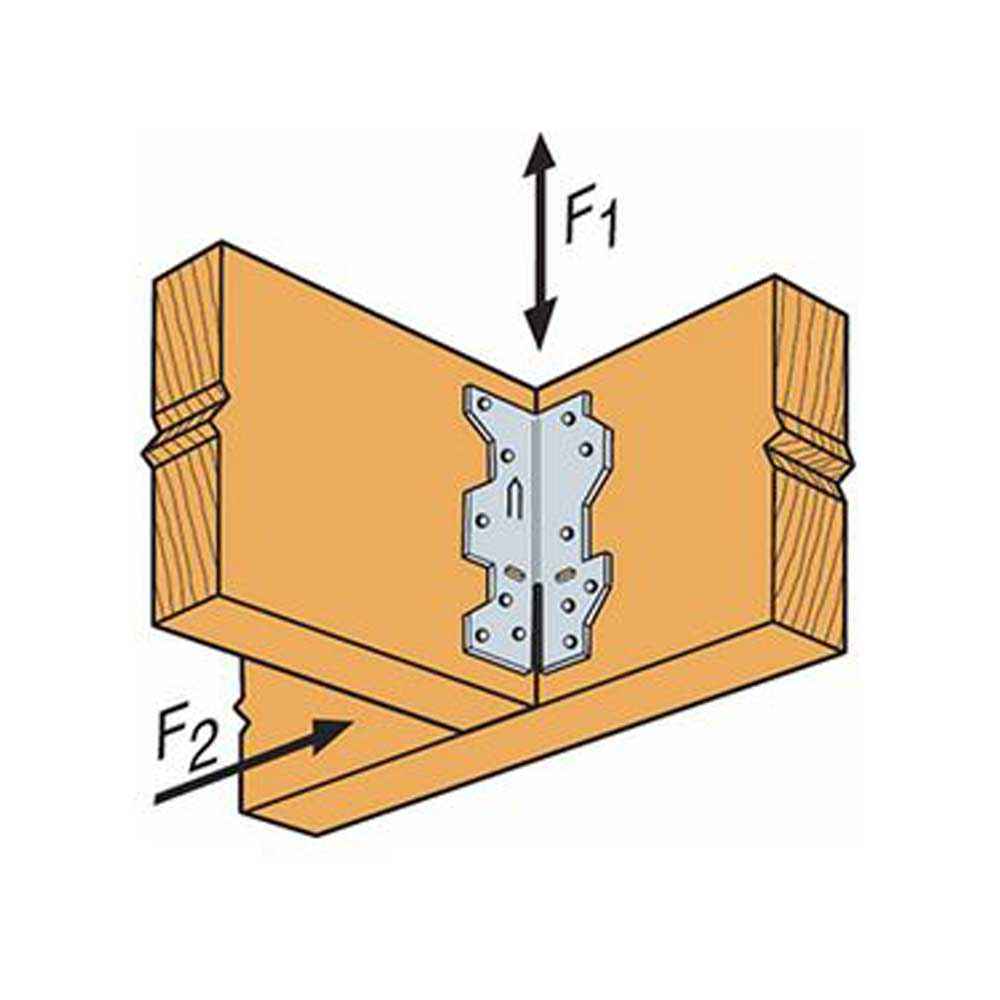

The A35 anchor's exclusive bending slot allows instant, accurate field bends for all two- and three-way ties. Balanced, completely reversible design permits the A35 to secure a great variety of connections.. The Strong-Tie A35Z Adjustable U Hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • A35 – Bend one time only.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING
