Shop more ABA/ABU/ABW Adjustable Post Bases
SKU: ABU1010RZ

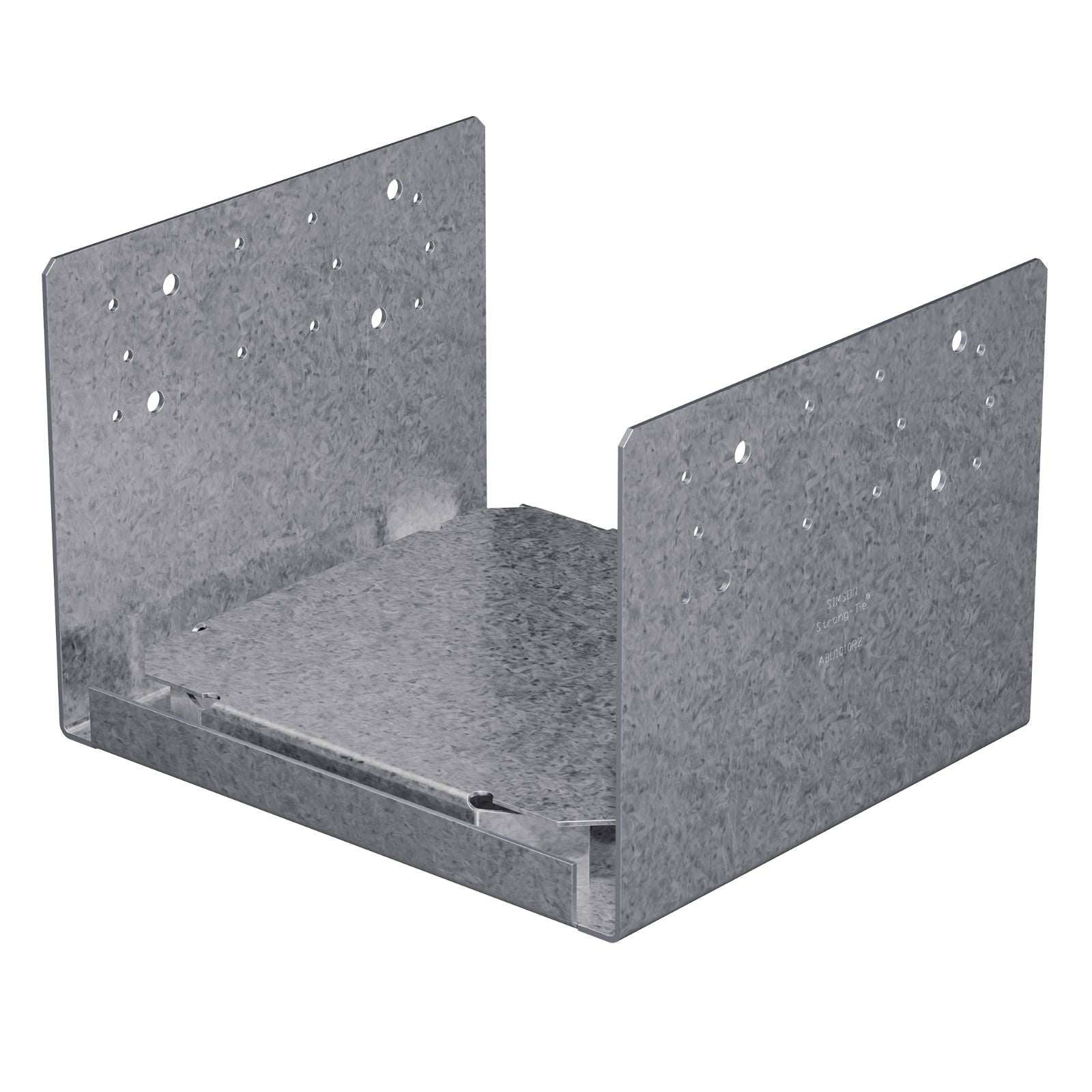

Simpson ABU1010RZ Rough Cut 10x10 Adjustable Post Base - Zmax Finish

Simpson ABU1010RZ Rough Cut 10x10 Adjustable Post Base - Zmax Finish

Regular price $182.58
Sale price $182.58 Regular price
0% off
shipping truck, lead time icon
Ships Apr 23 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 10x10". If you have a nominal post measuring 9-1/2x9-1/2" you will need an ABU1010Z Post base

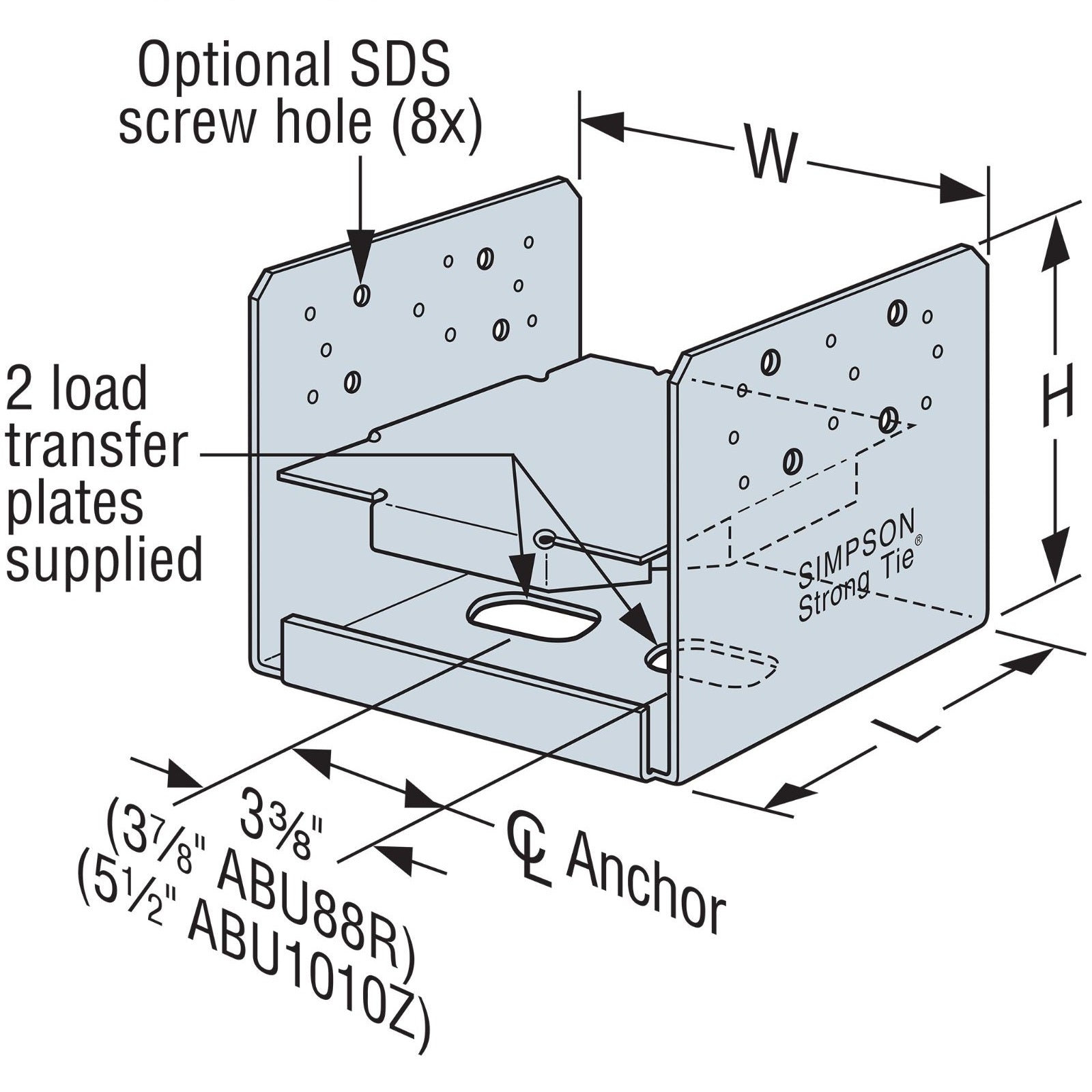

The Simpson Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The "R" series of post bases are designed exclusively for use with rough cut lumber. The ABU1010RZ adjustable post base is approved to be installed with the specified nails, Strong-Drive SD connector screws or specified machine bolts. The Strong-Tie ABU1010RZ post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Features:
  • The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
  • The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash

Installation:
  • Use all specified fasteners.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.

ABU
  • Place the standoff base and then the post in the ABU.
  • Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Adjustable Post Bases.


California Residents: WARNING

Specifications:


Post Size: Rough 10X10
Fasteners required: - (22) 0.162 x 3-1/2" Nails Or (8) 1/4" x 3" SDS Screws - (2) 5/8" Concrete Anchors
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet

Features

-The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
-The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash

Installation

-Use all specified fasteners.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.
ABU
-Place the standoff base and then the post in the ABU.
-Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).

View full details
