Simpson ABU88HDG 8x8 Adjustable Post Base - Hot Dip Galvanized
Simpson ABU88HDG 8x8 Adjustable Post Base - Hot Dip Galvanized
Description:
Description:

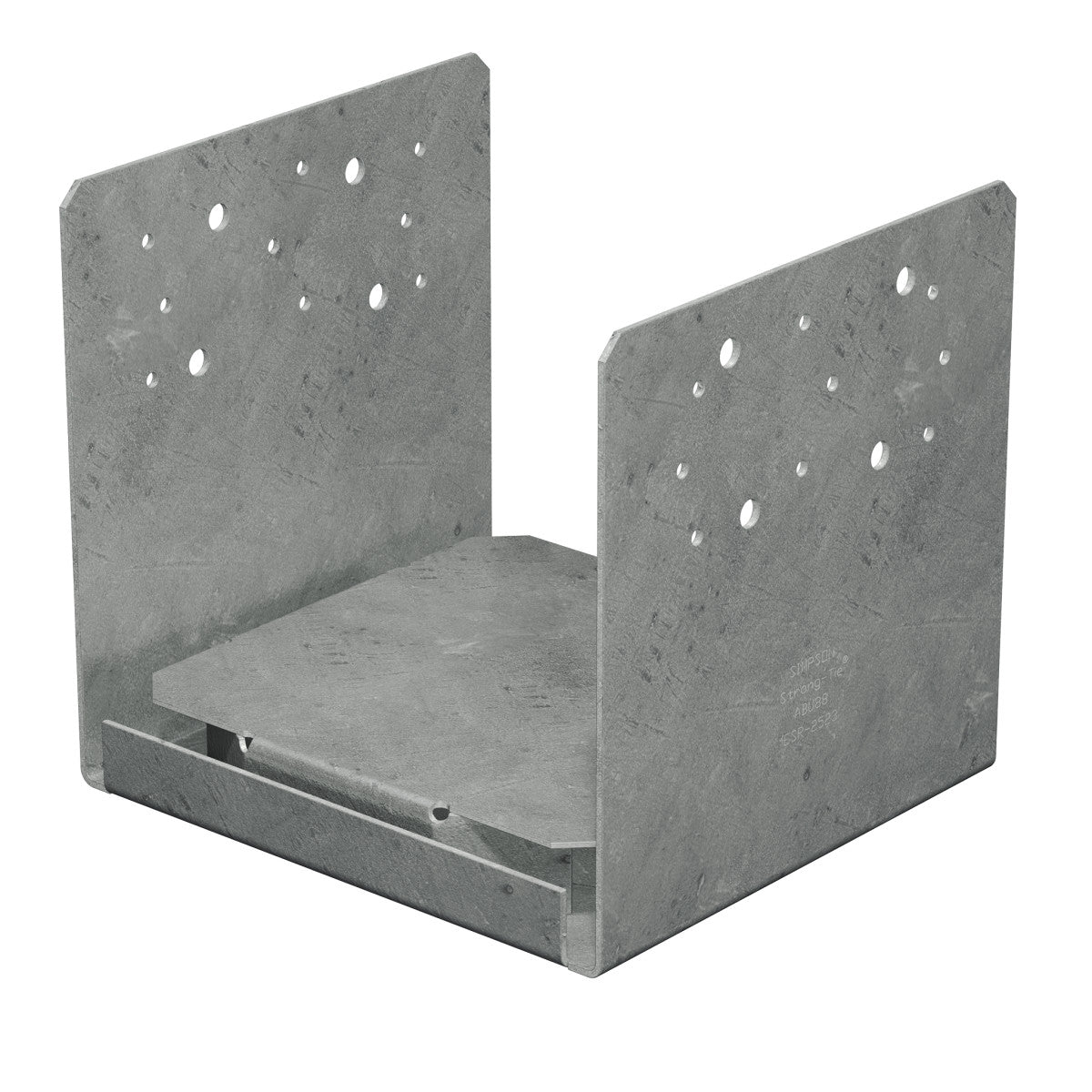

The Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The ABU88HDG adjustable post base is approved to be installed with the specified nails, Strong-Drive SD connector screws or specified machine bolts. The Strong-Tie ABU88HDG post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153). Anchor bolts are hot-dip galvanized per ASTM F2329.
Features:

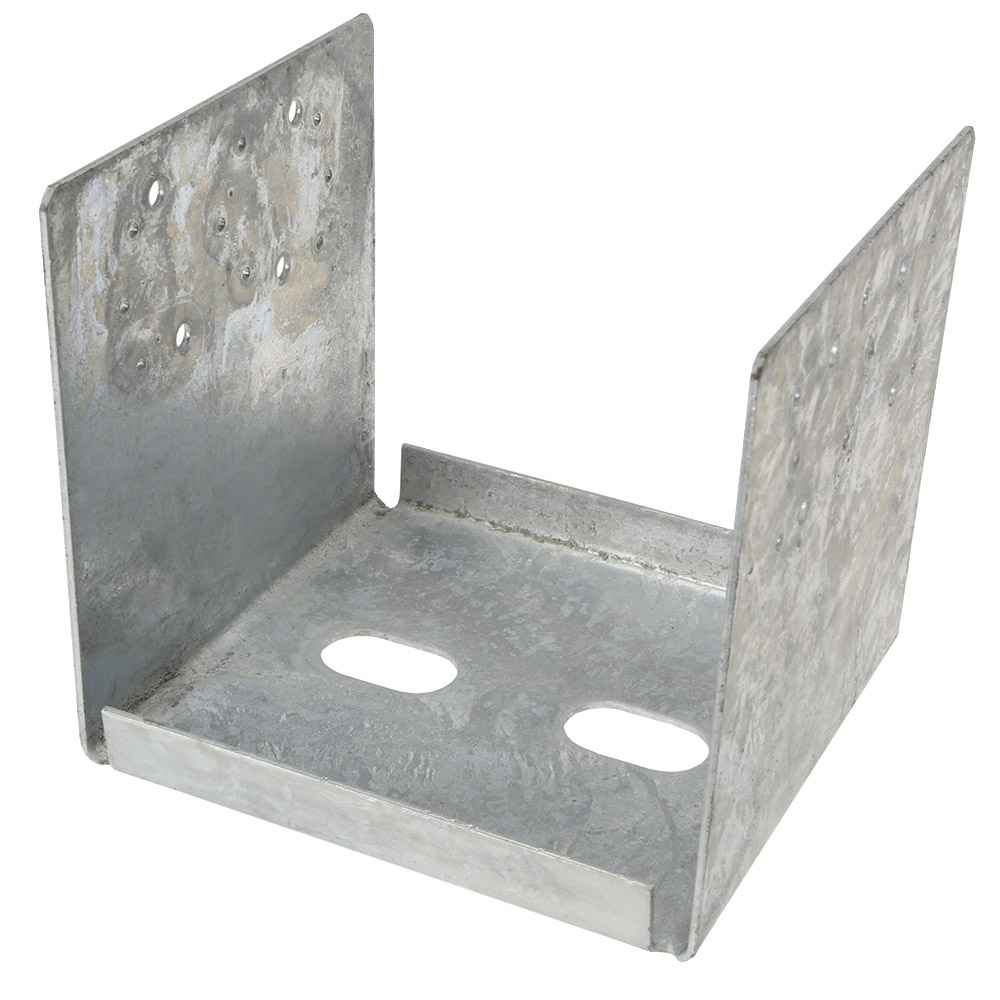

- The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
- The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash
Installation:
- Use all specified fasteners.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

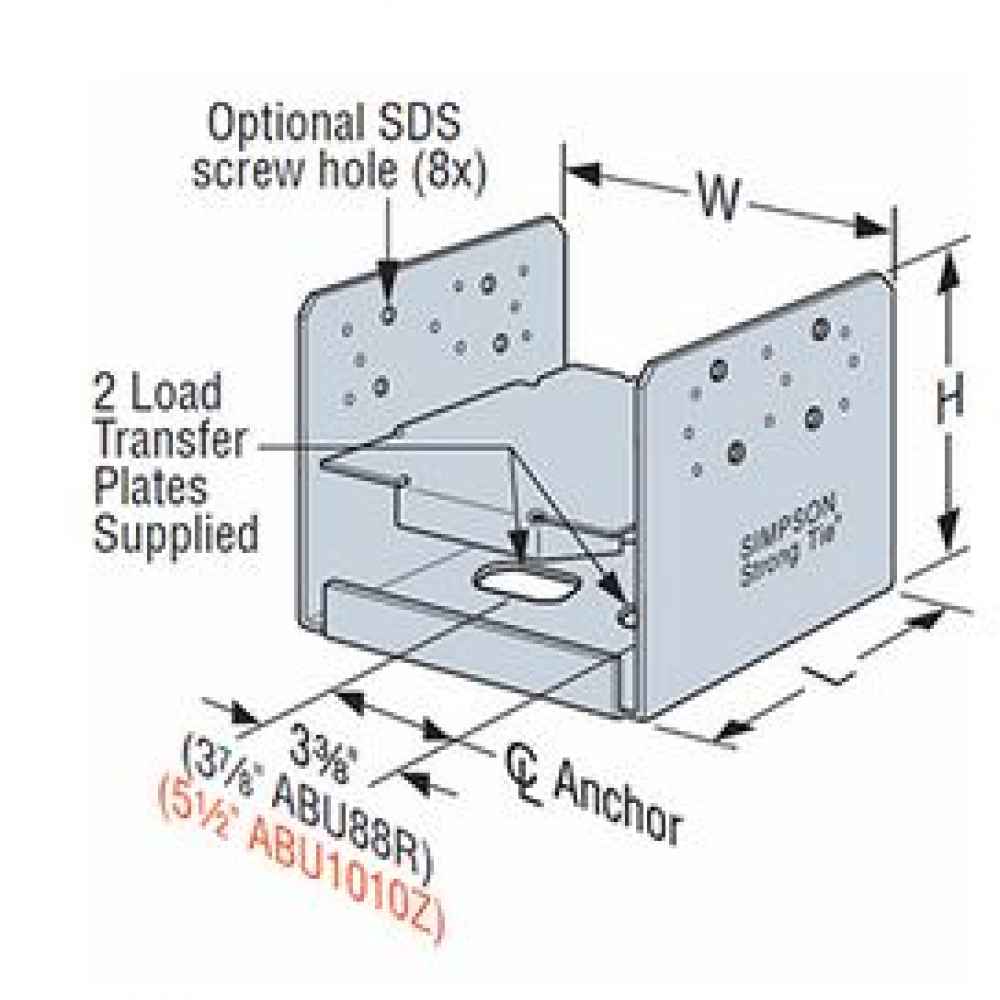

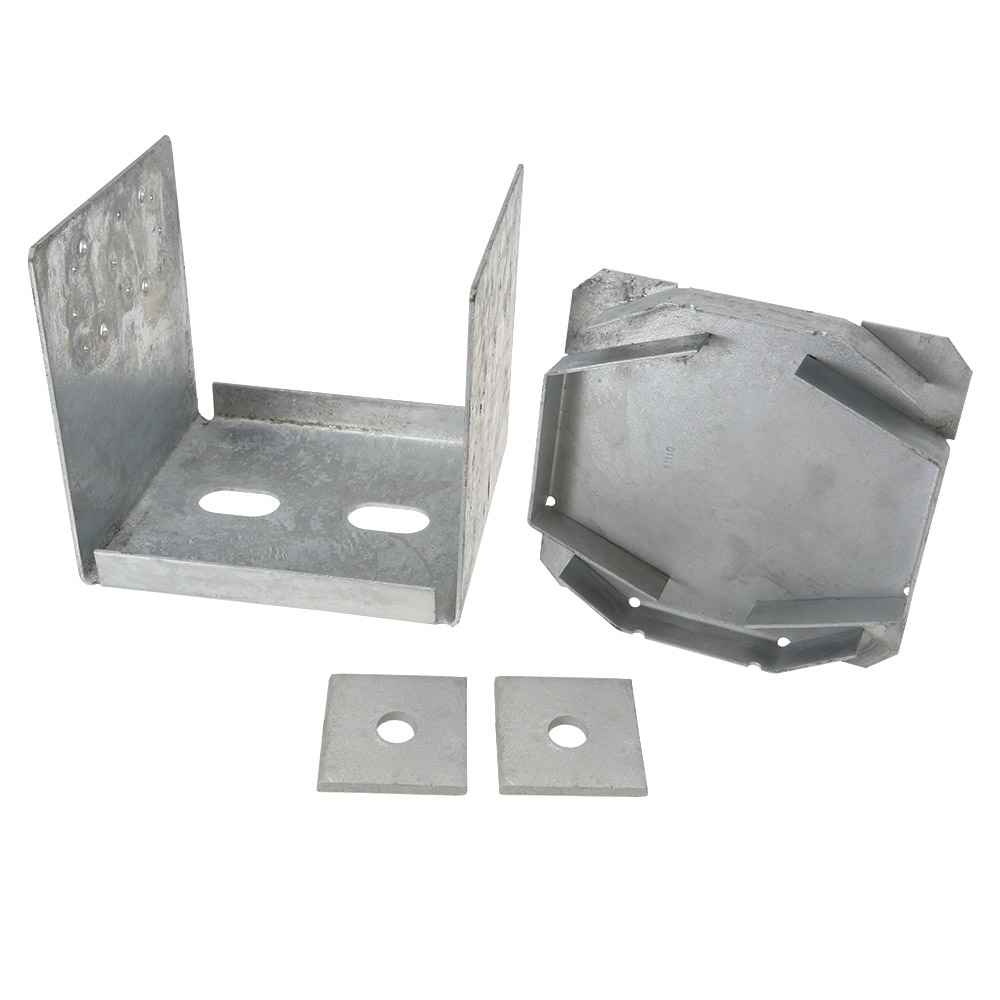

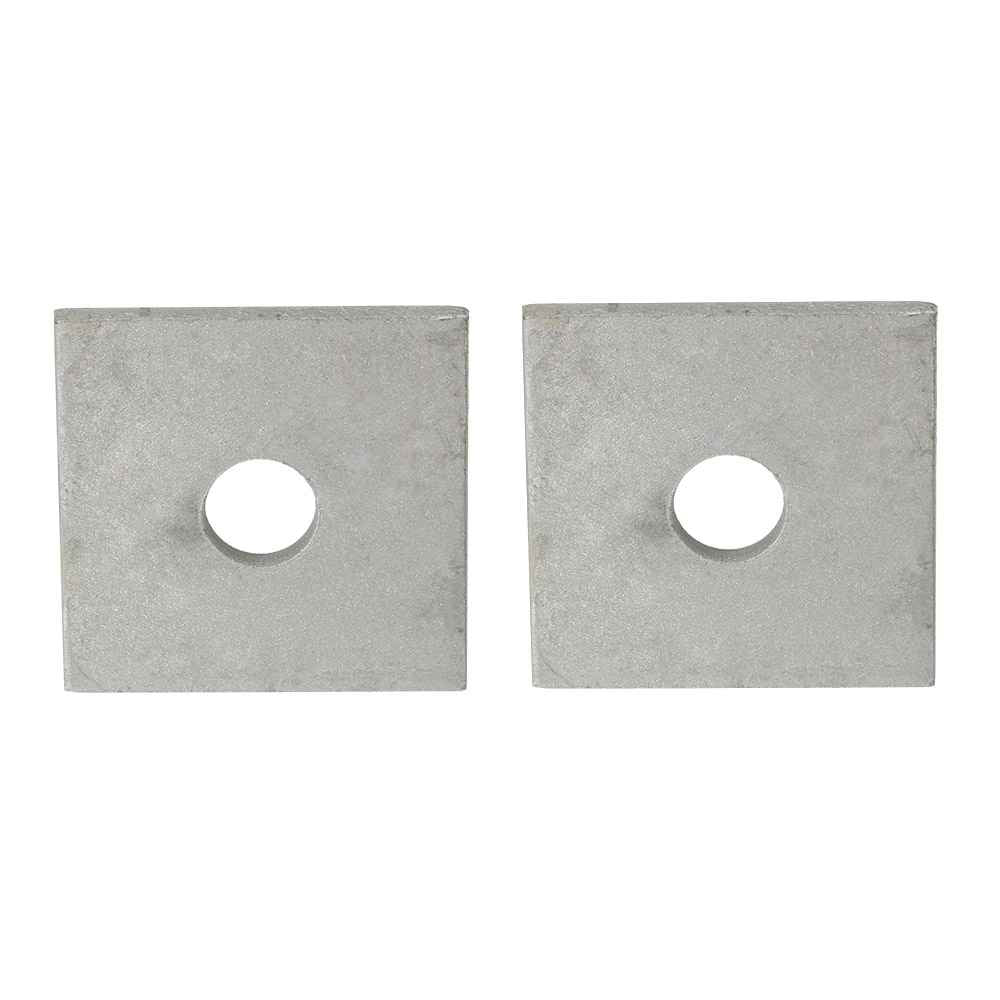

- Place the base, load transfer plate and nut on the an the anchor bolt. Loosely tighten the nut.
ABU

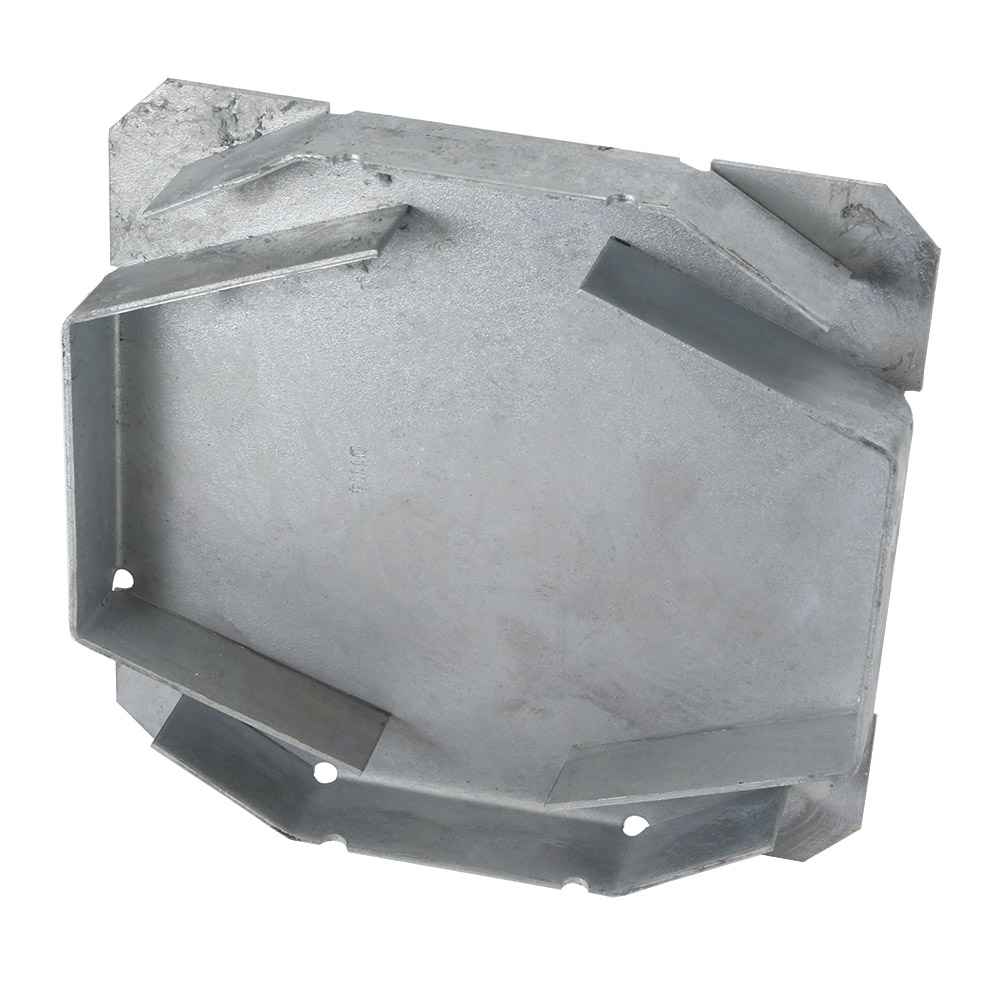

- Place the standoff base and then the post in the ABU.
- Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson Adjustable Post Bases.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 8X8
Fasteners required: - (18) 0.162 x 3-1/2" Nails Or (8) 1/4" x 3" SDS Screws - (2) 5/8" Concrete Anchors
Finish: Hot Dip Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Features
Features
-The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
-The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash
Installation
Installation
-Use all specified fasteners.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-Place the base, load transfer plate and nut on the an the anchor bolt. Loosely tighten the nut.
ABU
-Place the standoff base and then the post in the ABU.
-Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).
