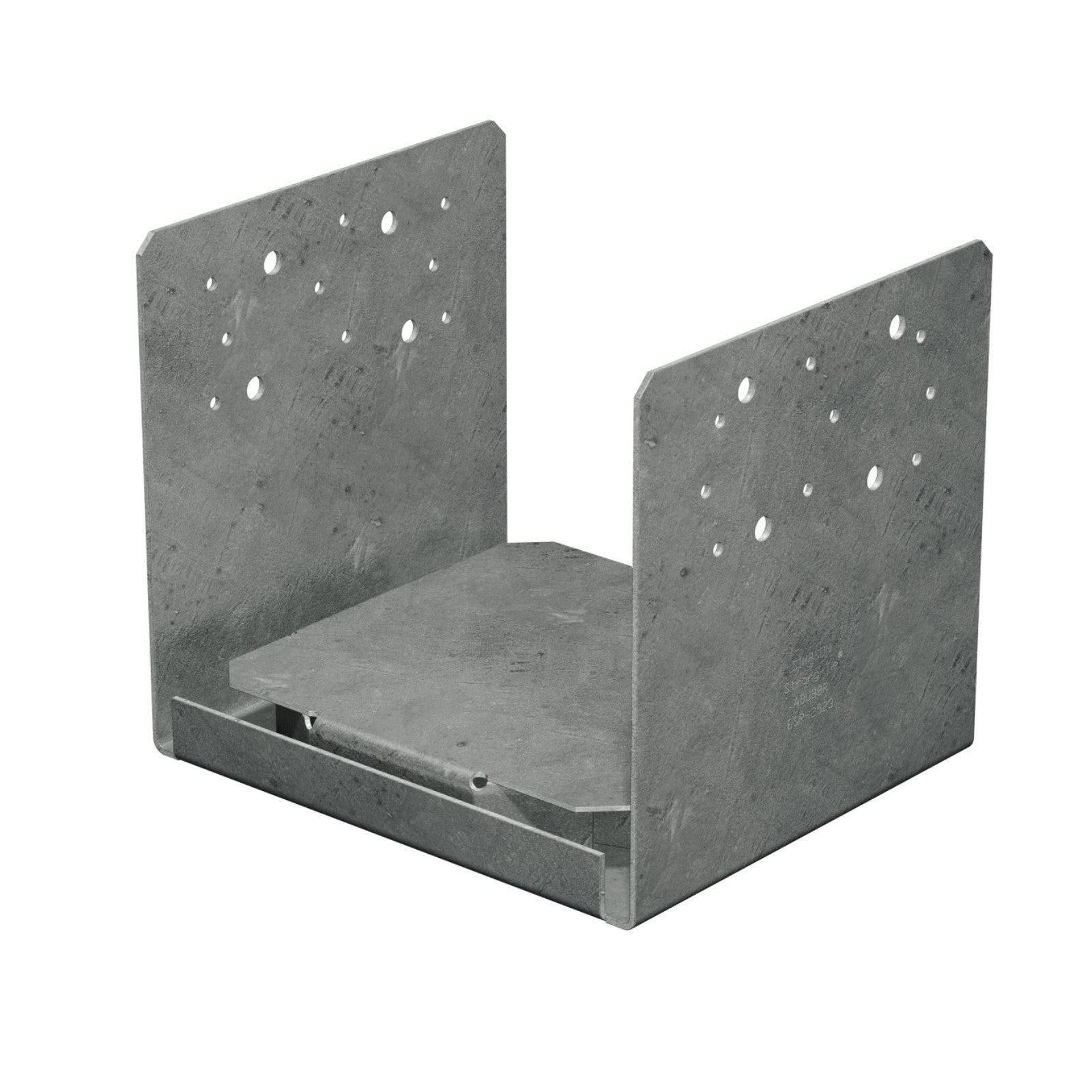

Simpson ABU88RHDG Rough Cut 8x8 Adjustable Post Base - Hot Dip Galvanized

SKU: ABU88RHDG

$147.89

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 8x8". If you have a nominal post measuring 7-1/2x7-1/2" you will need an ABU88Z Post base

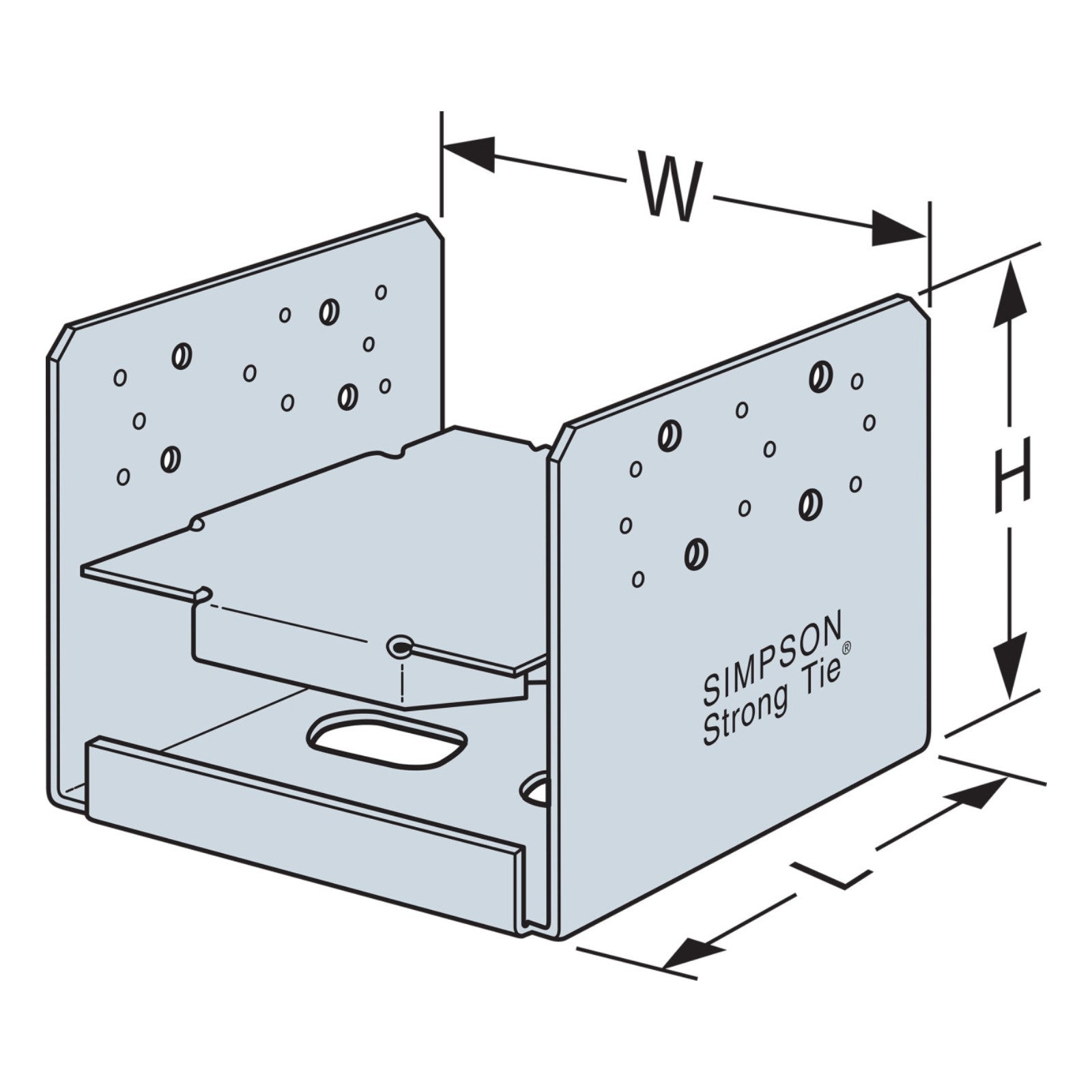

The Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The "R" series of post bases are designed exclusively for use with rough cut lumber. The Strong-Tie ABU88RHDG post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153). Anchor bolts are hot-dip galvanized per ASTM F2329.


Features:
  • The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
  • The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash

Installation:
  • Use all specified fasteners.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

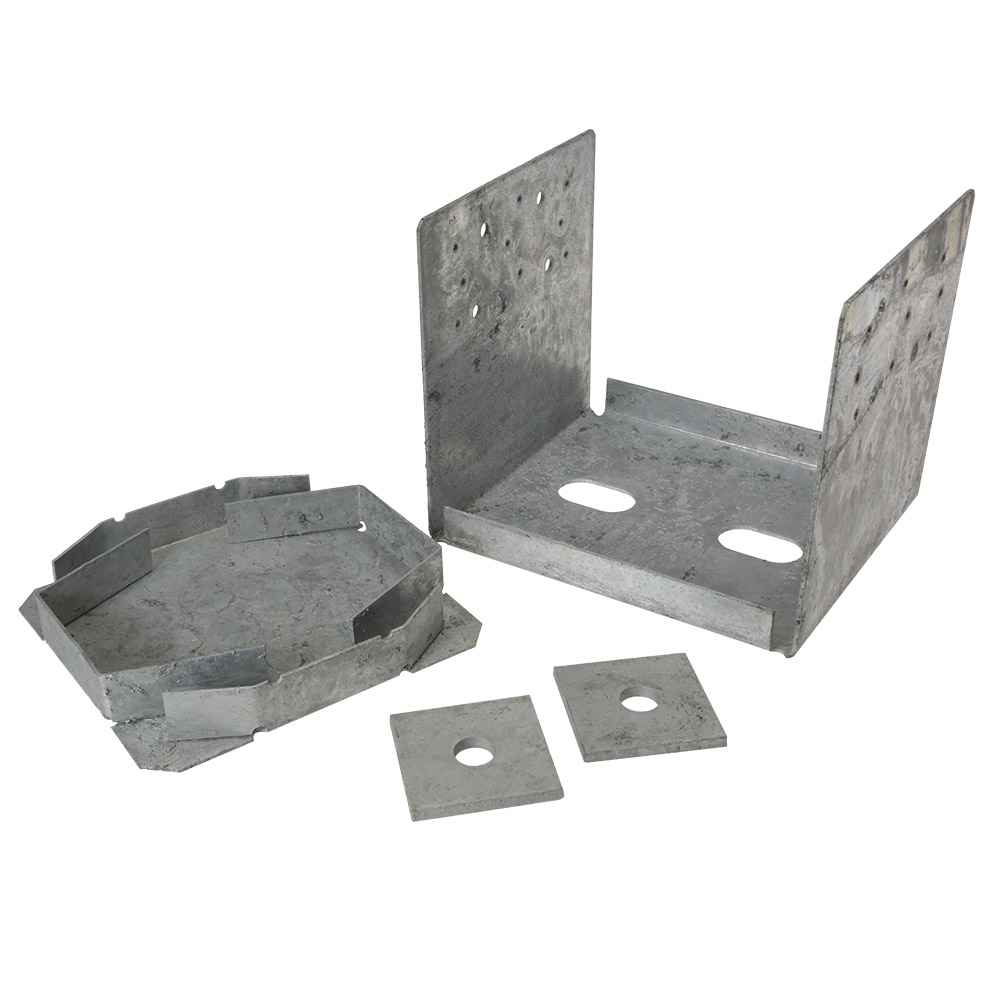

  • Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.

ABU
  • Place the standoff base and then the post in the ABU.
  • Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Adjustable Post Bases.


California Residents: WARNING

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 8x8". If ...

Read More

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a post that measures an actual 8x8". If you have a nominal post measuring 7-1/2x7-1/2" you will need an ABU88Z Post base


The Strong-Tie ABU series of adjustable post bases provide a 1" standoff for the post and are slotted for adjustability. The "R" series of post bases are designed exclusively for use with rough cut lumber. The Strong-Tie ABU88RHDG post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153). Anchor bolts are hot-dip galvanized per ASTM F2329.


Features:
  • The slot in the base enables flexible positioning around the anchor bolt, making precise post placement easier
  • The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural posts installed in basements or exposed to weather or water splash

Installation:
  • Use all specified fasteners.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • Place the base, load transfer plate and nut on the anchor bolt. Loosely tighten the nut.

ABU
  • Place the standoff base and then the post in the ABU.
  • Fasten using nails or Strong-Drive SD structural connector screws or bolts (ABU88, ABU1010 – SDS optional).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Adjustable Post Bases.


California Residents: WARNING

Show Less

Fasteners Required:
- (18) 0.162 x 3-1/2" Nails Or (8) 1/4" x 3" SDS Screws - (2) 5/8" Concrete Anchors

For Treated Lumber:
yes

Finish Spec:
Hot Dip Galvanized

Manufacturer Name:
Simpson Strong-Tie

Post Size:
Rough 8X8

Product Guide:
