Shop more ACHZ ZMAX Galvanized Adjustable Post Caps
SKU: ACH6Z

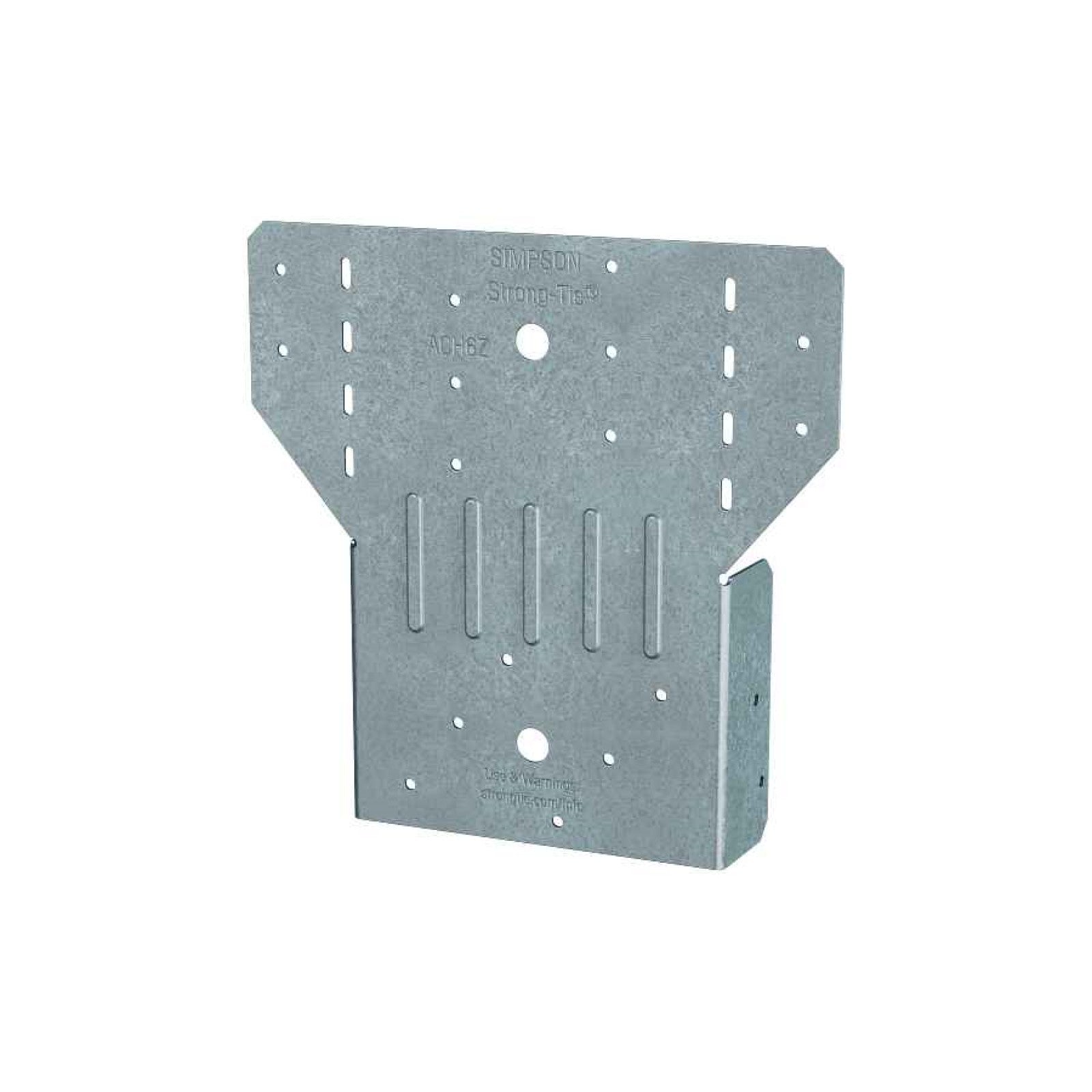

Simpson ACH6Z 6X Post Cap - Zmax Finish, Qty 1

Simpson ACH6Z 6X Post Cap - Zmax Finish, Qty 1

Regular price $23.85
Sale price $23.85 Regular price
0% off
shipping truck, lead time icon
Ships Apr 17 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

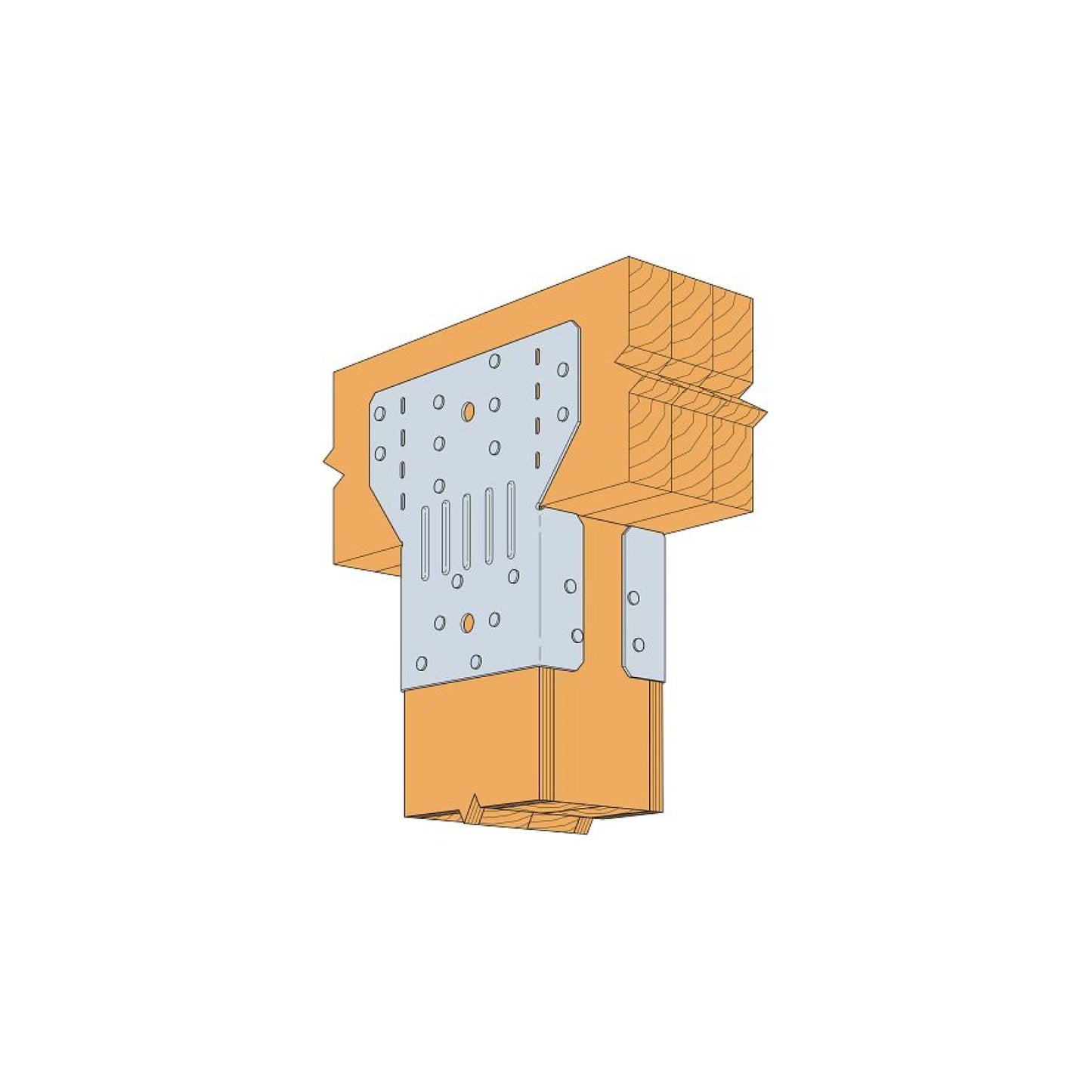

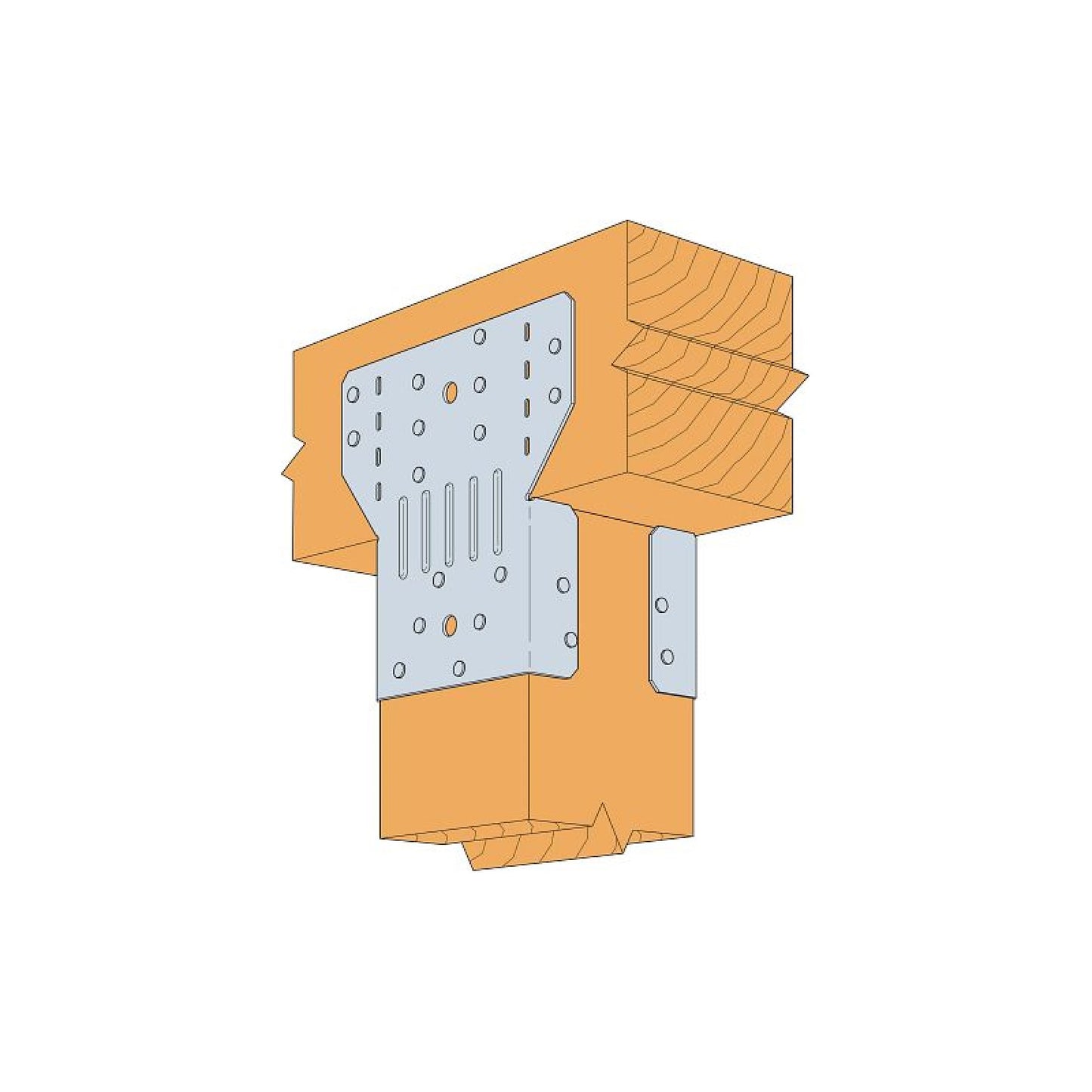

The Simpson Strong-Tie ACH6Z is a heavier-capacity post cap, designed for a 6x nominal post to provide a secure connection between a beam and the post. The two-piece design is ideal for new or retrofit applications where structural support is needed. It provides medium- to high-capacity uplift loads and allows for either mid-beam or end-beam connections when flanges are field bent.  Can be installed with Strong-Drive SD Connector screws for increased loads

Key Features

  • ZMAX finish is standard
  • Flanges can be field bent for end-beam conditions
  • Load rated when installed in pairs
  • Installs with (40) 0.162 in. x 2-1/2 in. nails or (40) #10 x 2-1/2 in. Strong-Drive SD screws

Specifications:

Material: 16-gauge steel
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
Additional information: Post-cap inner width: 5-1/2 in.
Product Guide: View Spec Sheet

Installation

(40) 0.162 in. x 2-1/2 in. nails or (40) #10 x 2-1/2 in. Strong-Drive SD screws
