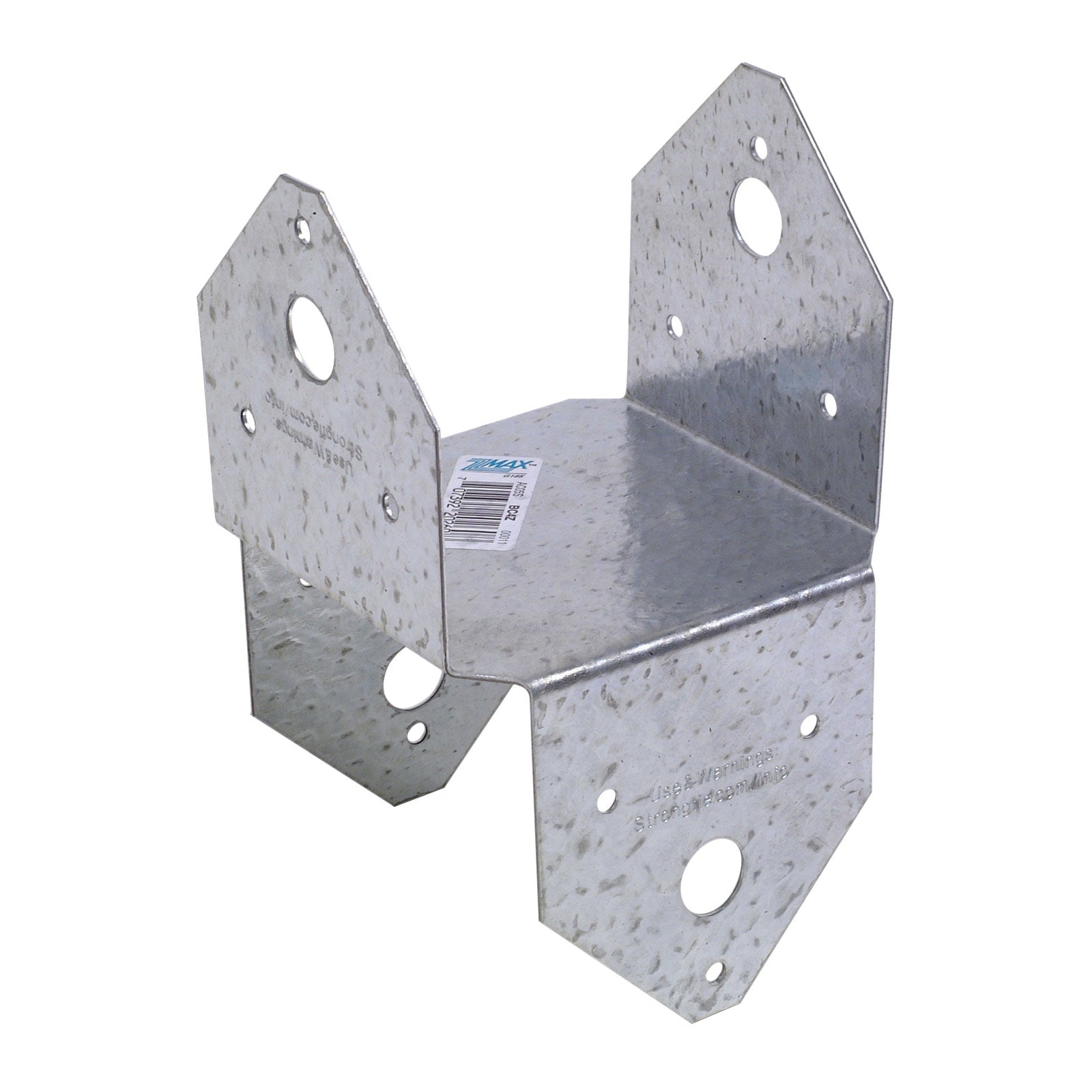

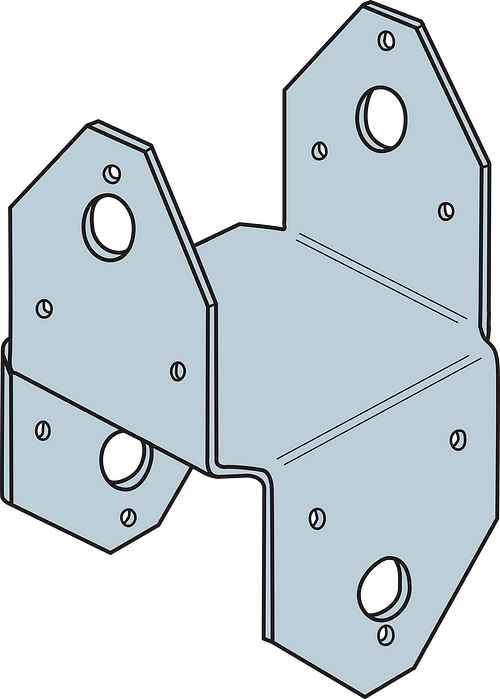

Simpson BC4Z Post Cap - ZMAX
Simpson BC4Z Post Cap - ZMAX
Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common).
The Simpson Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BC46R post base is approved to be installed with the specified nails or Strong-Drive SD connector screws. The Strong-Tie BC46R post base features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Do not install bolts into pilot holes
- BC: install with 16d commons or 16d x 2-1/2" joist hanger nails.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
- To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson BC & BCS Post Caps.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4X
Height: 3"
Fasteners required: Beam Flange - (6) 0.162 x 3-1/2" nails; Post Flange - (6) 0.162 x 3-1/2" nails
Thickness: 18 Gauge
Quantity: 1
Width: 3-9/16"
Finish: ZMAX
Length: 2-7/8"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Opposing flanges provide increased lateral resistance
•Attains full allowable load using either common nail or pneumatic nail sizes
•Light-gauge material designed for light-duty applications
Installation
Installation
•Use all specified fasteners; see General Notes
•Do not install bolts into pilot holes
•Install with 0.162″ x 3 1/2″ nails or 0.162″ x 2 1/2″ nails
