Simpson CC46PC Column Cap - Black Powder Coated
Simpson CC46PC Column Cap - Black Powder Coated
Couldn't load pickup availability

Description:
Description:

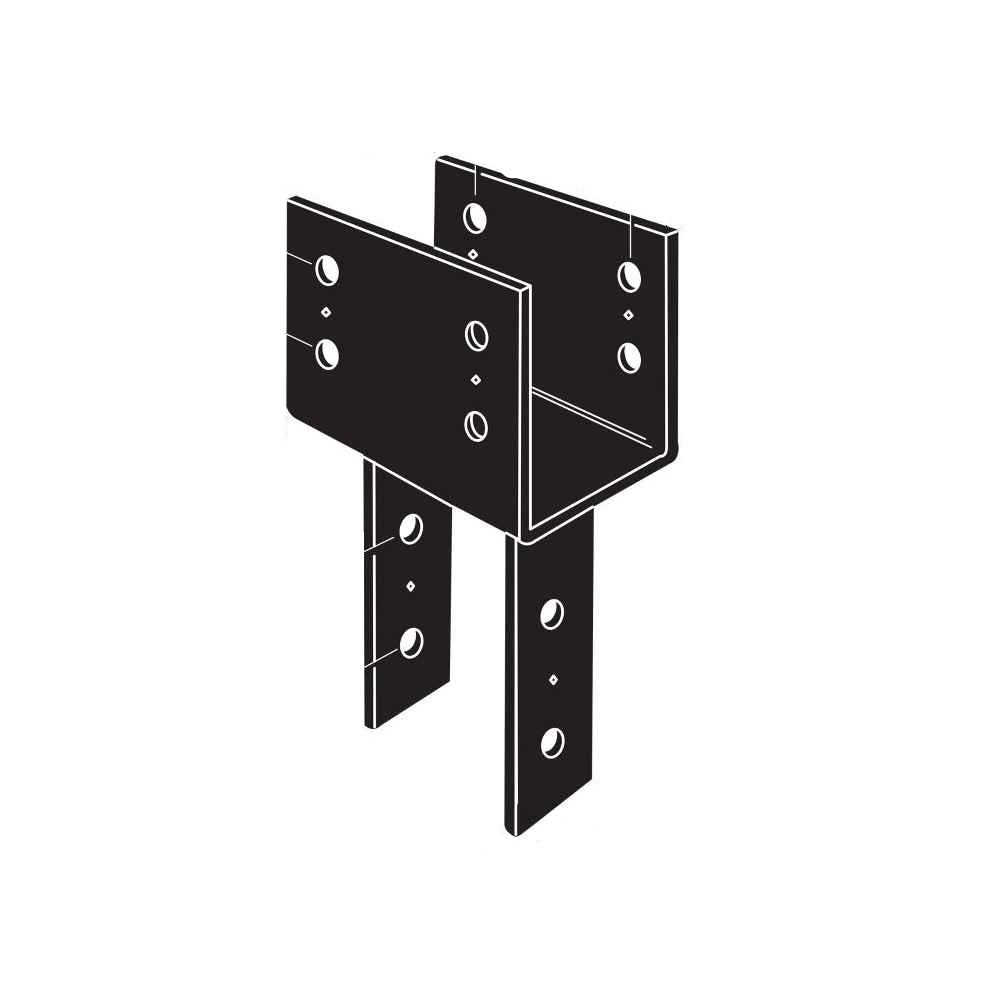

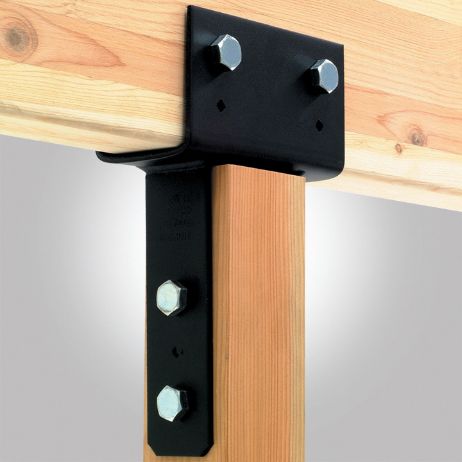

Simpson Strong-Tie CCPC column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie CC44PC column cap features a flat black powder-coated finish which produces a much more durable and better looking finish than standard paint.
Installation:- Use all specified fasteners
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
- Contact engineered wood manufacturers for connections that are not through the wide face.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Post Size: 6X
Fasteners required: Beam - (4) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
Thickness: 7 Gauge
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Beam size: 4X
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
-Contact engineered wood manufacturers for connections that are not through the wide face.
