SKU: CD25312M

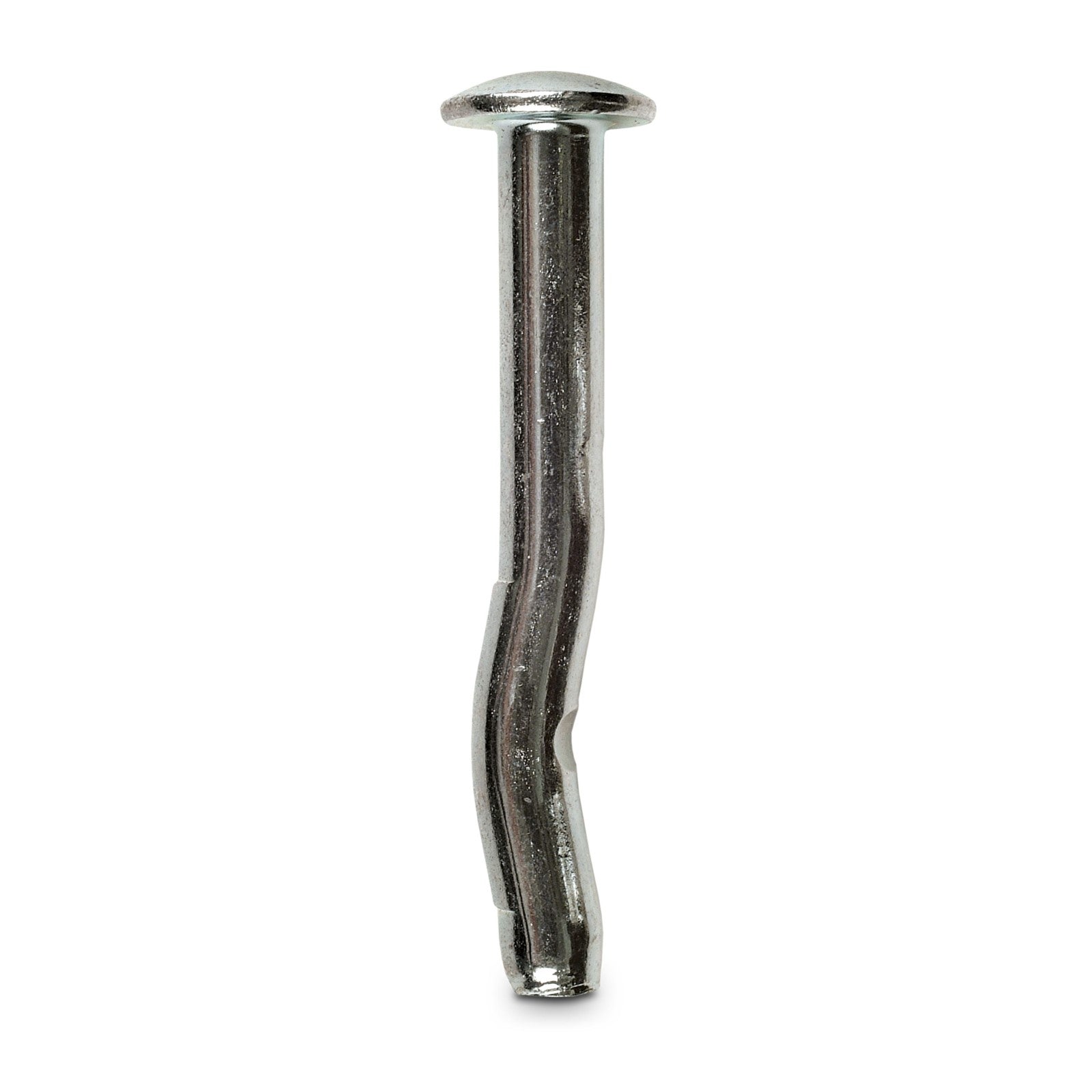

Simpson CD25312M 1/4" X 3-1/2" Mushroom Head Crimp Anchor - Zinc, Pkg 100

Simpson CD25312M 1/4" X 3-1/2" Mushroom Head Crimp Anchor - Zinc, Pkg 100!

  • Simpson CD25312M 14 inch X 312 inch Mushroom Head Crimp Anchor Zinc Pkg 100

Continue Browsing

Crimp Drive Anchors
SKU: CD25312M

Simpson CD25312M 1/4" X 3-1/2" Mushroom Head Crimp Anchor - Zinc, Pkg 100

$42.93

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 5 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 1/4"
Length: 3-1/2"
Material: Carbon Steel
Drill bit size: 1/4"
Fixture hole size: 5/16"
Head type: Mushroom Head
Manufacturer name: Simpson Strong-Tie
Minimum embedment depth: 1-1/4"
Quantity: 100
Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure. This speeds up anchor installation and reduces the overall cost. The low profile mushroom head works excellent for attaching wood or light-gauge steel to concrete and grout-filled block.
Installation:
  • Warning: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
  • Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  • Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean. Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  • Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.

    • California Residents: WARNING

More
View full details

Continue Browsing

Crimp Drive Anchors

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
