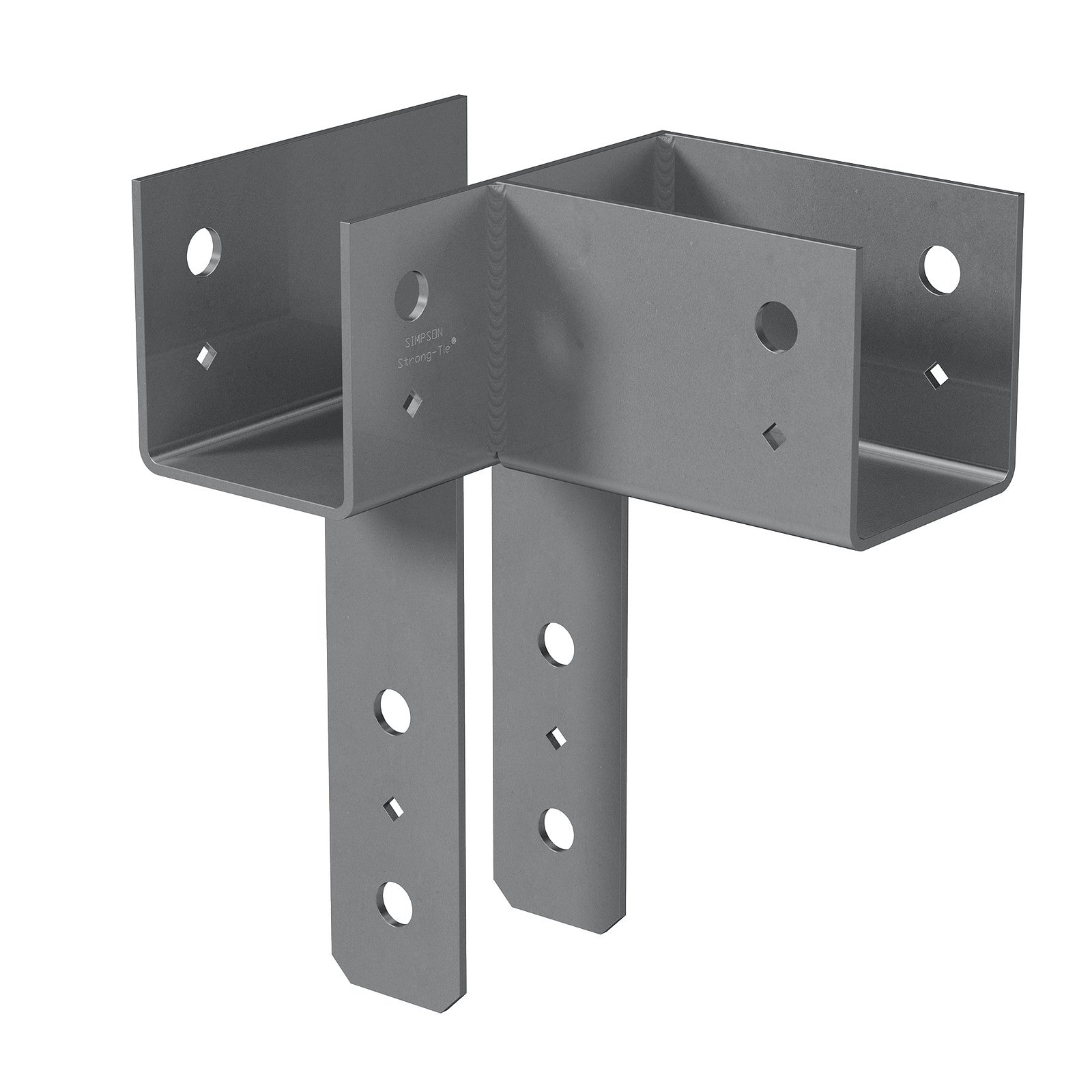

Simpson ECCLR464 4x6x4 End Column Cap Right Direction - Gray Paint

Simpson ECCLR464 4x6x4 End Column Cap Right Direction - Gray Paint!

Skip to product information
1 of 4

Continue Browsing

ECCL End Column Cap

$255.54

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 1 and order in the next 9 hours 57 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Material: Steel
Beam size: 4x, 6x

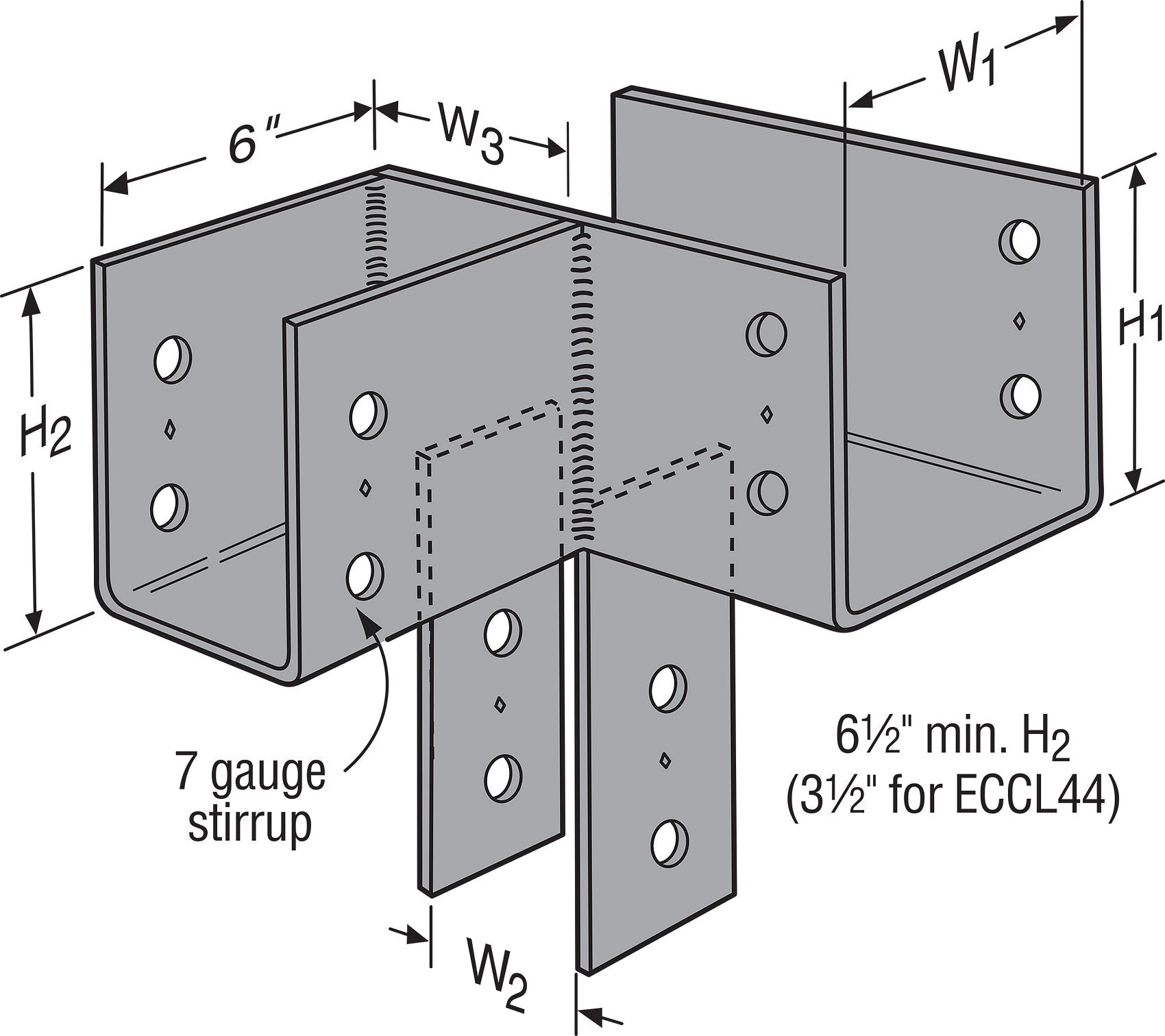

Fasteners required: Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2"
Height: Assembled Height: 15-3/16"
Manufacturer name: Simpson Strong-Tie
Post size: 4x
Thickness: 7 Gauge
Description

The Simpson ECCLR464 4x6x4 End Column Cap Right Direction - Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications where two beams form an "L" on top of a column.

The seat of the column cap features additional surface area beyond the side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

This product is intended for use with 4x posts or columns and 4x, 6x beams but is also available in a wide range of other sizes and both nominal and rough-cut lumber.

Features:

  • Connection Type: Provides strong end-of-beam connection for column-to-beams that form an "L" and the extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Lumber Size: Intended for use with 4x, 6x beams and 4x posts/columns.
  • Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
  • Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
  • Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
