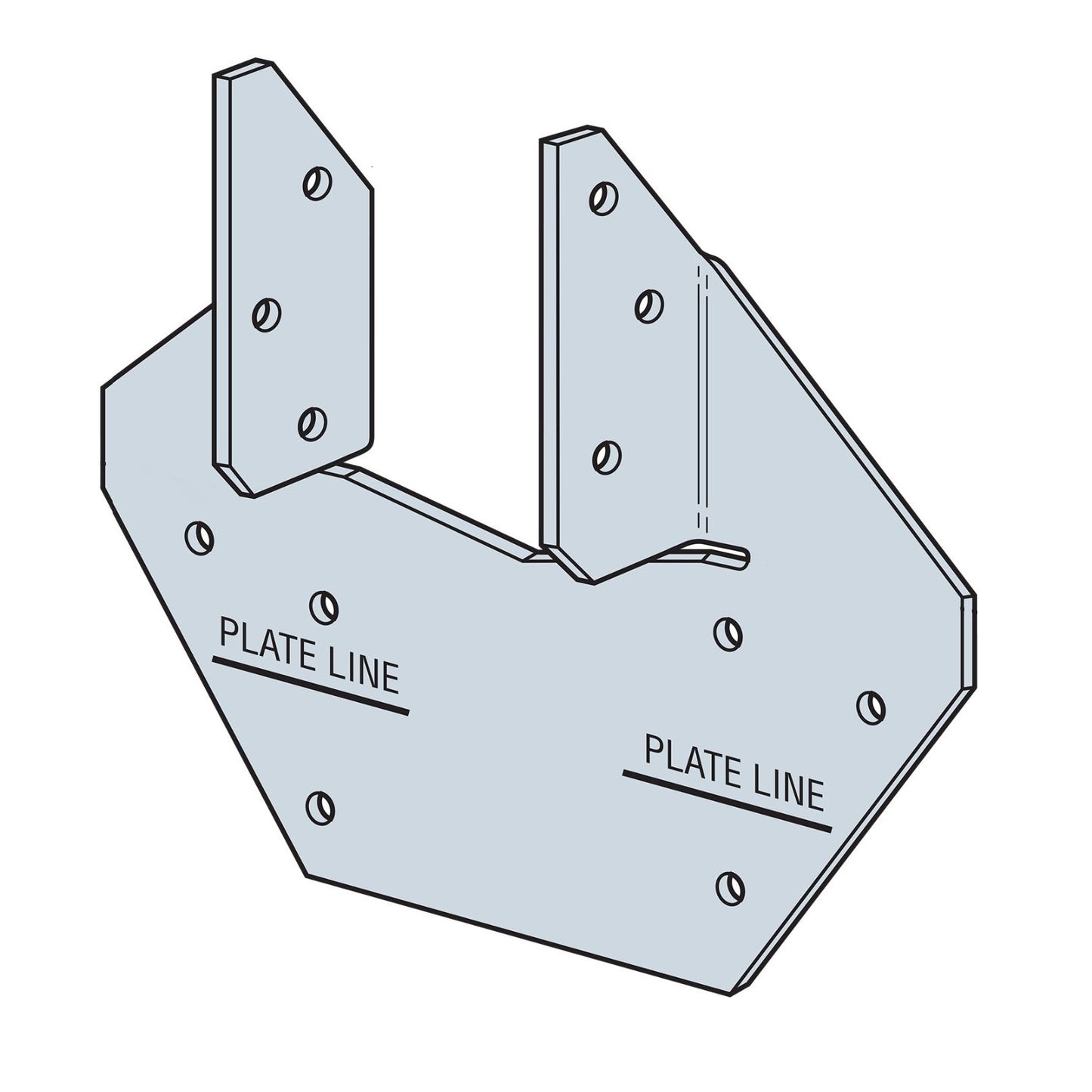

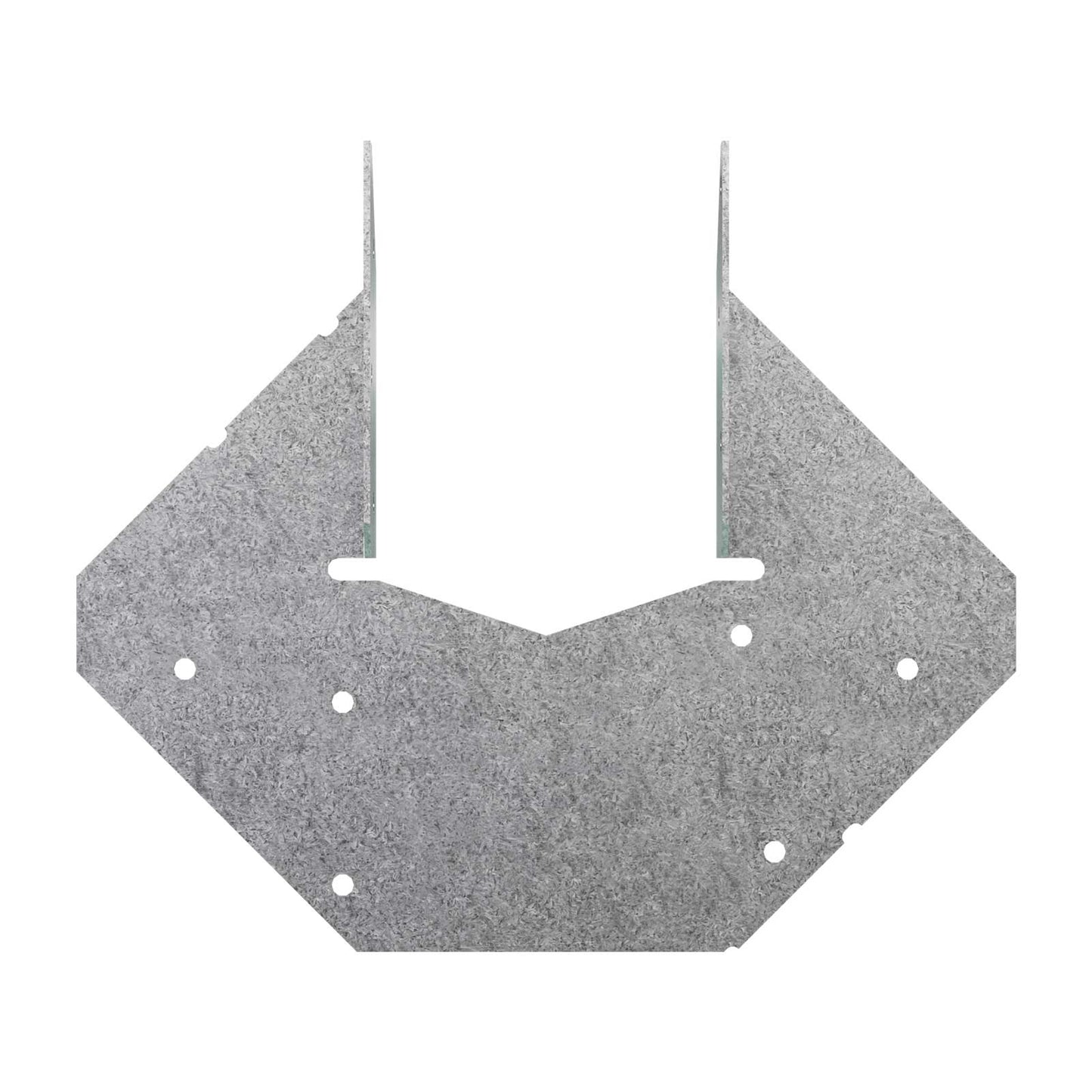

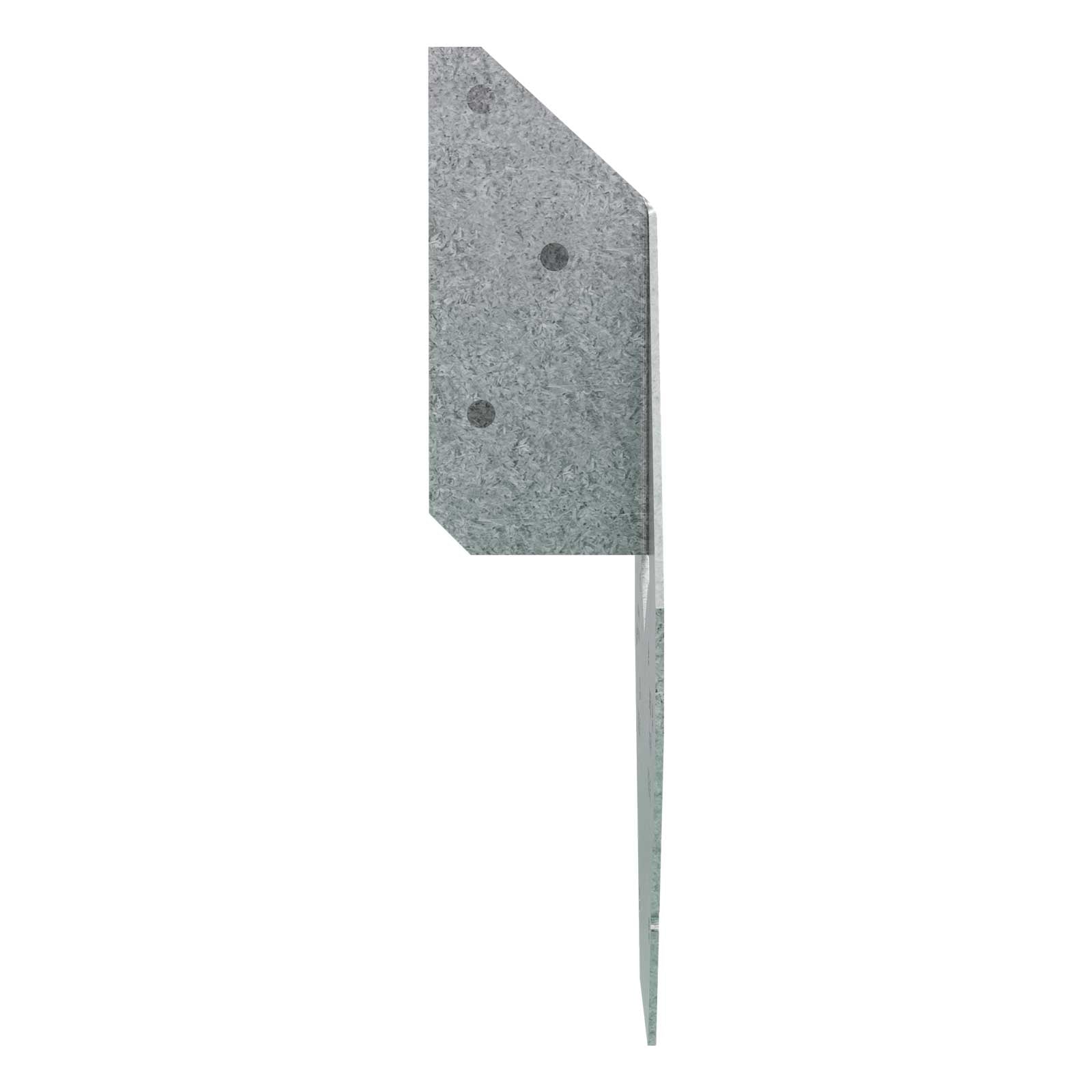

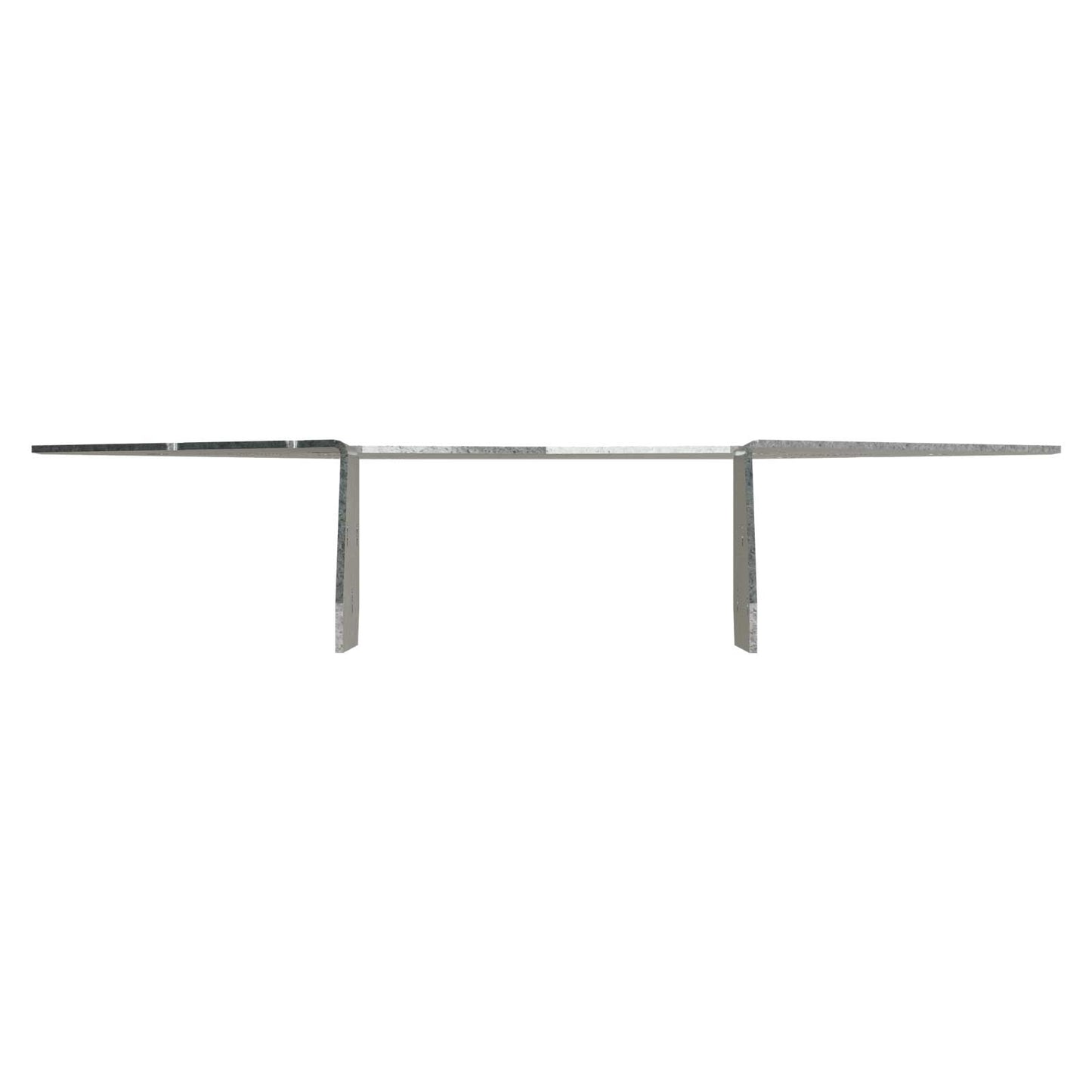

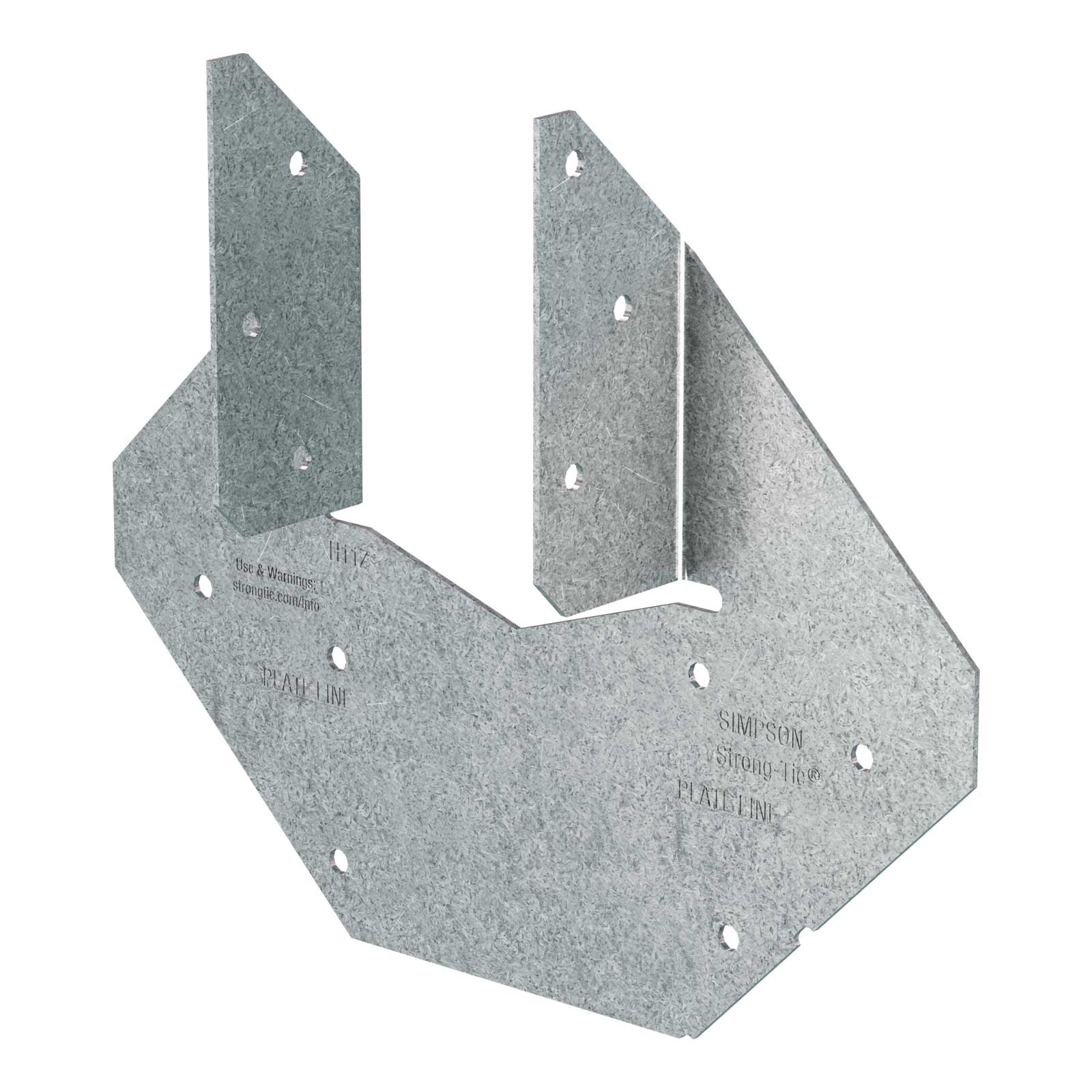

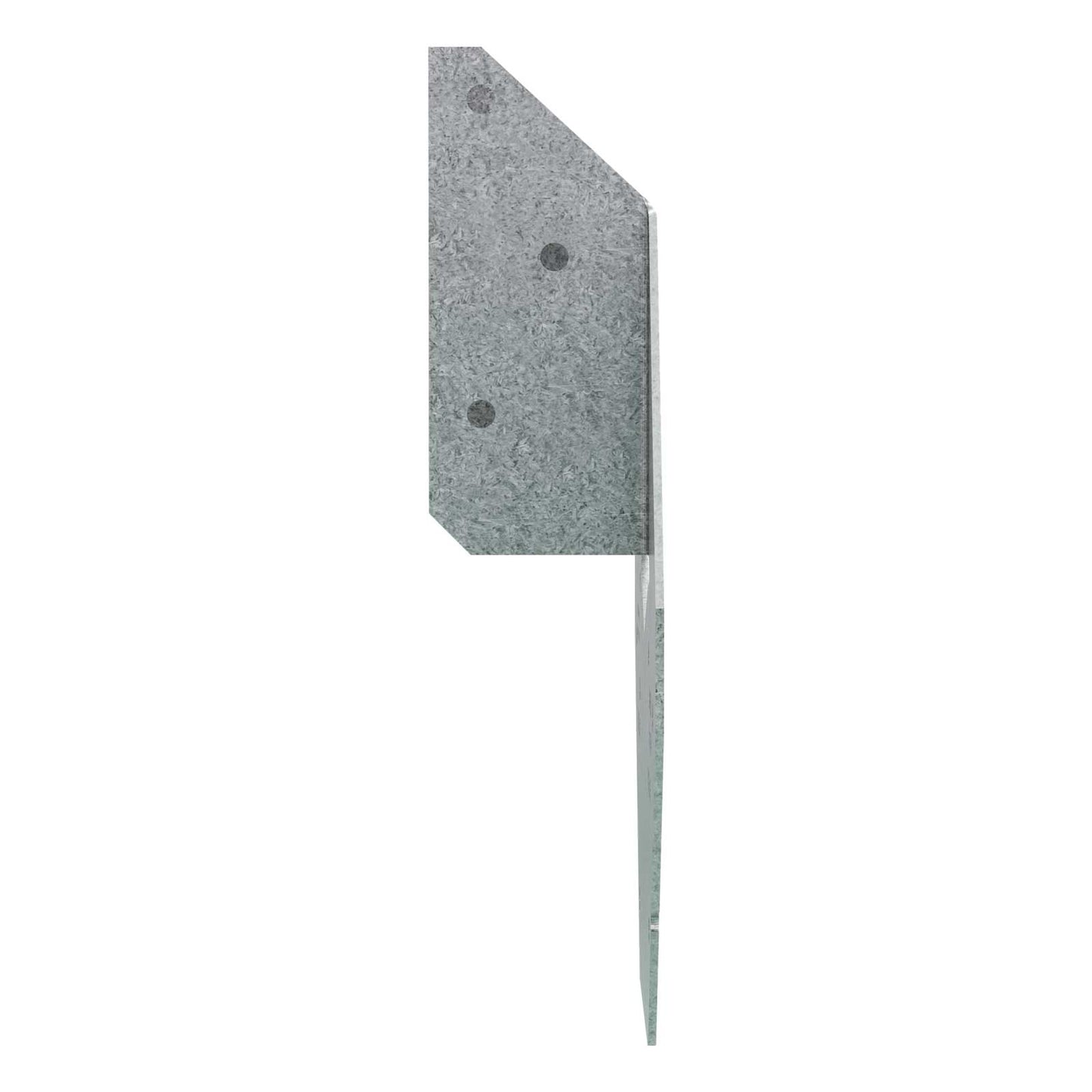

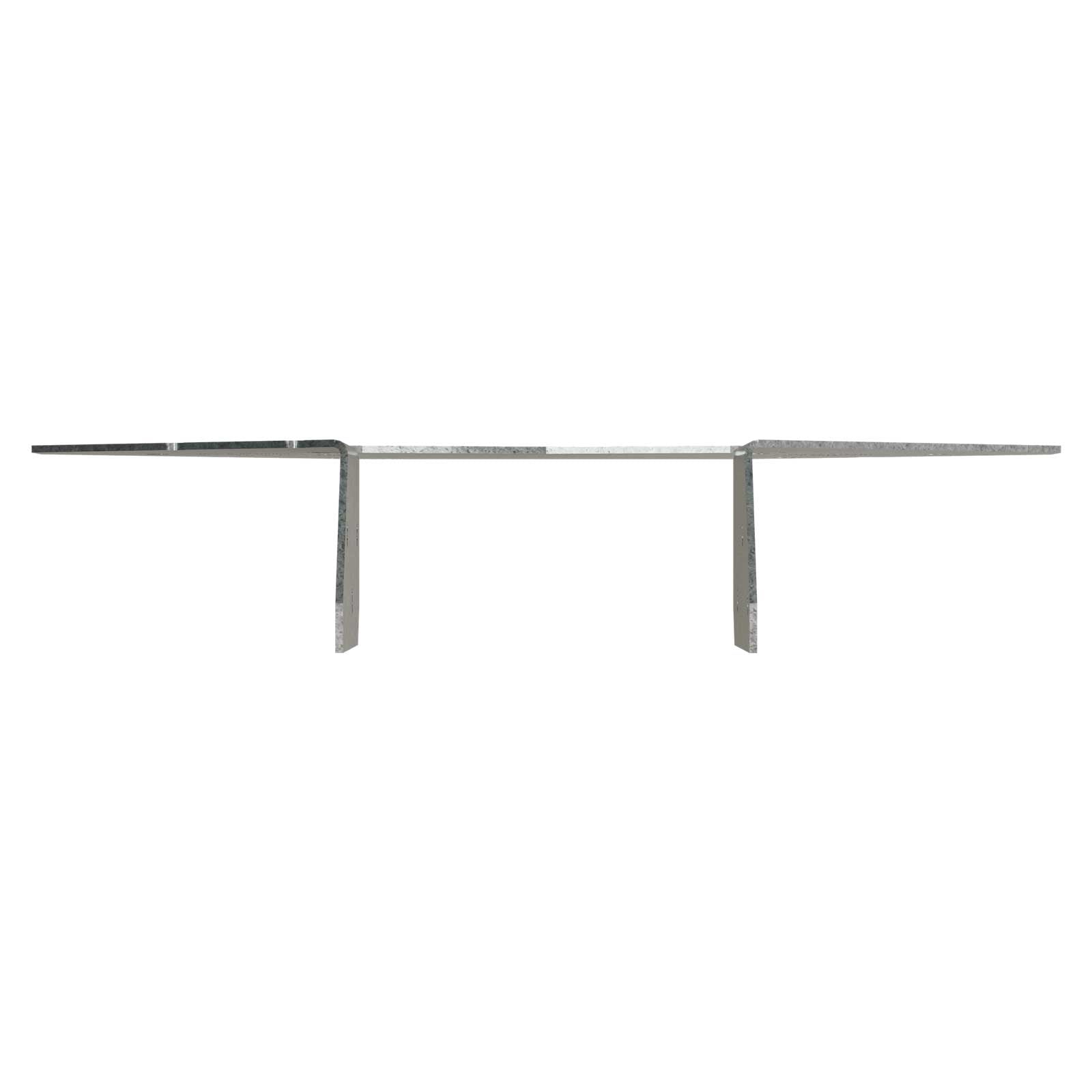

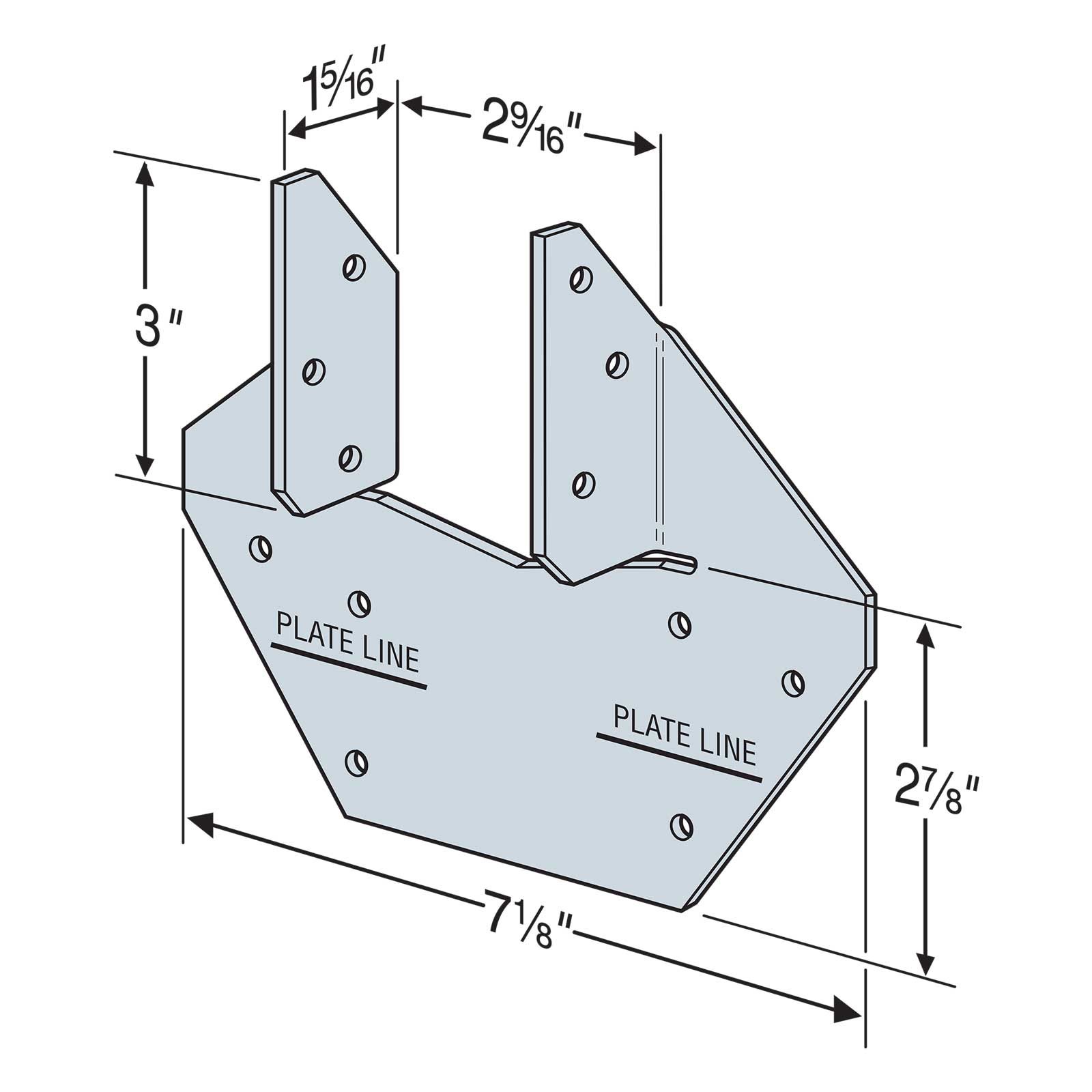

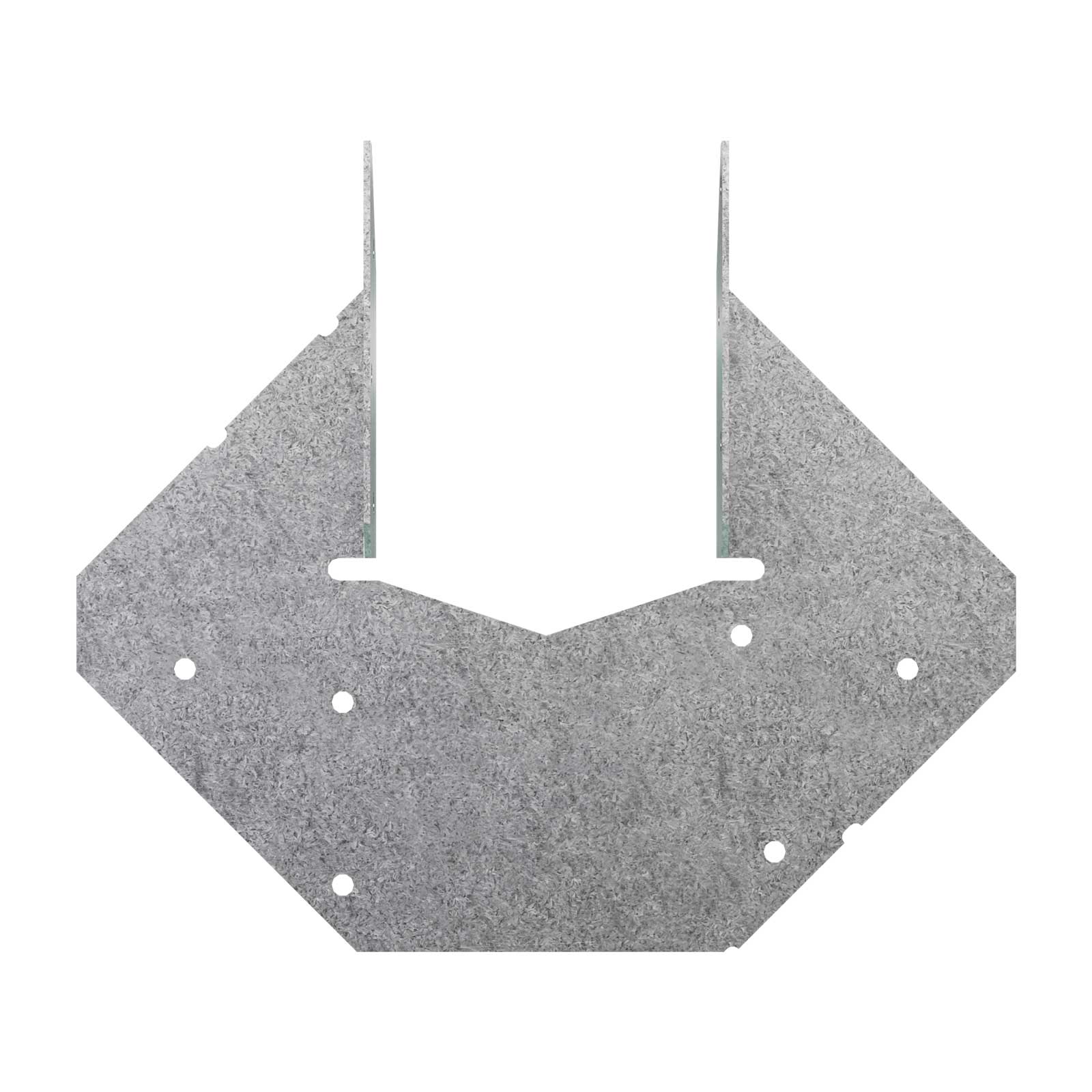

Simpson H11Z Hurricane Tie - Zmax Finish

SKU: H11Z
$3.72

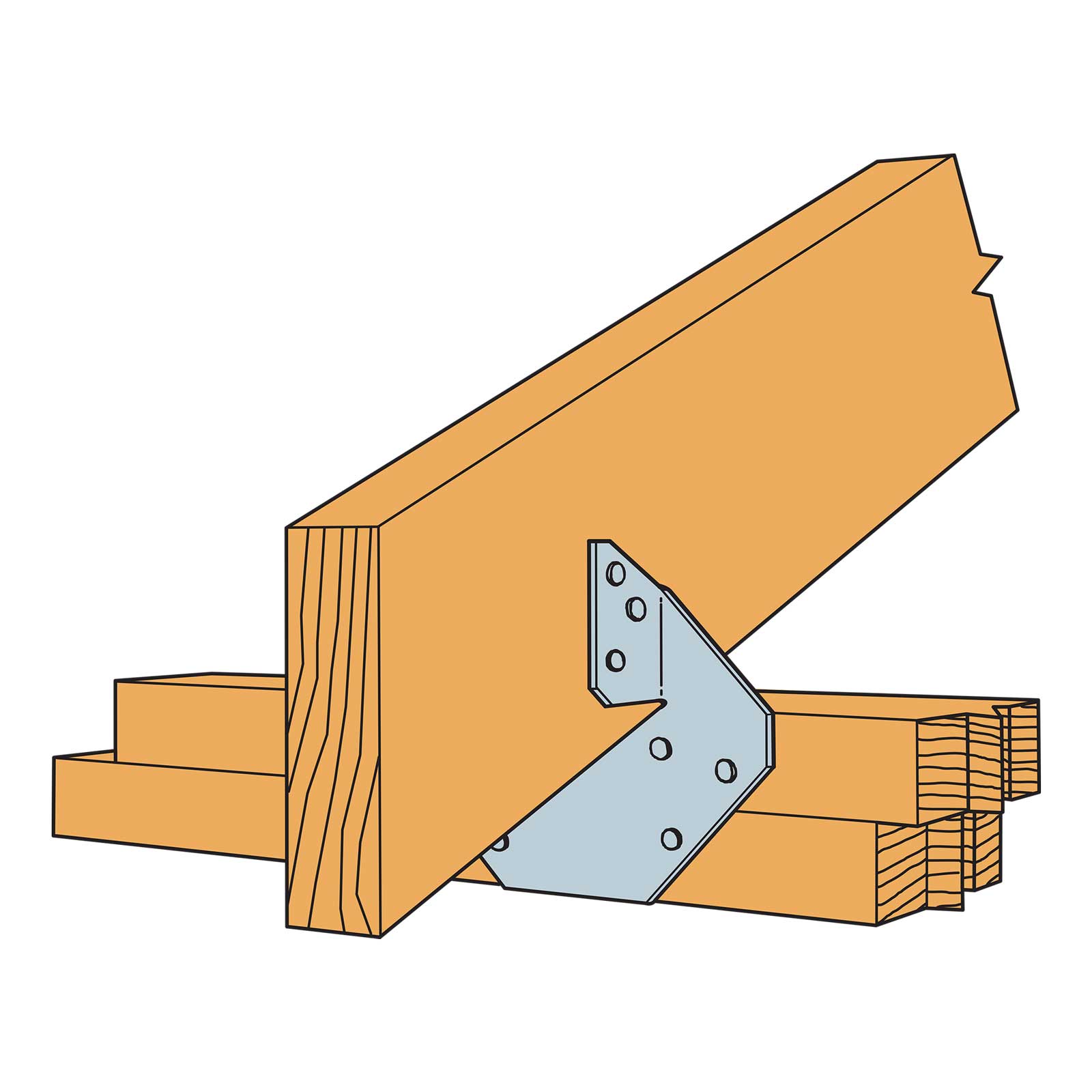

Simpson Strong-Tie H series of hurricane ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie H11Z Hurricane Tie features a Zmax finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:

  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Hurricane ties do not replace solid blocking.
  • When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie H series of hurricane ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and s...

Read More

Simpson Strong-Tie H series of hurricane ties provide a positive connection between truss/rafter and the wall of the structure to resist wind and seismic forces. The Strong-Tie H11Z Hurricane Tie features a Zmax finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:

  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Hurricane ties do not replace solid blocking.
  • When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
ZMAX

manufacturer name:
Simpson Strong-Tie

fasteners required:
To Rafters/Truss - (6) 0.162" x 2-1/2" NailsTop Plates - (6) 0.162" x 2-1/2" Nails

for treated lumber:
yes

thickness:
18 Gauge

Product Spec Sheet:
