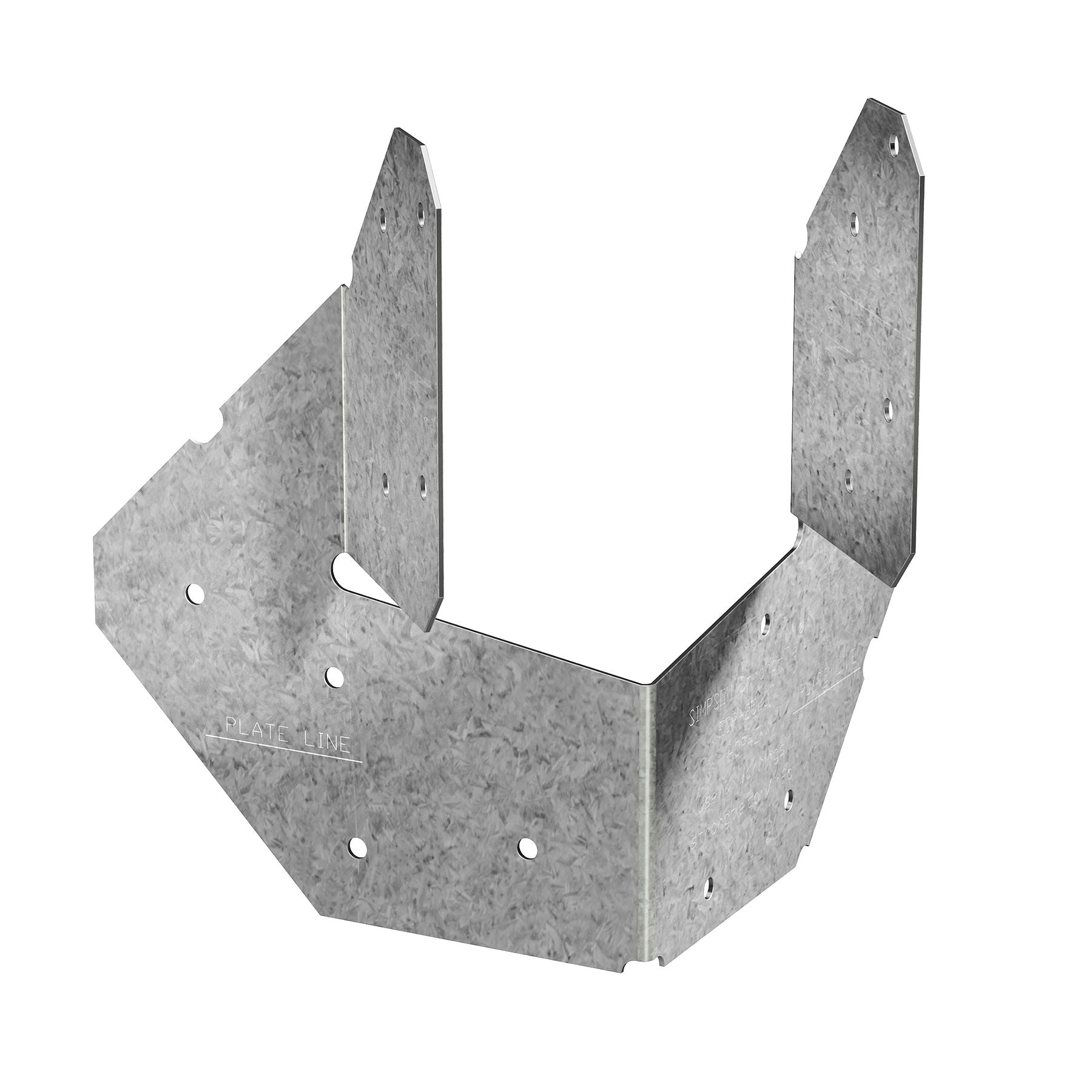

• HCP Hip Corner Plate - HCP4Z Shown

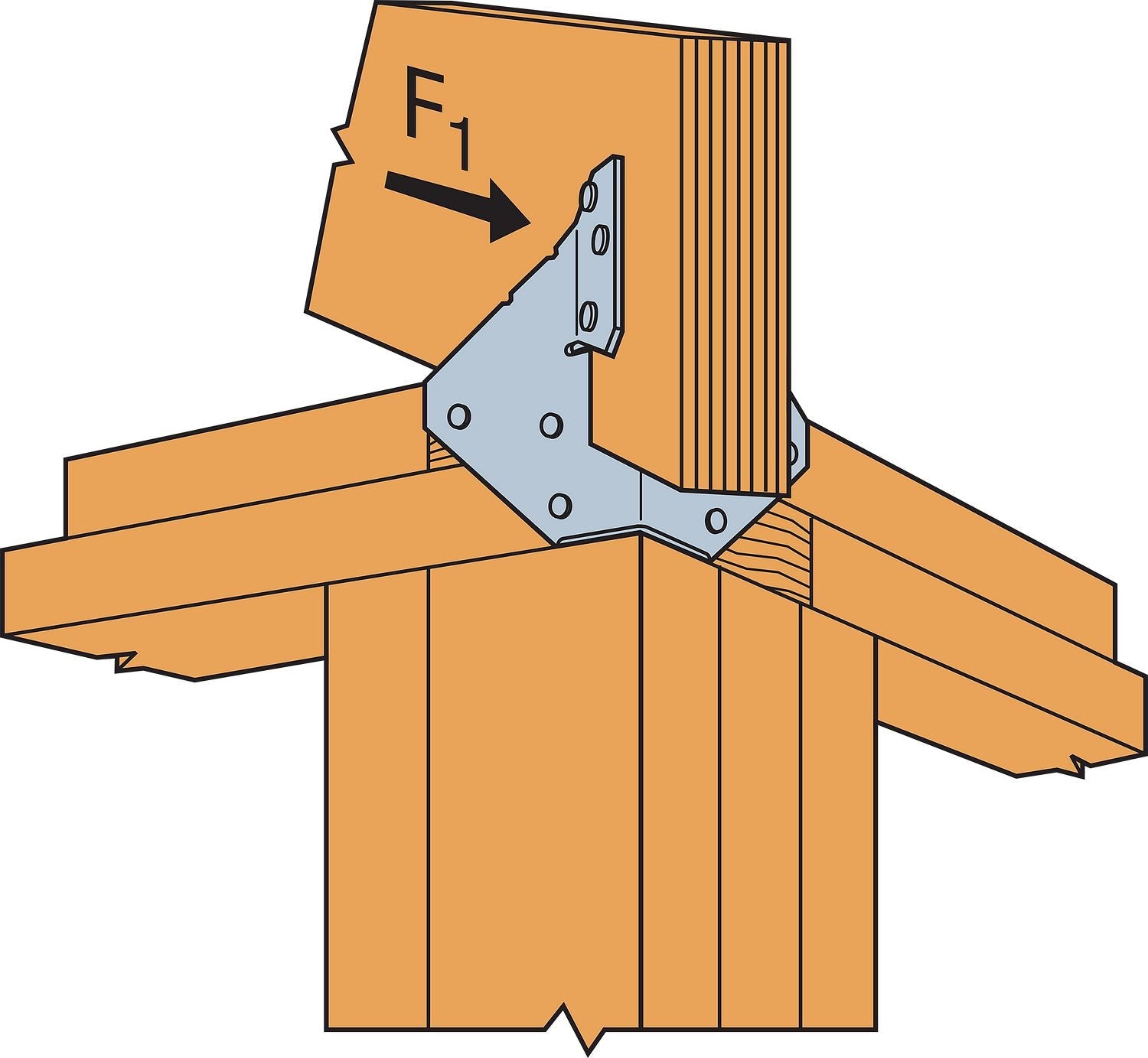

  • HCP Hip Corner Plate Typical Installation

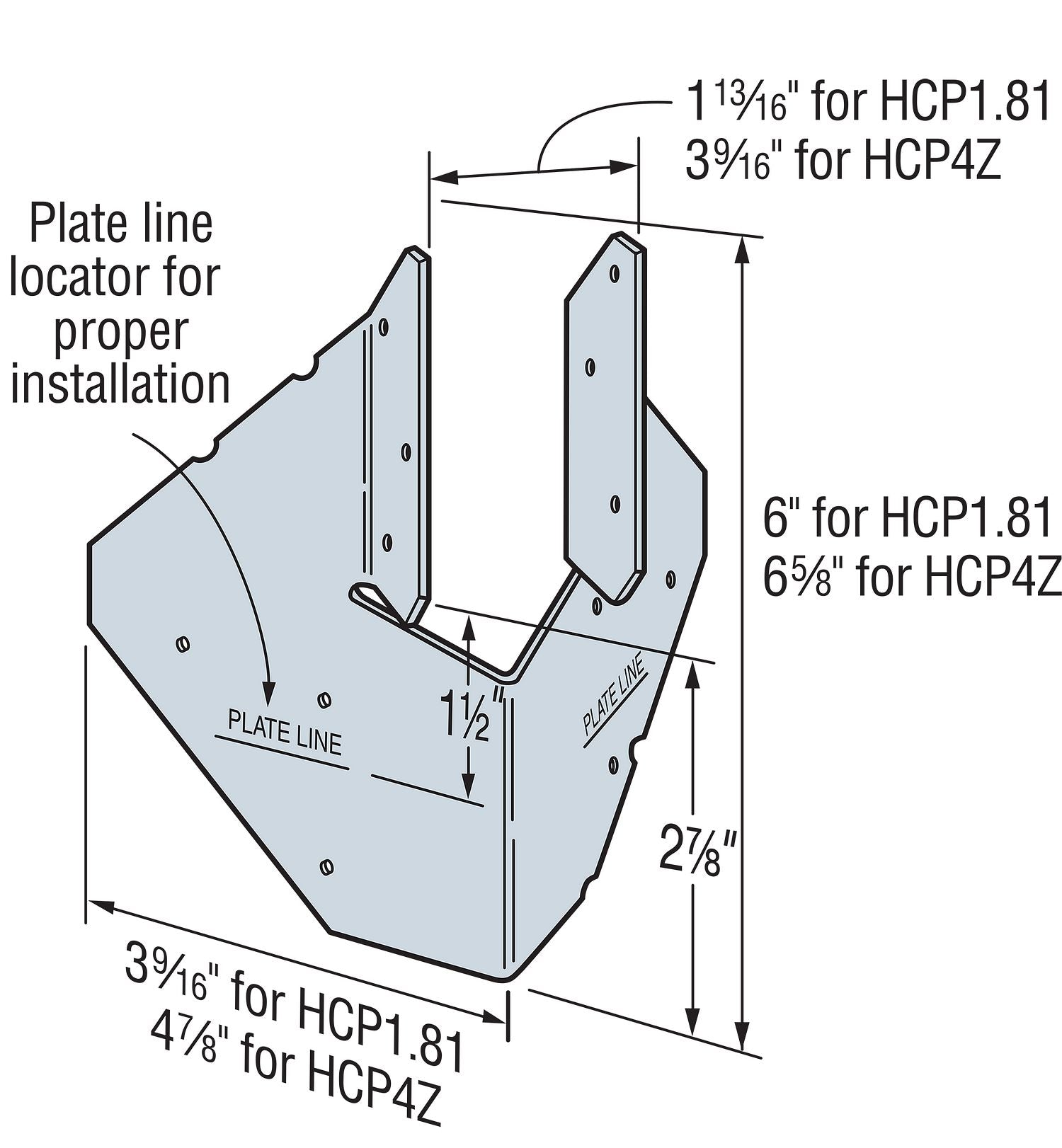

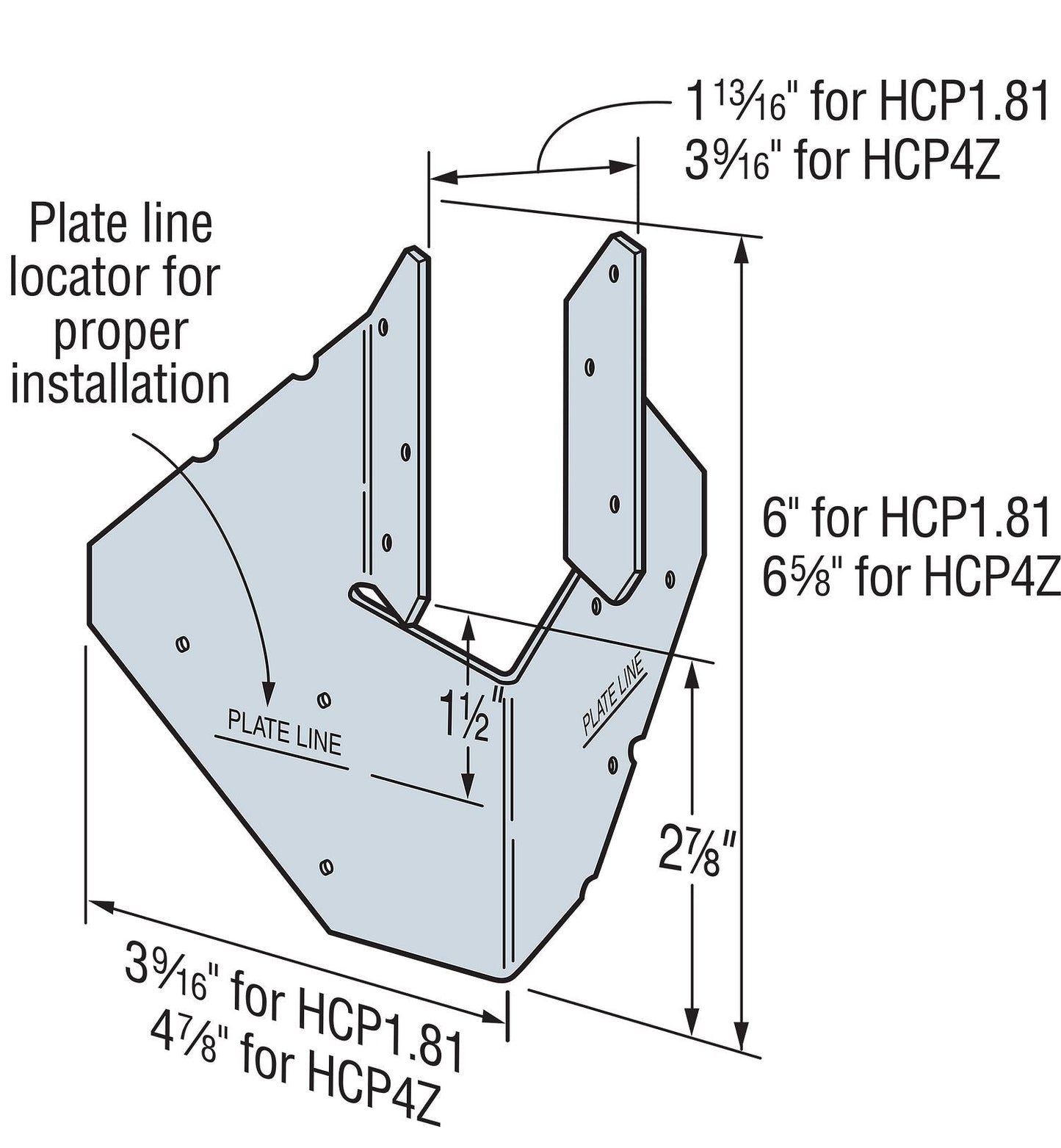

  • HCP1.81 (HCP4Z similar) U.S. Patent 5,380,115

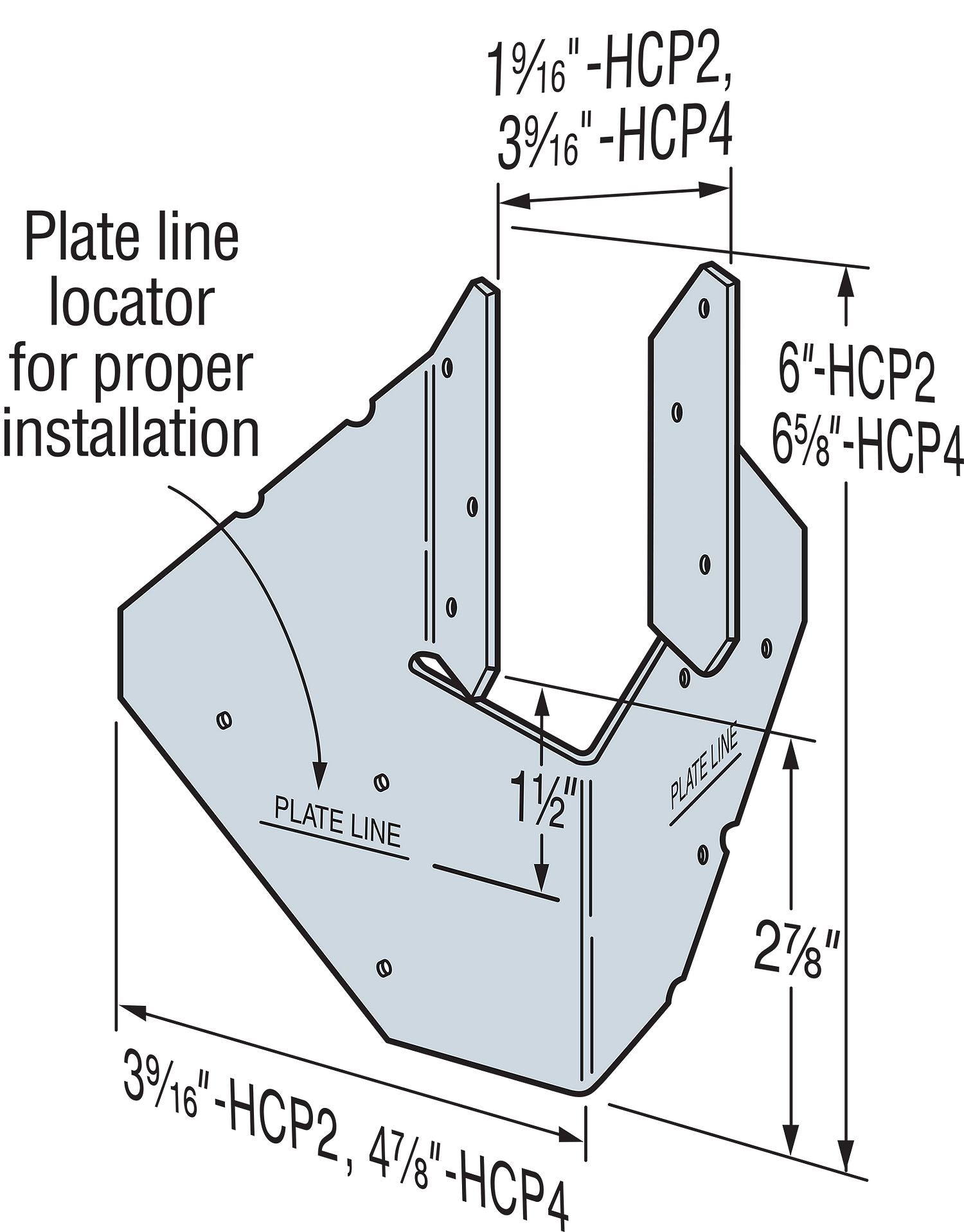

  • HCP2 (HCP4Z similar) U.S. Patent 5,380,115
1 4
Shop more HCP Hip Corner Plate
SKU: HCP2

Simpson HCP2 Hip Corner Plate - Galvanized

Simpson HCP2 Hip Corner Plate - Galvanized

$4.47
$4.47
0% off
shipping truck, lead time icon
Ships today when you order in the next 8 hours 57 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Simpson HCP Hip Corner Plate connects a rafter or joist to double top plates at a 45° angle.

Installation

  • Use all specified fasteners; see General Notes.
  • Attach HCP to double top plates.
  • Birdsmouth not required for table uplift loads but may be required for download.
  • Install rafter and complete nailing. Rafter may be sloped to 45°.

California Residents: WARNING

Specifications:


Height: 6"
Fasteners required: Rafters: (6) 0.148x1-1/2" Plates: (6) 0.148x1-1/2"
Thickness: 18 Gauge
Manufacturer name: Simpson Strong-Tie Company Inc
