SKU: HETAL20Z

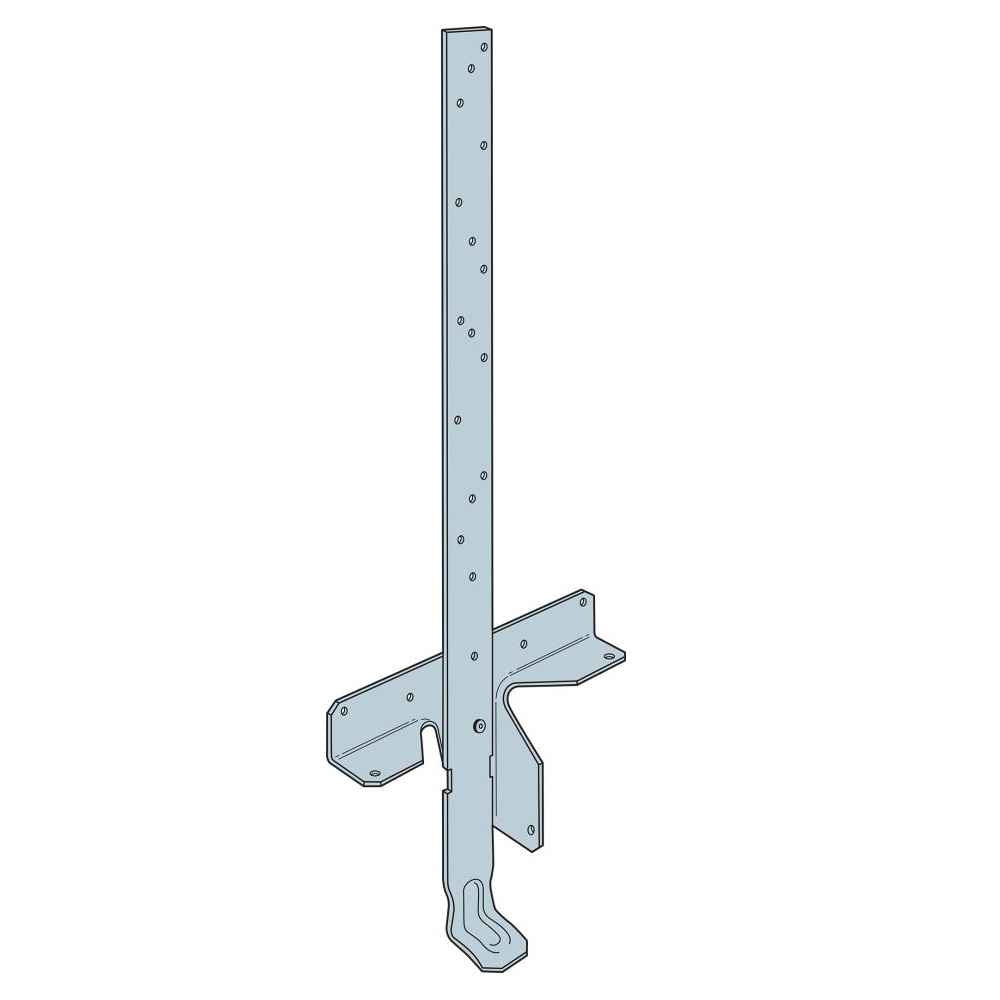

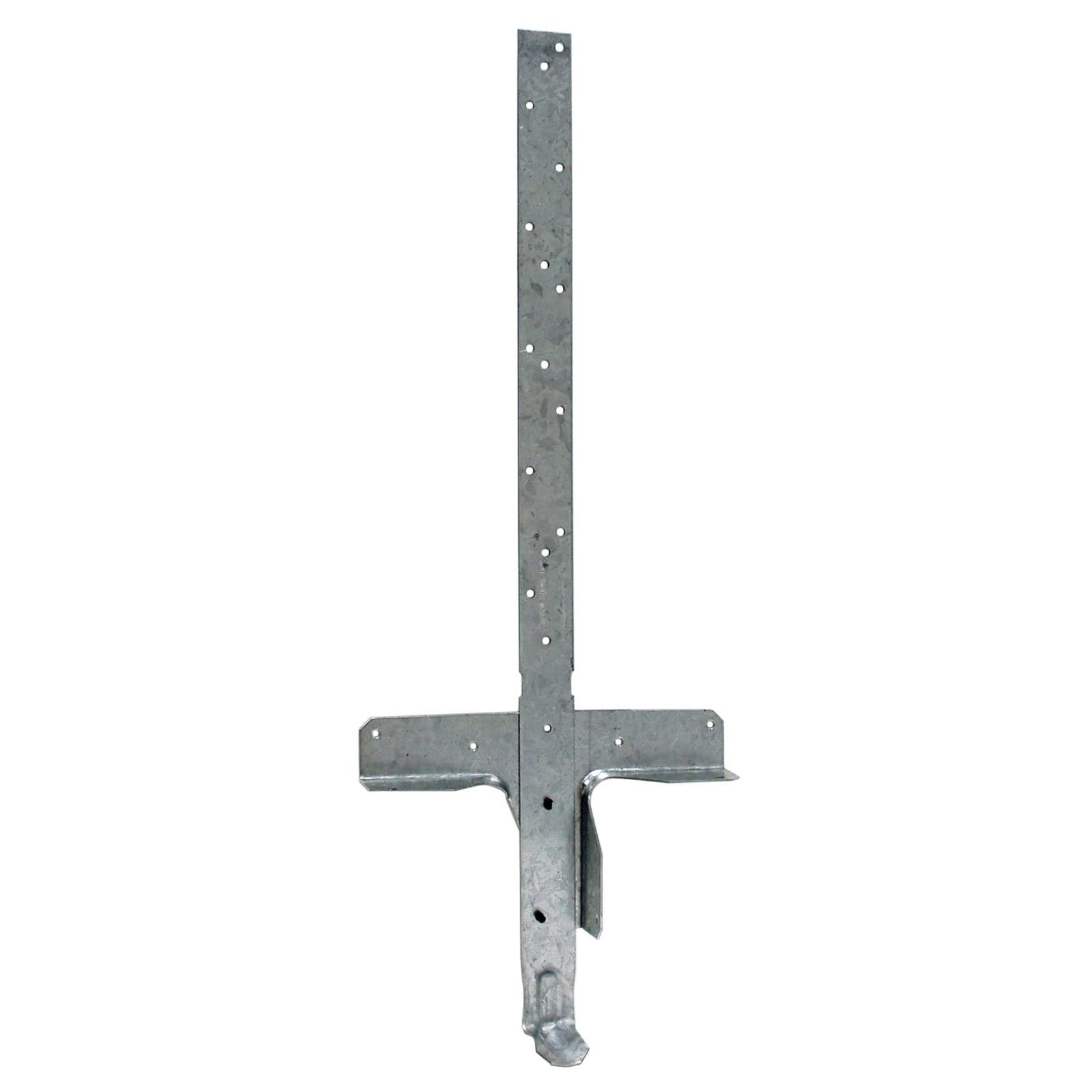

Simpson HETAL20Z 15" Embedded Truss Anchor - Zmax Finish

Simpson HETAL20Z 15" Embedded Truss Anchor - Zmax Finish!

Skip to product information
$4.58

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 10 hours 26 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: SEE PRODUCT GUIDE DOCUMENT
For Treated Lumber: Yes
Height: 15"
Manufacturer name: Simpson Strong-Tie
Description

The HETAL embedded truss anchor series provides an engineered method to properly attach roof trusses to concrete and masonry walls. The products are designed with staggered nail patterns for greater uplift resistance. Information regarding the use of two anchors on single- and multi-ply trusses is included. The Strong-Tie HETAL20Z Embedded Truss Anchor features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners (included).
  • The META, HETA and HHETA are embedded 4" into a 6" min. concrete beam or 8" nominal grouted block wall; HETAL is embedded 5 1/16"; DETAL is embedded 4 1/2".
  • For mislocated truss anchors which are greater than 1/8" but less than 1 1/2" from the face of the truss, a shim must be provided. Shim design by Truss Engineer. When gap is greater than 1 1/2", install new anchors.
  • In double embedded anchor installations, do not install fasteners where the straps overlap when wrapped over the truss heel.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
