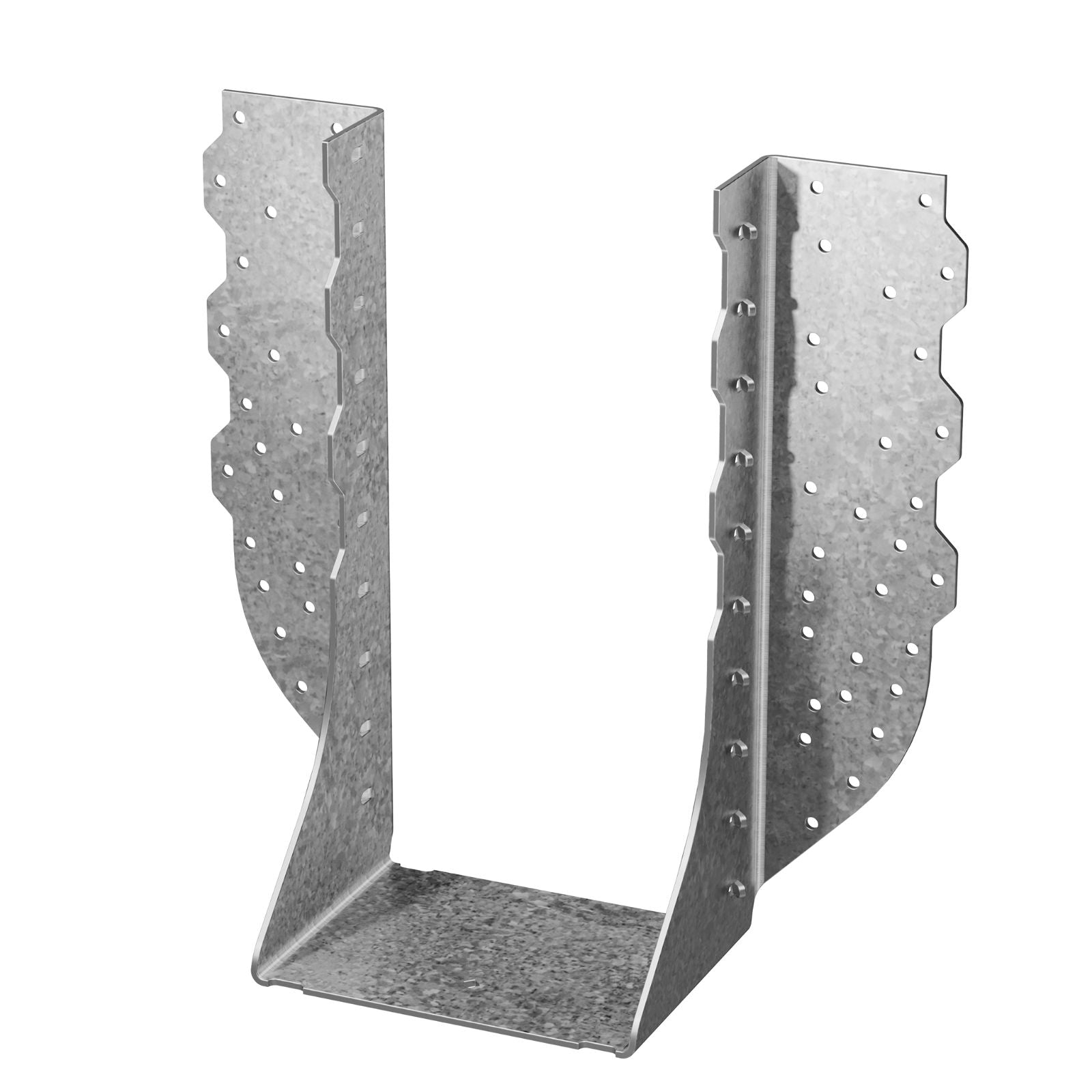

Simpson HGUS5.25/12 Heavy Glulam Beam Hanger

SKU: HGUS5.25-12

$111.46

Simpson Strong-Tie HGUS hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HGUS5.25/12 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
  • With 3x carrying members, use 16dx2-1/2" (0.162" dia. x 2-1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1-1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HGUS hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and sa...

Read More

Simpson Strong-Tie HGUS hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HGUS5.25/12 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
  • With 3x carrying members, use 16dx2-1/2" (0.162" dia. x 2-1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1-1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
SEE PRODUCT GUIDE DOCUMENT

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
10-9/16"

Thickness:
12 Gauge

Width Spec:
5-1/4"

Product Guide:

Read More

Show Less
